Aten Extender, HDMI, HDBaseT, Transmitter and Receiver - VE812

Aten
ATVE812EXTHDMIX
R 9,008.43 Ex VAT

• Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver

• HDMI (3D, Deep Colour, 4kx2k); HDCP Compatible

• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD

• Long distance transmission - up to 100m

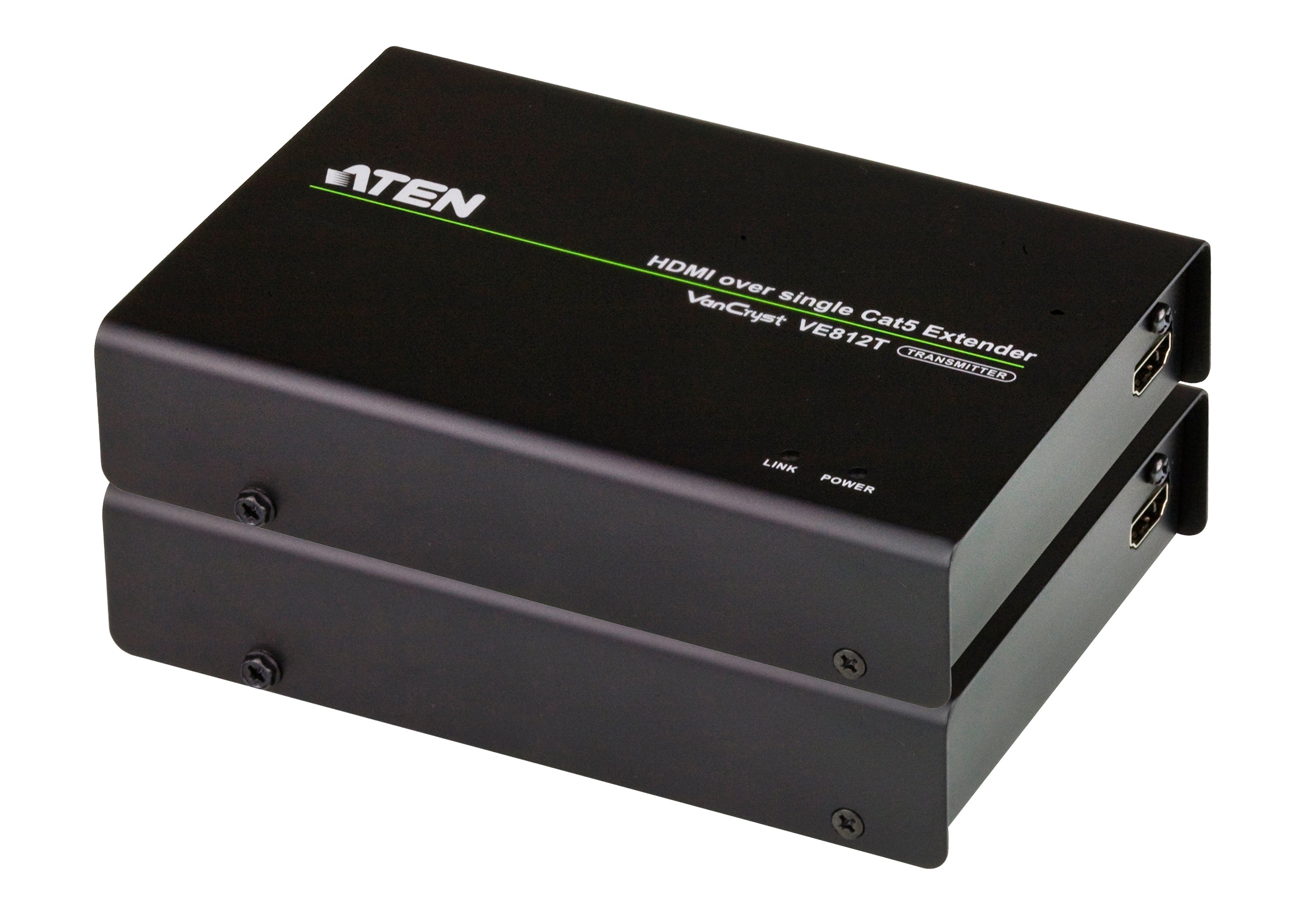

The VE812 HDMI HDBaseT Extender enables an HDMI display to be located up to 100 meters away from the source device. It can be conveniently extended using only one Cat 5e cable, which is cost-effective.

The VE812 supports HDMI (3D, Deep Colour), Ultra HD (4k x 2k), and is HDCP compatible. Furthermore, the remote EDID pass-through ensures optimum video quality for any HDMI display.

The VE812 is perfect for the meeting room, home theatre or any installation that needs long-distance transmission and superior video quality.

Package Contents

1x VE812T HDMI HDBaseT Transmitter

1x VE812R HDMI HDBaseT Receiver

2x Power Adapters

1x Mounting Kit

1x User Instructions





Function

VE812R

VE812T

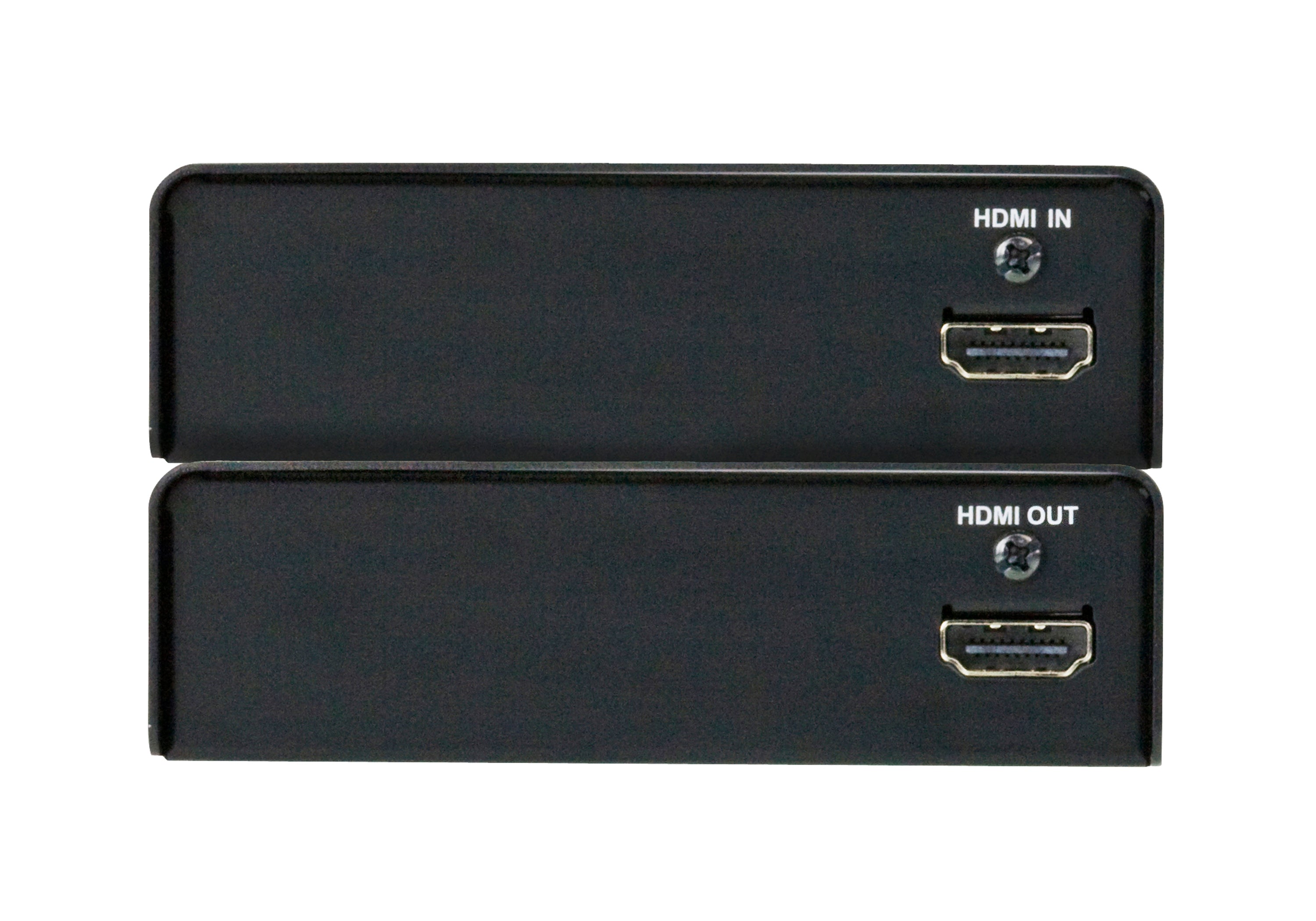

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

Up to 340 MHz

Up to 340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Connectors

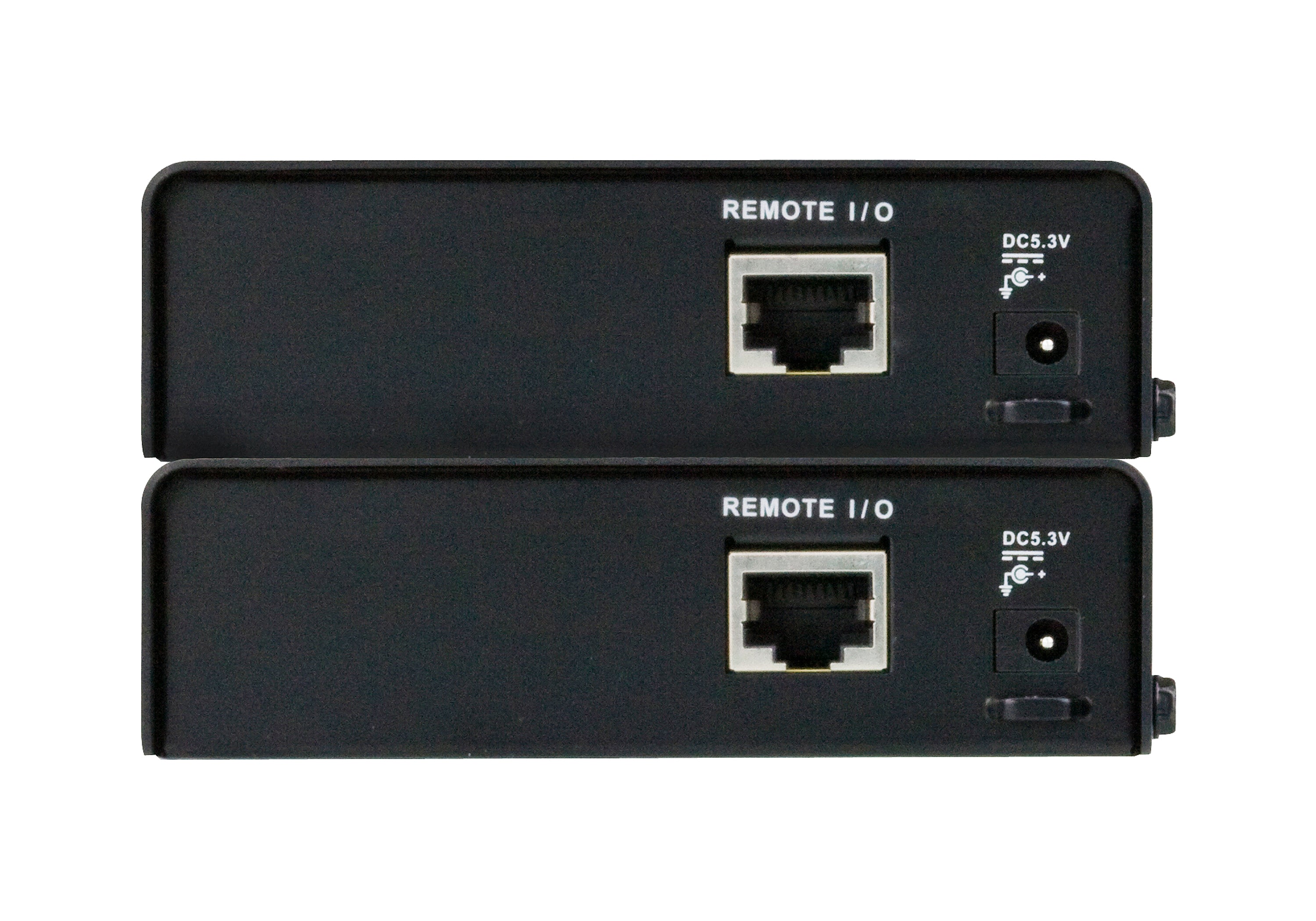

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5.3V:5.06W:24BTU

DC5.3V:2.22W:10BTU

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.41 kg ( 0.9 lb )

0.40 kg ( 0.88 lb )

Dimensions (L x W x H)

14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)

14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)

Carton Lot

5 pcs

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
