Aten Extender, HDMI, HDBaseT - Lite, Transmitter and Receiver - VE801

Aten
ATVE801EXTHDMIX
R 3,050.00 Ex VAT

• Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable

• HDMI (3D, Deep colour, 4K); HDCP 2.2 compliant

• Superior video quality - Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6

• HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology

• Plug-and-play

• Rack-mountable

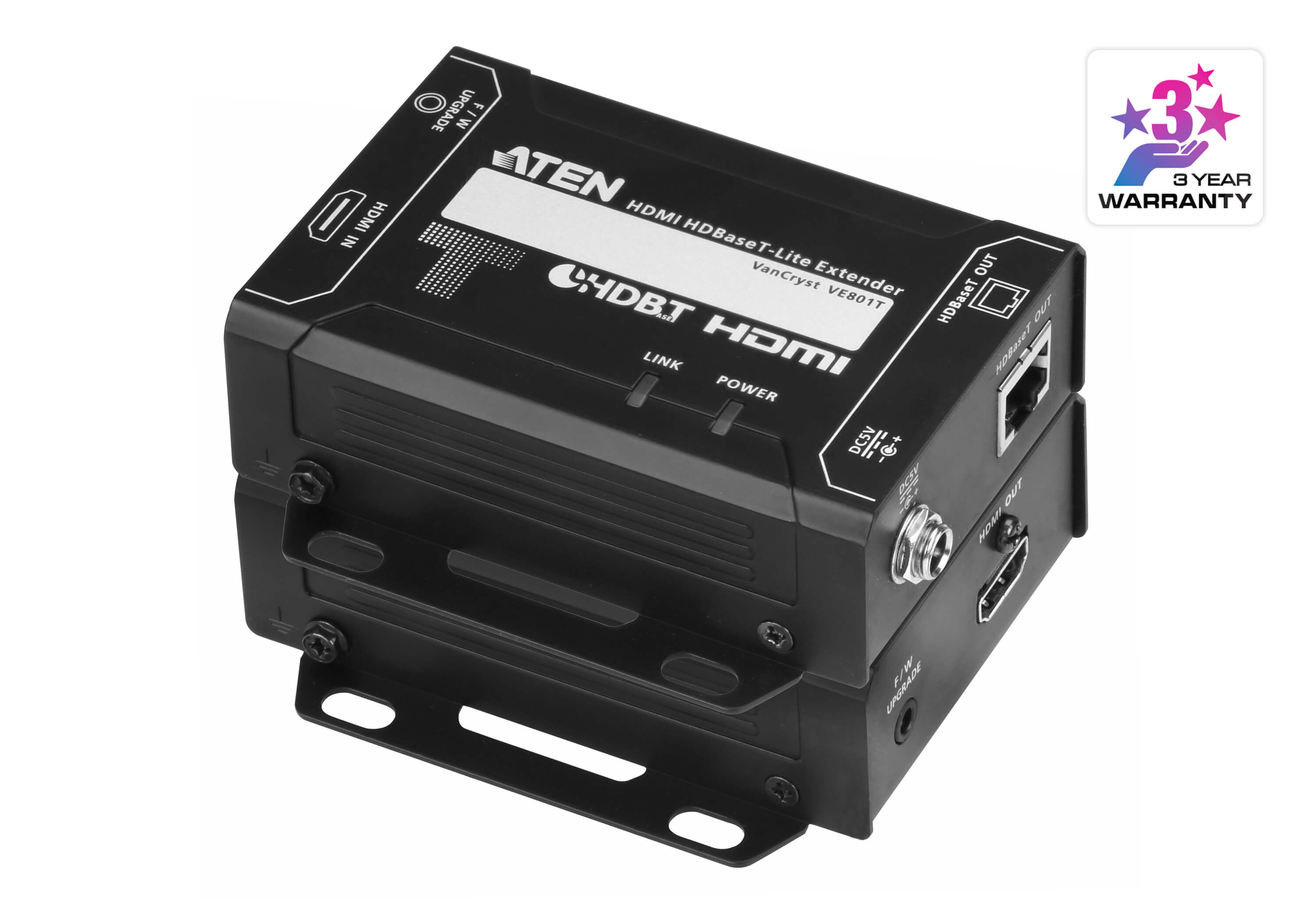

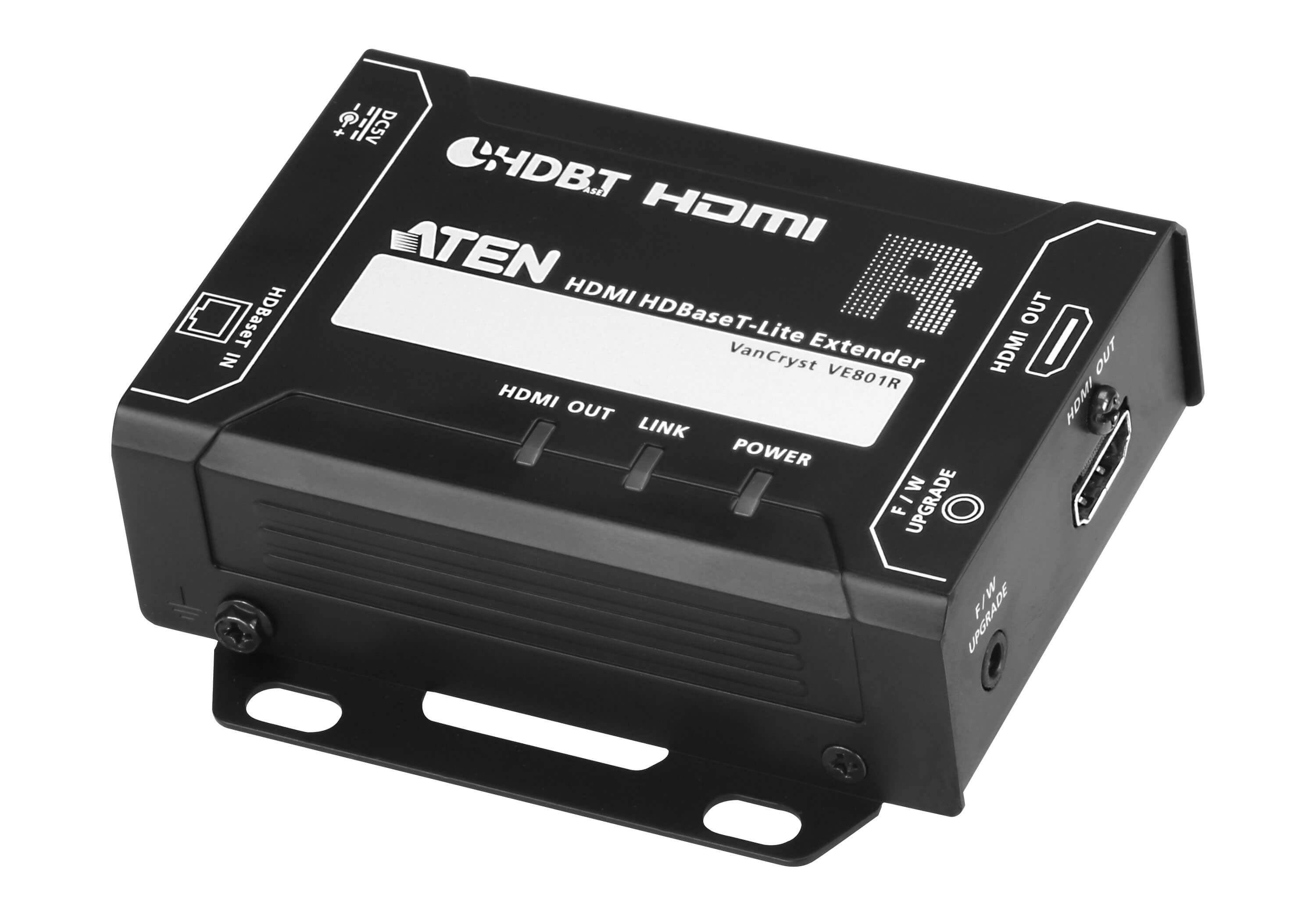

The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Colour and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended for great distances.

Package Contents

1x VE801T/R HDMI HDBaseT-Lite Extender

2x Power Adapters

1x User Instructions

Function

VE801R

VE801T

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Connectors

Power

1 x DC Jack (Black) with locking

1 x DC Jack (Black) with locking

Unit To Unit

1 x RJ-45 Female

1 x RJ-45 Female

Power Consumption

DC5V:4.24W:20BTU

DC5V:1.86W:9BTU

Environmental

Operating Temperature

0-50°C

0-50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0% - 80% RH, Non-condensing

0% - 80% RH, Non-condensing

Physical Properties

Housing

Metal

Metal

Weight

0.25 kg ( 0.55 lb )

0.24 kg ( 0.53 lb )

Dimensions (L x W x H) with bracket

9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)

9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)

Dimensions (L x W x H) without bracket

9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)

9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)





VE801 Datasheet PDF
