Aten Extender, HDMI, HDBaseT - Lite, Transmitter and Receiver - VE802 – Solution Technologies

Aten Extender, HDMI, HDBaseT - Lite, Transmitter and Receiver - VE802

Aten
ATVE802EXTHDMIX
R 6,703.47 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

• PoH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable

• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

• Bi-directional IR channel – IR transmission is processed one direction at a time

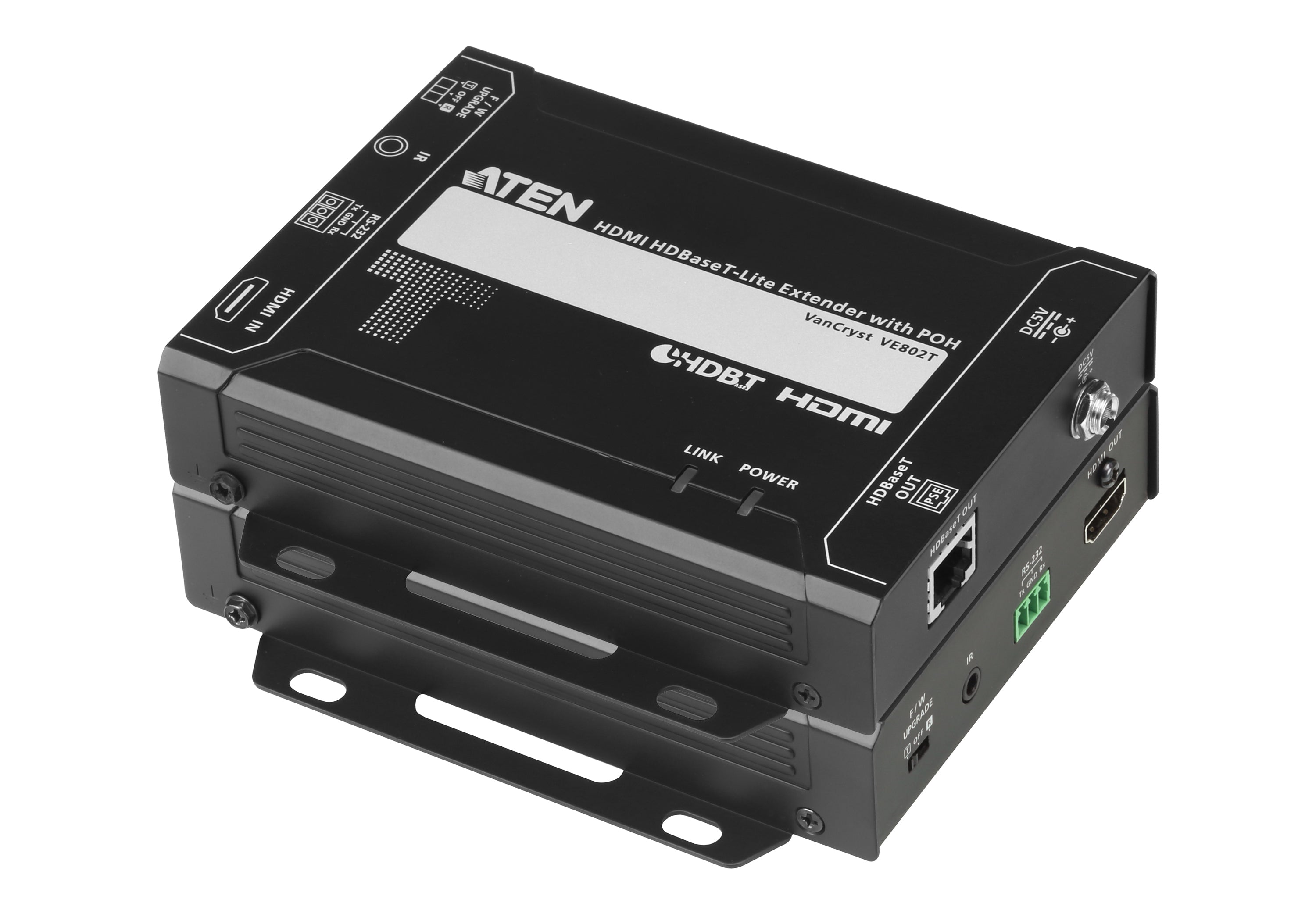

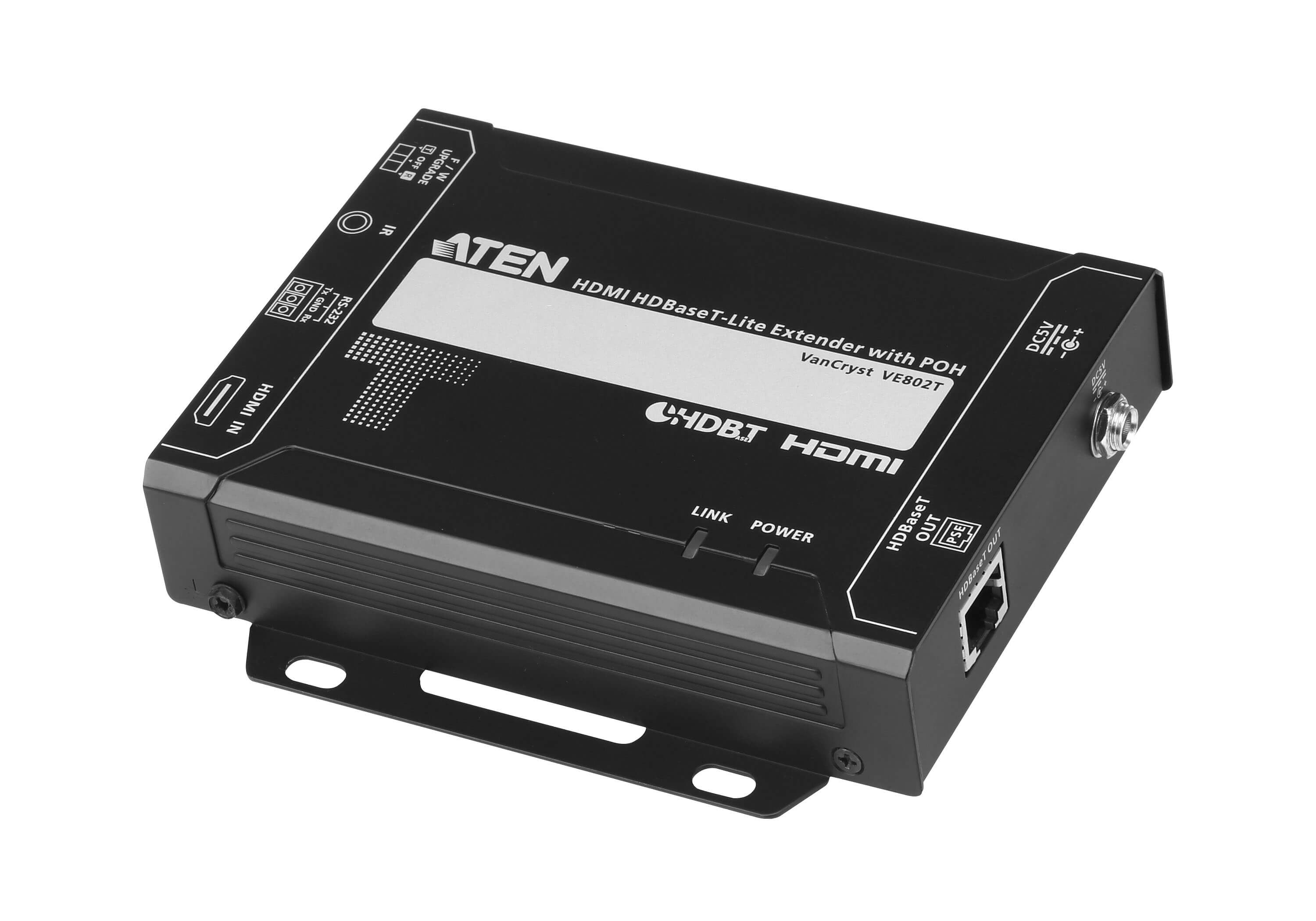

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (PoH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D, Deep Color,4k) and HDCP compatible. The VE802 is perfect for a digital entertainment centre or any installation that requires superior video quality.

Package Contents

1x VE802T/R HDMI HDBaseT-Lite Extender with PoH

1x Power Adapter (VE802T)

1x IR Transmitter

1x IR Receiver

2x Terminal Blocks

1x User Instructions



Function

VE802R

VE802T

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

Control

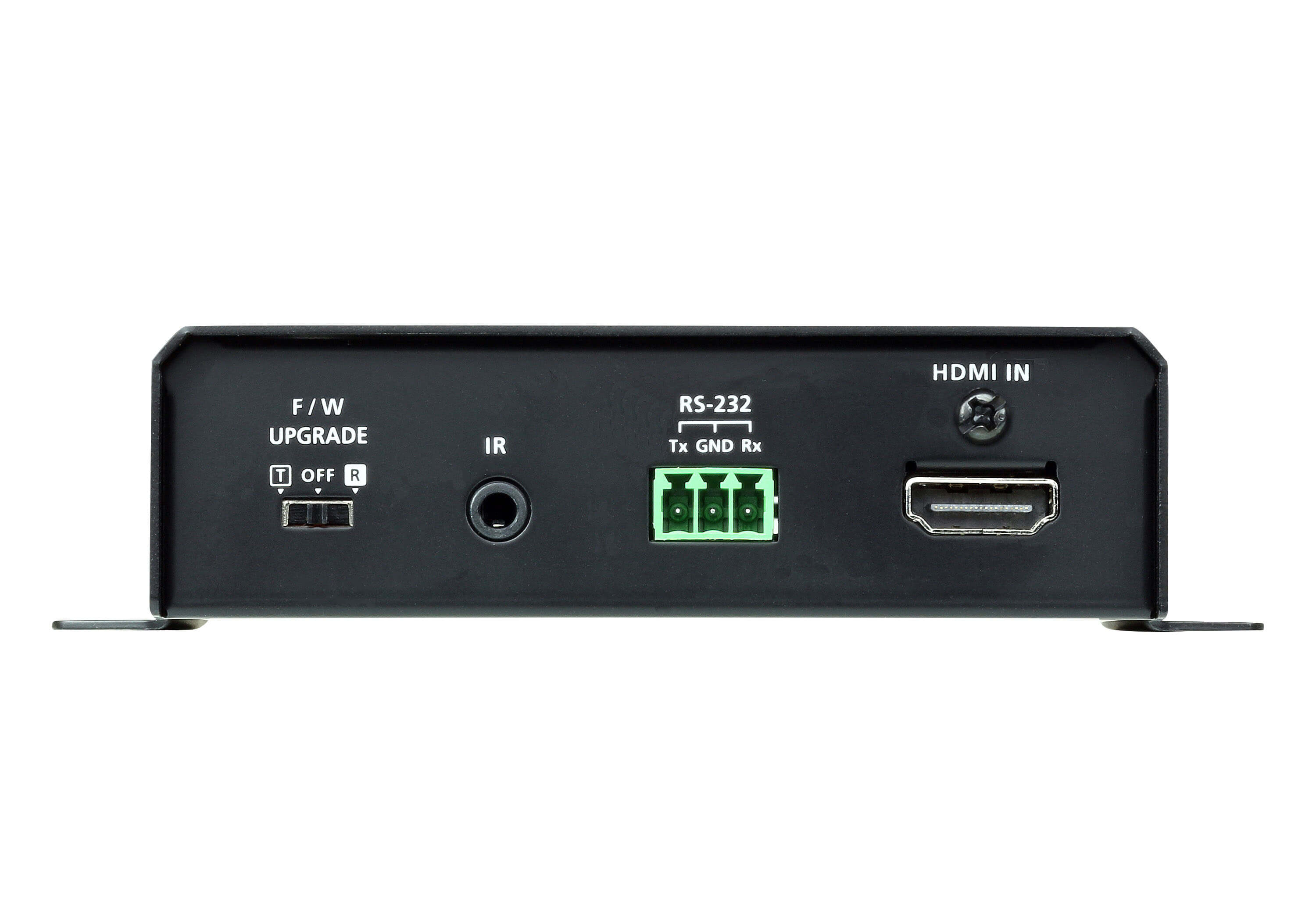

RS-232

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

IR

1 x Mini Stereo Jack Female (Black)

1 x Mini Stereo Jack Female (Black)

Connectors

Power

1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)

1 x DC Jack (Black) with locking

Unit To Unit

1 x RJ-45 Female

1 x RJ-45 Female

Power Consumption

DC5V:4.37W:20BTU
POH:5.46W:25BTU

DC5V:2.7W:13BTU

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.46 kg ( 1.01 lb )

0.44 kg ( 0.97 lb )

Dimensions (L x W x H) with bracket

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
