Aten Extender, HDMI, HDBaseT - Lite, Transmitter - VE801T

Aten
ATVE801TEXTHDMIX
R 1,725.00 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e/6/6a cable

• HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology

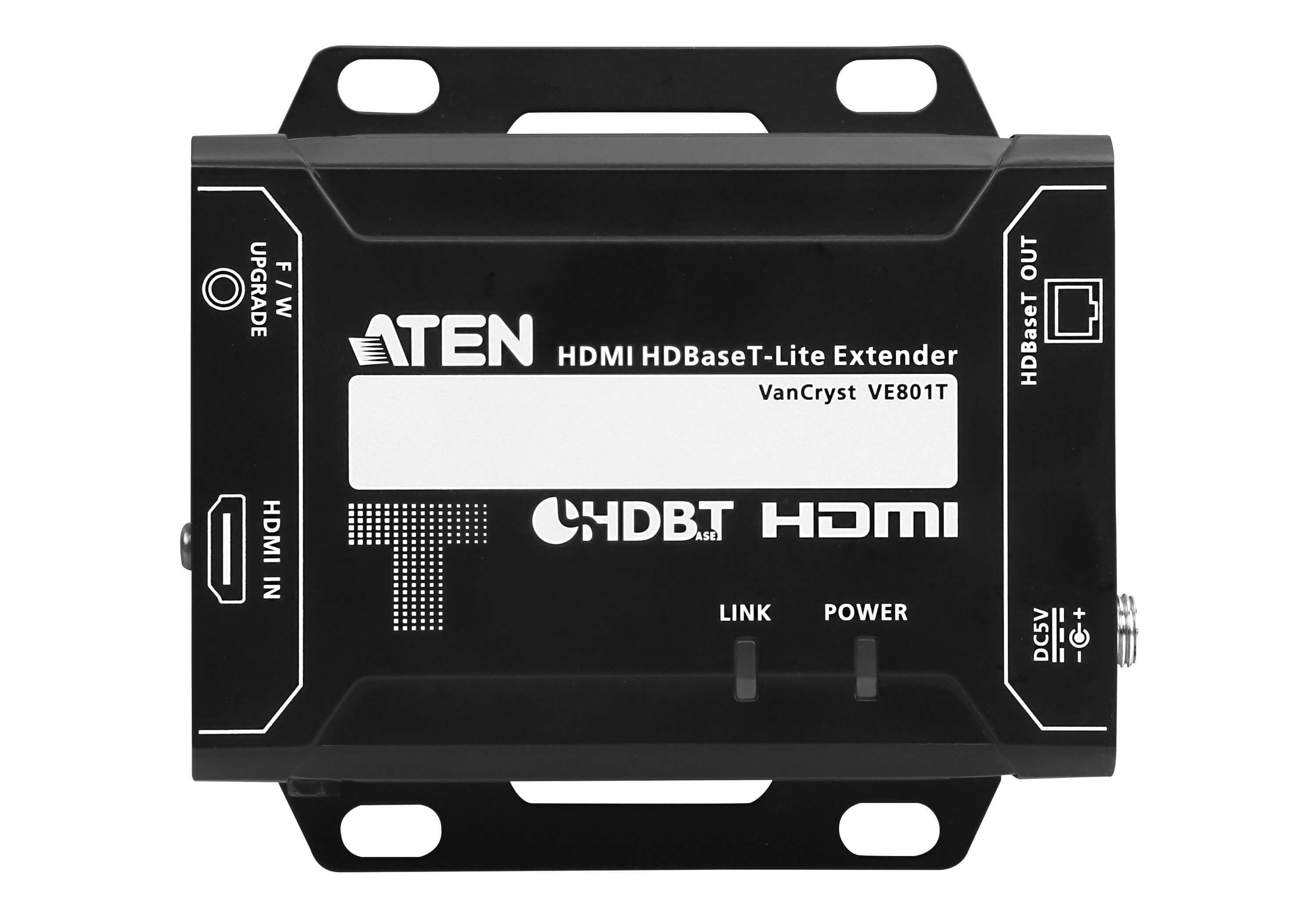

The VE801T HDMI HDBaseT-Lite Transmitter connects with HDBaseT receivers* to extend signals up to 70m from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended at great distances.

* Compatible HDBaseT Receiver Units: VE801R



Package Contents

  • 1x VE801T HDMI HDBaseT-Lite Extender
  • 1x Power Adapter
  • 1x User Instructions


Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100Ω

Max. Distance

3 m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)

Connectors

Power

1 x DC Jack (Black) with locking

Unit To Unit

1 x RJ-45 Female

Power Consumption

DC5V:1.86W:9BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0% - 80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.24 kg ( 0.53 lb )

Dimensions (L x W x H) with bracket

9.86 x 8.70 x 3.00 cm
(3.88 x 3.43 x 1.18 in.)

Dimensions (L x W x H) without bracket

9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)



VE801T Datasheet PDF
