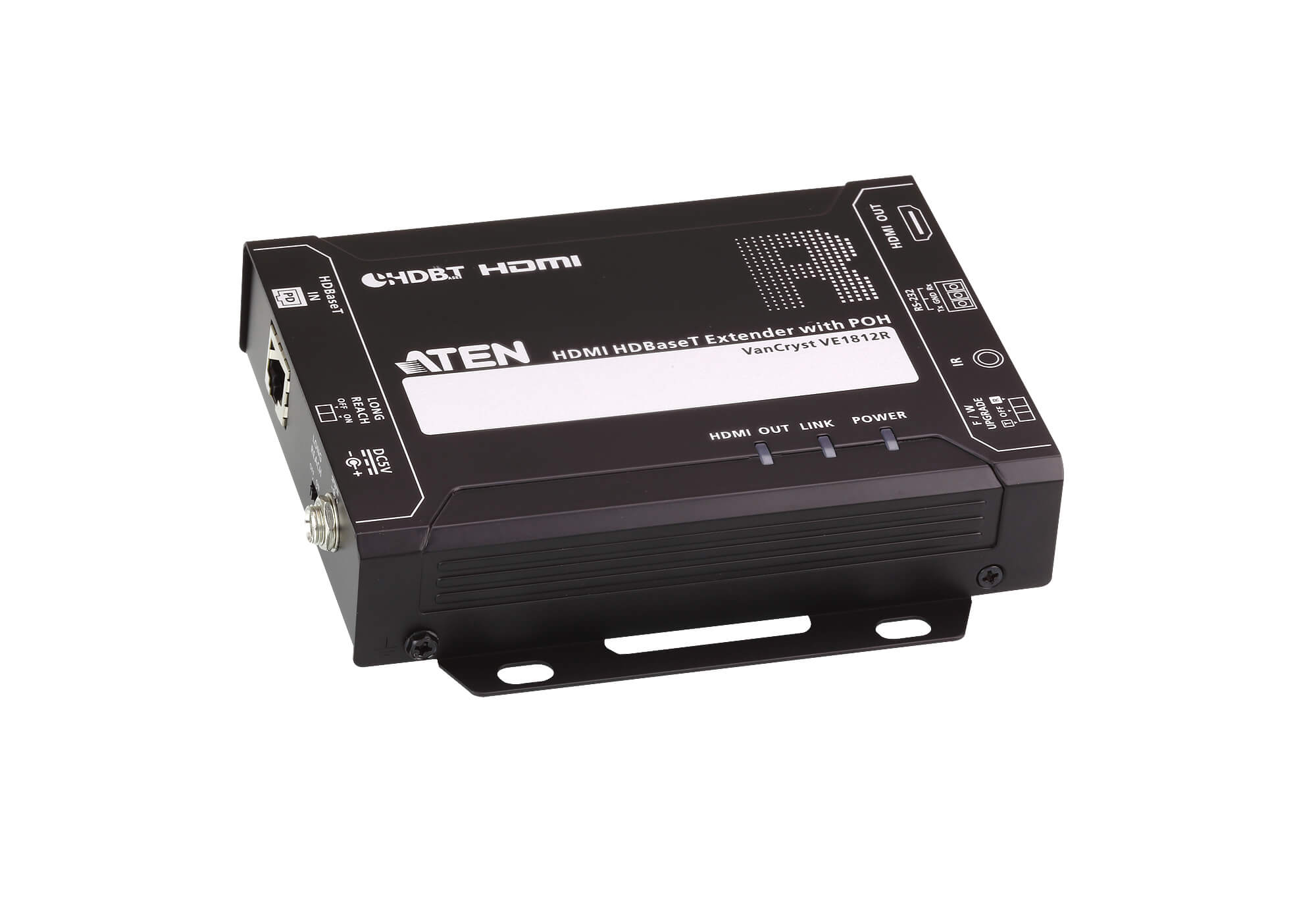

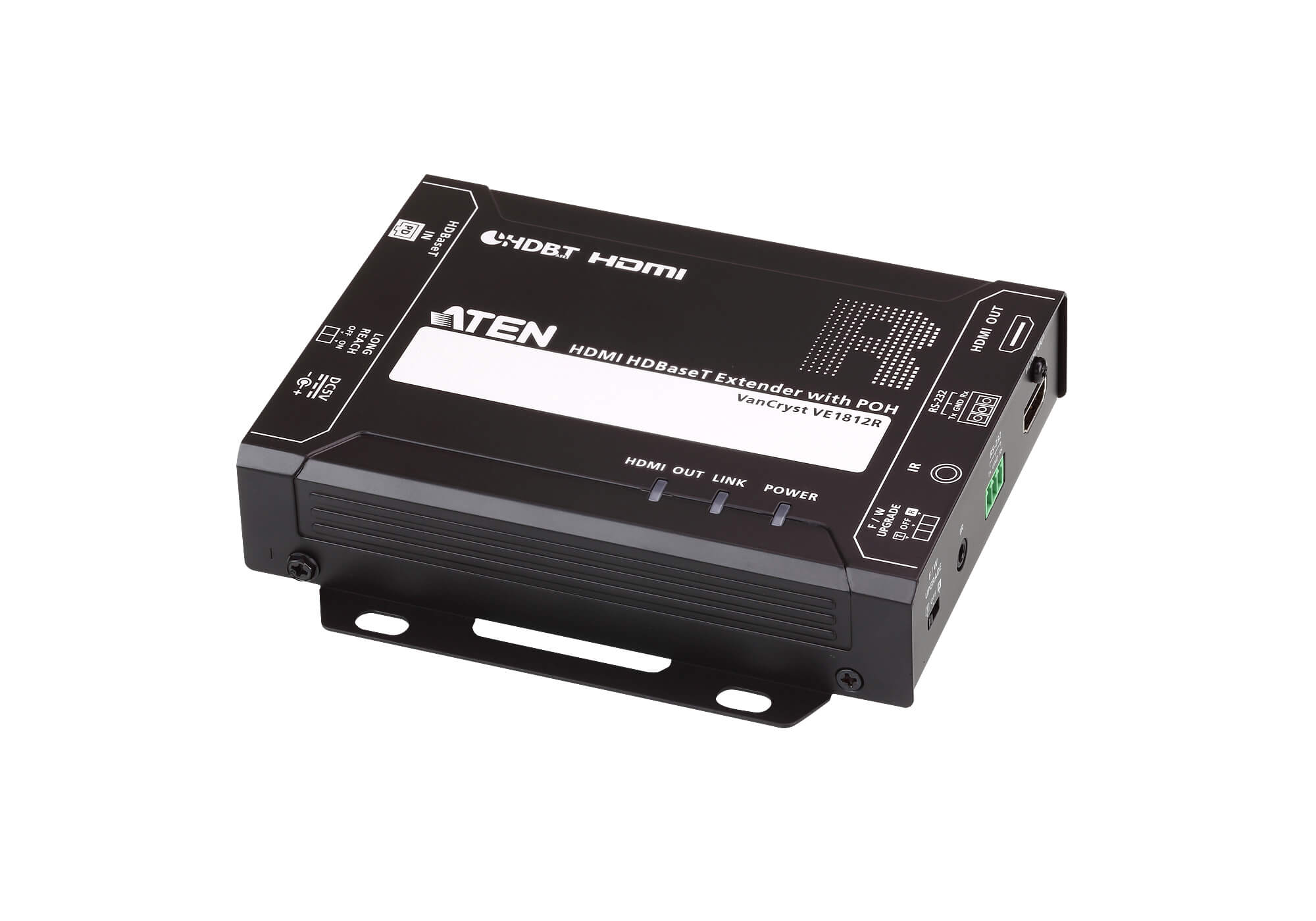

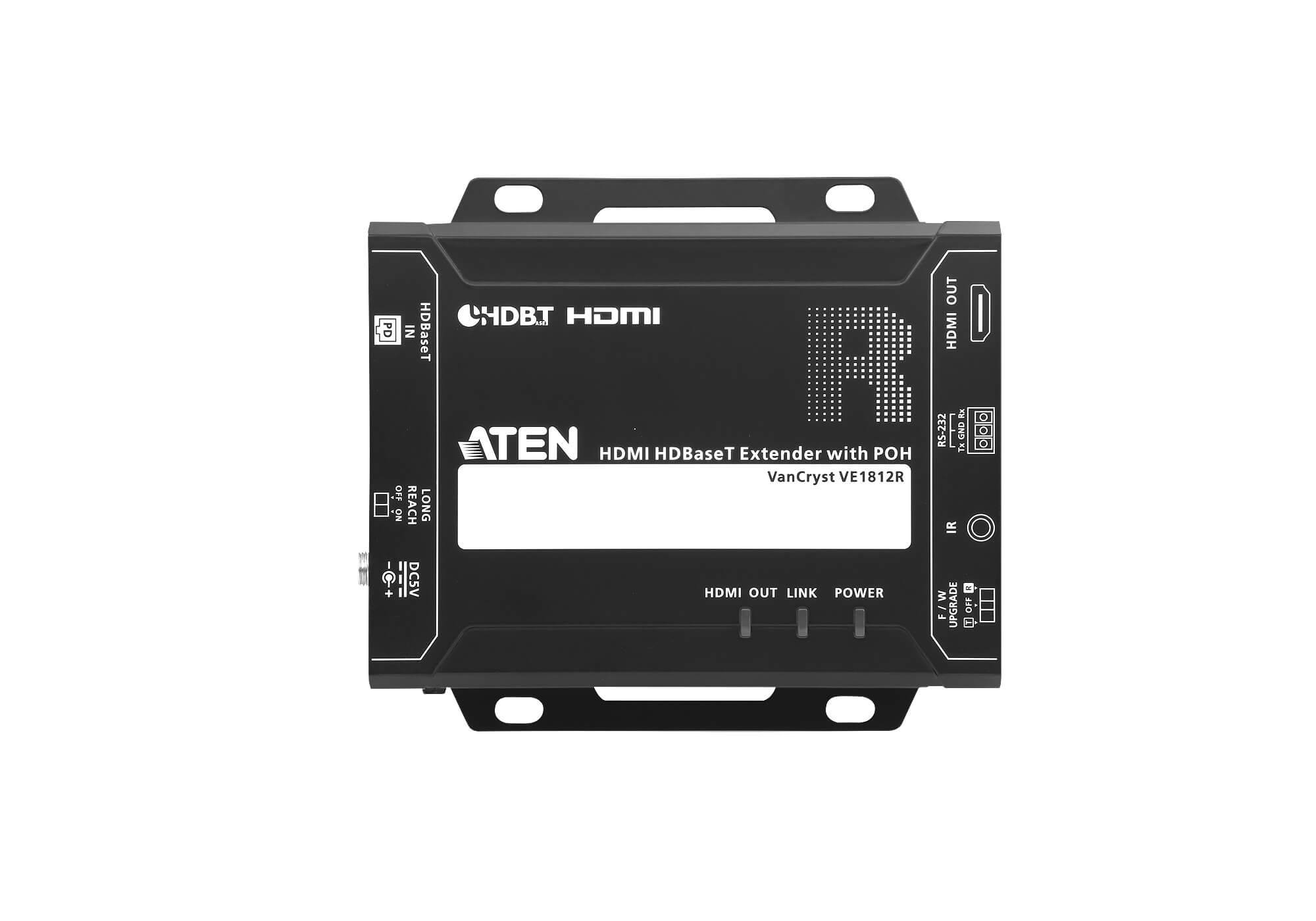

Aten Extender, HDMI, POH, HDBaseT, Receiver - VE1812R

R 5,575.99 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable

• Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p

• 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable

• HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology

• POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable

• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

• Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time

• Rack- Mountable

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signalling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Colour, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Package Contents

1x VE1812R HDMI HDBaseT Receiver with POH

1x Power Adapter

1x RS-232 Terminal Block

1x User Instructions


Video Output


1 x HDMI Type A Female (Black)


100 Ω

Max. Distance

3 m


Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz


HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

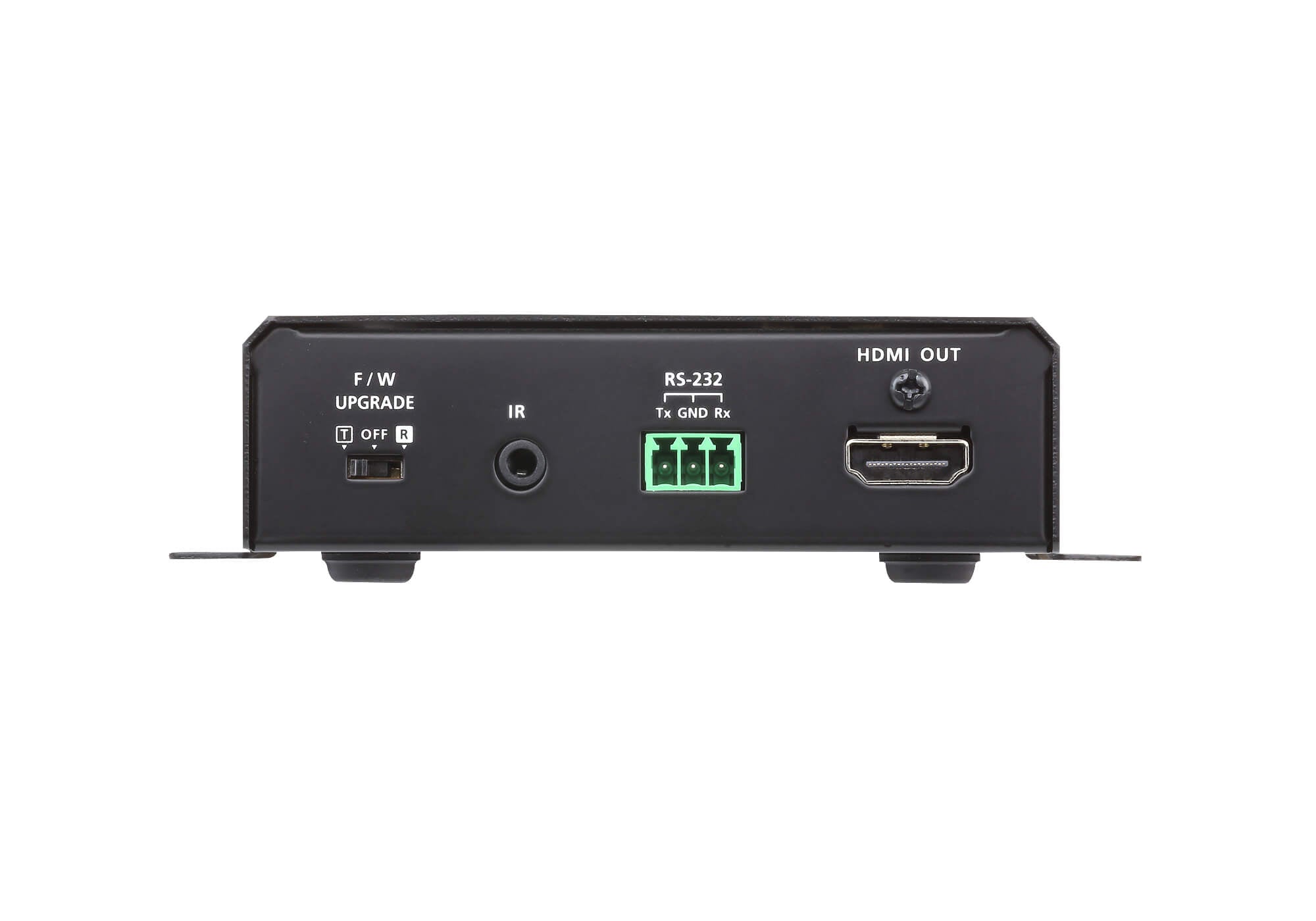

1 x HDMI Type A Female (Black)

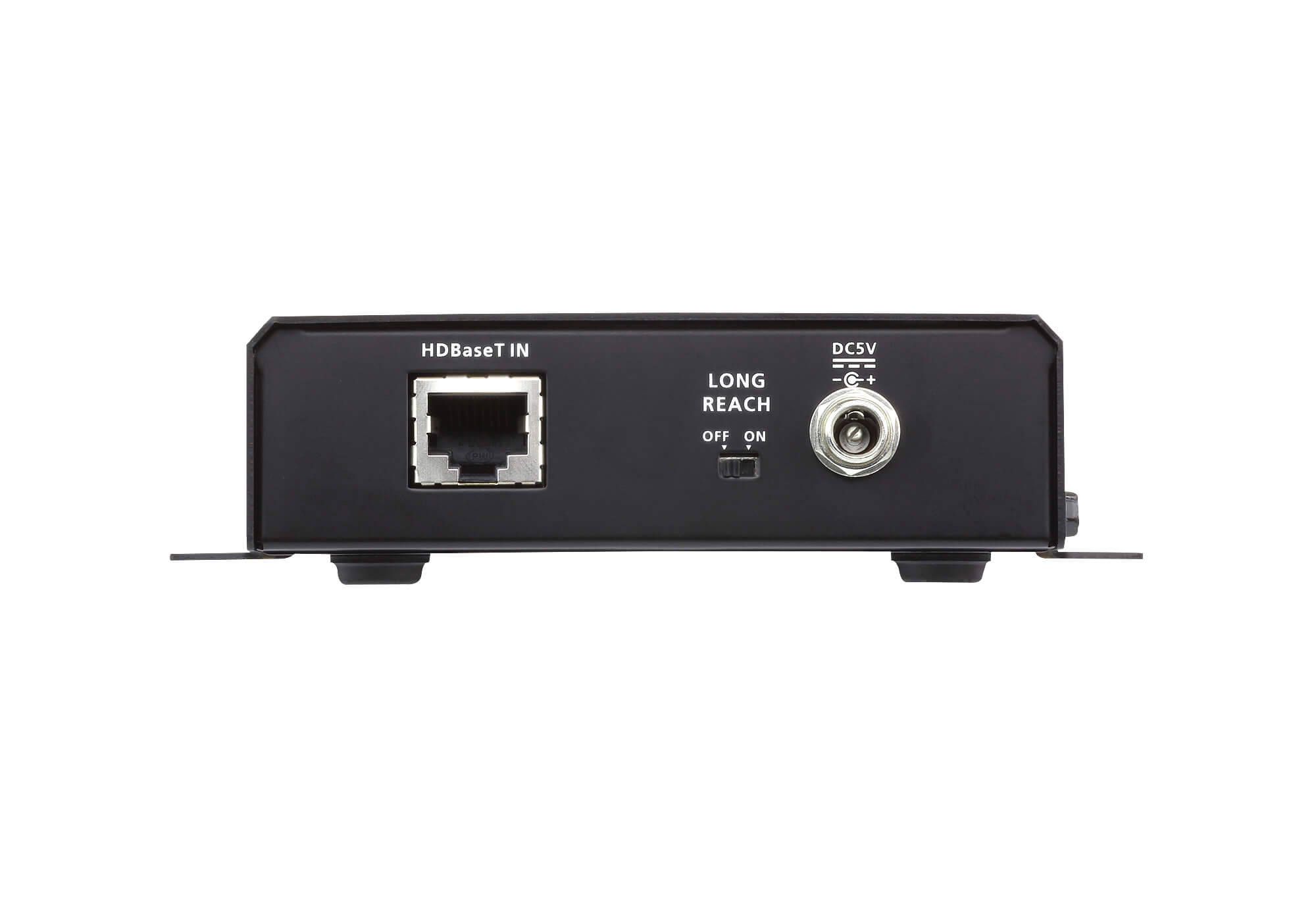

Unit To Unit

1 x RJ-45 Female


1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)



Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control


1 x Mini Stereo Jack Female (Black)


Long Reach Mode Switch

1 x Slide Switch - ON/OFF

Firmware Upgrade

1 x Slide Switch - ON/OFF

Power Consumption



Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C


0 - 80% RH, Non-Condensing

Physical Properties




0.45 kg ( 0.99 lb )

Dimensions (L x W x H) with bracket

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)


VE1812R Datasheet PDF
