Aten Extender, HDMI, POH, HDBaseT, Transmitter and Receiver - VE1812

Aten
ATVE1812EXTHDMIX
R 10,736.88 Ex VAT

• HDBaseT Connectivity – extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable

• Supports HDBaseT Long Reach Mode – Up to a maximum range of 150 meters @ 1080p

• 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable

• HDBaseT Anti-jamming – resists signal interference during high - quality video transmission using HDBaseT technology

• POH (Power over HDBaseT) – supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable

• Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners

• Bi-directional IR channel – Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time

• Rack- Mountable

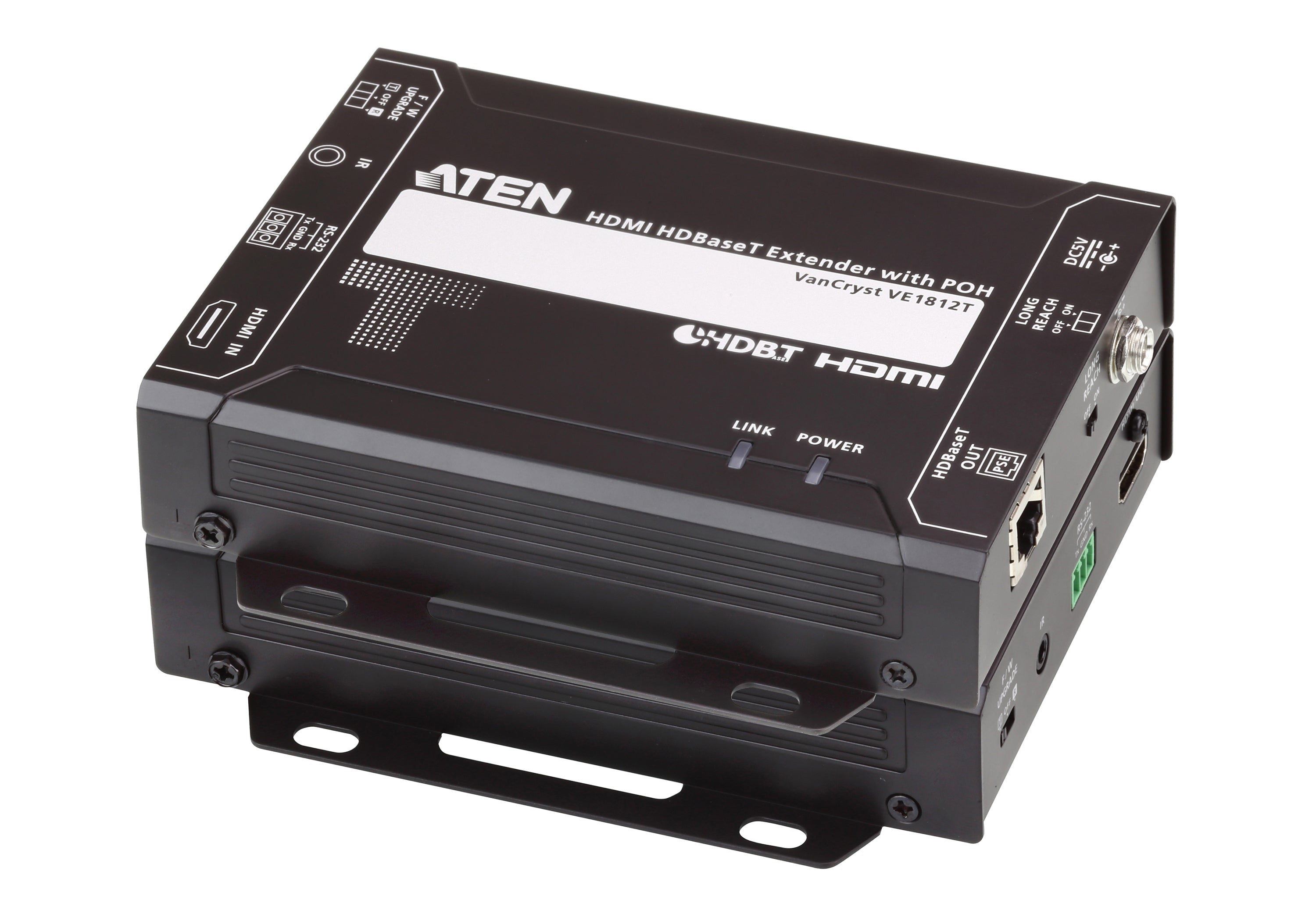

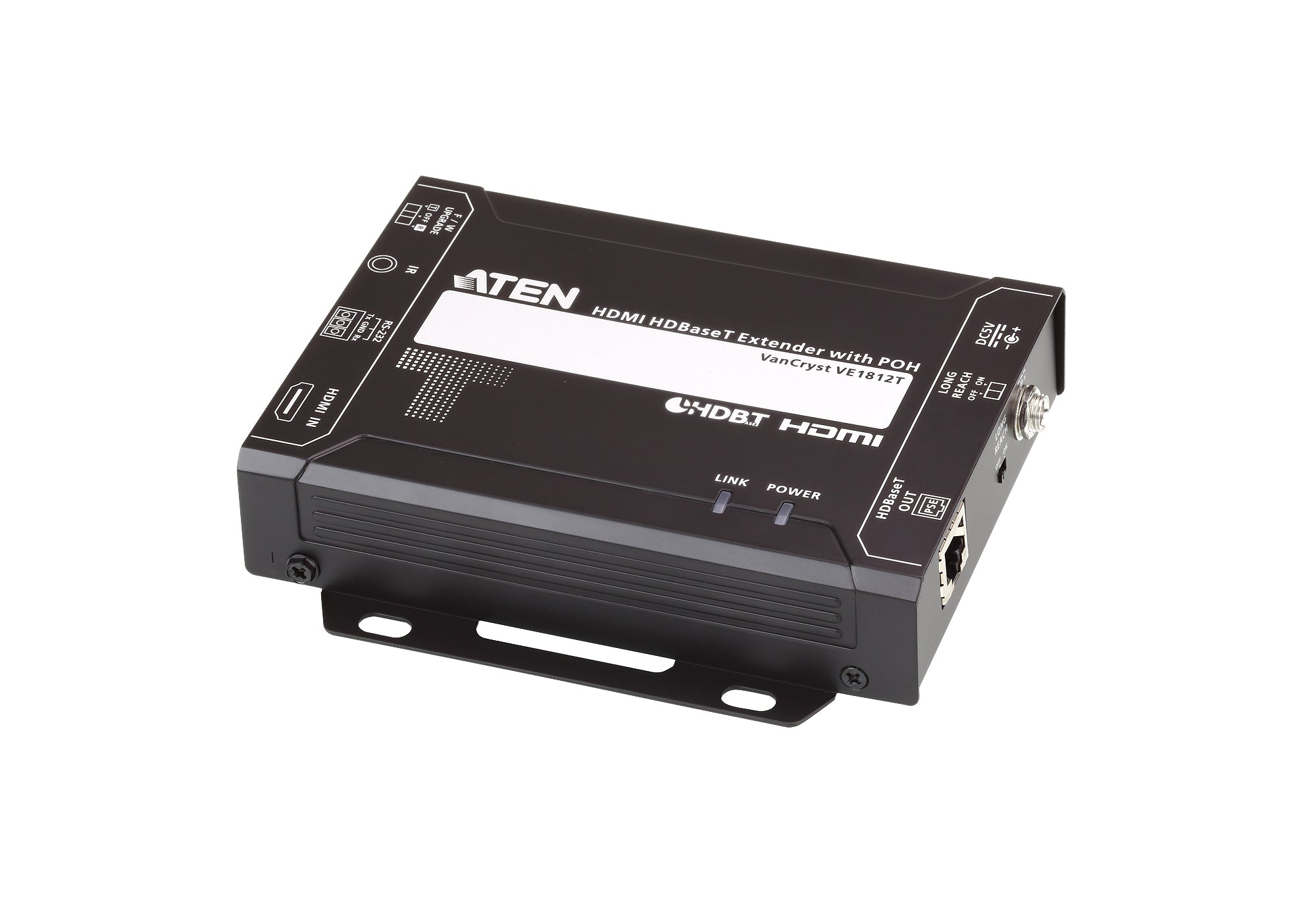

The VE1812 HDMI HDBaseT Extender with POH is the ideal solution for connecting equipment in remote locations up to 100m over a single Cat 5e / 6 / 6a cable. With Long Reach Mode enabled, the VE1812 can extend HDMI signal up to 150m @1080p.

The VE1812 supports RS-232 and IR signalling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812 features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812 is HDMI (3D, Deep Colour, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. The VE1812 is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Package Contents

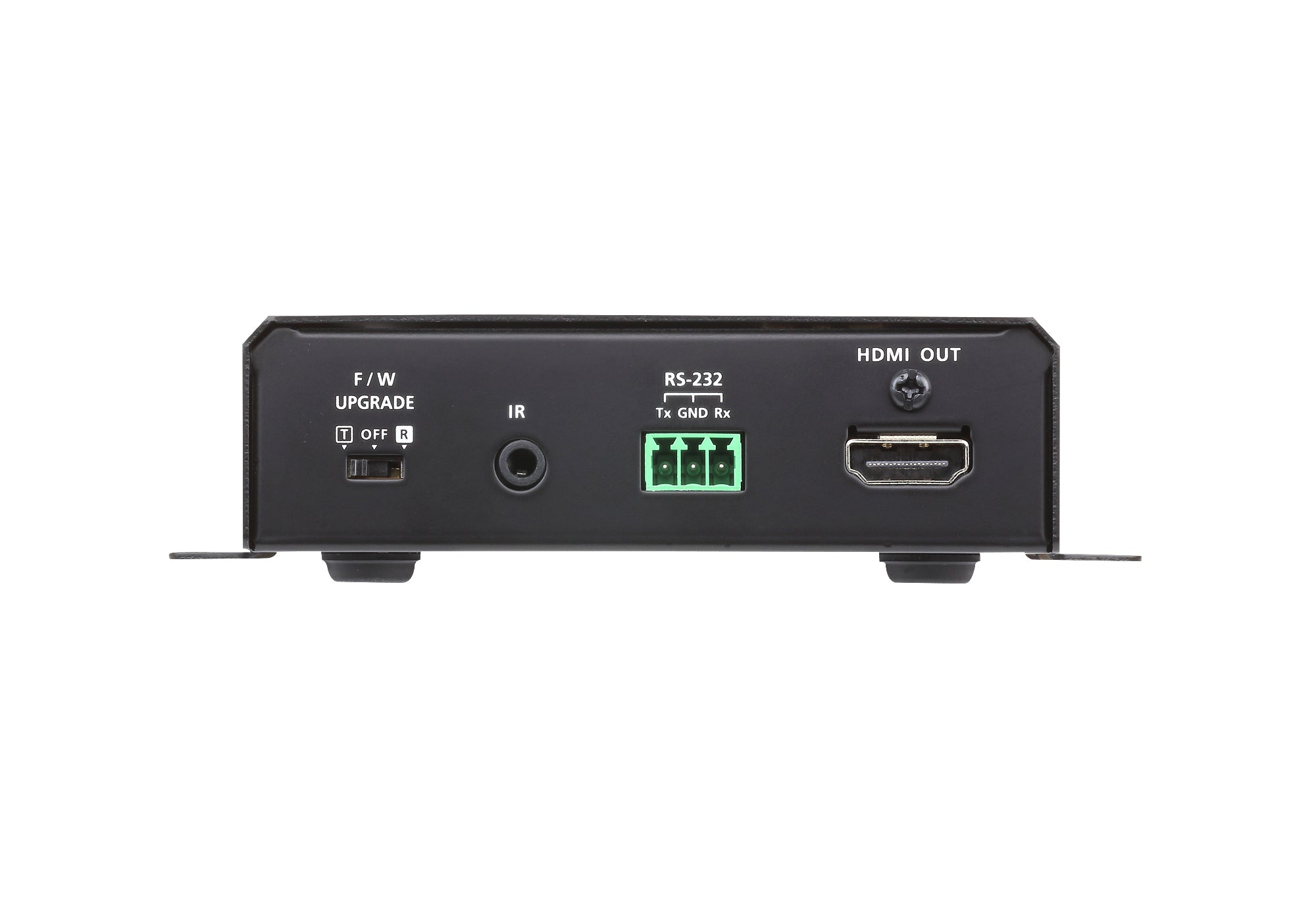

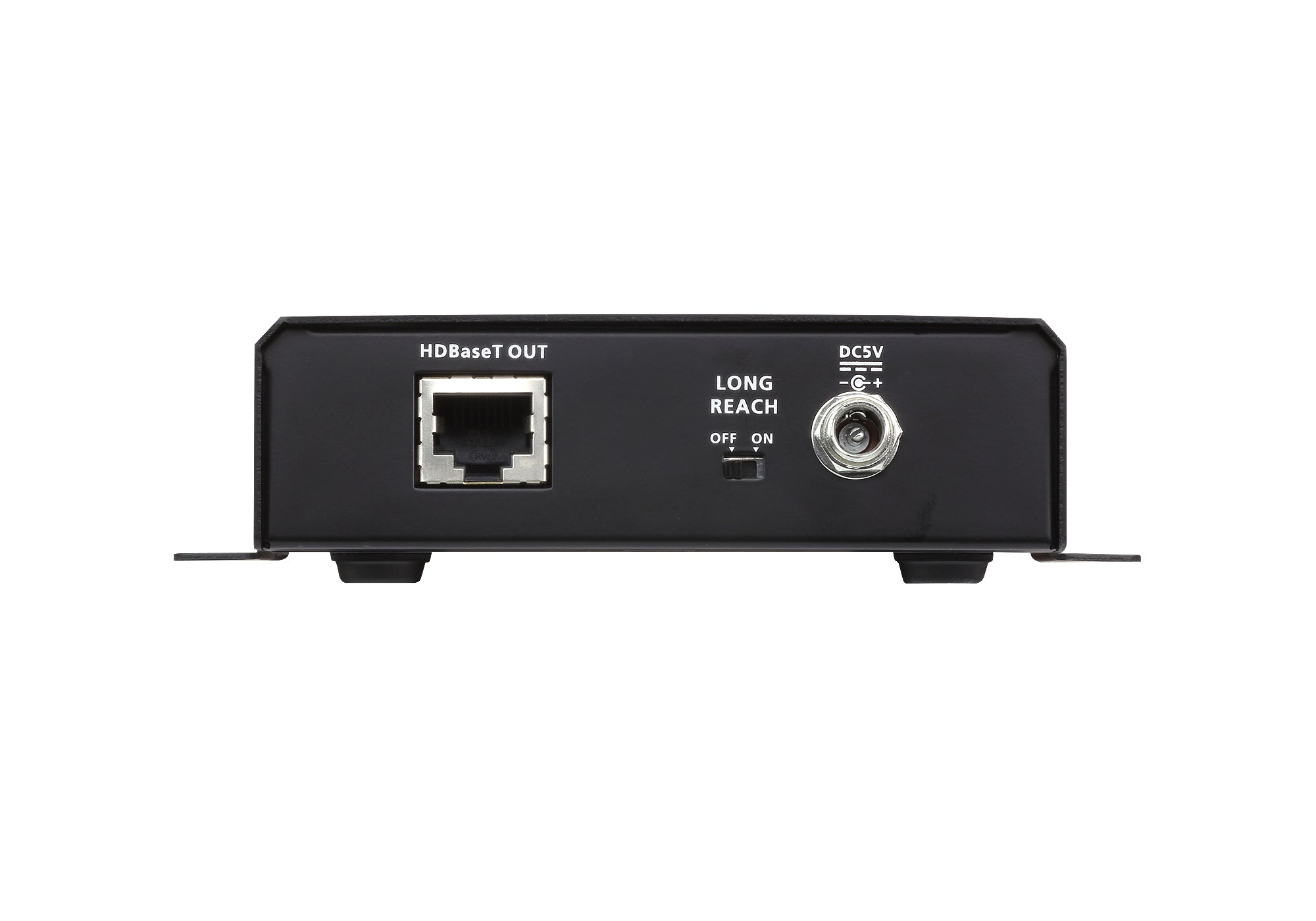

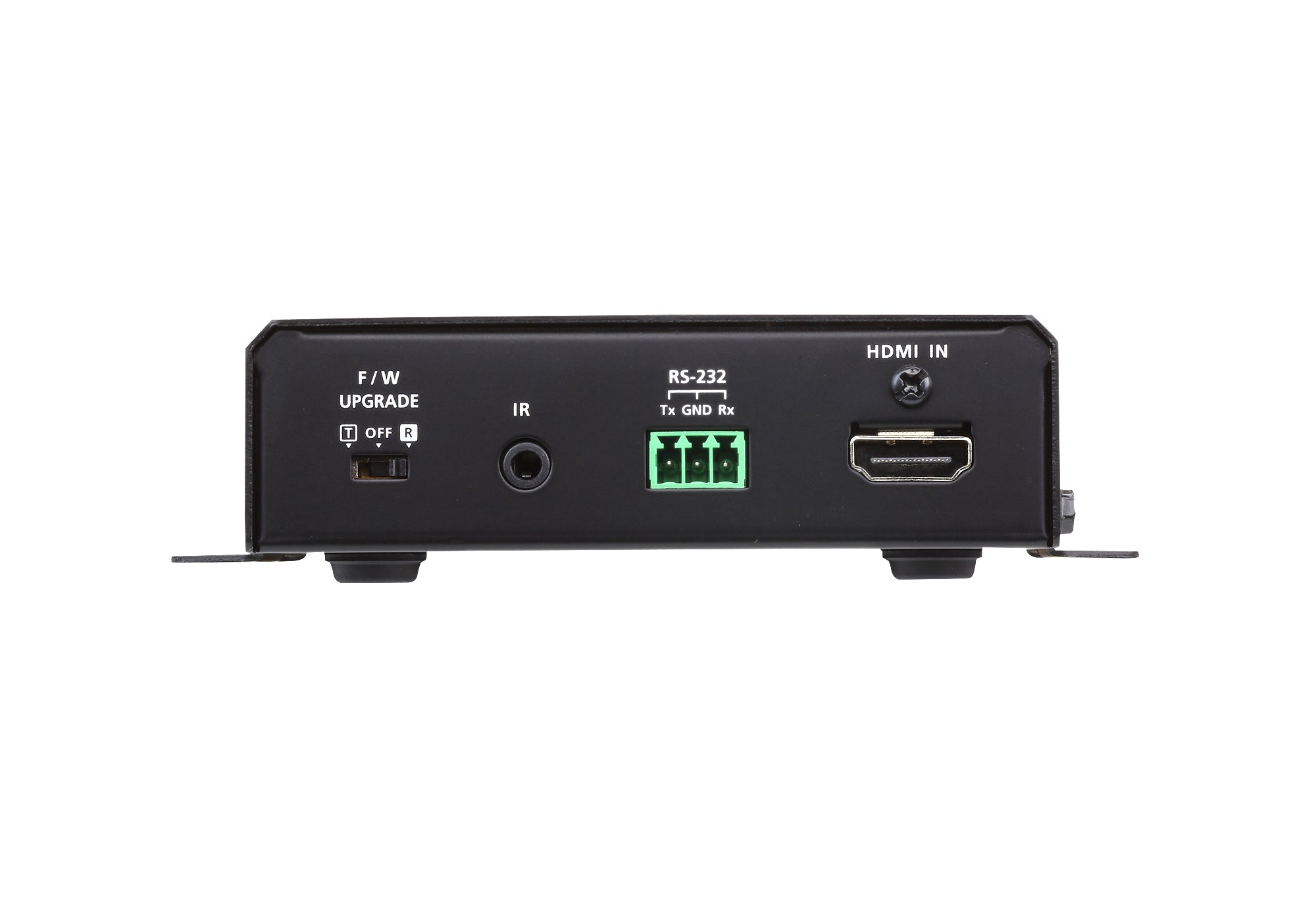

1x VE1812 HDMI HDBaseT Transmitter with POH

1x VE1812 HDMI HDBaseT Receiver with POH

1x Power Adapter

1x IR Transmitter

1x IR Receiver

2x RS-232 Terminal Blocks

1x User Instructions



Function

VE1812R

VE1812T

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

N/A

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

N/A

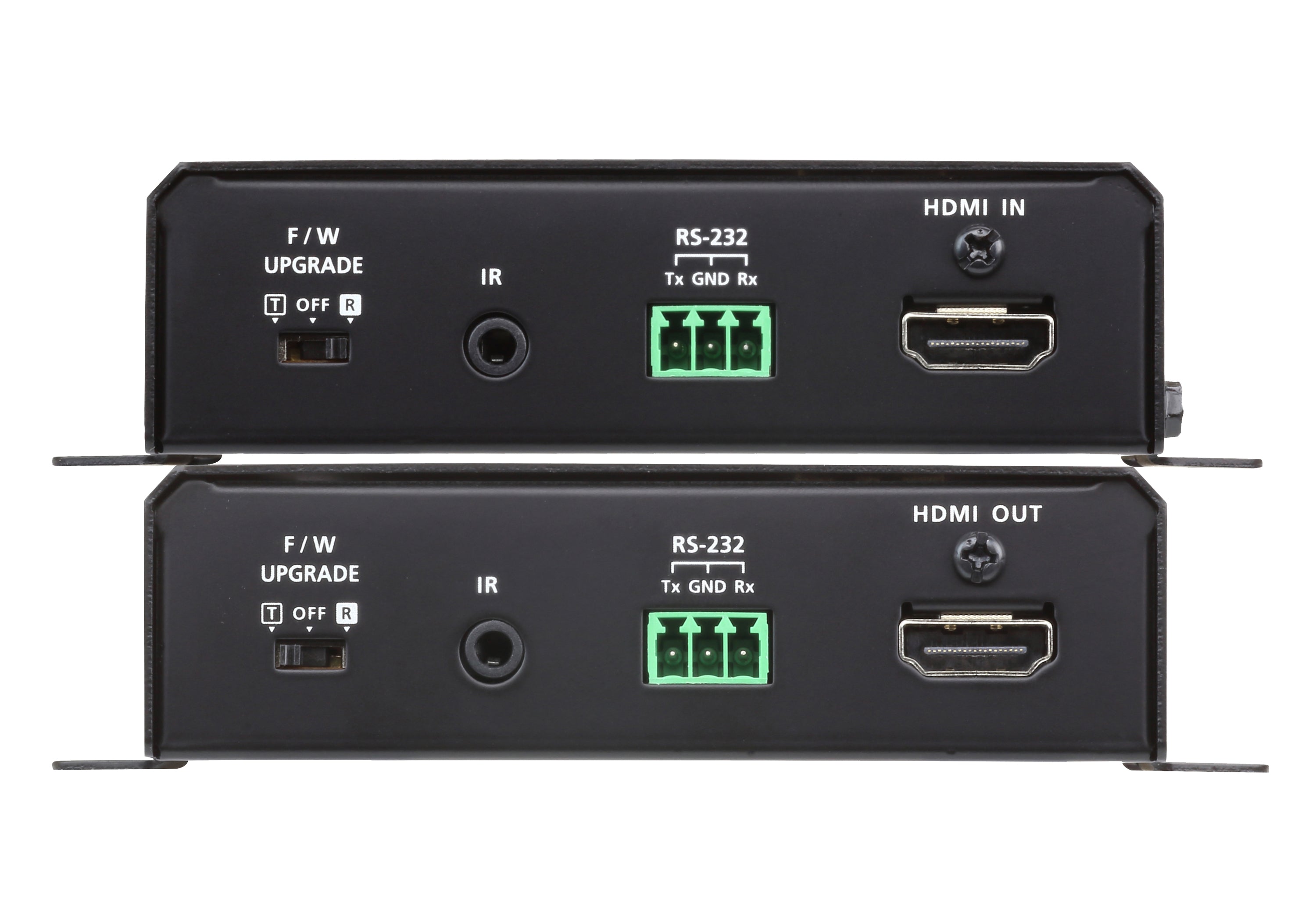

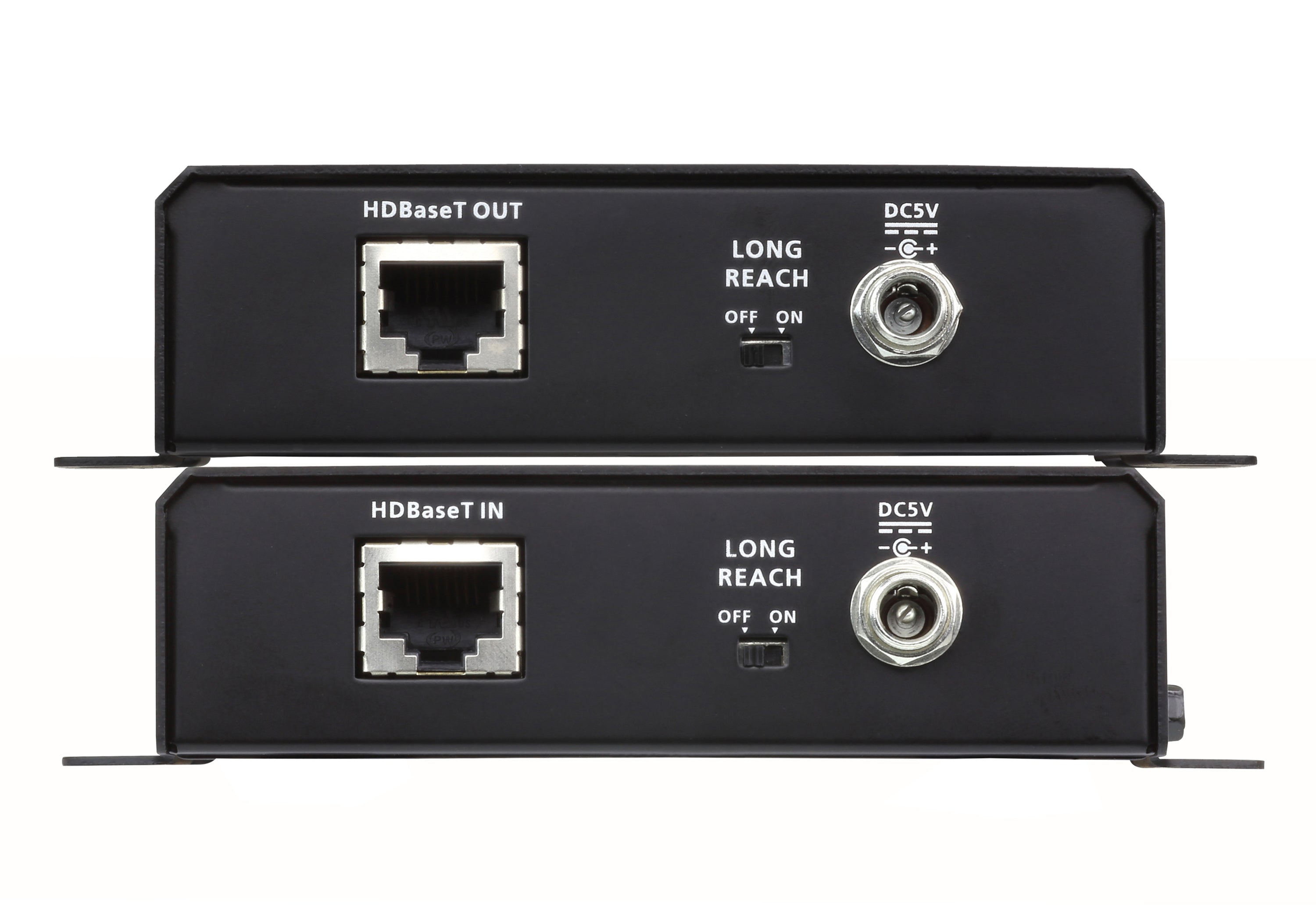

Connectors

Unit To Unit

1 x RJ-45 Female

1 x RJ-45 Female

Power

1 x DC Jack (Black) with locking
or 1 x RJ-45 (Power Over HDBaseT, POH)

1 x DC Jack (Black) with locking

Control

RS-232

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

IR

1 x Mini Stereo Jack Female (Black)

1 x Mini Stereo Jack Female (Black)

Switches

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

1 x Slide Switch - ON/OFF

Firmware Upgrade

1 x Slide Switch - ON/OFF

1 x Slide Switch - ON/OFF

Power Consumption

DC5V:4.26W:20BTU
POH:5.33W:25BTU

DC5V:3.2W:15BTU

Environmental

Operating Temperature

0 - 40°C

0 - 40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Metal

Weight

0.45 kg ( 0.99 lb )

0.47 kg ( 1.04 lb )

Dimensions (L x W x H) with bracket

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

14.04 x 12.30 x 3.00 cm
(5.53 x 4.84 x 1.18 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)

13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)



VE1812 Datasheet PDF
