Aten Extender, HDMI, USB, HDBaseT, Transmitter and Receiver - VE813A

Aten
ATVE813AEXTHDMIX
R 21,778.79 Ex VAT

• Implements HDBaseT extension technology using only one Cat 5e / 6 / 6a cable to connect the transmitter and receiver

• Extreme USB ® - supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)

• USB 2.0 Support* – connects devices such as keyboard, mouse, flash drive, printer, touch panel and other USB devices which require moderate amounts of bandwidth

• Supports Dolby True HD and DTS HD Master Audio

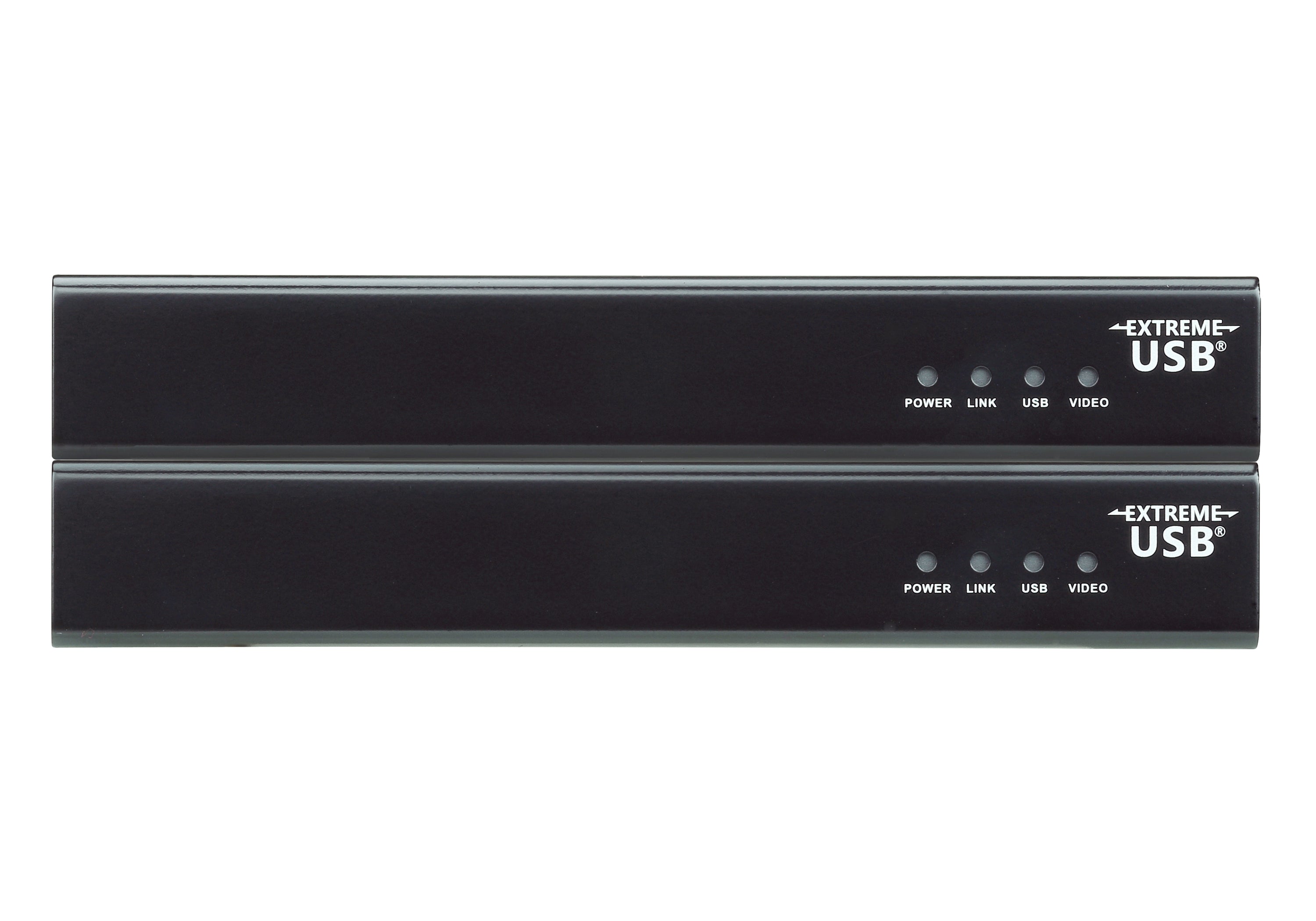

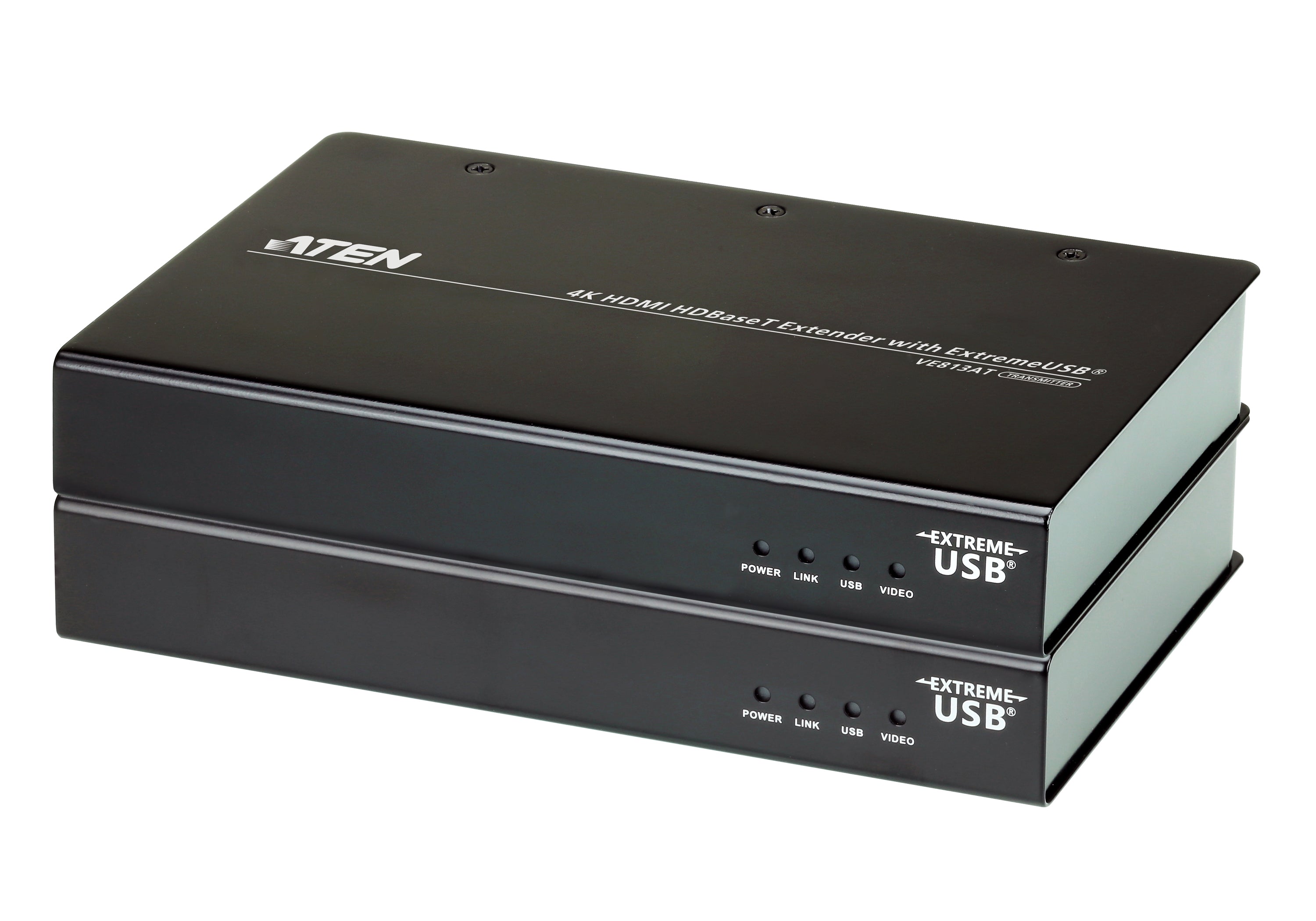

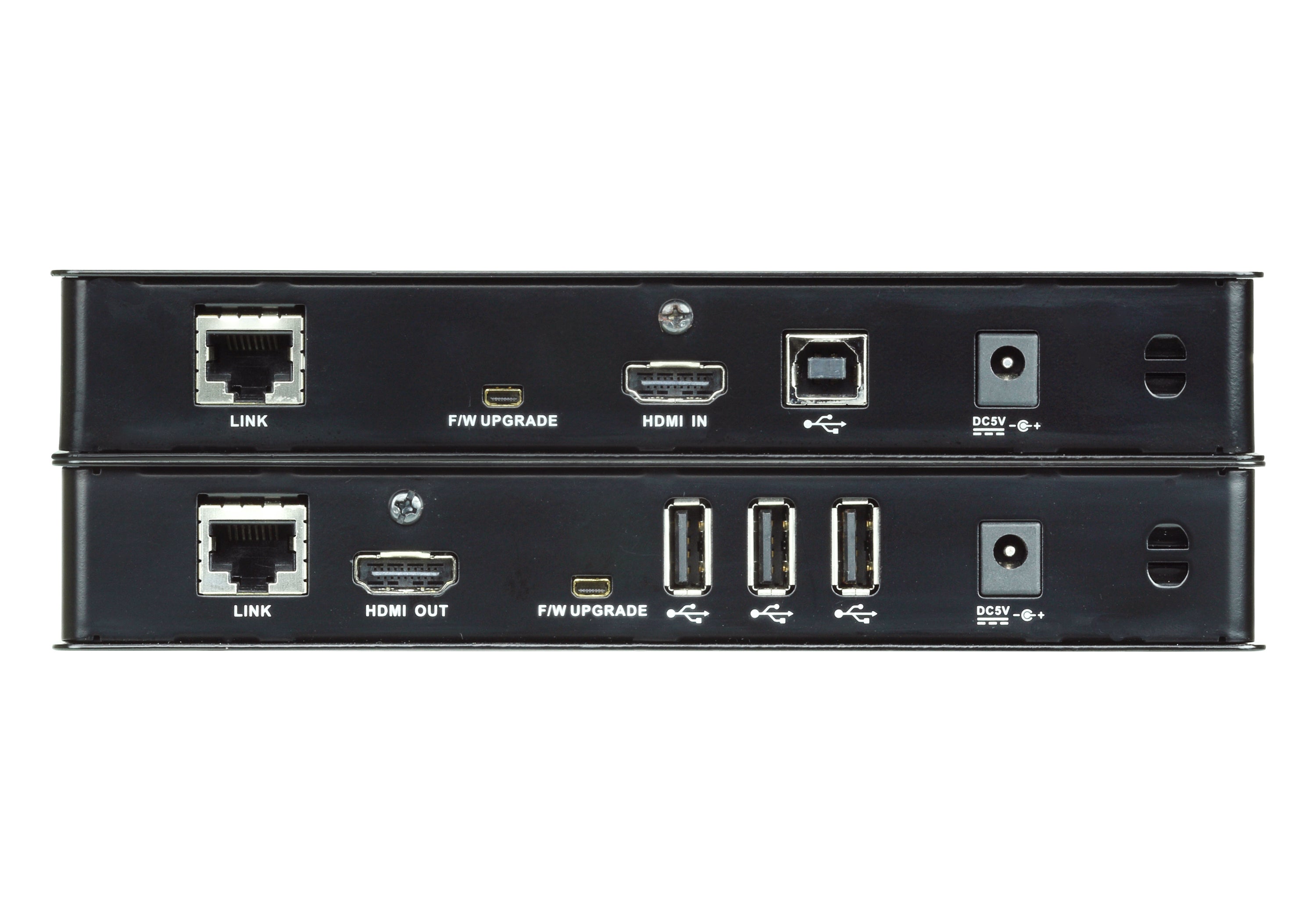

The VE813A HDMI HDBaseT Extender is an HDMI and USB Extender that supports HDBaseT and patented ExtremeUSB® technology. The VE813A can extend HDMI and USB 2.0 signal up to 100 meters from the HDMI source using a single Ethernet cable. The VE813A supports HDMI features such as 3D, Deep Colour, 4K, CEC and HDCP. It is equipped with USB connectors that provide touch panel control and file transfer functionality. The extender is also great for synchronizing files and folders between portable and desktop computers. The superior display capability makes VE813A ideal for medical imaging and digital signage.

Package Contents

1x VE813AT 4K HDMI HDBaseT Extender with ExtremeUSB® (Transmitter)

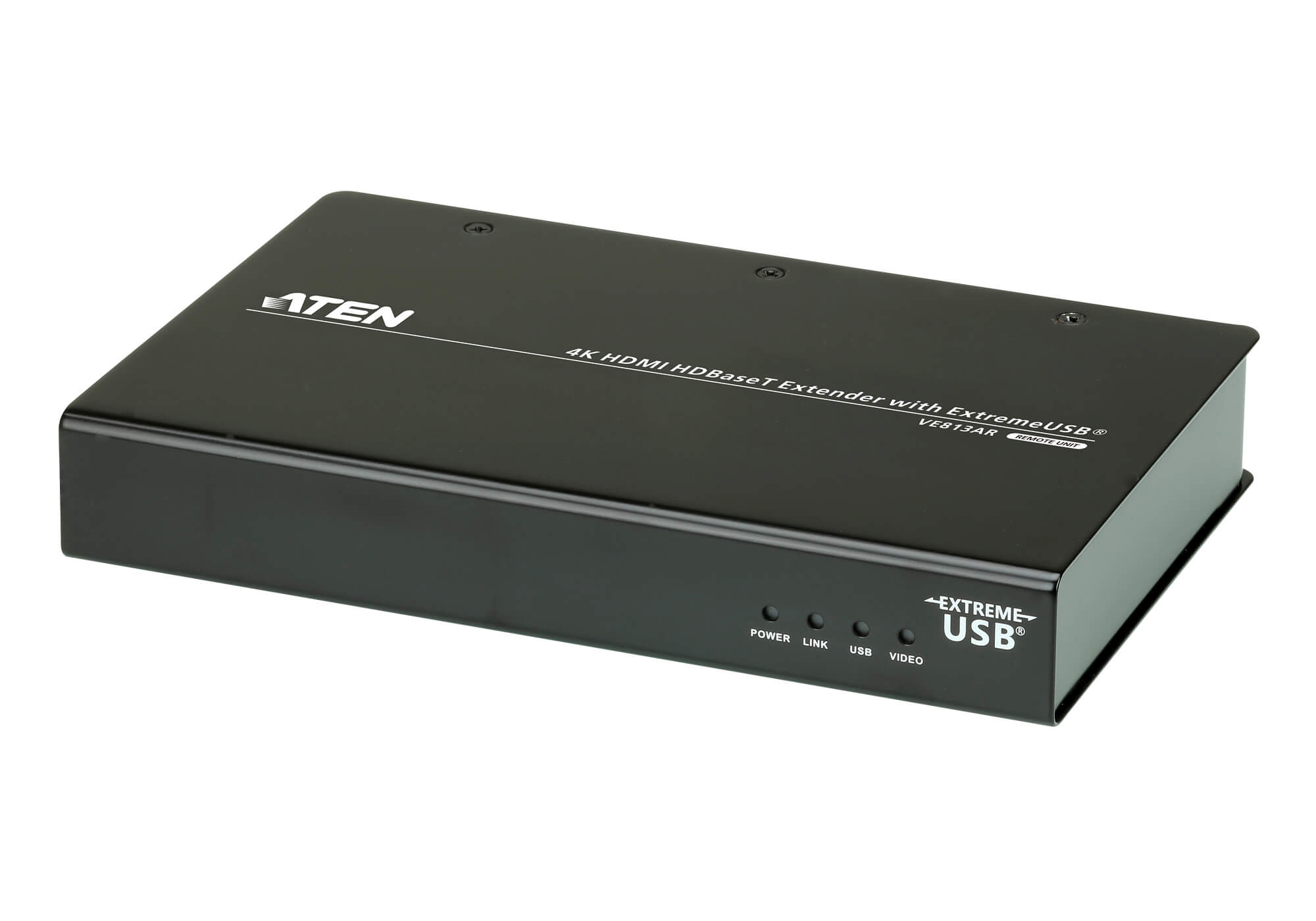

1x VE813AR 4K HDMI HDBaseT Extender with ExtremeUSB® (Receiver)

1x HDMI Cable (1.8m/6ft)

1x USB Cable (1.8m/6ft)

2x Power Adapters

1x Mounting Kit

1x User Instructions

Function

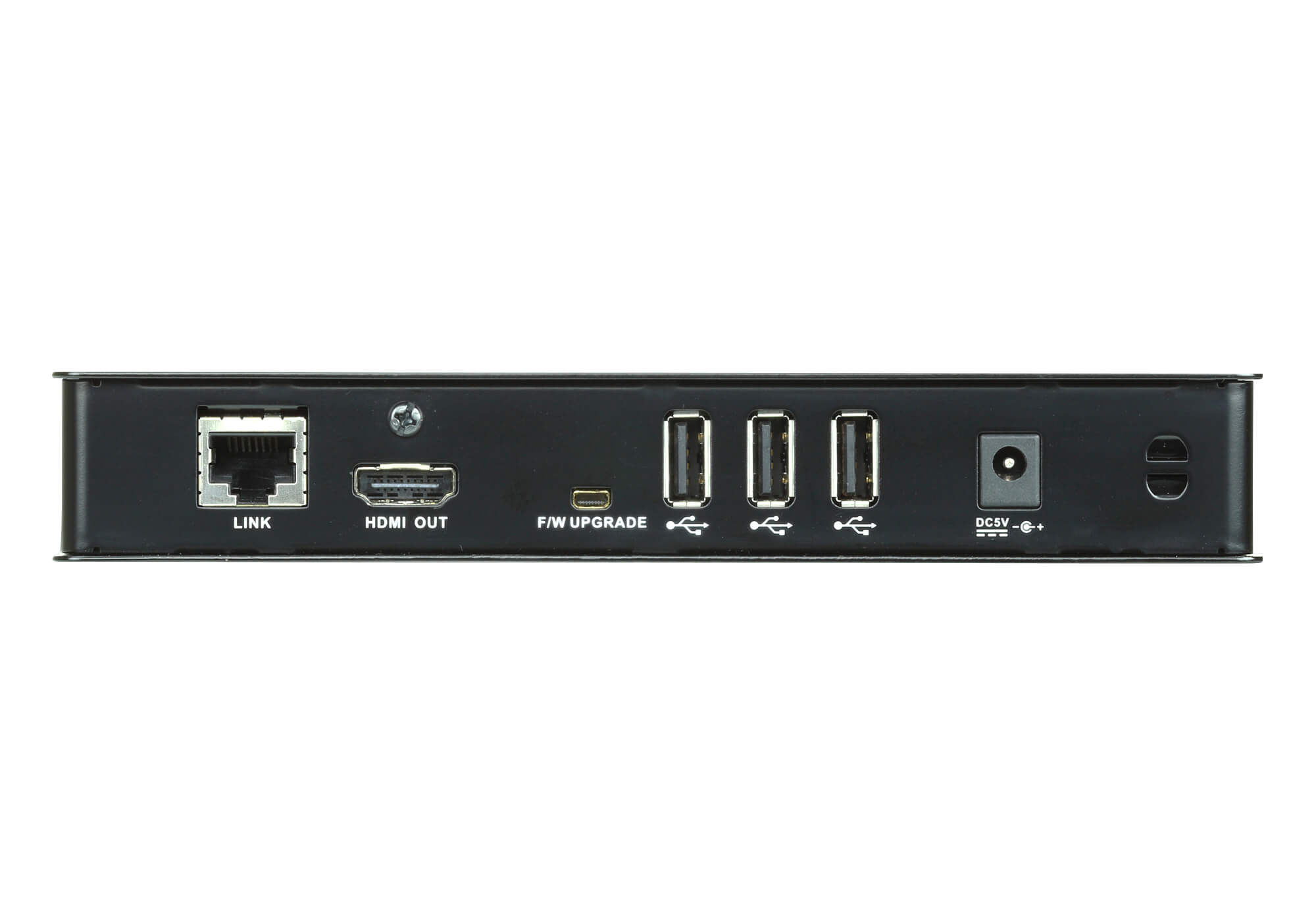

VE813AR

VE813AT

Video Input

Interfaces

N/A

1 x HDMI Type A Female (Black)

Impedance

N/A

100 Ω

Max. Distance

N/A

3 m

Video Output

Interfaces

1 x HDMI Type A Female (Black)

N/A

Impedance

100 Ω

N/A

Max. Distance

3 m

N/A

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

Up to 340 MHz

Up to 340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)

HDMI (3D, Deep Colour, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

Up to 4K@70m (Cat 5e/6) / 100m (cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Up to 4K@70m (Cat 5e/6) / 100m (cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

-

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

-

Power Consumption

DC5V:5.75WBTU

DC5V:5.75WBTU

Physical Properties

Weight

0.62 kg ( 1.37 lb )

0.61 kg ( 1.34 lb )

Dimensions (L x W x H)

18.20 x 11.61 x 2.87 cm
(7.17 x 4.57 x 1.13 in.)

18.20 x 11.61 x 2.87 cm
(7.17 x 4.57 x 1.13 in.)

Housing

Metal

Metal

Carton Lot

5 pcs

5 pcs

Control

USB Channel

3 x USB Type A Female
Transfer Rate: USB 2.0 (Up to 40 Mbps)

1 x USB Type B Female
Transfer Rate: USB 2.0 (Up to 40 Mbps)

Connectors

Power

1 x DC Jack

1 x DC Jack

Environmental

Operating Temperature

0-40°C

0-40°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
