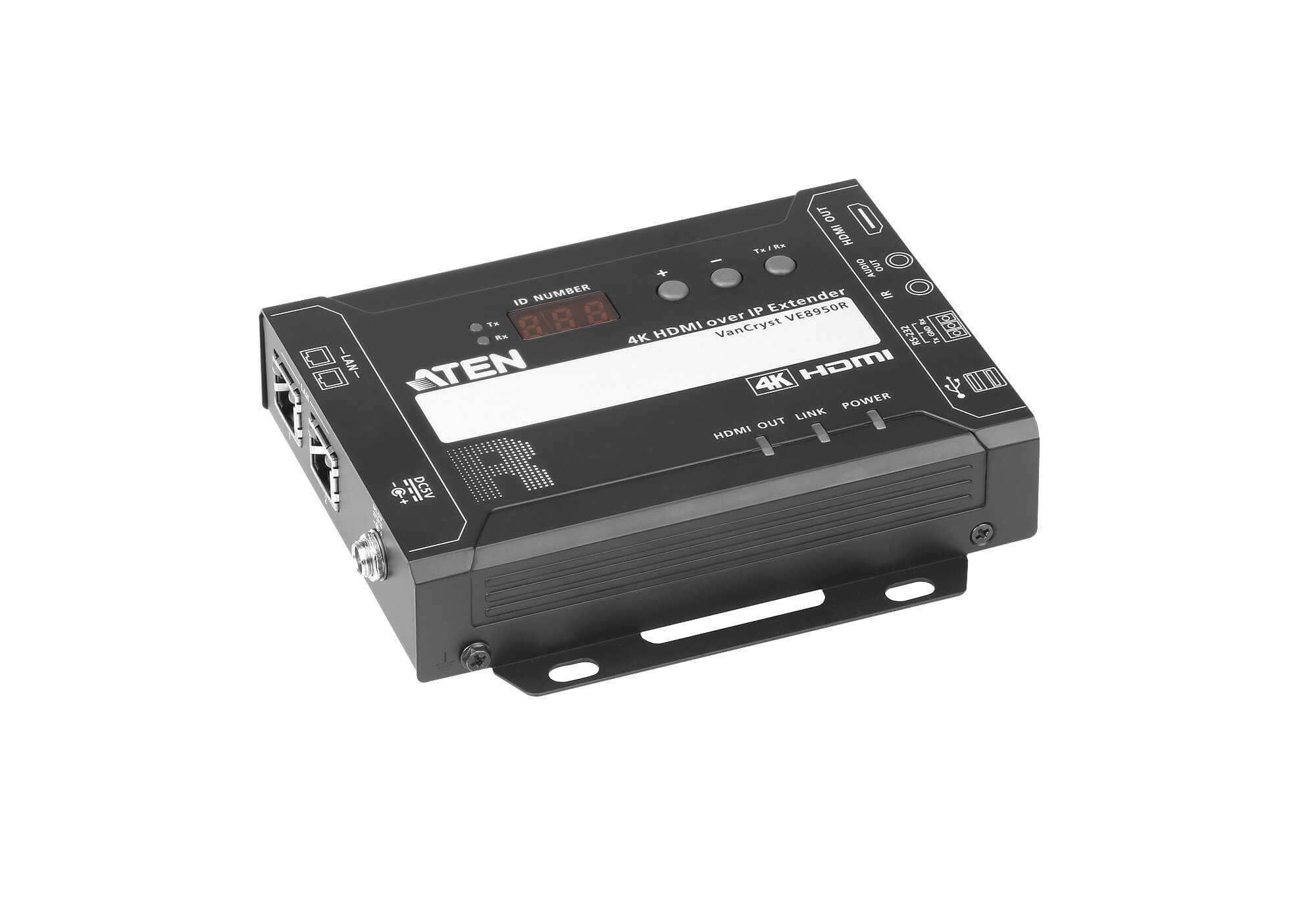

Aten Extender, HDMI Over IP, Receiver - VE8950R

Aten
ATVE8950REXTHDMIX
R 13,476.74 Ex VAT

• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN

• Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4

• Daisy Chaining - Connects multiple displays through a single port

• Video Wall Support

The ATEN VE8950R Video over IP Receiver delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch.

The VE8950R provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

• Limitless scalability and flexibility

• No complicated IP setup

• No additional server PCs or software required

• Go further for less with daisy chaining

Package Contents

1x VE8950R 4K HDMI over IP Receiver

1x RS-232 Terminal block

1x 5V Power adapter

1x User instructions

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3 m

Video

Max. Data Rate

Average: 150 ~ 500Mbps

Compliance

HDMI
HDCP Compatible

Max. Resolutions / Distance

Up to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

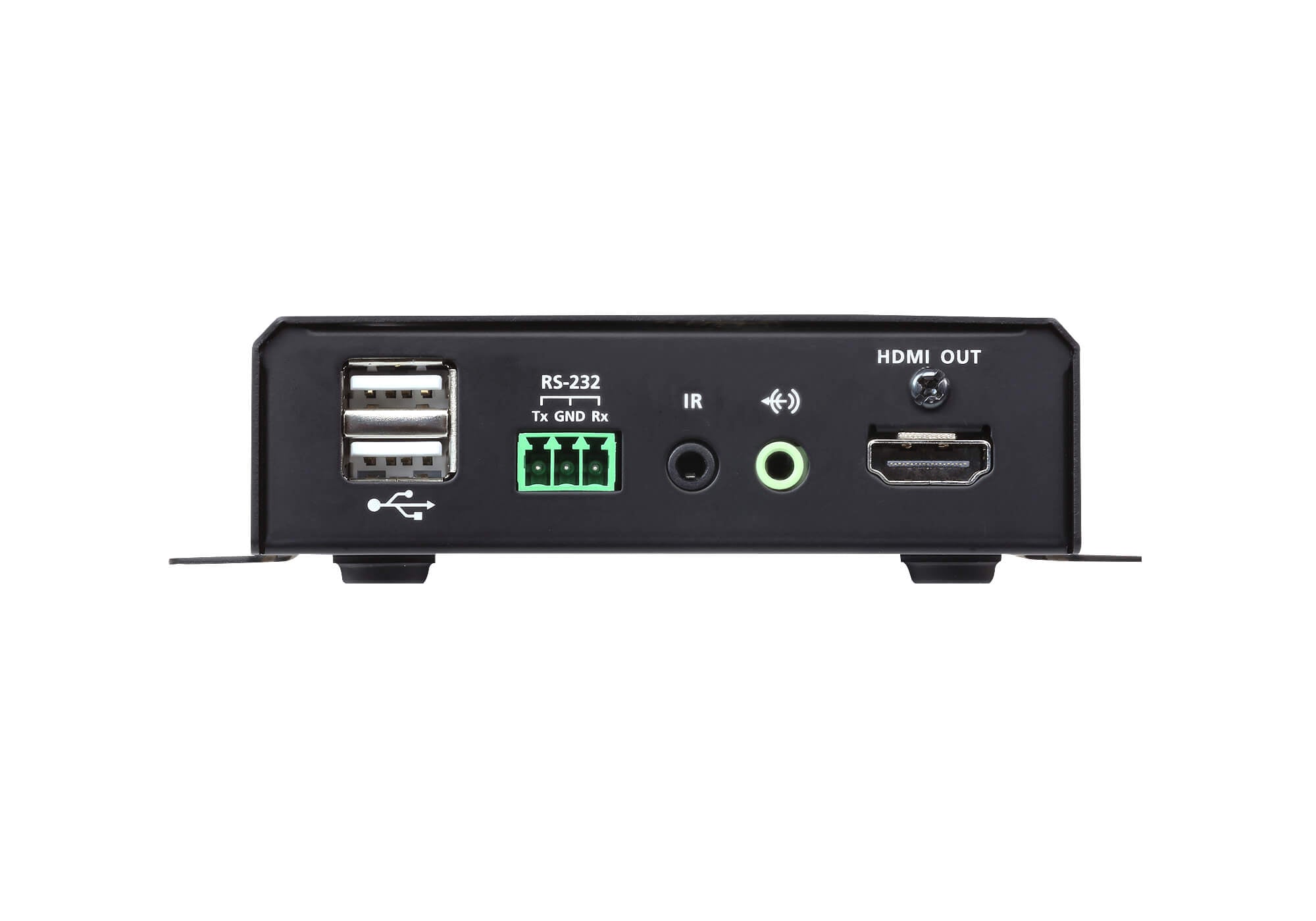

Audio

Output

1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

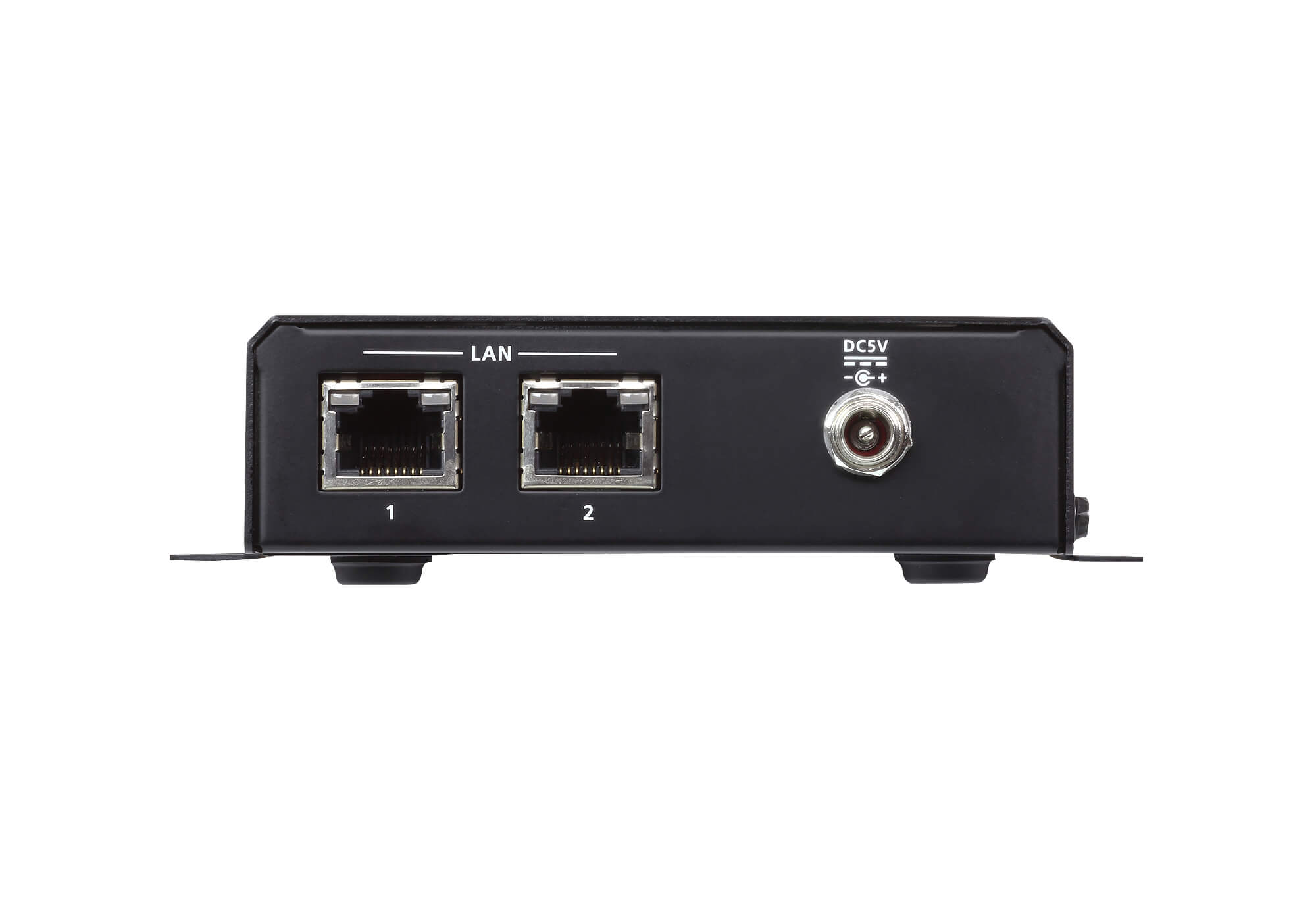

Connectors

Unit To Unit

2 x RJ-45 Female

Power

1 x DC Jack (Black) with locking

Control

IR

1 x Mini Stereo Jack Female (Black)

RS-232

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

USB

2 x USB Type A Female (Black)

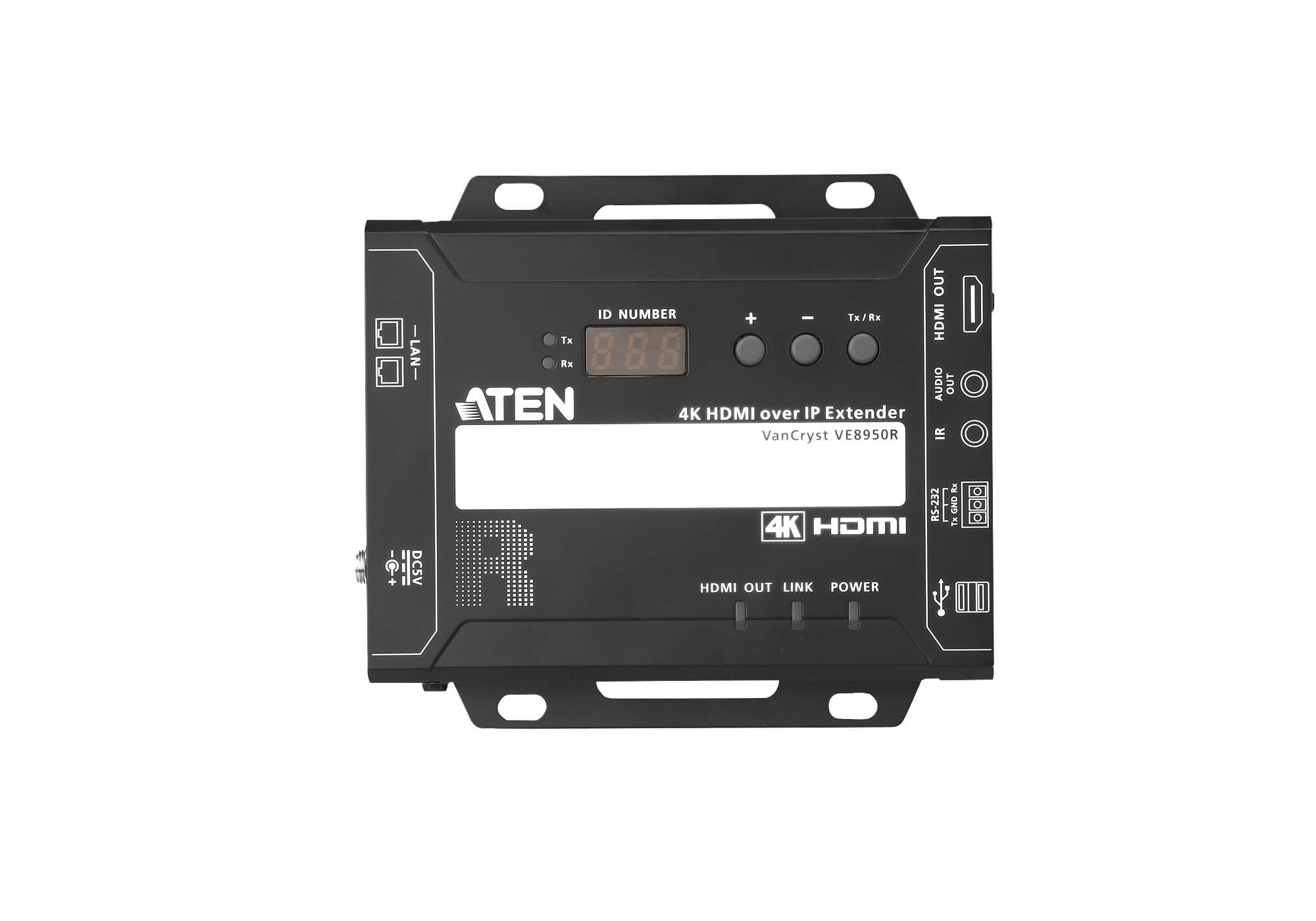

Pushbuttons

ID Number Selection

3 x Push buttons

Power Consumption

DC5V:4.53W:43BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.49 kg ( 1.08 lb )

Dimensions (L x W x H) with bracket

14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)



Input Resolutions

640x480p @ 59.94/60Hz (4:3)

720x576p @ 50/200Hz (4:3)/(16:9)

720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)

720x576p @ 100Hz (16:9)

1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120 Hz (16:9)

1440x480p @ 59.94/60Hz (4:3)/(16:9)

1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz

1440x576p @ 50Hz (4:3)/(16:9)

1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)

(2880)x480p @ 59.94/60Hz  (4:3)/(16:9)

1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120Hz (16:9)

1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/119.88/120 Hz

720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)

2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz

720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)

3840x2160p @ 23.98/24/25/29.97/30Hz (16:9)

720 (1440)x288p @ 50Hz (4:3)/(16:9)

 4096x2160p @ 23.98/24/25/29.97/30Hz

720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9)
