Aten Extender, HDMI Over IP, Transmitter - VE8950T

Aten
ATVE8950TEXTHDMIX
R 13,339.22 Ex VAT

• Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN

• Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4

• Effortlessly switches via top panel pushbuttons

• USB Connectivity – USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals

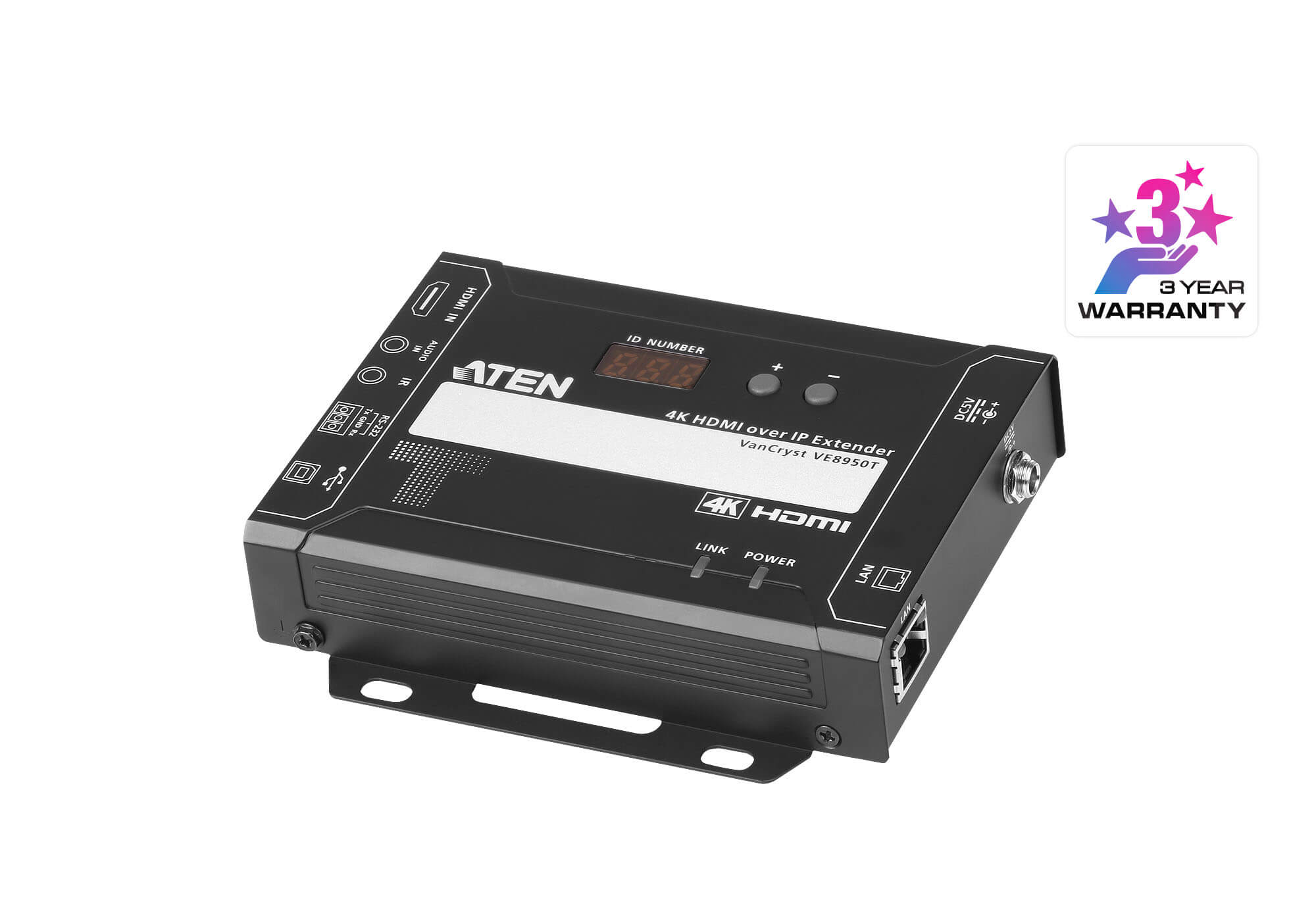

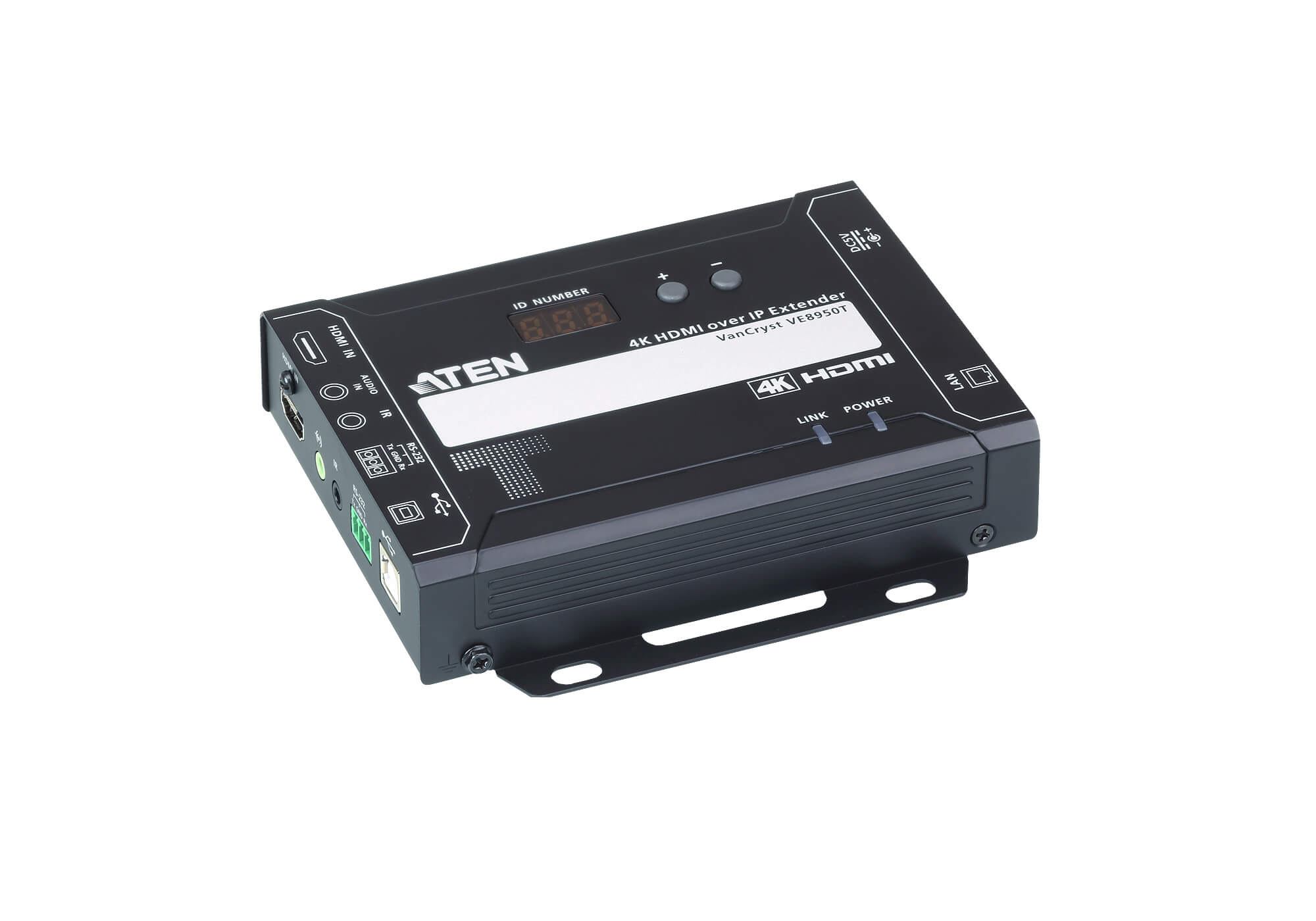

The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch.

The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

• Limitless scalability and flexibility

• No complicated IP setup

• No additional server PCs or software required

• Go further for less with daisy chaining

Package Contents

1x VE8950T 4K HDMI over IP Transmitter

1x RS-232 Terminal block

1x 5V Power adapter

1x User instructions

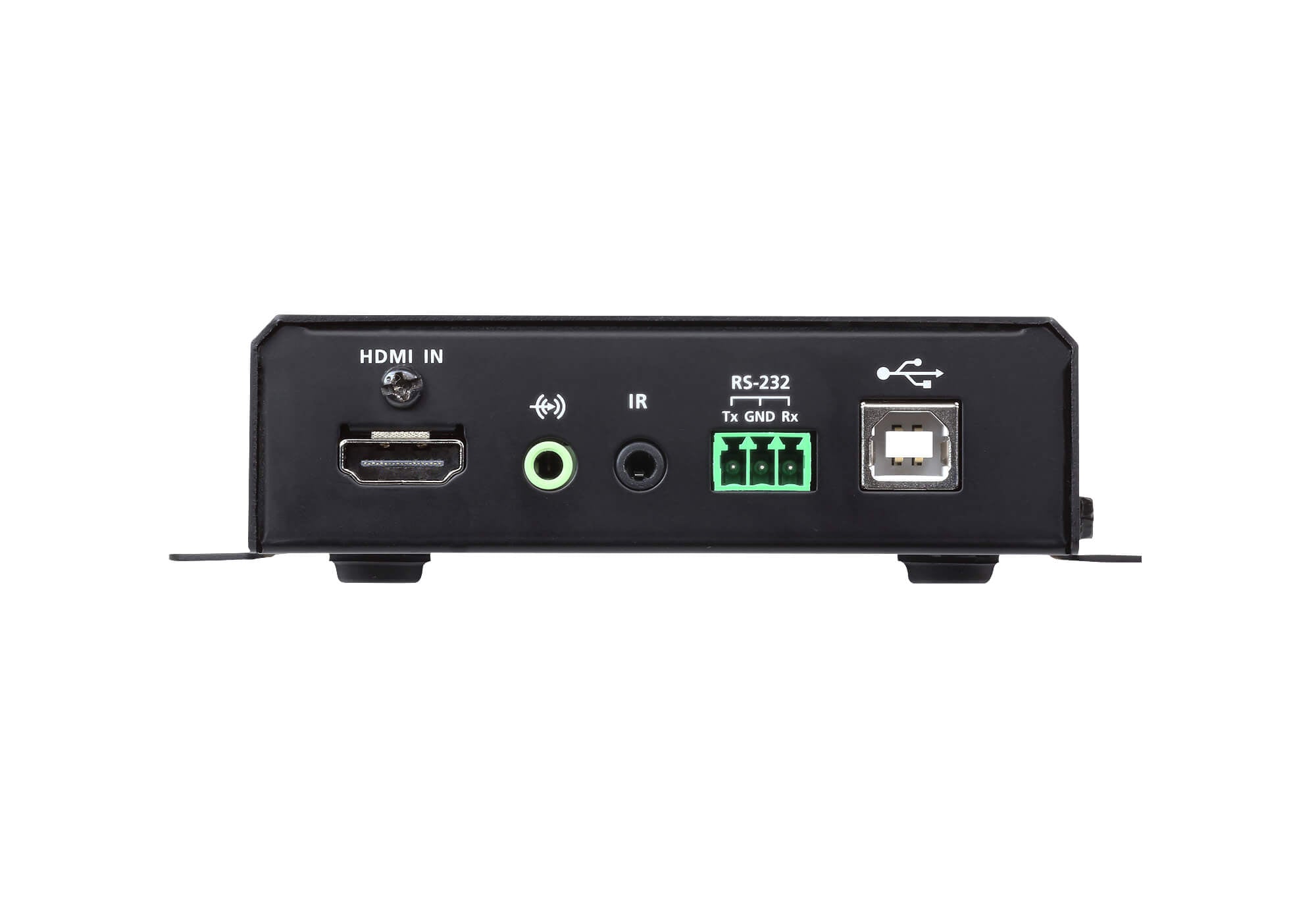

Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3 m

Video

Max. Data Rate

Average: 150 ~ 500Mbps

Compliance

HDMI (4K)
HDCP Compatible

Max. Resolutions / Distance

Up to 4K@100m (Cat 5e/6, point to point)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

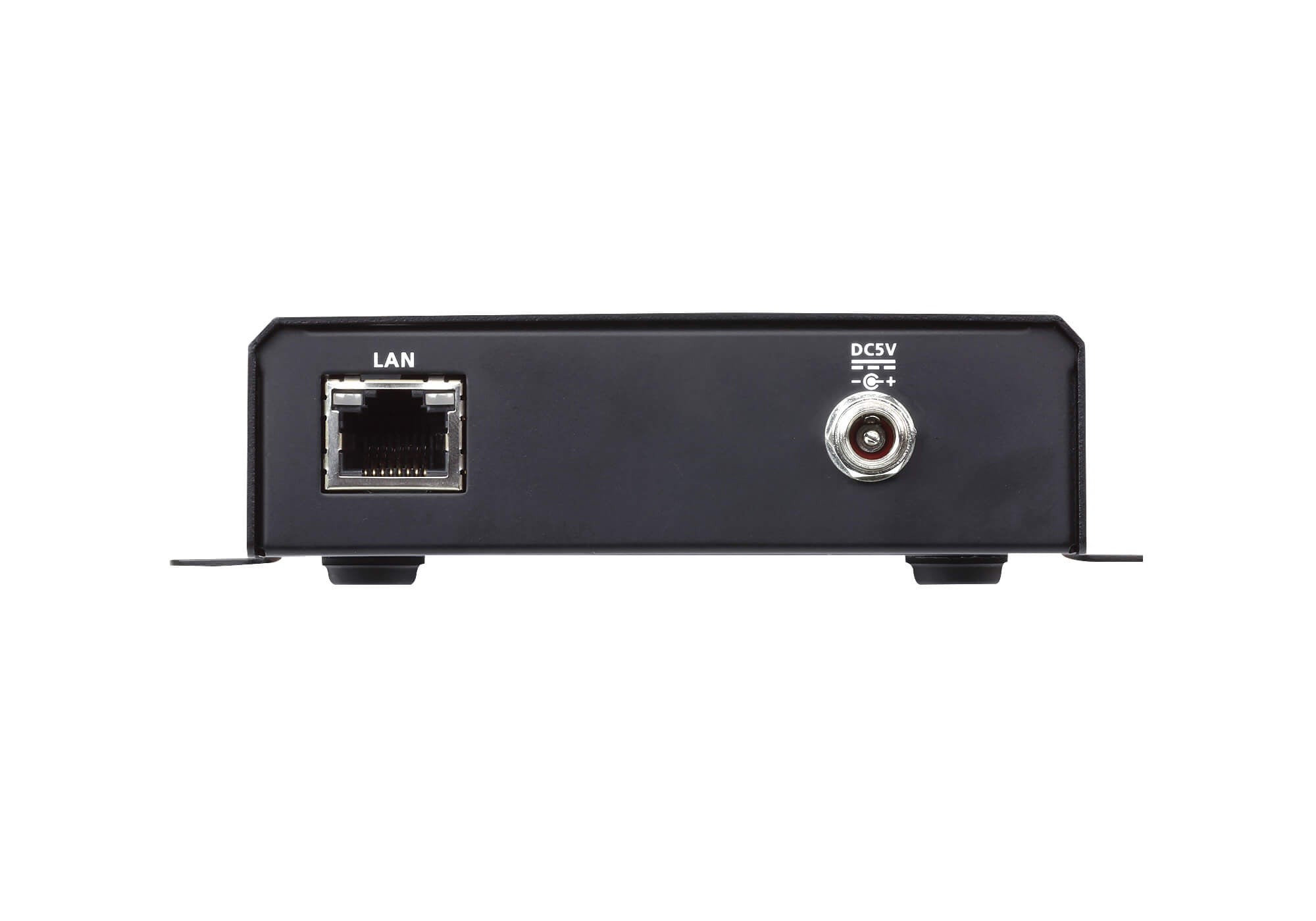

Connectors

Unit To Unit

1 x RJ-45 Female

Power

1 x DC Jack (Black) with locking

Control

IR

1 x Mini Stereo Jack Female (Black)

RS-232

Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

USB

1 x USB Type B Female (White)

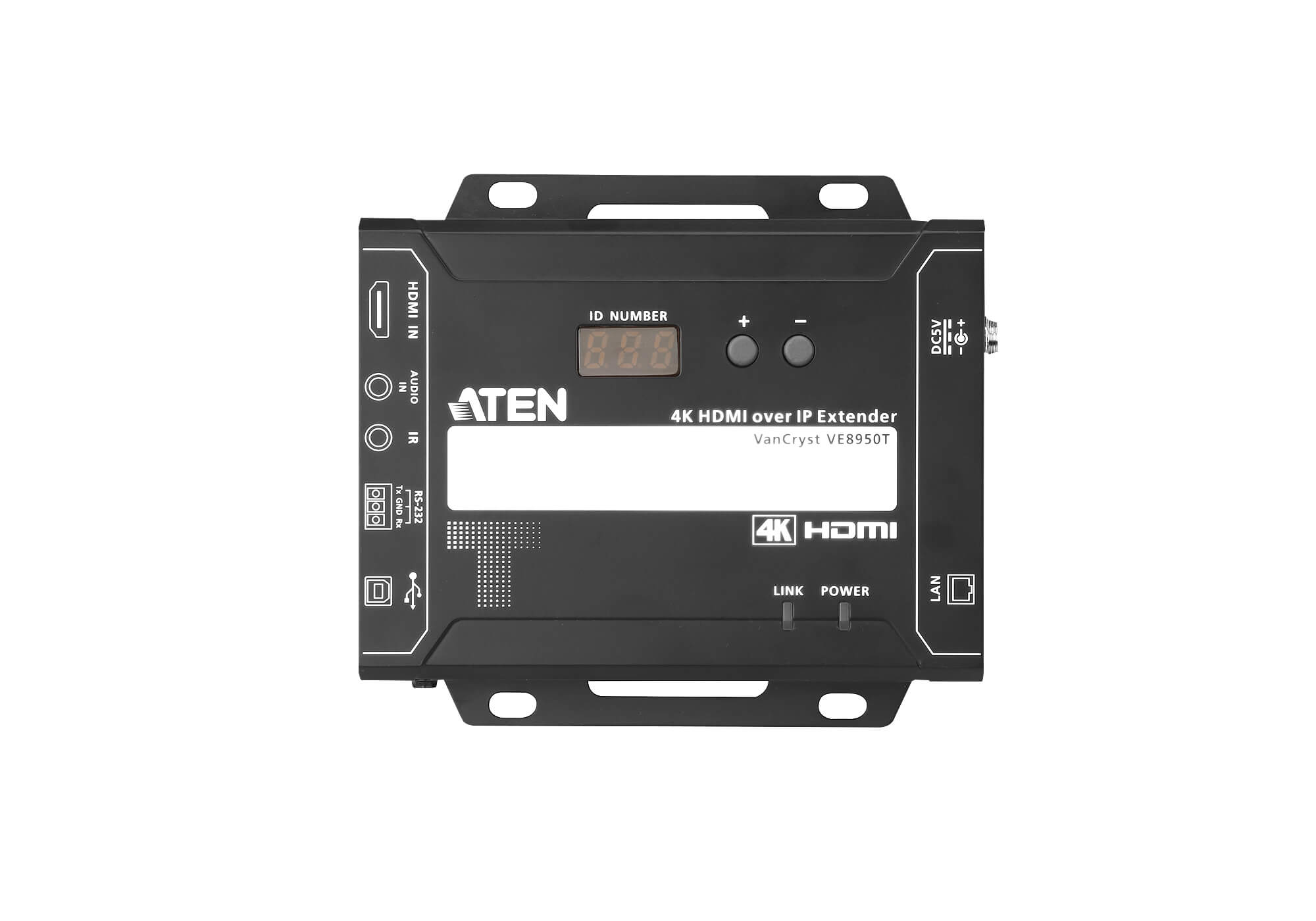

Pushbuttons

ID Number Selection

2 x Push buttons

Power Consumption

DC5V:3.08W:14BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.50 kg ( 1.1 lb )

Dimensions (L x W x H) with bracket

14.02 x 12.30 x 3.06 cm
(5.52 x 4.84 x 1.2 in.)

Dimensions (L x W x H) without bracket

13.60 x 10.10 x 2.96 cm
(5.35 x 3.98 x 1.17 in.)



Input Resolutions

640x480p @ 59.94/60Hz (4:3)

720x576p @ 50/200Hz (4:3)/(16:9)

720x480p @ 59.94/60/119.88/120/239.76/240Hz (4:3)/(16:9)

720x576p @ 100Hz (16:9)

1280x720p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120 Hz (16:9)

1440x480p @ 59.94/60Hz (4:3)/(16:9)

1280x720p @ 29.97/30/50/59.94/60/100/119.88/120Hz

1440x576p @ 50Hz (4:3)/(16:9)

1920x1080i @ 50/59.94/60/100/119.88/120Hz (16:9)

(2880)x480p @ 59.94/60Hz  (4:3)/(16:9)

1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60/100/
119.88/120Hz (16:9)

1680x720p @ 23.98/24/25/29.97/30/50/59.94/ 60/100/
119.88/120 Hz

720 (1440)x576i @ 50/100/200Hz (4:3)/(16:9)

2560x1080p @ 23.98/ 24/25/29.97/30/50/59.94/60Hz

720 (1440)x480i @ 59.94/60Hz (4:3)/(16:9)

3840x2160p @ 23.98/24/25/29.97/30/50/59.94/60 Hz (16:9)

720 (1440)x288p @ 50Hz (4:3)/(16:9)

3840x2160p @ 23.98/24/25/29.97/30Hz

720 (1440)x240p @ 59.94/60/119.88/120/239.76/ 240Hz (4:3)/(16:9)

 4096x2160p @ 23.98/24/25/29.97/30Hz
