Aten Splitter, HDMI, 4 Port - VS184A

Aten
ATVS184ASPLHDMIX
R 1,995.00 Ex VAT

• Connects one HDMI source to four HDMI displays at the same time

• HDMI (3D, Deep Colour, 4kx2k); HDCP 1.4 Compliant

• Long distance transmission – up to 15 m (24 AWG)

• Supports max. data rate of 10.2 Gbps

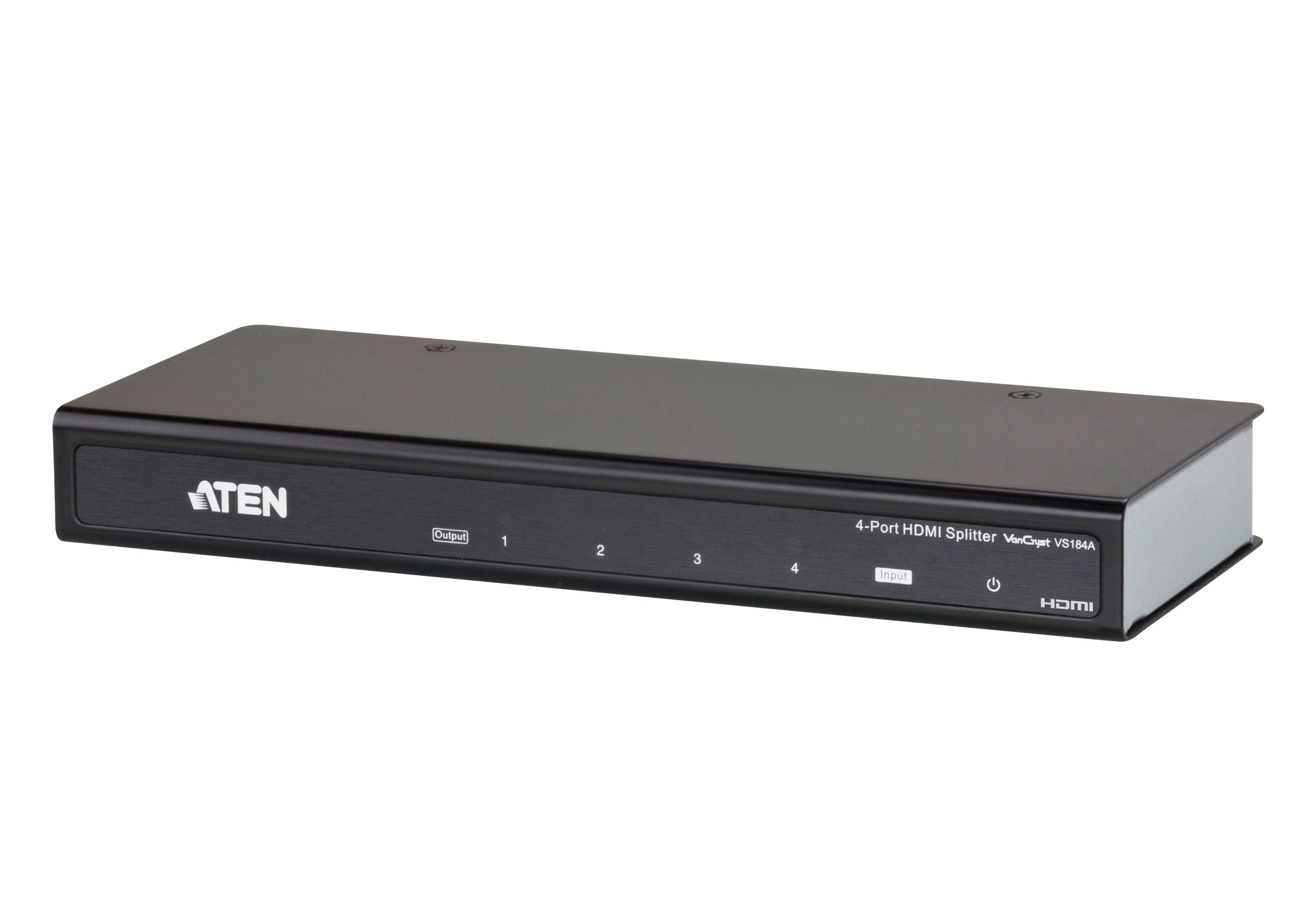

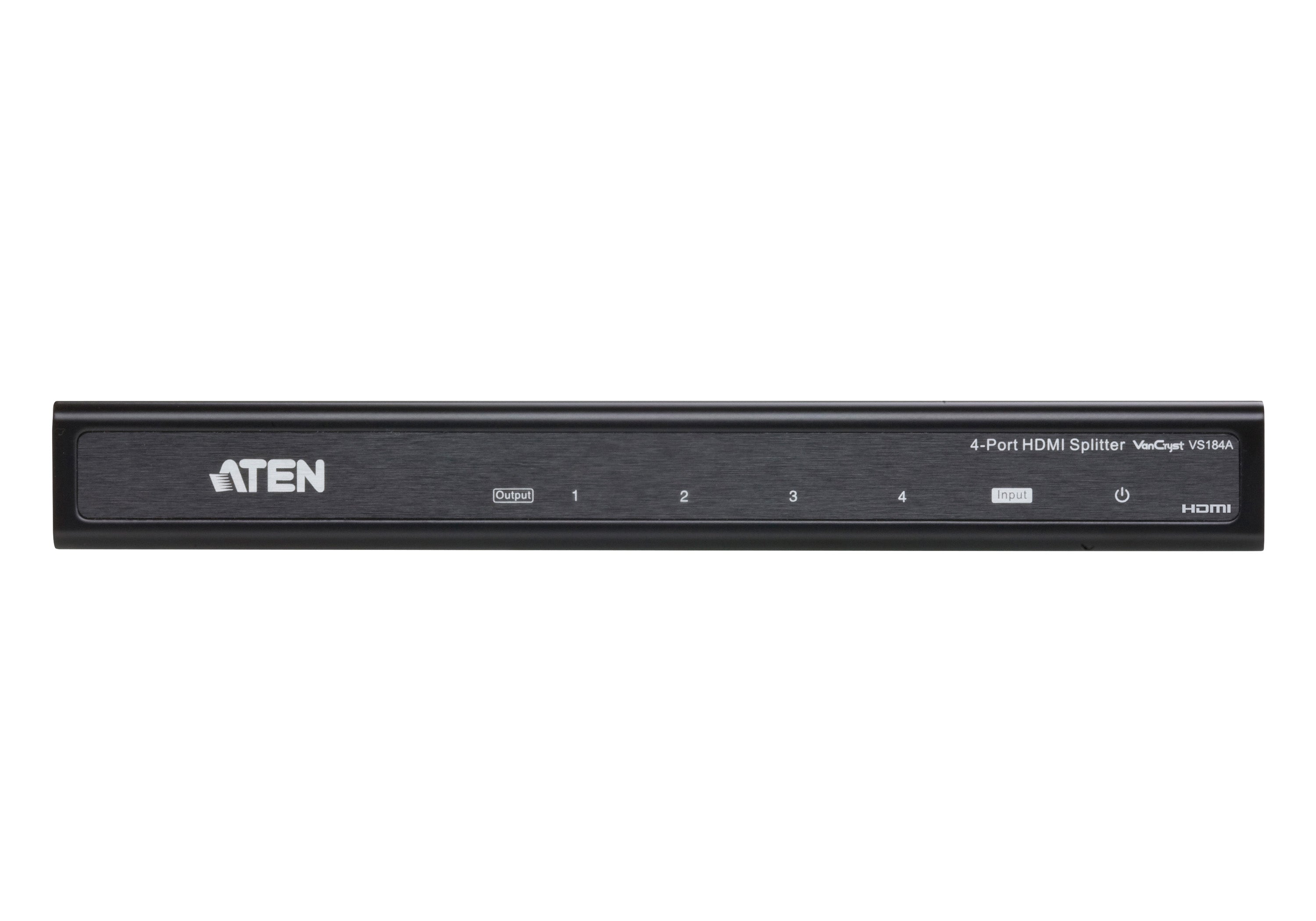

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.


The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theatre applications, as well as in corporate, educational and commercial settings.

Package Contents

  • 1x VS184A 4-Port HDMI Splitter
  • 1x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions

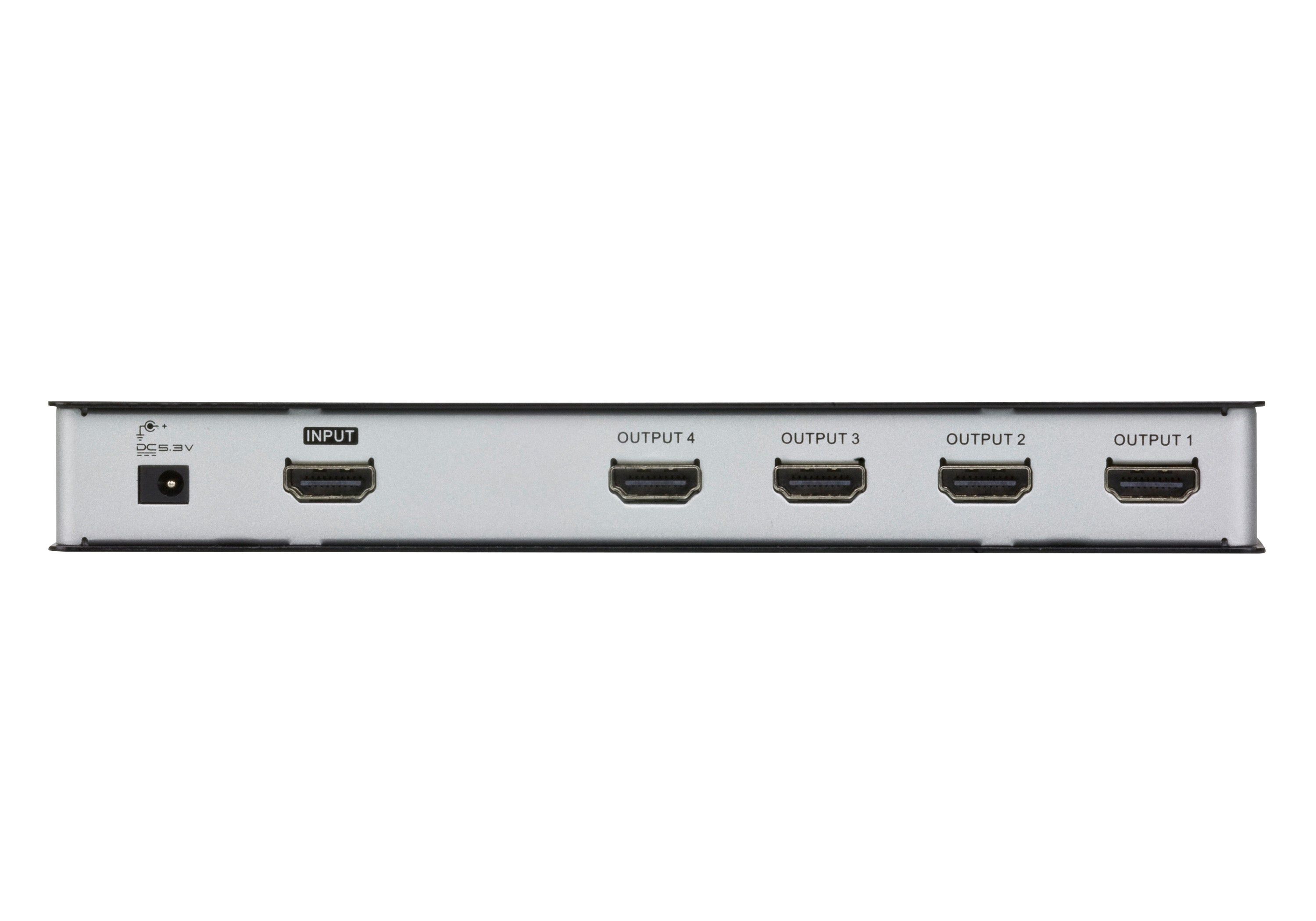

Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

3m @3840x2160@30 (4:4:4)

Video Output

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

15m @3840x2160@30 (4:4:4)

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K);
HDCP Compatible

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)

Output

4 x HDMI Type A Female (Black)

Connectors

Power

1 x DC Jack

Power Consumption

DC5.3V:6.02W:28BTU

Environmental

Operating Temperature

0-50 °C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.47 kg ( 1.04 lb )

Dimensions (L x W x H)

20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

Carton Lot

20 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VS184A Datasheet PDF
