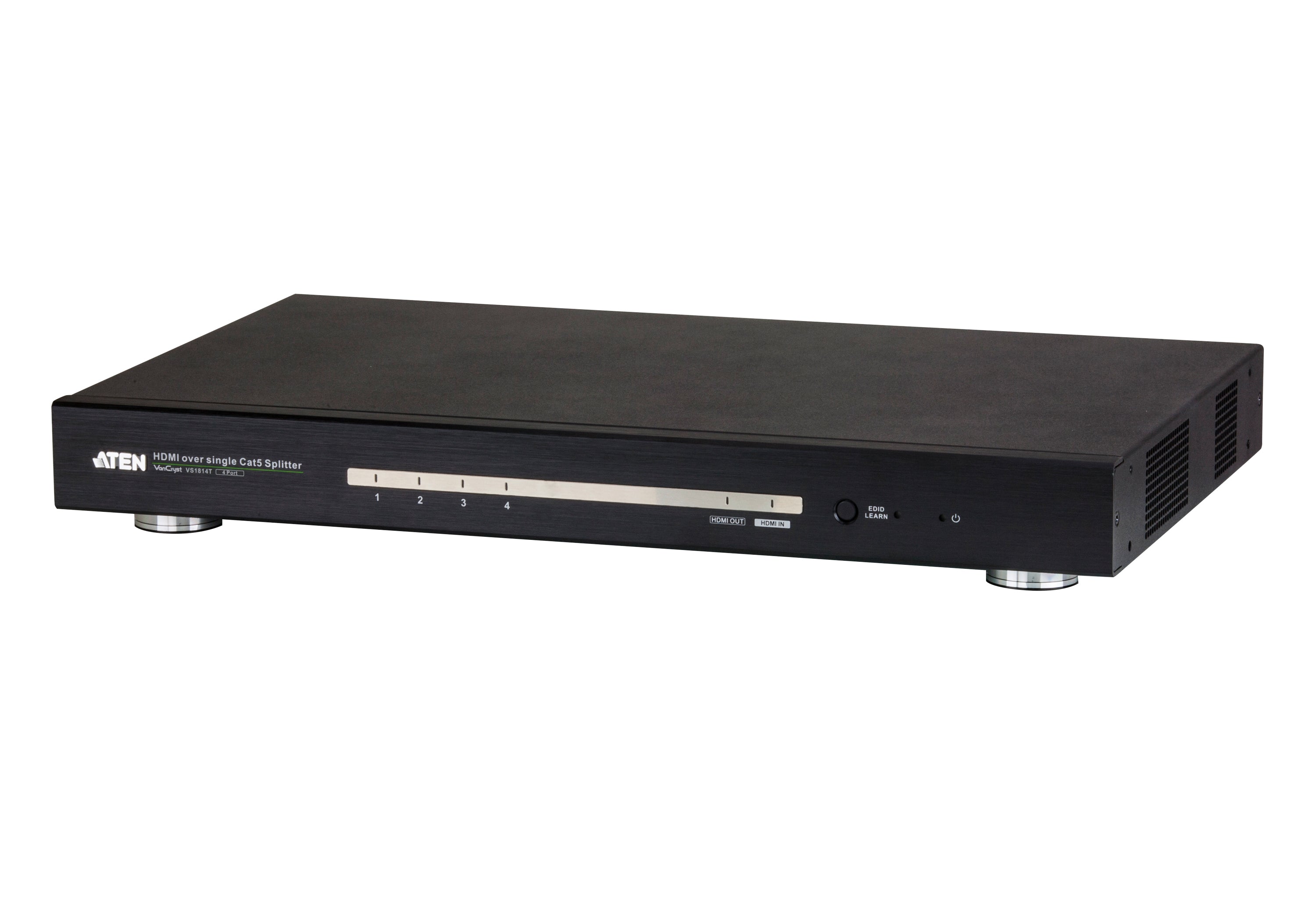

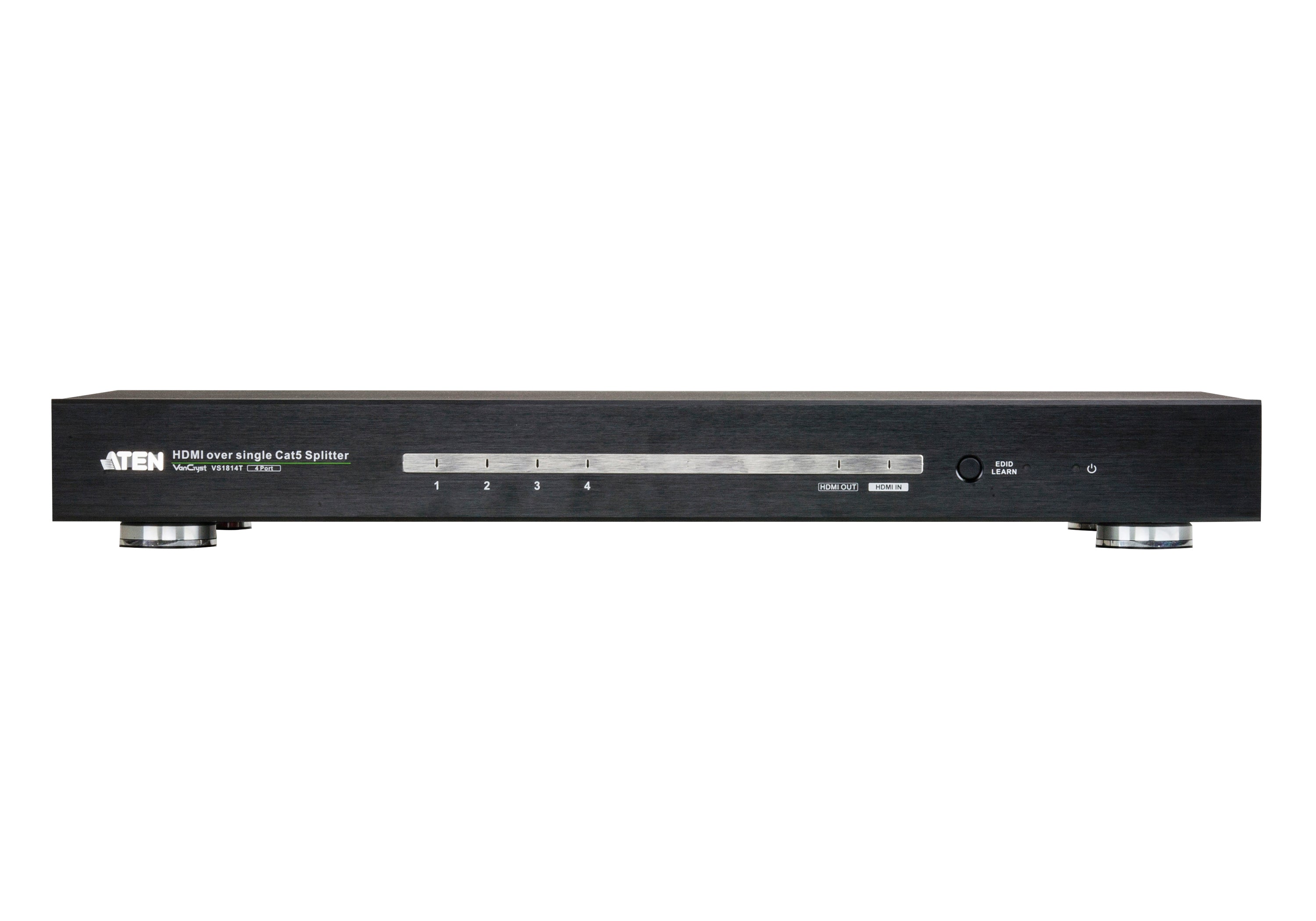

Aten HDBaseT Splitter, HDMI, 4 Port - VS1814T

Aten
ATVS1814TSPLHDMIX
R 29,035.03 Ex VAT

• One HDMI input to 4HDMI outputs via a Cat 6/6a cable

• Extends displays up to 100 m

• Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver

• Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD

The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers*, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.

* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver


The solution implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat 6/6a cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.

The VS1814T solution is perfect for a wide range of applications:
•In-store or tradeshow digital signage
•Information broadcasts at public locations (i.e., news, stations, airline and train schedule and arrival/departure details)
•Sporting events
•Theatre and lecture overview rooms
•Classroom and company training facilities

Package Contents

  • 1x VS1814T 4-Port HDMI HDBaseT Splitter
  • 1x Power Cord
  • 1x Mounting Kit
  • 1x User Instructions



Video Input

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

1.8 m

Video Output

Interfaces

1 x HDMI Type A Female (Black) - Local Output
4 x RJ-45 Female

Impedance

100 Ω

Video

Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
HDBaseT Compatible

Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
(Depends on connected receiver)

Max. Distance

Up to 100 m (Depends on connected receiver)

Audio

Input

1 x HDMI Type A Female (Black)

Output

1 x HDMI Type A Female (Black)

Control

RS-232

Connector: 1 x DB-9 Female (Black)
Serial Control Pin Configurations: Pin2 = Tx, Pin 3=Rx, Pin 5= Gnd
Baud Rate and Protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

EDID Settings

EDID Mode: Default / Port 1 / Auto / Learn

Connectors

Power

1 x 3-Prong AC Socket (Black)

Power Consumption

AC110V:18.2W:85BTU
AC220V:18.2W:85BTU

Environmental

Operating Temperature

0-50°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

3.47 kg ( 7.64 lb )

Dimensions (L x W x H)

43.24 x 26.11 x 4.40 cm
(17.02 x 10.28 x 1.73 in.)

Carton Lot

1 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
