Aten Switch, HDMI, 4 Port with Dual Output- VS482
• Allows up to four HDMI A/V sources to be connected to two HDMI displays
• Audio Return Channel (ARC) function – connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver

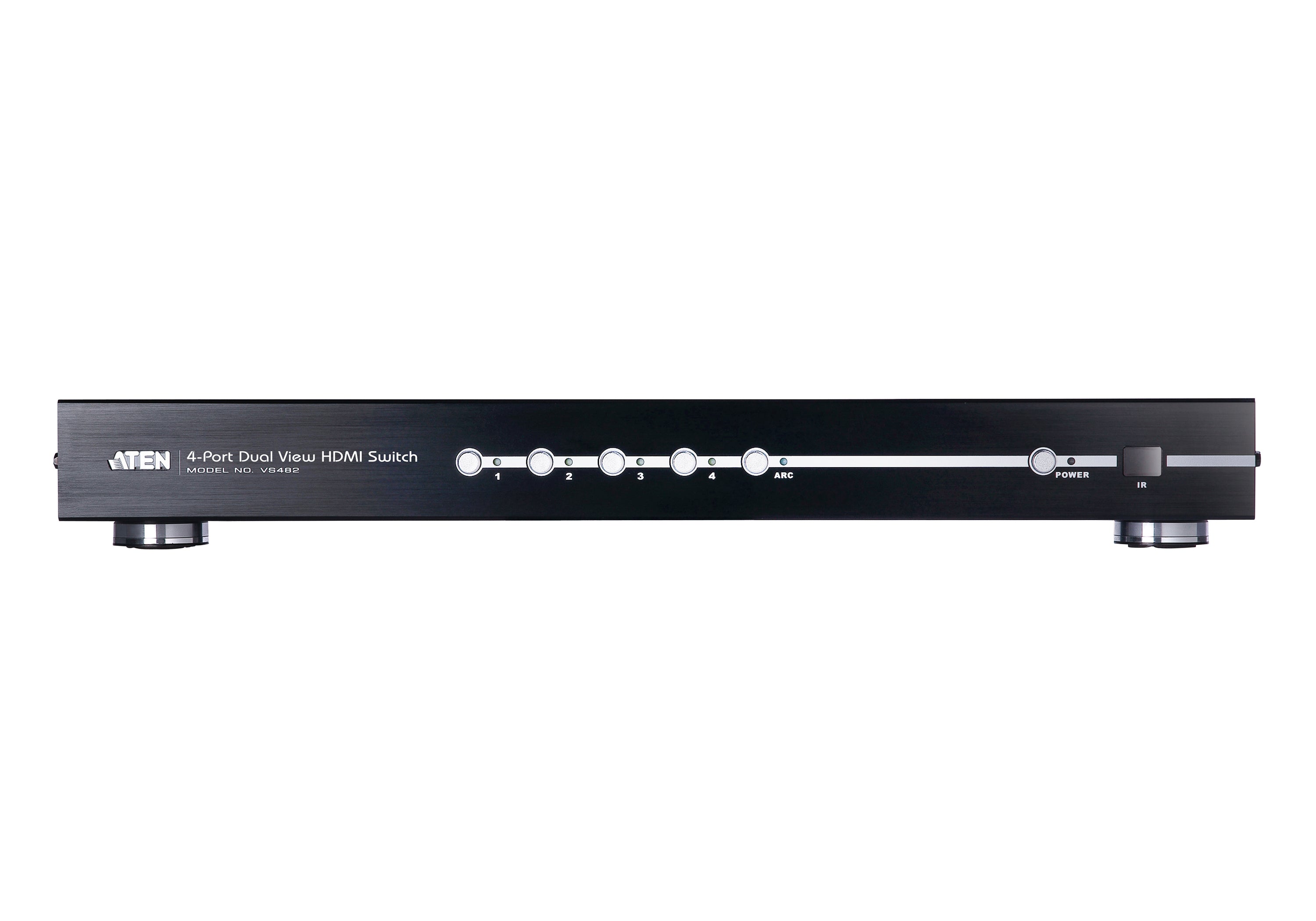

• Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
• Supports superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
With more and more HDMI devices entering the Home Theatre market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theatre system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.
Package Contents
- 1x VS482 4-Port Dual View HDMI Switch
- 1x IR Remote Control Unit
- 1x Power Adapter
- 1x User Instructions
- 1x Mounting Kit
|

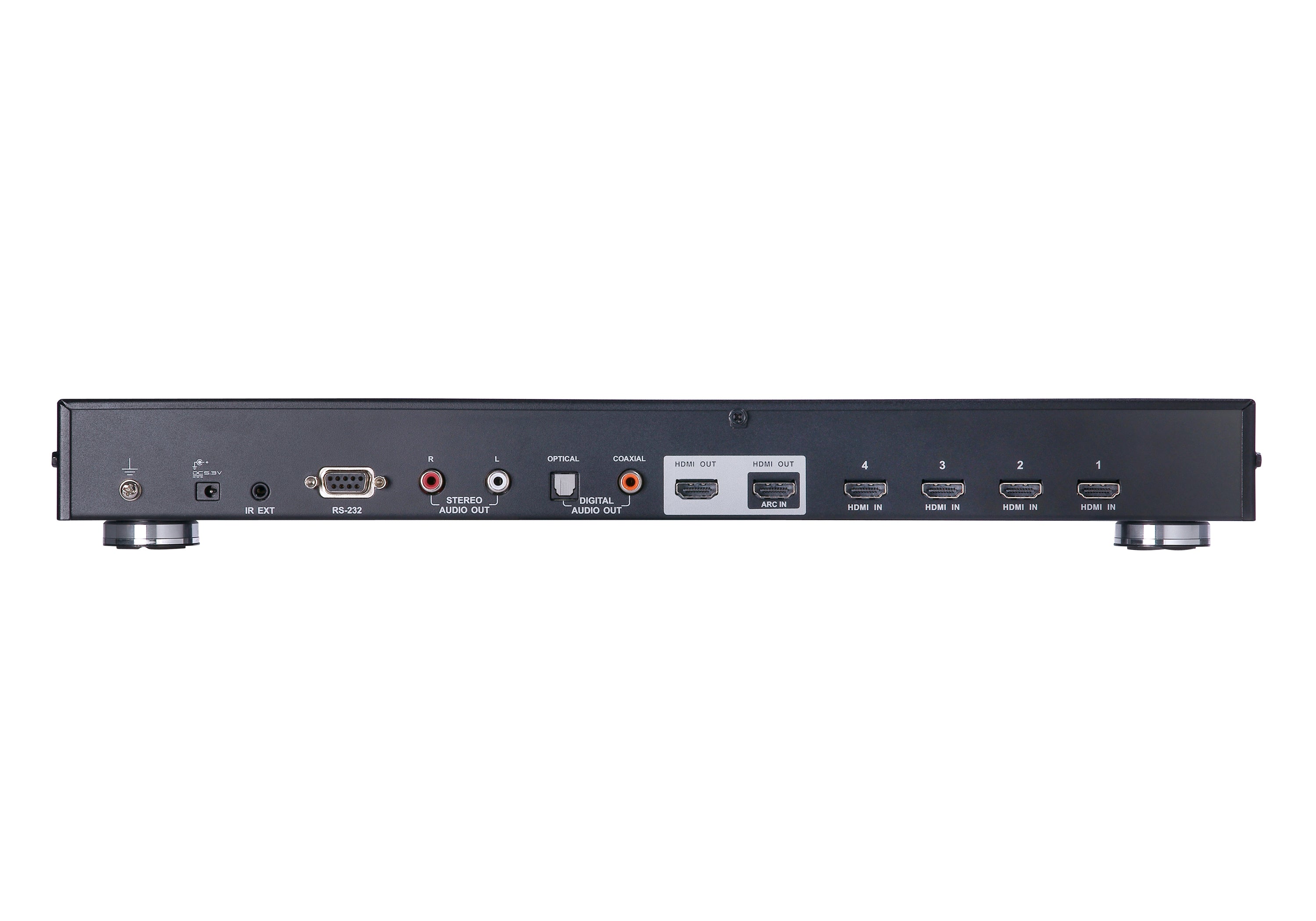

Video Input |
|
|
Interfaces |
4 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
3m @1920*1080@60 (4:4:4) |
|
Video Output |
|
|
Interfaces |
2 x HDMI Type A Female (Black) |
|
Impedance |
100 Ω |
|
Max. Distance |
15m @1920*1080@60 (4:4:4) |
|
Video |
|
|
Max. Data Rate |
6.75 Gbps (2.25 Gbps Per Lane) |
|
Max. Pixel Clock |
225 MHz |
|
Compliance |
HDMI (3D, Audio Return Channel, Deep Colour) |
|
Max. Resolution |
Up to 1080p |
|
Audio |
|
|
Input |
4 x HDMI Type A Female (Black) |
|
Output |
Analog: 2 x RCA (Red / White) |
|
Control |
|
|
RS-232 |
Connector: 1 x DB-9 Female (Black) |
|
IR |
1 x Mini Stereo Jack Female (Black) |
|
EDID Settings |
EDID Mode: Default / Port1 / Auto |
|
Connectors |
|
|
Power |
1 x DC Jack |
|
Power Consumption |
DC5.3V:5.74W:27BTU |
|
Environmental |
|
|
Operating Temperature |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
2.17 kg ( 4.78 lb ) |
|
Dimensions (L x W x H) |
43.72 x 15.86 x 4.40 cm |
|
Carton Lot |
3 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
