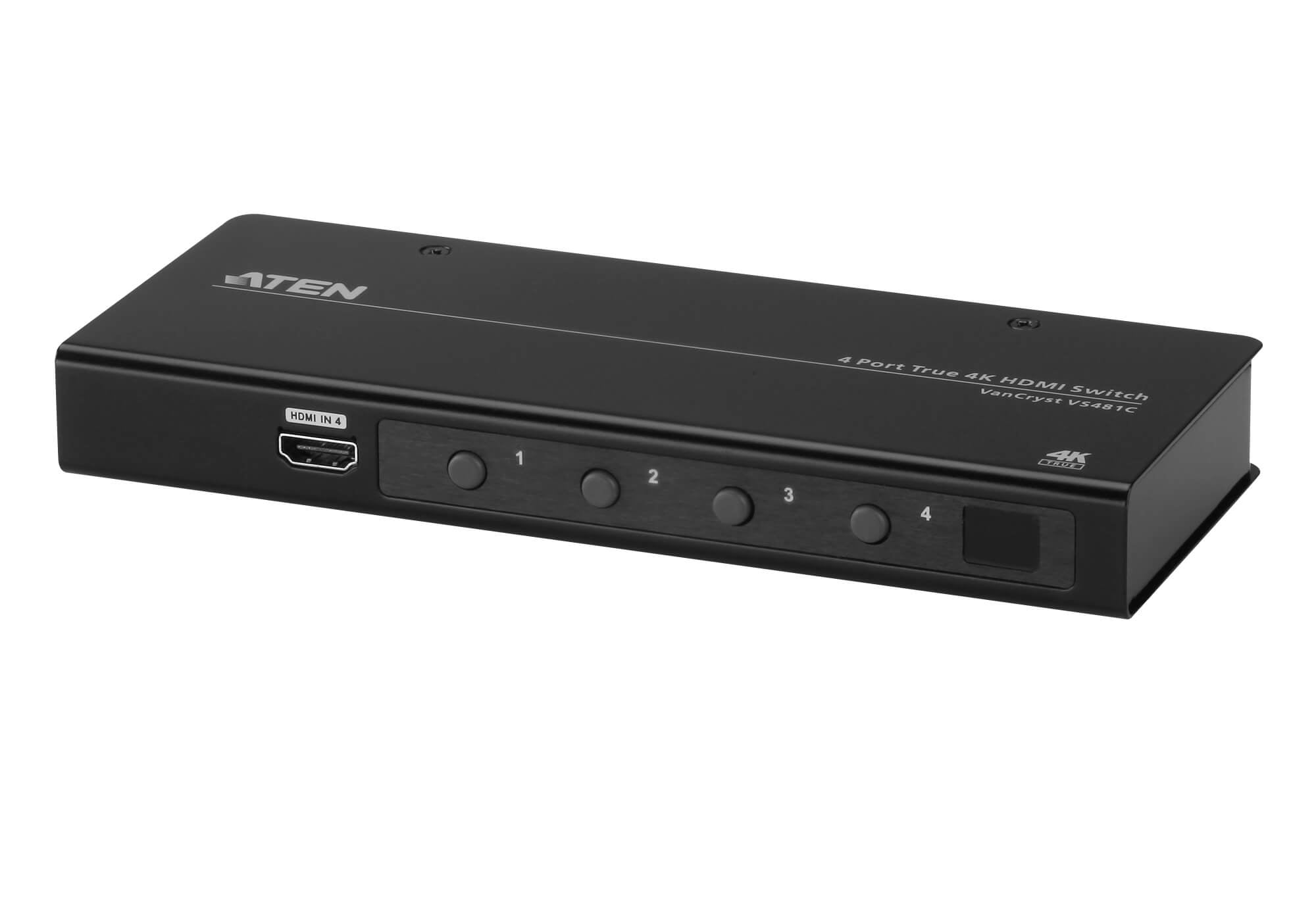

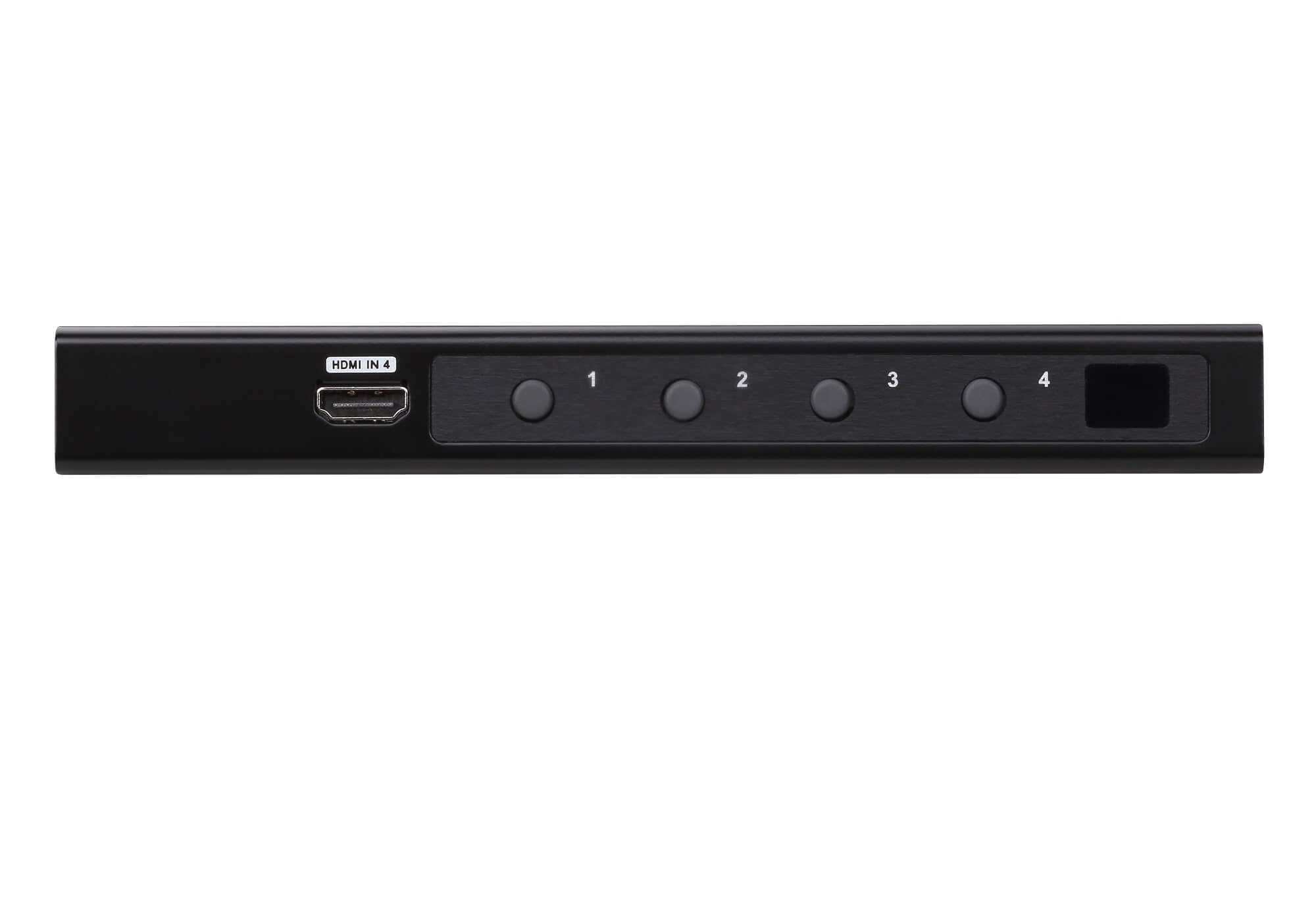

Aten Switch, True 4K, HDMI, 4 Port - VS481C

Aten
ATVS481CSWIHDMIX
R 2,076.43 Ex VAT

• Allows up to 4 HDMI sources to be connected to one HDMI display

• HDMI 2.0(3D, Deep Colour, 4K); HDCP 2.2 compliant

• Superior video quality- True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4)

• Built-in bi-directional RS-232 serial port for high-end system control

The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Colour up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

Engineered to meet today’s demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theatre, meeting rooms, trade shows, and shopping centres.

Switches

DIP

Auto Switch ON/OFF

Video Input

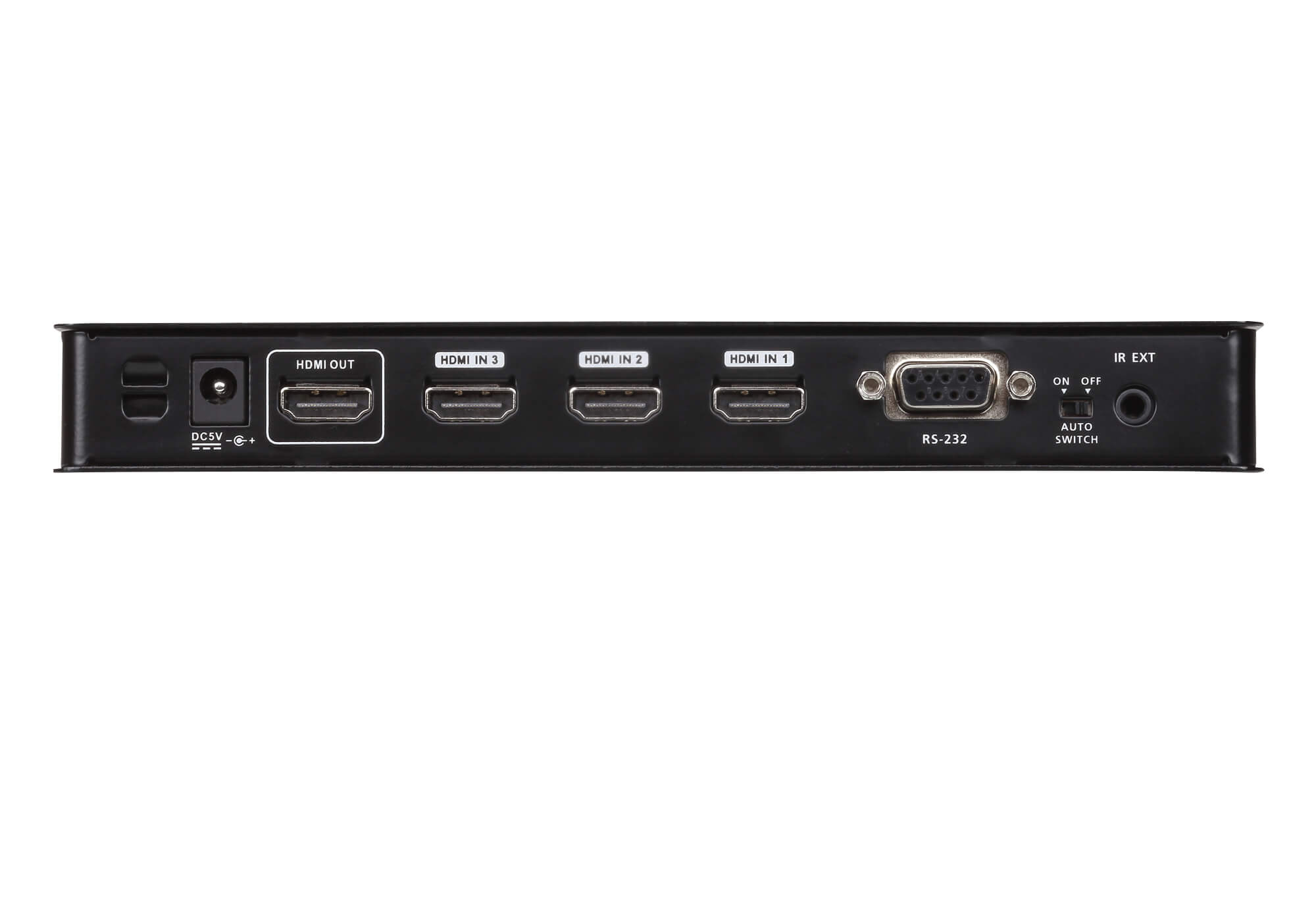

Interfaces

4 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Max. Distance

5M at 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video

Max. Data Rate

18 Gbps (6 Gbps Per Lane)

Max. Pixel Clock

600 MHz

Compliance

HDMI 2.0 (3D, Deep Colour, 4K)
HDCP 2.2
Consumer Electronics Control (CEC)

Max. Resolution

4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Control

RS-232

Connector:1 x DB-9 Female (Black)
Baud Rate:19200 / Data Bits:8 / Stop Bits:1 / Parity:NO / Flow Control:NO

IR

1 x Mini Stereo Jack Female (Black)
1 x IR Receiver

Connectors

Power

1 x DC Jack (with locking)

Power Consumption

DC5V:0.924W:20BTU

Environmental

Operating Temperature

0-40 °C

Storage Temperature

-20 - 60 °C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.47 kg ( 1.04 lb )

Dimensions (L x W x H)

20.00 x 8.21 x 2.50 cm
(7.87 x 3.23 x 0.98 in.)

Carton Lot

10 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
