Aten Extender, HDMI, VGA, HDBaseT, Transmitter and Receiver - VE2812AU – Solution Technologies

Aten Extender, HDMI, VGA, HDBaseT, Transmitter and Receiver - VE2812AUST

Aten
ATVE2812AUSTEXTHDMIX
R 7,702.36 Ex VAT

• Extends HDMI or VGA signals over a single Cat 5e/6/6a cable
• HDMI: 4K distance up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
• VGA: 1600 x 1200 and 1920 x 1200 up to 100m via a Cat 5e/6/6a or ATEN 2L-2910 Cat6 cable

• Supports HDBaseT Long Reach Mode – up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p

• Built-in PoH (Power over HDBaseT) function – the VE2812AUST receives power supply from the HDBaseT output port on the connected device

• Supports Auto Switch – automatically switches to a newly plugged-in source

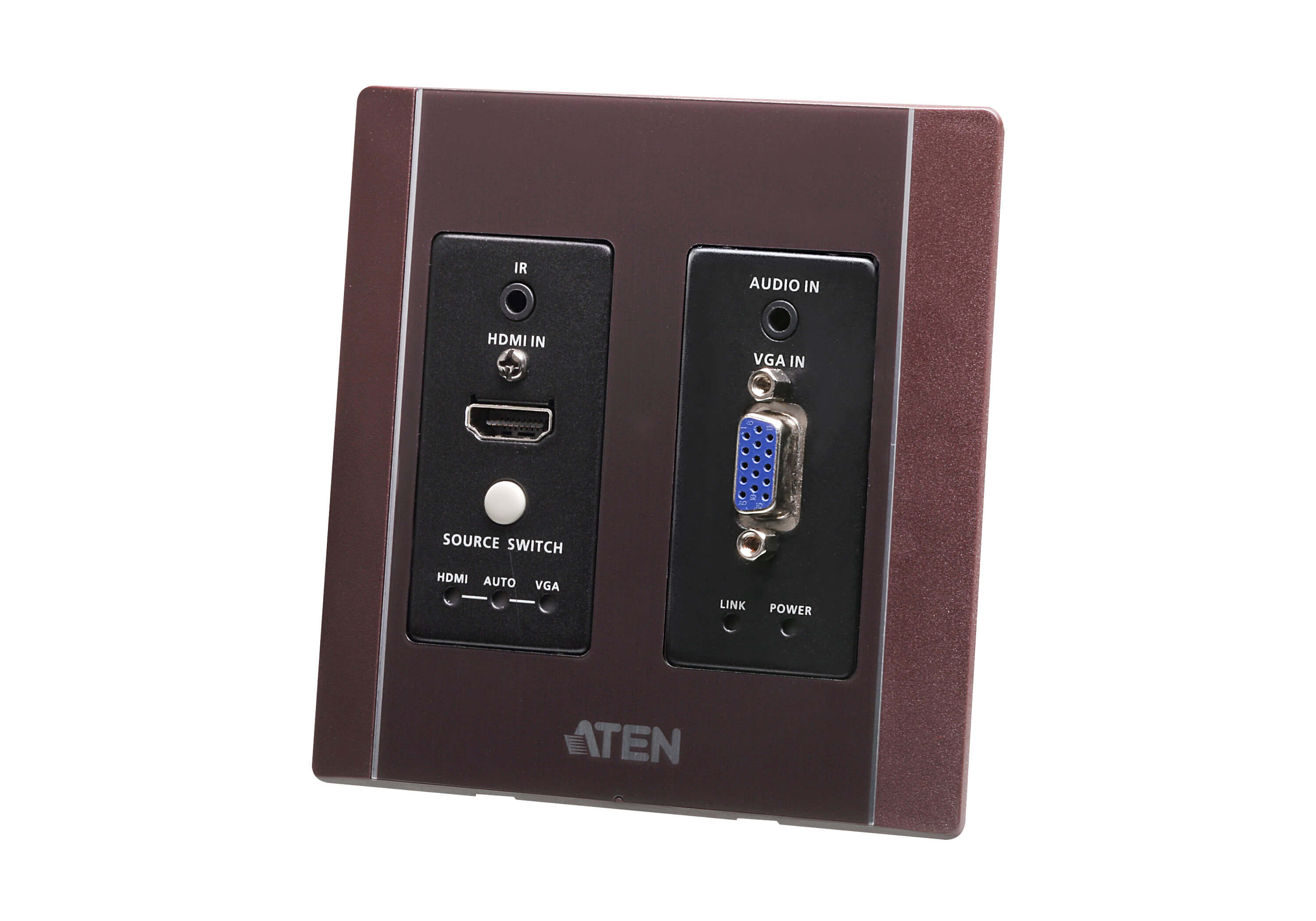

ATEN VE2812AUST is a transmitter for sending VGA (with audio) and HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring built-in PoH (Power over HDBaseT) function, the VE2812AUST receives power supply from the HDBaseT output port on the connected device. This eliminates the need for a power adapter and reduces the hassle of power line deployment behind the wall. With US Wall Plate design, the VE2812AUST can be conveniently mounted in a two - gang junction box. The VE2812AUST guarantees reliable transmission of HDMI / VGA signals. For HDMI signal transmission, it supports 3D, Deep Colour, and embedded HD lossless audio formats. To pursue longer distance transmission, it supports Long Reach Mode up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p.

Package Contents

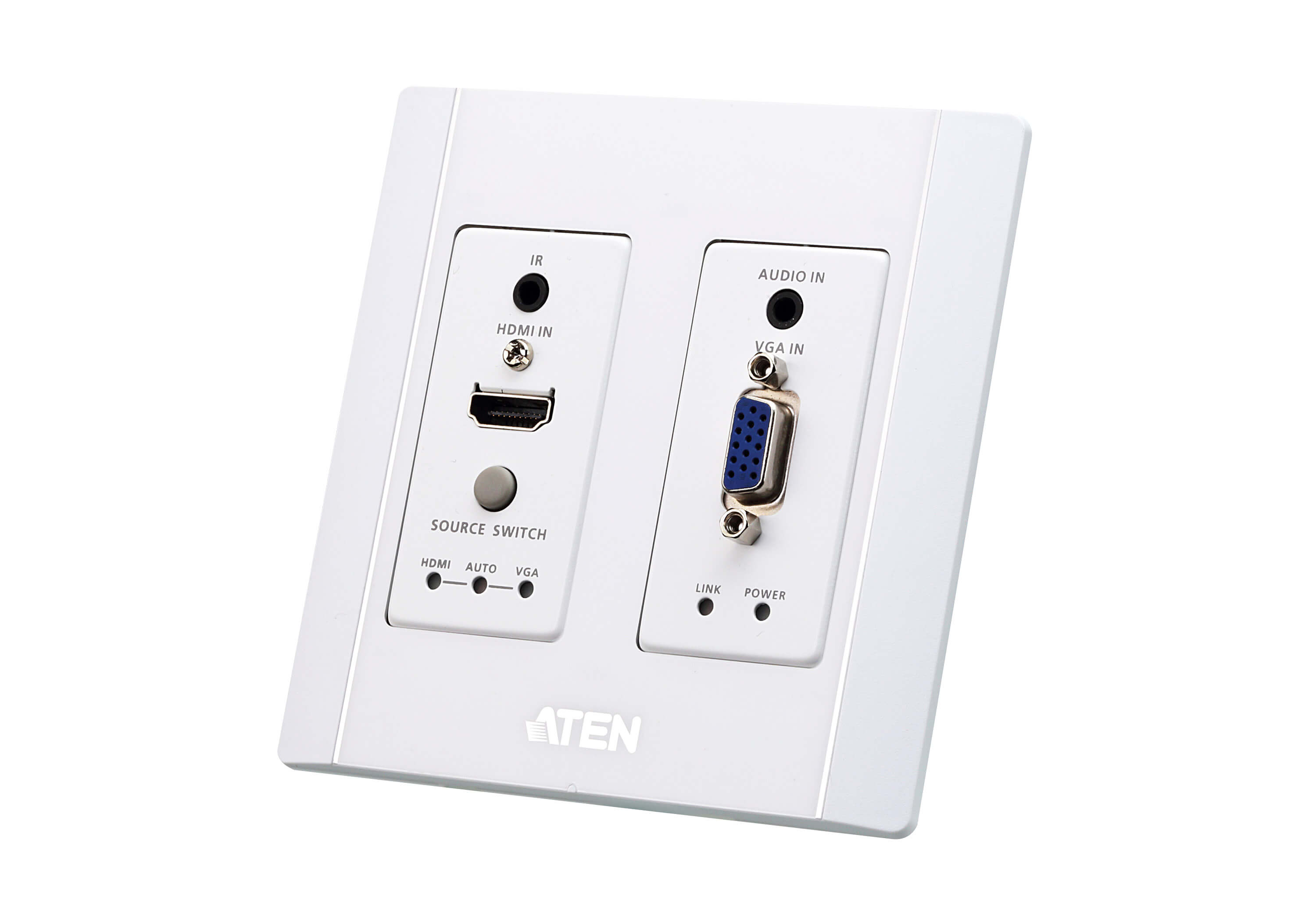

1x VE2812AUST HDMI & VGA HDBaseT Transmitter with US Wall Plate / PoH

1x 3 Pin RS-232 Terminal Block

1x 2 Pin Power Terminal Block

1x Faceplate

1x Power Adapter

1x User Instructions



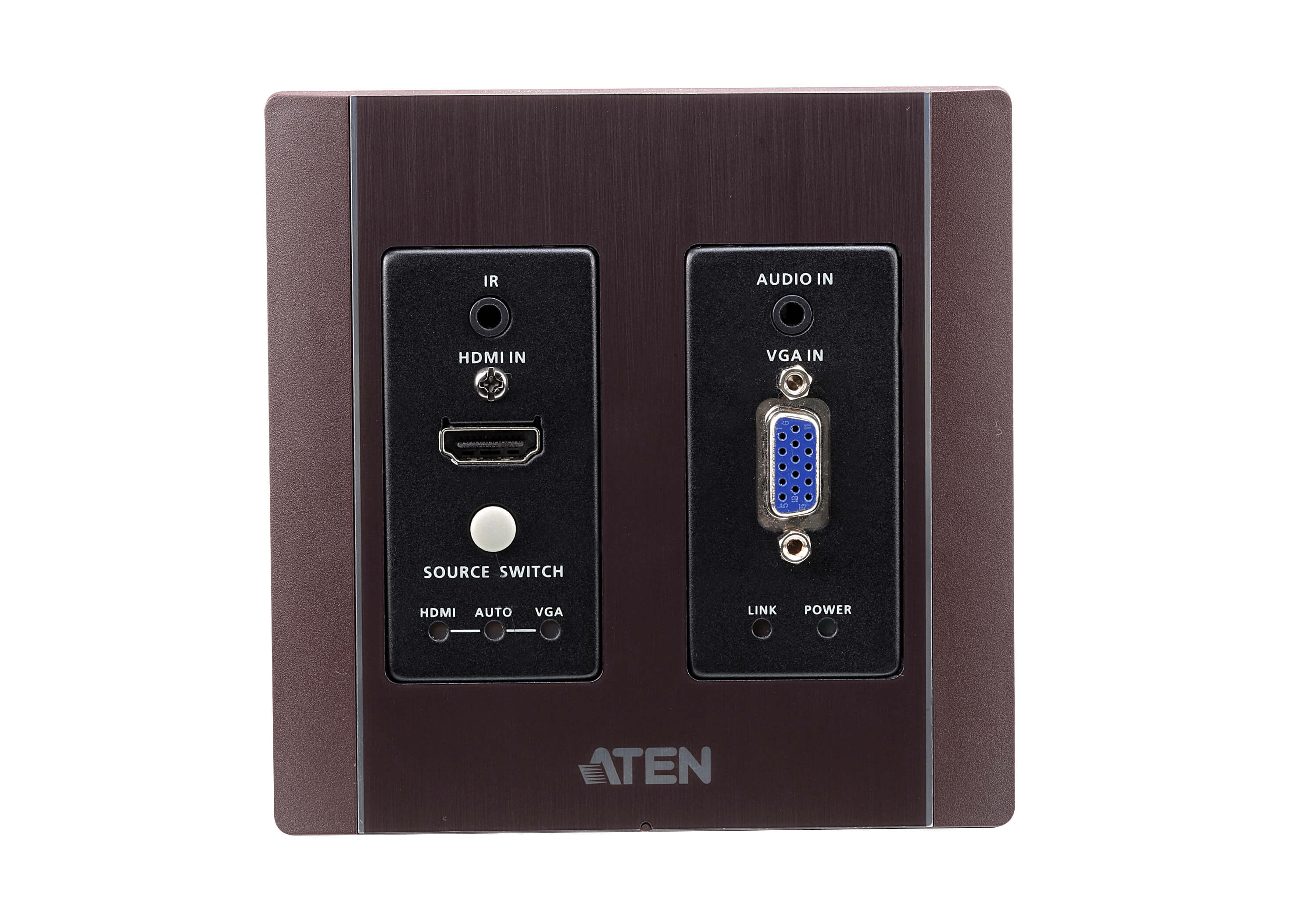

Video Input

Interfaces

1 x HDMI Type A Female (Black)
1 x HDB-15 (VGA) Female (Blue)

Impedance

HDMI: 100 Ω
HDB-15 (VGA): 75 Ω

Max. Distance

HDMI: 3 m
HDB-15(VGA): 10m

Video

Max. Data Rate

10.2Gbps (3.4Gbps per lane)

Max. Pixel Clock

340 MHz

Compliance

HDMI (3D, Deep Colour, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)

Max. Resolutions / Distance

HDMI: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
VGA: Up to 1920x1200 & 1600x1200@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1920x1080@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

Input

1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green)

Control

RS-232

Connector: 1 x Terminal Block, 3 pole (Green)
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control

IR

1 x Mini Stereo Jack Female (Black)

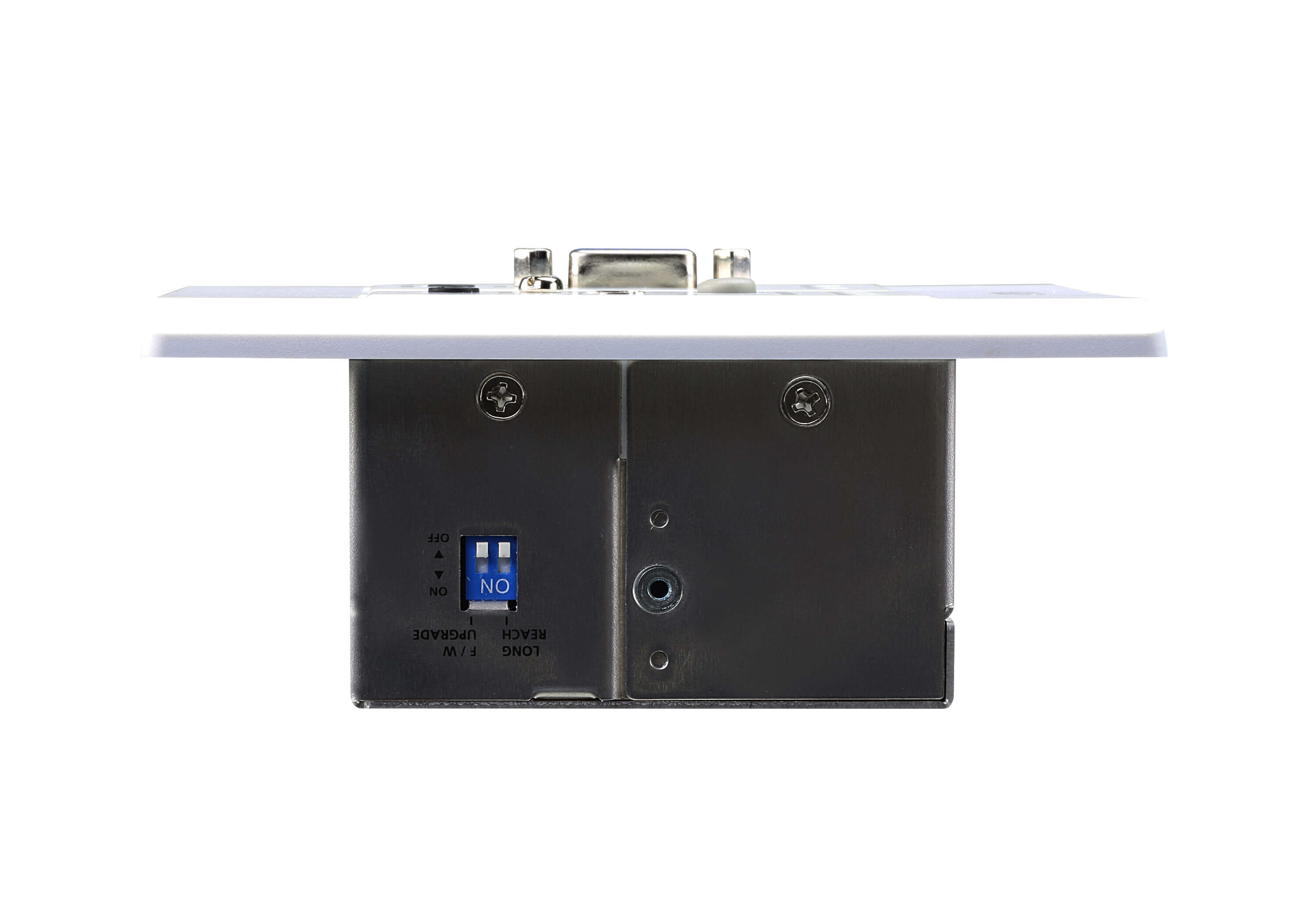

Switches

Video Input Port Selection

1 x Push Button - HDMI, VGA and AUTO

Long Reach Mode Switch

1 x Slide Switch - ON/OFF

Firmware Upgrade

1 x Slide Switch - ON/OFF

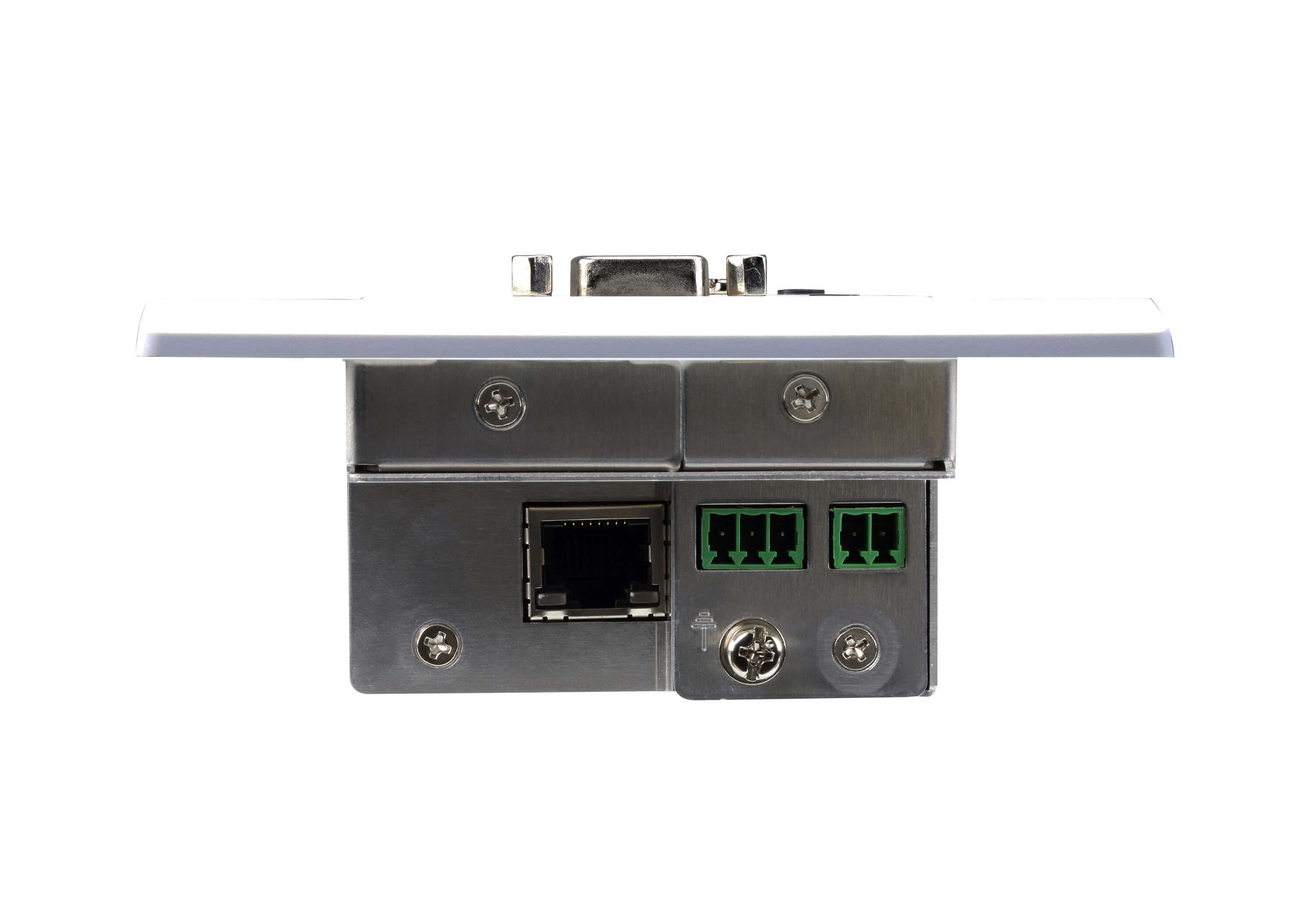

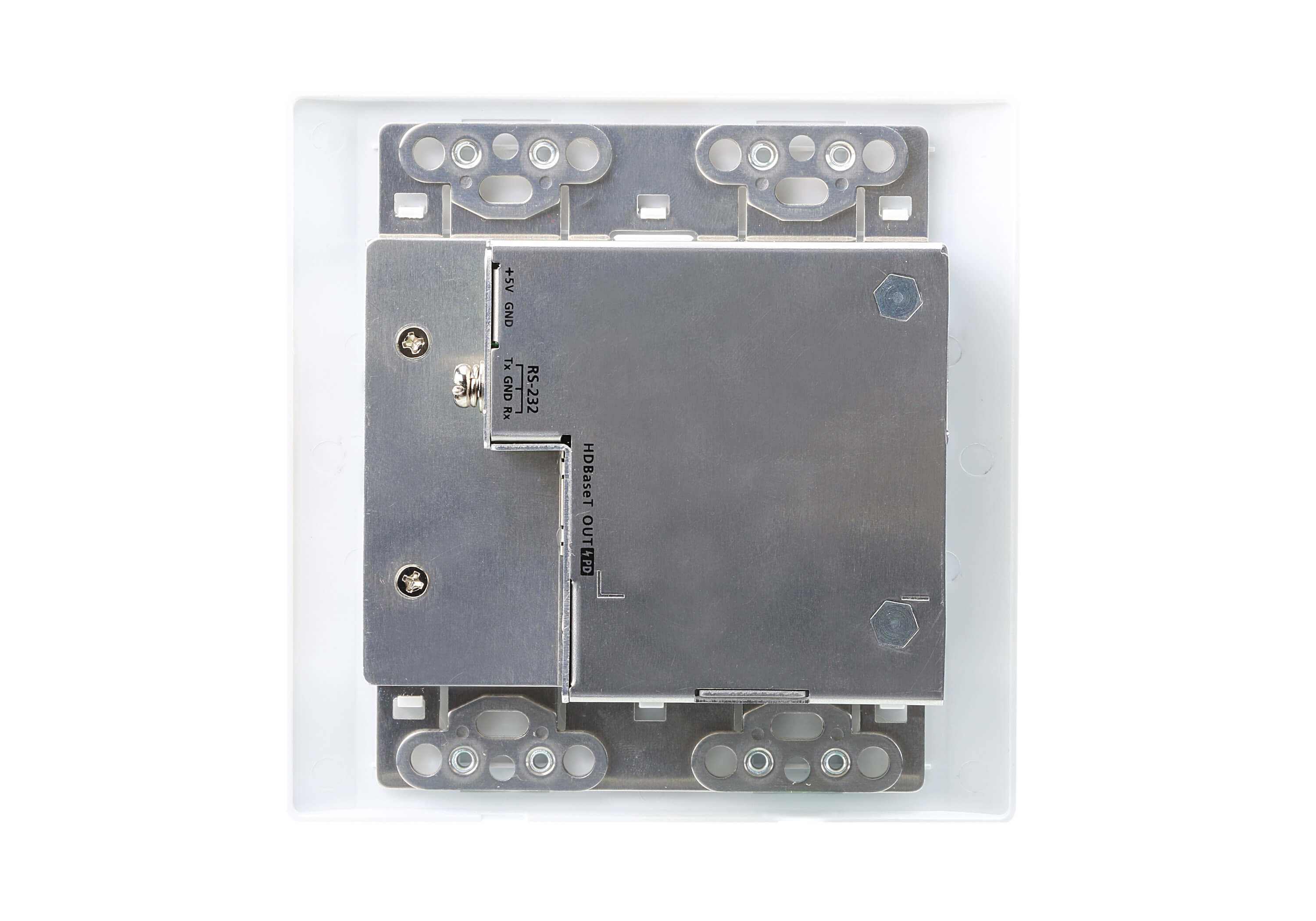

Connectors

Unit To Unit

1 x RJ-45 Female

Power

1 x Terminal Block, 2 pole (Green) or
1 x RJ-45 Female (POH)

Power Consumption

DC5V:3.04W:14BTU
POH:3.8W:18BTU

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.21 kg ( 0.46 lb )

Dimensions (L x W x H)

10.42 x 8.79 x 5.19 cm
(4.1 x 3.46 x 2.04 in.)

Faceplate Dimensions (L x W x H)

11.43 x 11.43 x 0.65 cm
(4.5 x 4.5 x 0.26 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
