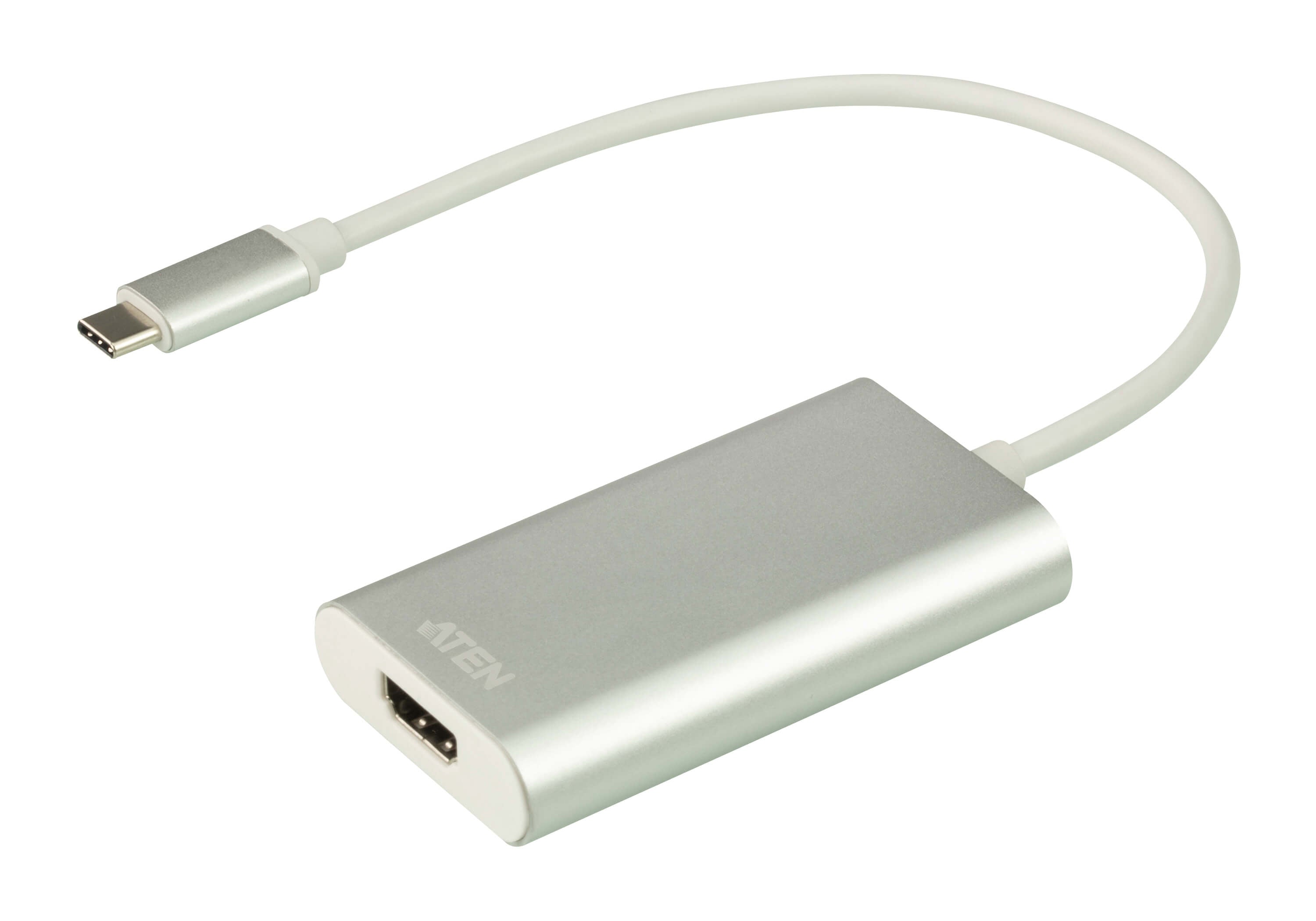

Aten Video Capture, HDMI - UC3020

R 1,850.00 Ex VAT

• Captures unencrypted HDMI video signal from camcorder or DSLR up to 1080P @ 60*

• Supports live video streaming, webcasting and video conferencing

• Compatible with popular streaming software, such as OBS, Xsplit, YouTube, Facebook and Twitch

• Plug & Play – Supports UVC/UAC v1.1

• Compatible with USB3.2 Gen1 Type-C standard

• Works with all major operating systems: Windows®, OS X® and Android®

*CAMLIVE cannot display or capture HDCP protected content

"CAMLIVE" is an HDMI UVC Video Capture device to send unencrypted HDMI video to your USB-C / Thunderbolt 3 laptop or smartphone (or USB-A with the included adapter). It’s compliant with latest USB 3.2 Type-C specification.

CAMLIVE is designed to Plug & Play. Its built-in UVC and UAC standard support allows system operation without installing drivers and, at the same time, delivers eye-popping, high quality video on Windows and Mac systems at 1080/60fps. By sending captured RAW data, you can enjoy video editing or live streaming with various popular third-party video-editing software/platforms - Open Broadcaster Software (OBS), Xsplit, Twitch, YouTube, Facebook, to name a few.

Having a slim and aesthetic design, CAMLIVE provides you with an enjoyable, high-quality live streaming/video editing experience with style whether at work or on the go.

Package Contents

1x UC3020 CAMLIVE HDMI to USB-C UVC Video Capture

1x USB-C to USB-A Adapter*

1x User Instructions

* When using the adapter, if you are only detecting MJPG video, please disconnect the USB-C head from the adapter, flip the USB-C head around and reconnect it to the adapter.



Video In

1 x HDMI Type A Female (Black)

USB Port

USB 3.2 Gen1 Type-C Male (White)
(USB-C to USB-A adapter package included, Black )

Video Resolution

Video input: 1080p60, 720p60, 480p60, HDMI 1.4b support (unencrypted)

Audio Sampling

16-bit PCM audio, 44.1KHz and 48KHz


Uncompressed 1080p, 720p60 and 480p60 UVC video stream with UAC audio
(Uncompressed video stream is only available on USB3.2 connection)


Operating Temperature

0 - 40 ºC

Storage Temperature

-20 – 60 ºC


0 - 80% RH, Non-Condensing

Minimum Hardware Requirements

CPU: Intel® i3 Dual Core 2.8Ghz or higher
RAM: 4GB or more
One USB-C interface or USB-A interface

Android device with UVC support and USB-C interface*

*Latest UC3020 FW upgrade for smartphone support is required. For detail UVC compatible device list, please refer to following info revealed by third party App.

OS Support

Windows 10 and above *
Mac OS X 10.13 and above
Android 5.0.1 and above with UVC support

*Window 7 requires driver installation

Physical Properties




0.04 kg ( 0.09 lb )

Dimensions (L x W x H)

4.20 x 7.30 x 1.40 cm
(1.65 x 2.87 x 0.55 in.)


For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



UC3020 Datasheet PDF
