Aten KVM Switch, USB 2.0, HDMI, 16 Port - CS17916

Aten
ATCS17916SWIKVMXX
R 28,991.57 Ex VAT

• Cascadable to two levels–control up to 256 computers

• Multi-Display feature – stack up to eight CS17916 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)

• Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

• Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc.

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console.

In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.

The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).



Package Contents

  • 1x 16-Port USB HDMI KVM Switch with Rack Mounting Kit
  • 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft)
  • 1x Firmware Upgrade Cable
  • 1x Power Adapter
  • 1x Foot Pad Set (4 pcs)
  • 1x User Instructions



Computer Connections

Direct

16

Maximum

256 (via Cascade)

Port Selection

OSD, Hotkey, Pushbutton

Connectors

Console Ports

1 x HDMI Female
2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)

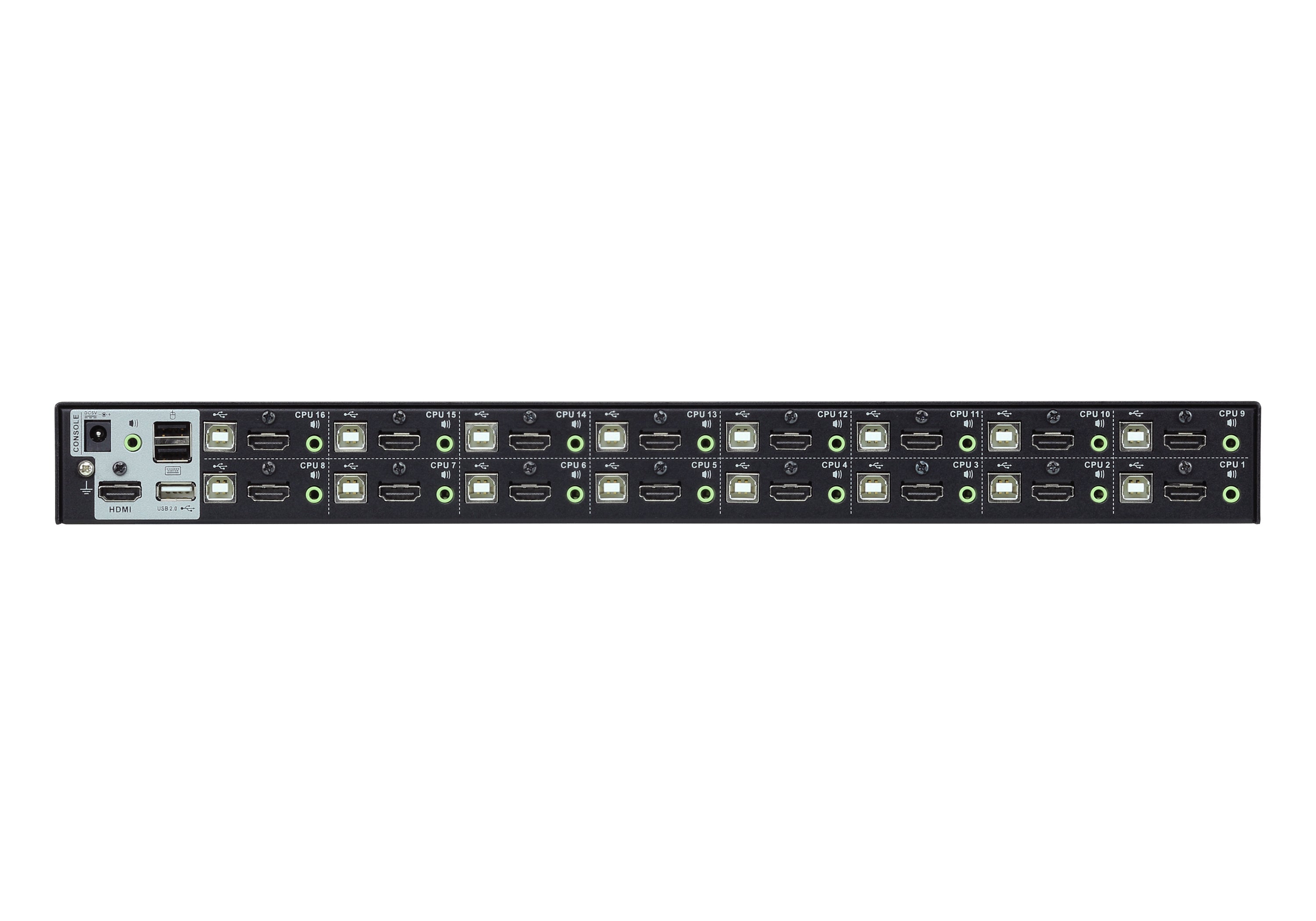

KVM Ports

16 x HDMI Female
16 x USB Type B Female
16 x 3.5mm Audio Jack Female (Green)

Firmware Upgrade

1 x RJ11 Female

Power

1 x DC Jack

USB Hub

2 x USB Type A Female (1 x front panel, 1 x rear panel)

Switches

Port Selection

16 x Pushbutton

Reset

1 x Semi-recessed Pushbutton

Firmware Upgrade

1 x Slide Switch

LEDs

USB Link

16 (Green)

Power

1 (Dark Green)

On Line /Selected

16 (Orange)

Emulation

Keyboard / Mouse

USB

Video

1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz

Scan Interval

1 – 255 seconds (default: 5 sec.)

Power Consumption

DC5V:9.18W:69BTU

Environmental

Operating Temperature

0 – 50°C

Storage Temperature

-20 – 60°C

Humidity

0 – 80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

3.86 kg ( 8.5 lb )

Dimensions (L x W x H)

43.24 x 25.72 x 4.40 cm
(17.02 x 10.13 x 1.73 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
