Aten KVM Switch, USB 2.0, HDMI, 2 Port - CS22H

Aten
ATCS22HSWIKVMXX
R 1,855.17 Ex VAT

• One KVM console controls two USB HDMI computers

• Superior video quality – up to 4096 x 2160 @ 60 Hz

• Hook design for space-saving and organized workstation

• Bus-powered design

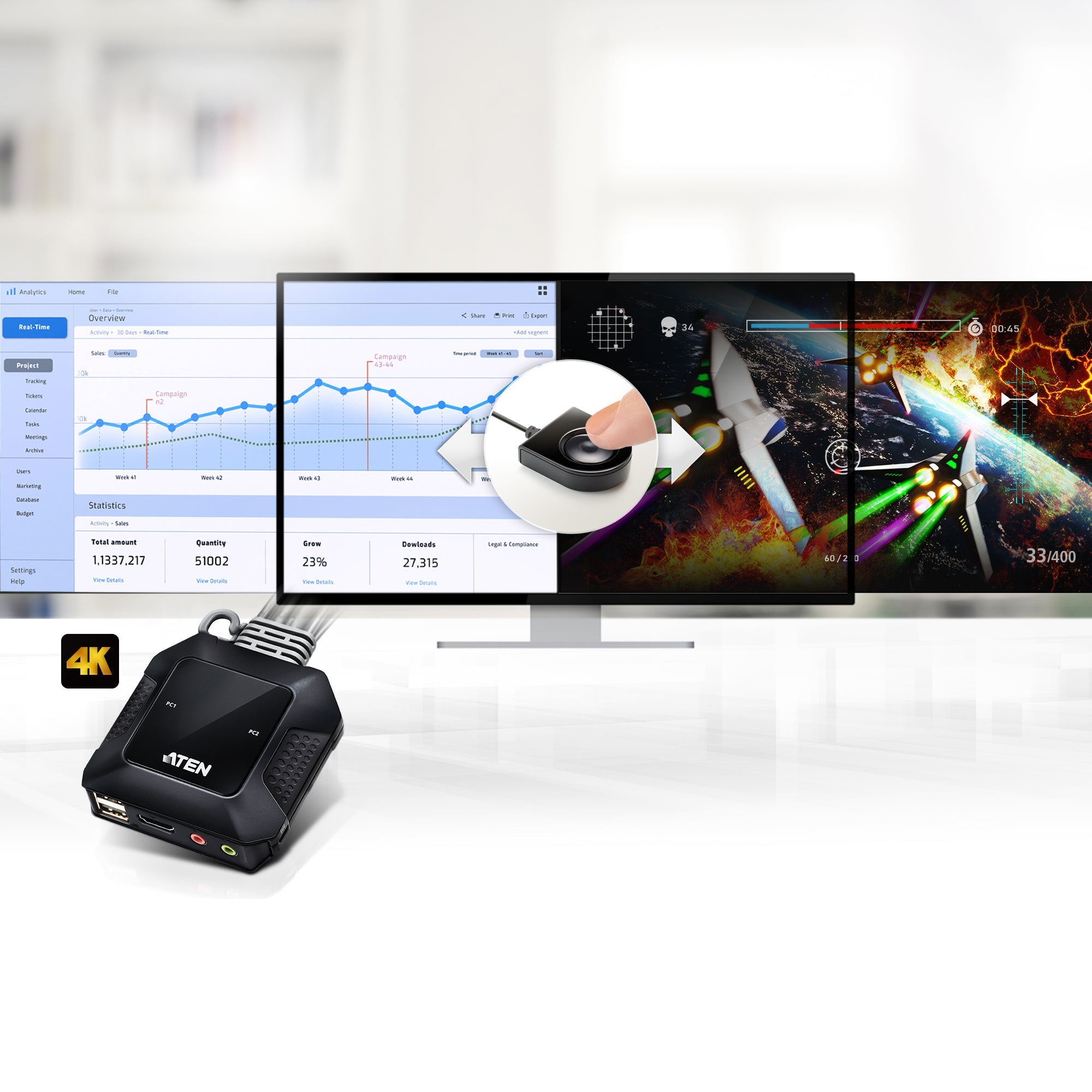

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.

 The CS22H empowers your desktop operations with audio visual enhancement with 4K DCI compliance and audio connectivity.

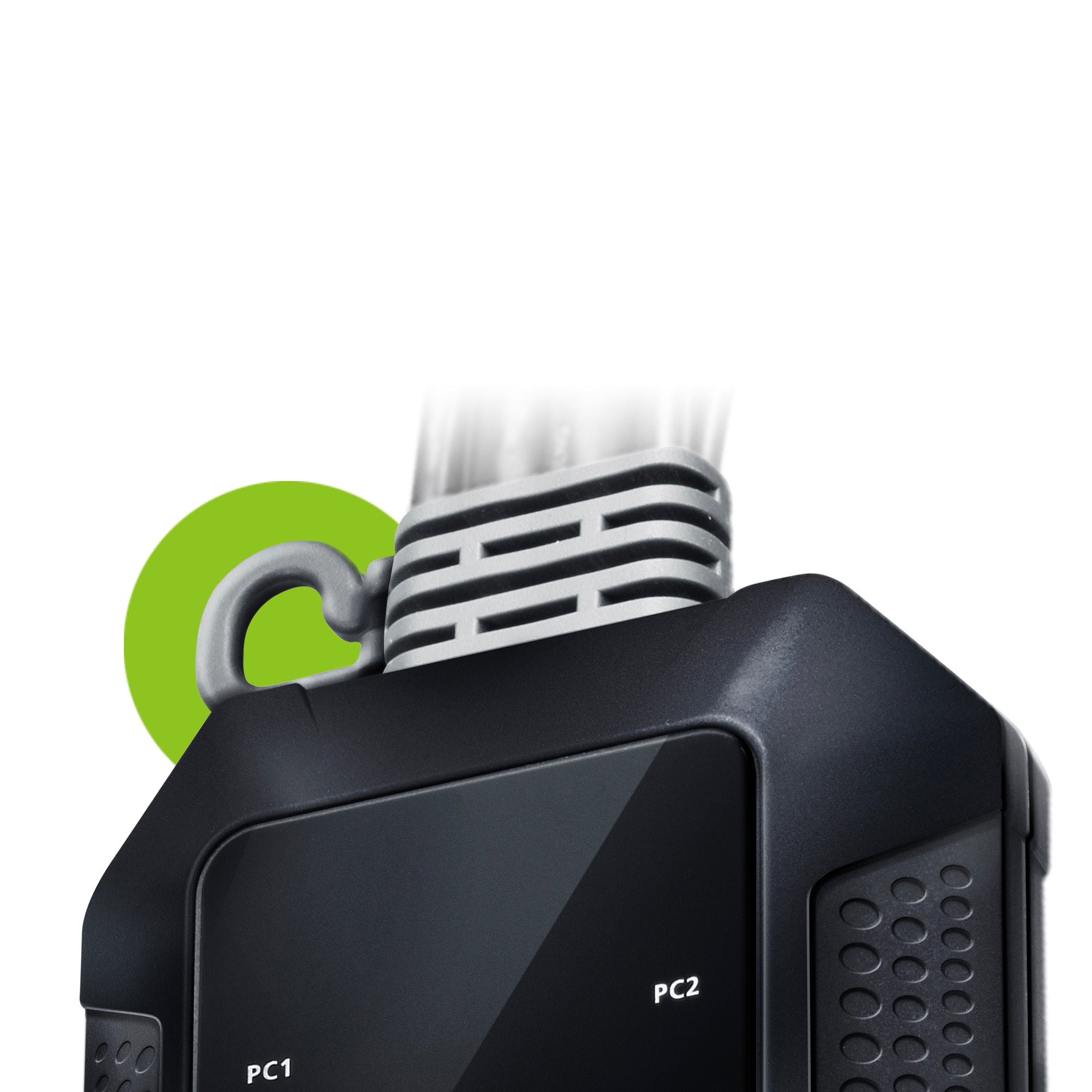

The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console.

The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

The CS22H Cable KVM Switch allows for an ideal desktop setup in office, media design work and entertainment.

Package Contents

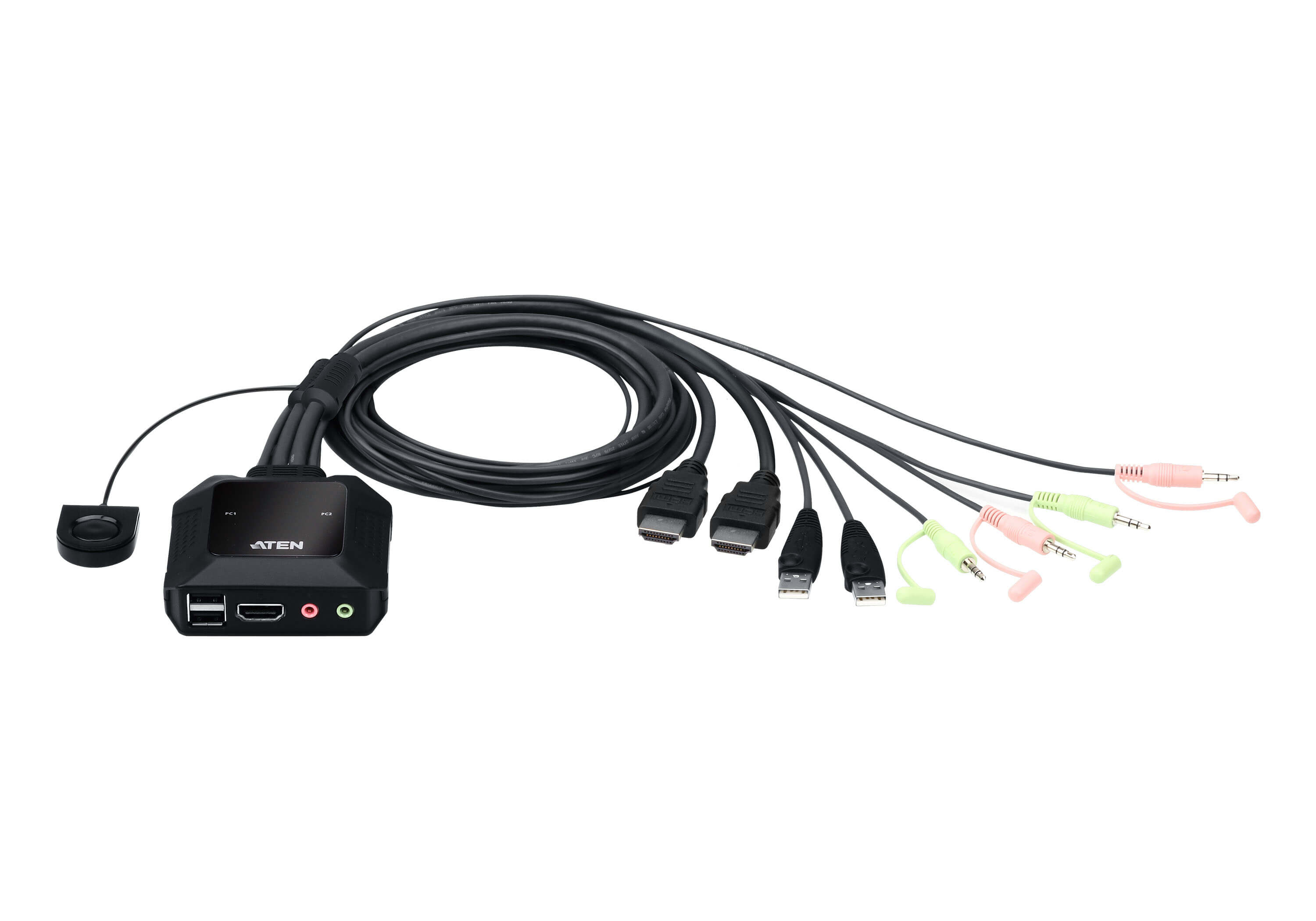

  • 1x CS22H 2-Port USB 4K HDMI Cable KVM Switch
  • 1x User Instructions






Computer Connections

2

Port Selection

Remote Port Selector

Connectors

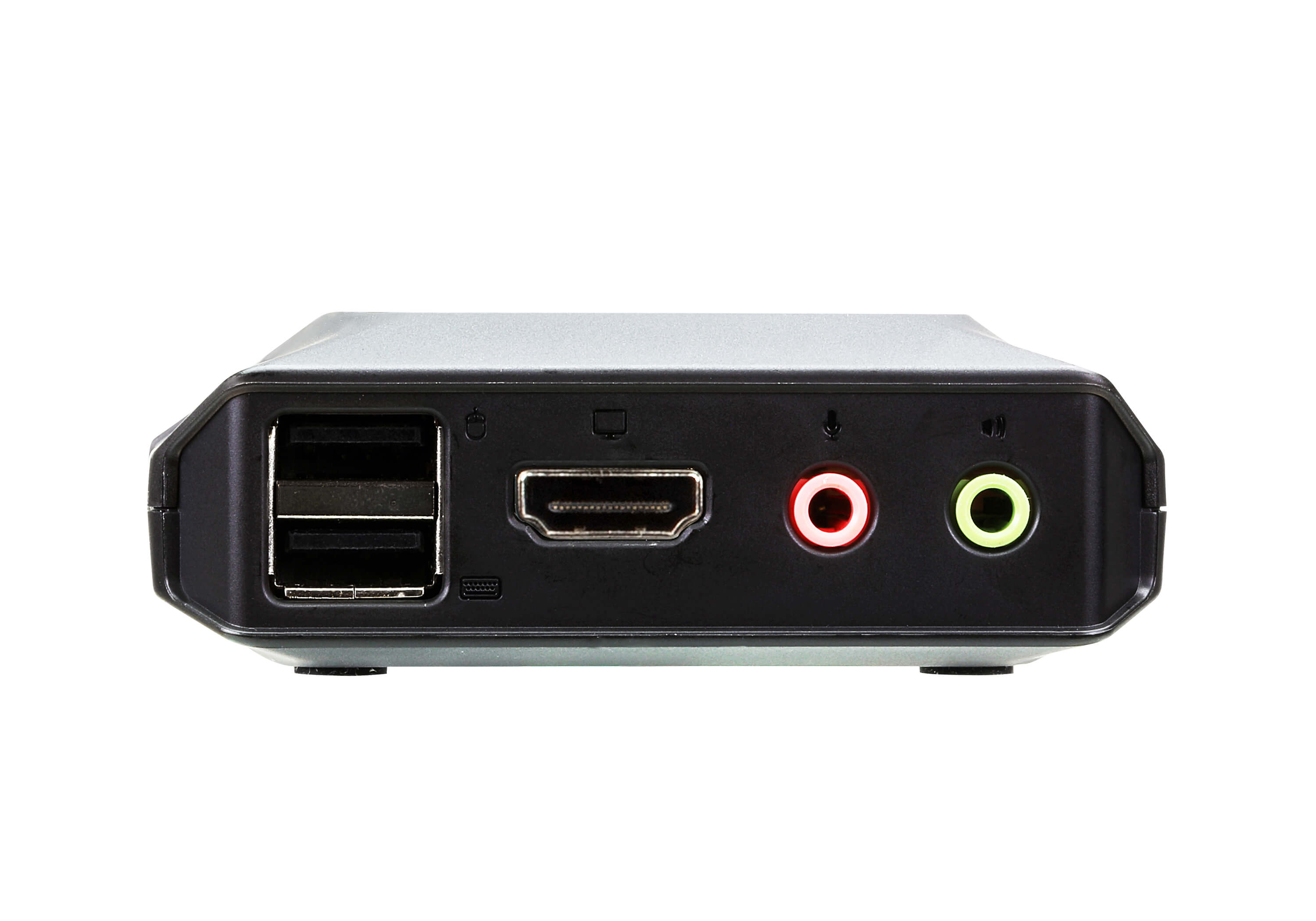

Console Ports

1 x HDMI Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

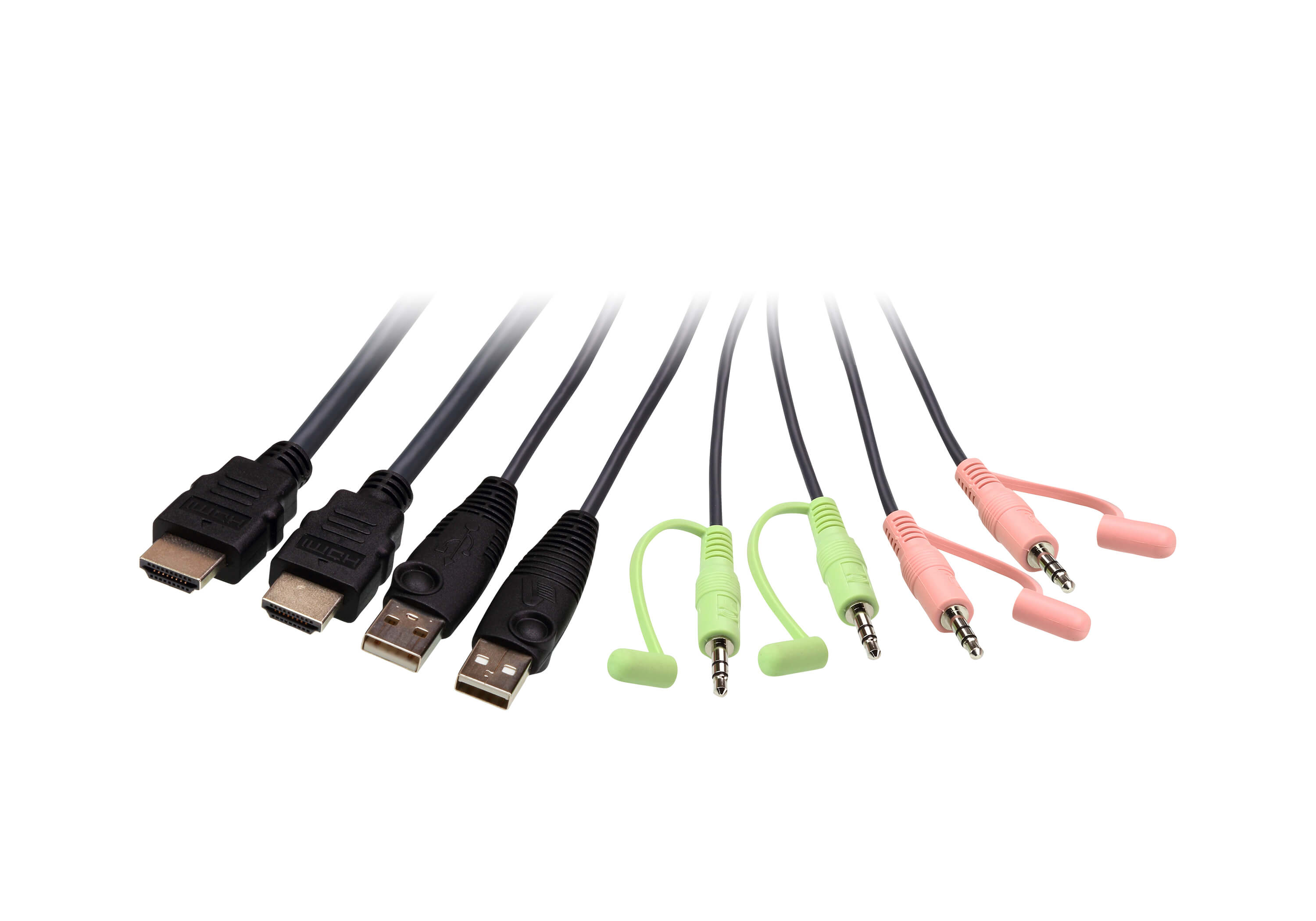

KVM (Computer) Ports

2 x HDMI Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)

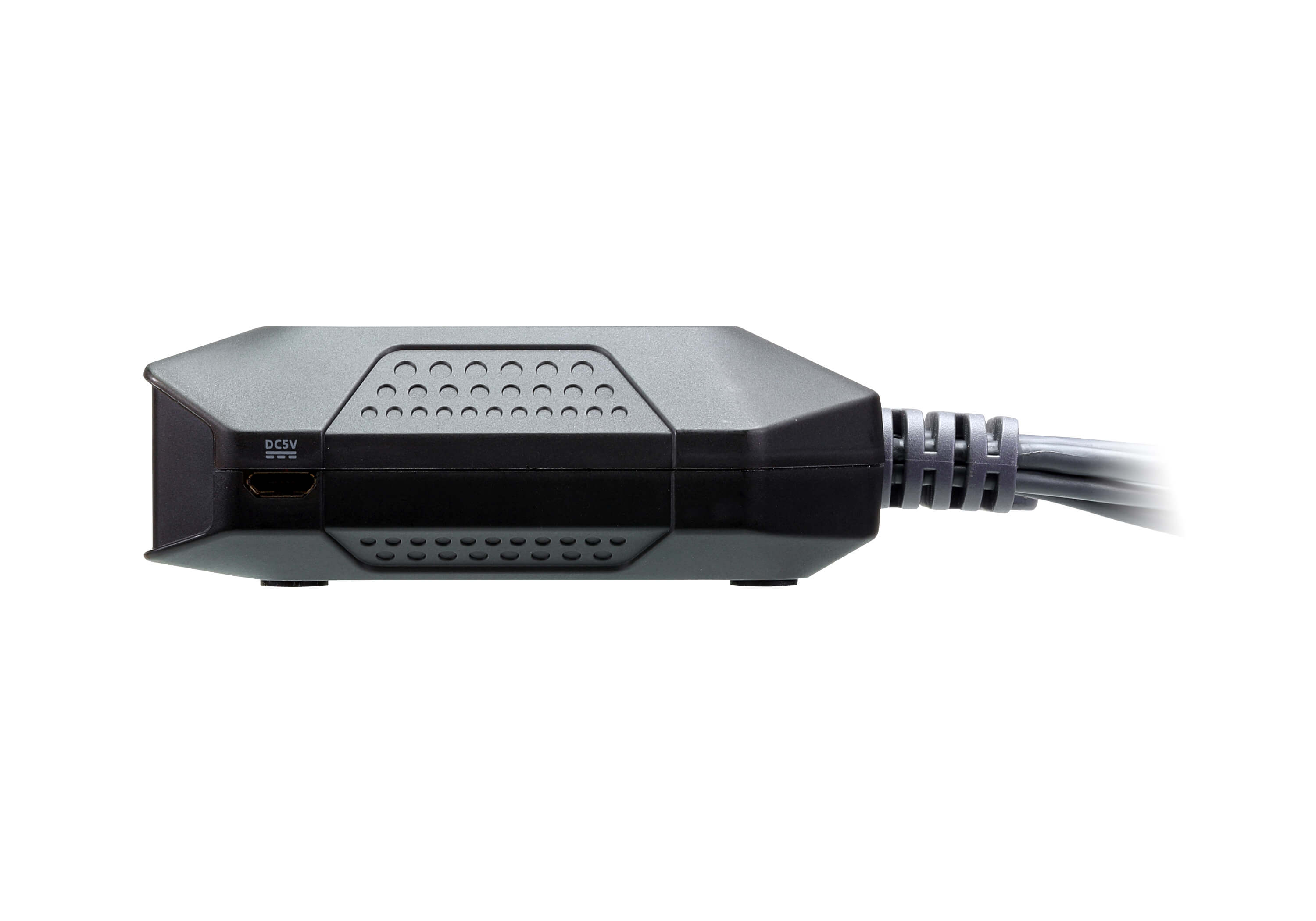

Power (Optional)

1 x USB Micro Type B Female

LEDs

KVM Port (On Line /Selected)

2 (White)

Cable Length

KVM

2 x 1.2 m

Remote Port Selector

1.8 m

Emulation

Keyboard / Mouse

N/A

Video

Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz

Power Consumption

DC5V:3.47W:29BTU

Environmental

Operating Temperature

0 - 50°C

Storage Temperature

-20 - 60°C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Plastic

Weight

0.34 kg ( 0.75 lb )

Dimensions (L x W x H)

8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
