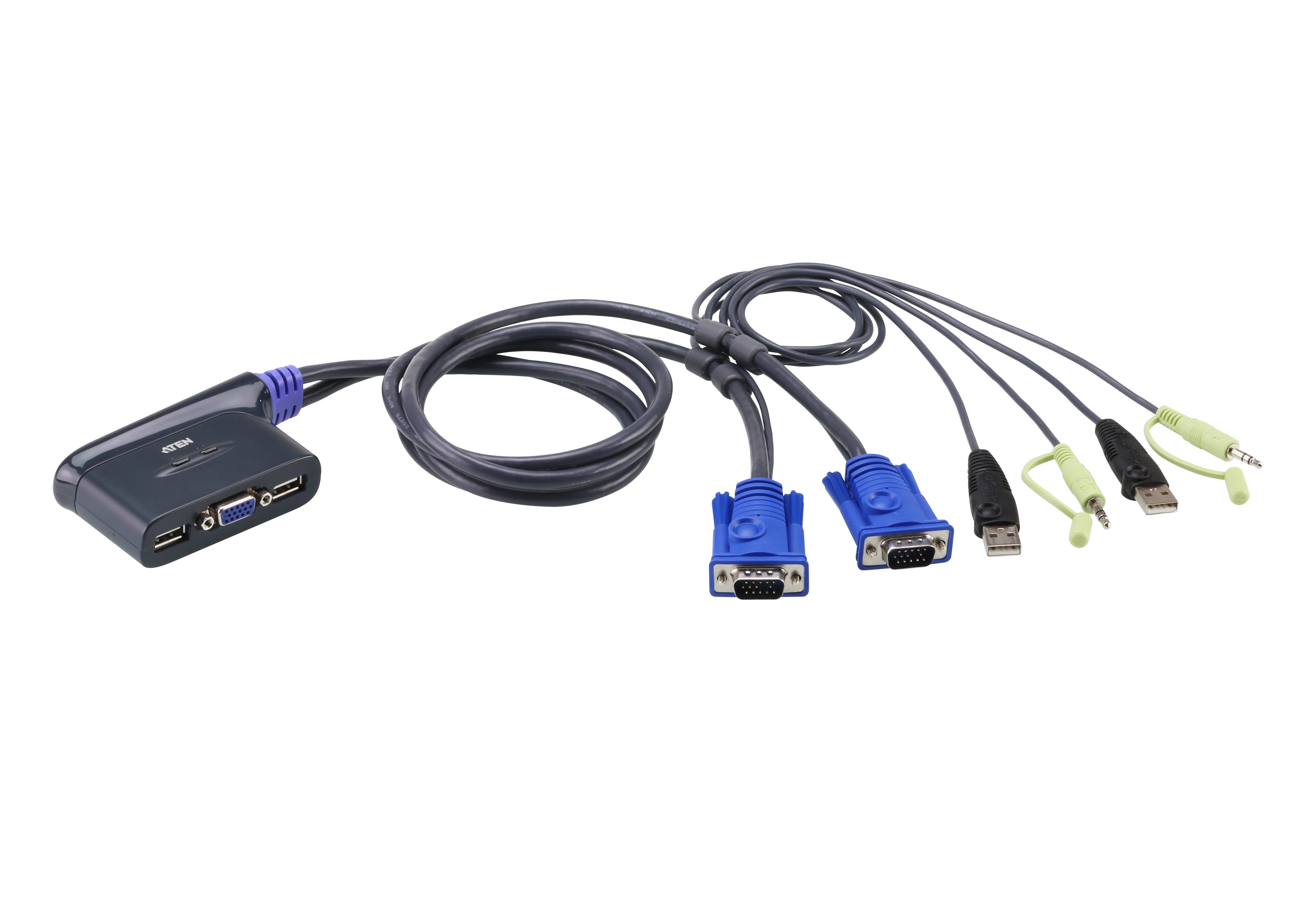

Aten KVM Switch, USB 2.0, VGA, 2 Port - CS62U
• Superior video quality – up to 2048 x 1536 @ 60 Hz ; DDC2B
• Computer Selection via hotkey and USB mouse
• Multiplatform support - Windows, Linux, Mac, and Sun
• Built-in 1.8 m cables and bus-powered design
The compact CS62U allows quick switching between 2 VGA-interfaced PCs via one KVM console and helps to expand your desktop workspace while keeping it tidy and organized for improved productivity. With the shared speaker set, multitasking between computers can be more enjoyable.
The CS62U enables the integration of different computer systems (Windows, Mac, Linux and Sun) that are accessible from one KVM console.
The CS62U supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.
Package Contents
- 1x 2-Port USB KVM Switch with Attached Cables
- 1x User Instructions
|
Computer Connections |
2 |
|
Port Selection |
Hotkey, Mouse |
|
Connectors |
|
|
Console Ports |
1 x HDB-15 Female (Blue) |
|
KVM Ports |
2 x HDB-15 Male (Blue) |
|
LEDs |
|
|
Selected |
2 (Green) |
|
Cable Length |
|
|
Computer |
2 x 1.8 m |
|
Emulation |
|
|
Keyboard / Mouse |
USB |
|
Video |
2048 x 1536 @ 60Hz; DDC2B |
|
Scan Interval |
5 seconds |
|
Power Consumption |
DC5V:0.328W:6BTU |
|
Environmental |
|
|
Operating Temperature |
0 - 50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0-80% RH, Non-condensing |
|
Physical Properties |
|
|
Housing |
Plastic |
|
Weight |
0.37 kg ( 0.81 lb ) |
|
Dimensions (L x W x H) |
8.75 x 6.08 x 2.80 cm |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
