Aten KVM Switch, USB 3.0, HDMI, 4 Port - CS1824

Aten
ATCS1824SWIKVMXX
R 10,322.57 Ex VAT

• Superior video quality – 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates

• Supports Video DynaSync

• Audio Mixer Modes – mixes up to two audio sources as audio output

• Computer selection via pushbuttons, hotkeys, mouse and RS-232 commands

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.

With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.

In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.

Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post-production, etc. to operate multiple tasks smoothly.



Package Contents

  • 1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
  • 4x HDMI 2.0 Cables
  • 4x USB 3.0 Cables
  • 4x Audio Cables
  • 1x Power Adapter
  • 1x User Instructions



Computer Connections

4

Port Selection

Hotkey, Pushbutton, Mouse, RS-232 Commands

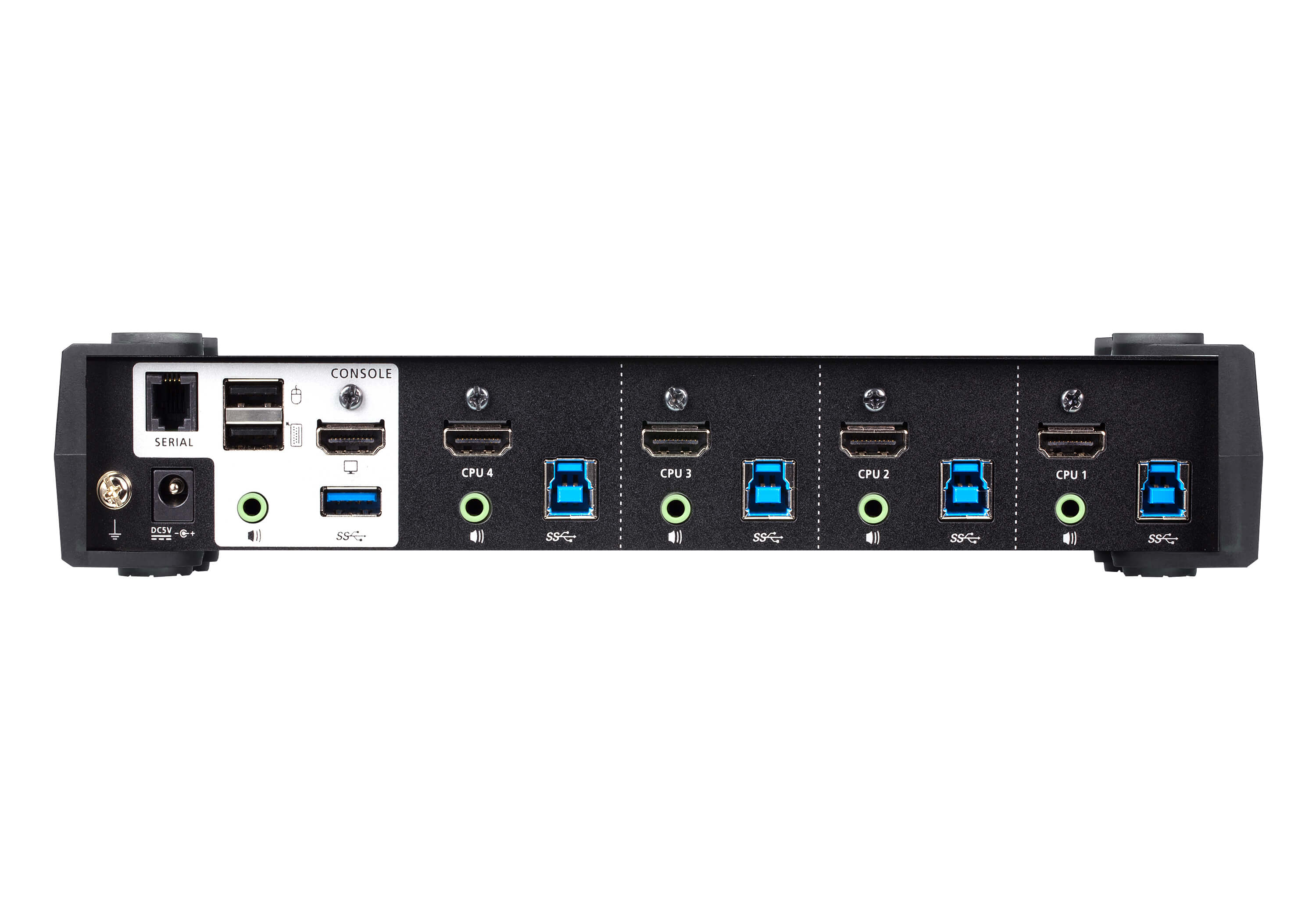

Connectors

Console Ports

2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

KVM (Computer) Ports

4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)

Serial

1 x RJ-11 Female

Power

1 x DC Jack

USB Hub

2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)

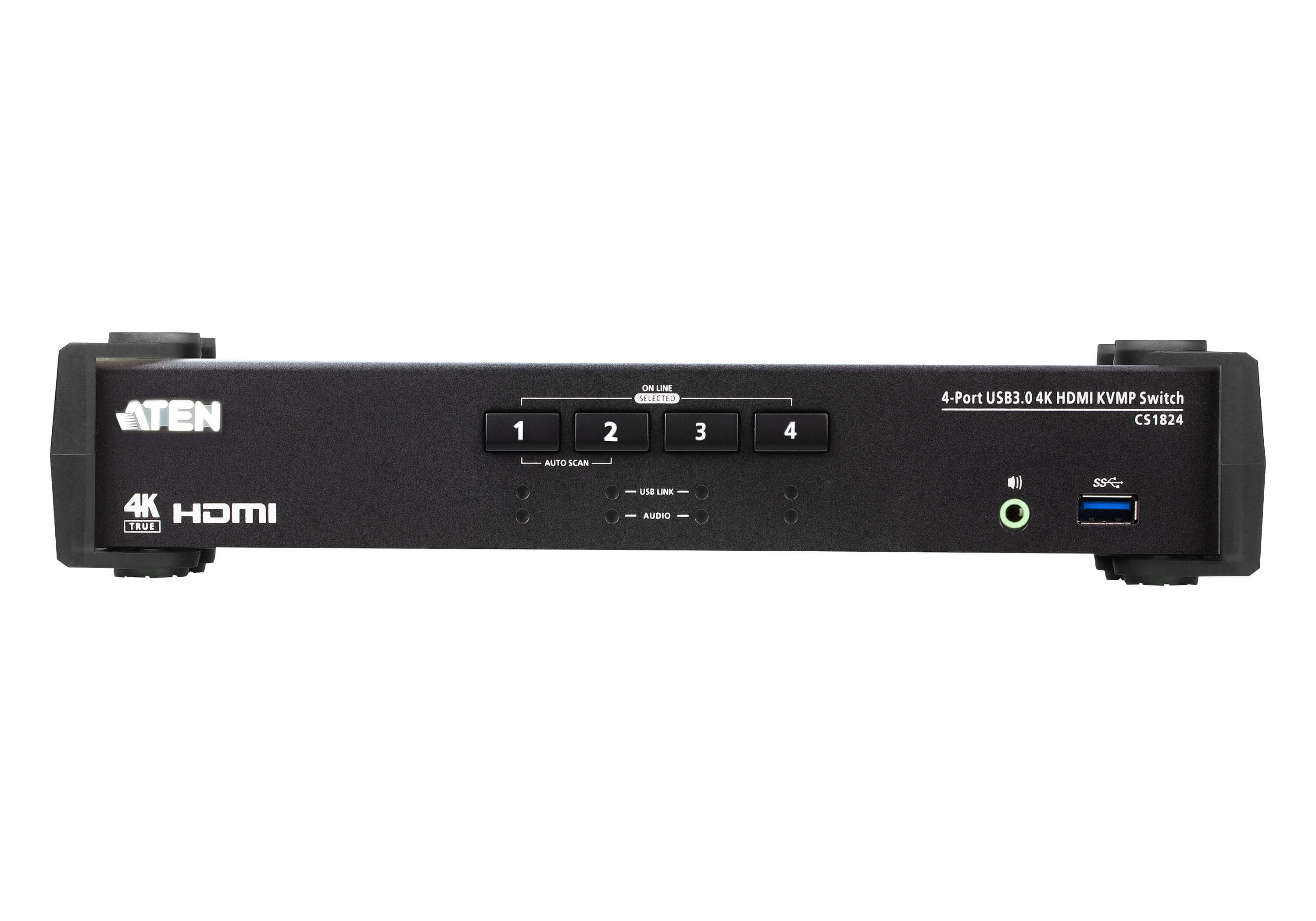

Switches

Selected

4 x Pushbutton

LEDs

On Line /Selected

4 (Orange)

USB Link

4 (Green)

Audio

4 (Green)

Emulation

Keyboard / Mouse

USB

Video

Up to 4096 x 2160 @ 60Hz, 2560 x 1440 @ 144Hz

Scan Interval

1-99 Seconds (Default: 5 sec.)

Power Consumption

DC5V:2.535W:54.5BTU

Environmental

Operating Temperature

0-40°C

Storage Temperature

-20-60°C

Humidity

0-80% RH, Non-condensing

Physical Properties

Housing

Metal, Plastic

Weight

0.94 kg ( 2.07 lb )

Dimensions (L x W x H)

27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



CS1824 Datasheet PDF
