Aten Amplifier, 60watt - AP106

Aten
ATAP106AMPAUDIO
R 8,072.67 Ex VAT

• A high-output Class D power amp that delivers 60 W of power to 70V or 100V distributed audio systems

• Built-in 2-band shelf EQ provides 6 dB boost / suppression of treble and bass control

• Power Saving Mode – the AP106 shuts down when no audio input higher than -50 dBu is detectable in 30 minutes and turns back on when a source reaches -30 dBu is detected

• Integrated protection – Amp shortcut, Amp output over/under-voltage, high frequency overload, and over temperature protection

The AP106 is a 60W power amplifier with Hi-Z outputs capable of driving 70 V / 100 V audio systems. The support for balanced / unbalanced line level inputs enables superior sound quality and installation flexibility. Apart from the overall volume adjustment function, the built-in 2-band shelf EQ provides ± 6 dB boost / suppression of treble and bass control, offering subtle tone shaping and extra control versatility. As a result of the extra headroom this amplifier delivers, accommodating transient audio peaks and preventing distortion is never a problem to the AP106.

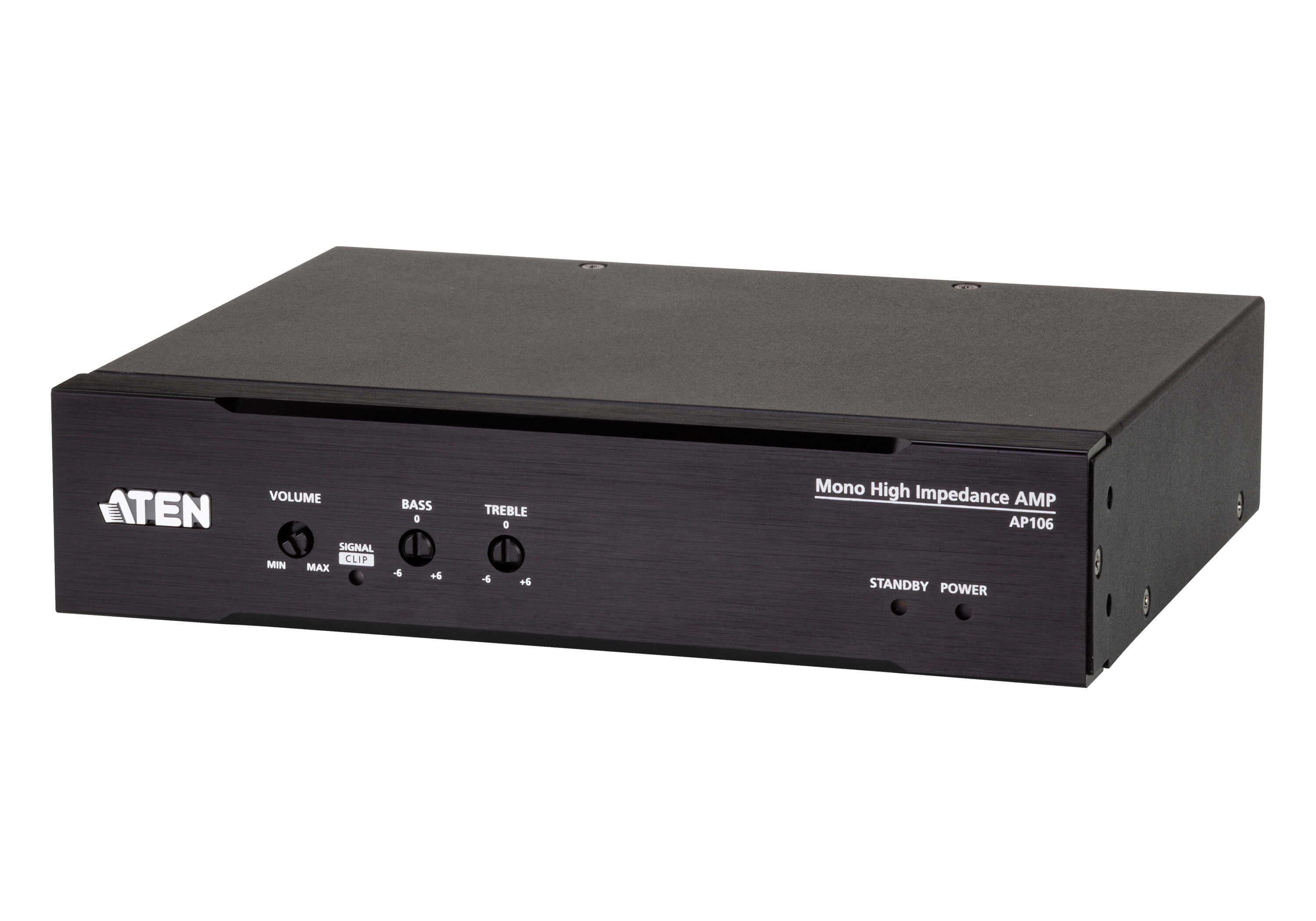

With Class D efficiency, the amplifier comes in a smaller, lighter enclosure, yet runs cooler comparing with other classes of amplifiers with the same amount of power. The fan less design helps eliminate operation shutdown brought by fan malfunction and ensures the amplifier not to be vulnerable to outside elements. Constructed in a compact, sealed casing, the AP106 approves of hidden placement, for instance, behind the TV, or even in the dusty environments, such as above the ceiling.

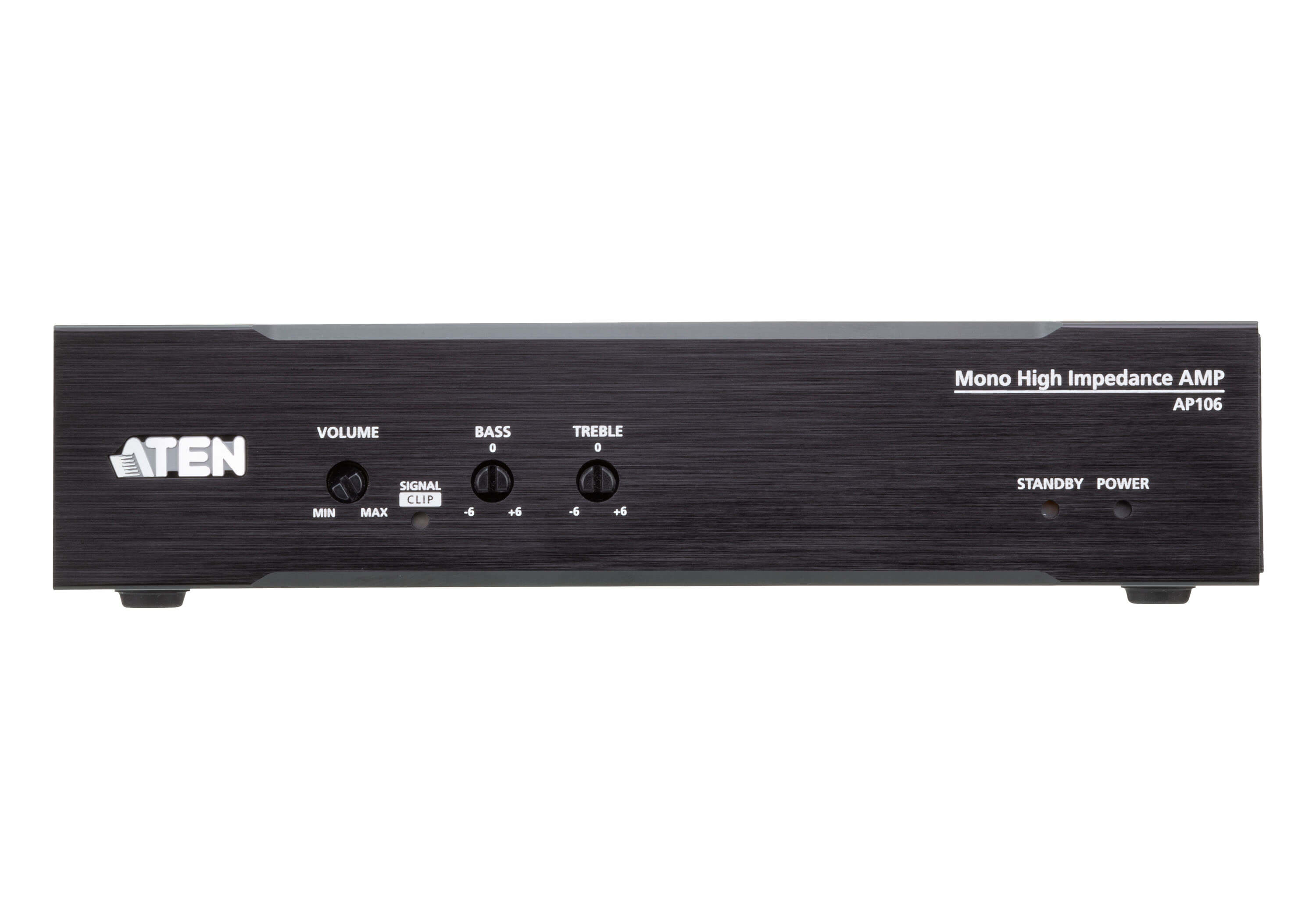

Speaking of the system protection circuit, the AP106, along with the speakers connected to it, is prevented from damages led by shorted outputs, over / under-voltage, high frequency overload, and over temperature. Built to be energy-efficient, the amplifier enters Power Saving Mode when no audio input is detectable in 30 minutes and turns back on when a source is detected. Additional features include the front panel LEDs that indicate the device status, plus the bi-directional RS-232 serial port that allows for firmware upgrade and easy integration with ATEN’s Control System, which acts as a centralized platform where hardware devices are converged to be monitored and controlled via an intuitive GUI. The AP106 is perfect for upgrading commercial or residential Pro AV systems where maintaining ultra-low distortion while exhibiting exceptional sound quality is required.



System Specification

Rated Power

60Wrms/ 120Wpeak

Distortion

THD+N: <0.1%, 1kHz, 3dB before clipping

Frequency Response

80~20kHz, 0/-3dB @70V, 1W

Sensitivity

Balanced: +4dBu
Unbalanced: -10dBV
(0dBu=0.775Vrms, 0dBV=1Vrms)

Amplifier Type

Class D

HPF

80Hz, -12dB/Oct

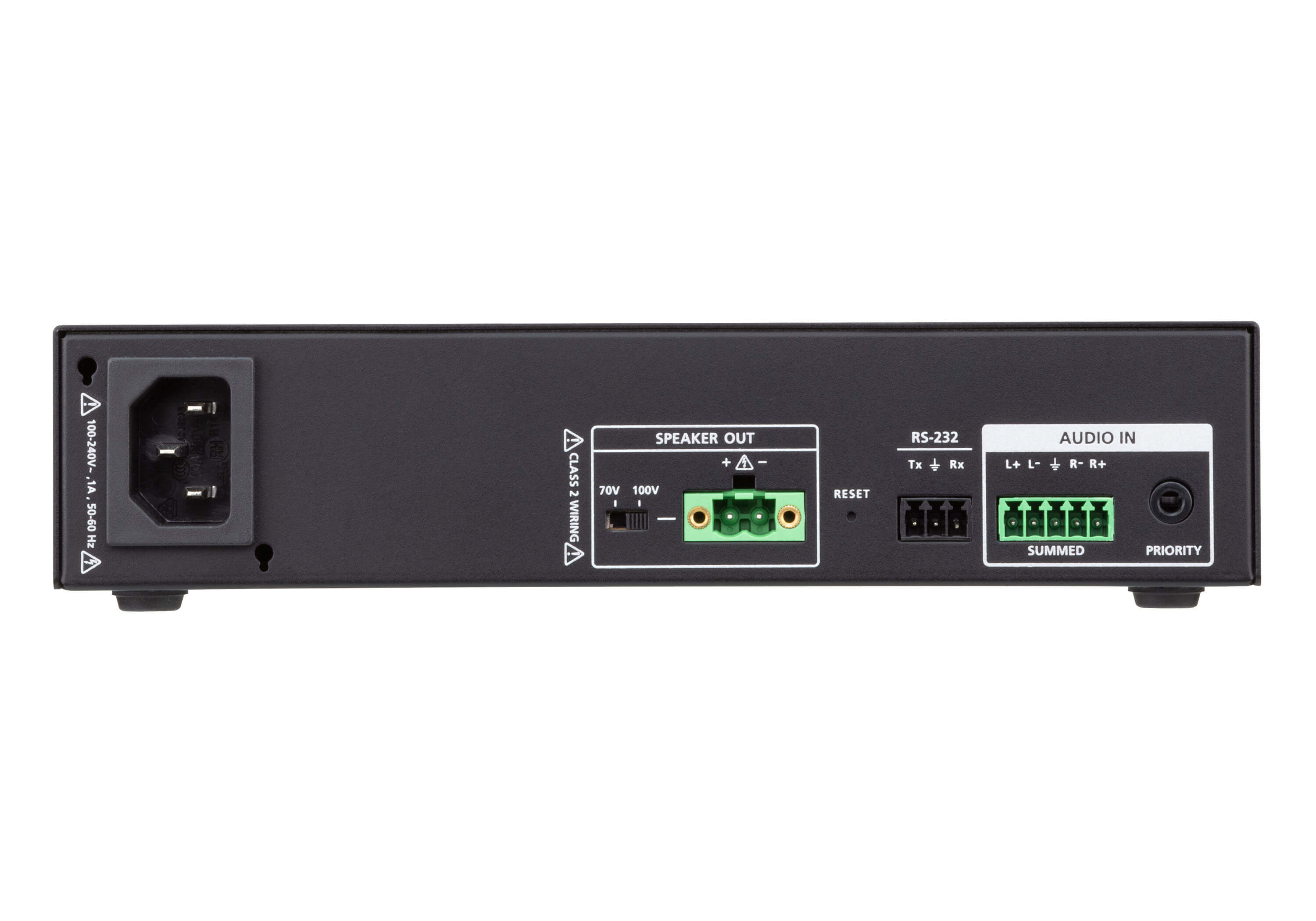

Audio Inputs

Interfaces

1 x 5-pin 3.5mm Euroblock (Bal/Unbal Line In)
1 x 3.5mm TRS Unbalanced Phone Jack (Priority)

Impedance

Balanced: 20kΩ
Unbalanced: 10kΩ

Detect Threshold

-50dBu

Audio Outputs

Interfaces

1 x 2-pin 5.08mm Euroblock

Impedance

Minimum Load
70V: 80Ω
100V: 160Ω

Audio Effects

2-band Shelf EQ, +/-6dB

Protection

Output Shortcut
AMP Output over/under voltage
High Frequency Overload
Thermal Protect

Communication

RS-232

Connector: 3-pin, 3.5mm, Terminal Block
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

Power

Power Consumption

100-240V~, 50/60Hz, 1A

Compliance

Certification

FCC, CE, UKCA

Environmental

Operating Temperature

0~40℃

Humidity

0-80% RH, Non-Condensing

Storage Temperature

-20~60℃

Physical Properties

Weight

1.23 kg ( 2.71 lb )

Housing

Metal

Dimensions (L x W x H)

20.00 x 15.72 x 4.40 cm
(7.87 x 6.19 x 1.73 in.)

Note

Rack/surface mount kits are sold separately.

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
