Aten Multichannel HD AV Mixer - UC9020

Aten
ATUC9020MIXCOLAB
R 5,426.76 Ex VAT

• All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer

• Professional-quality live streaming to global audiences by any CDN platform , with a low entry threshold, even entry-level users can quickly get started

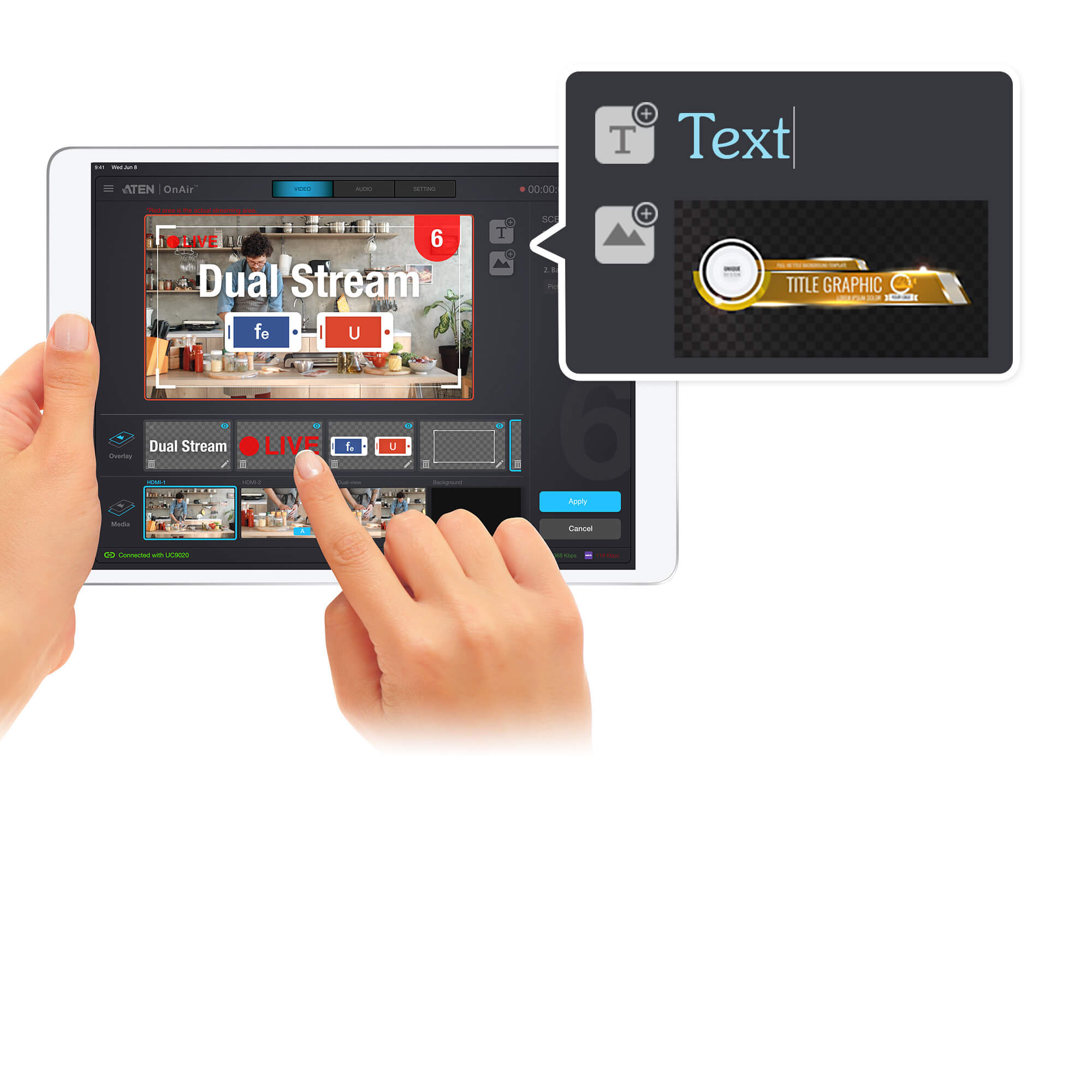

• Intuitive app – OnAir™ App for preview and program monitoring, change video layout in Full Screen/PBP/PiP settings, adding image and subtitles overlays, and smooth scenes transitions for a professional finish

• Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys

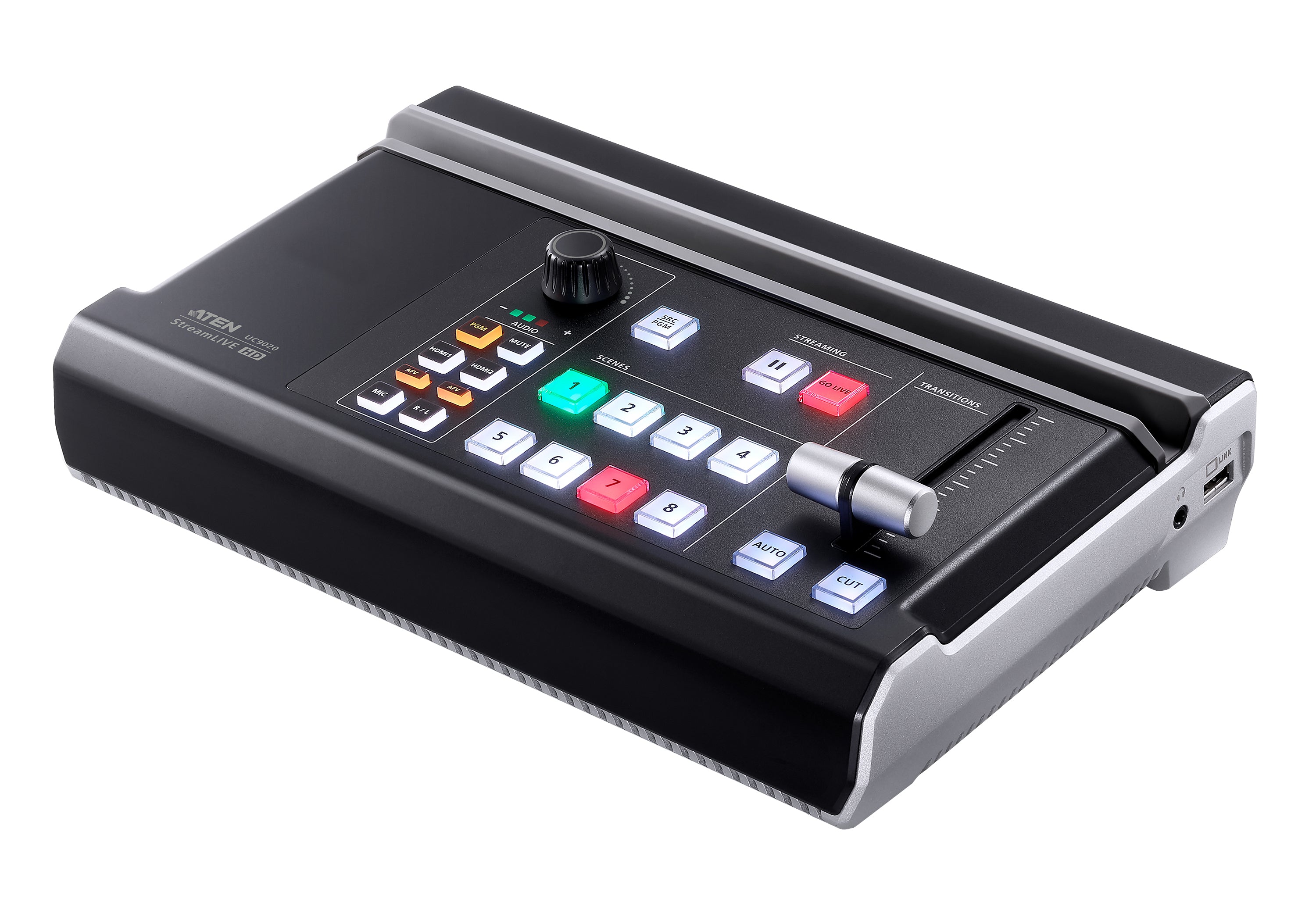

The StreamLIVE HD is a portable, all-in-one, multi-channel audio / video mixer device that integrates an 1080p video capture, video recorder, video switch, stream broadcaster, video converter, 4K video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE HD makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook, and Twitch.

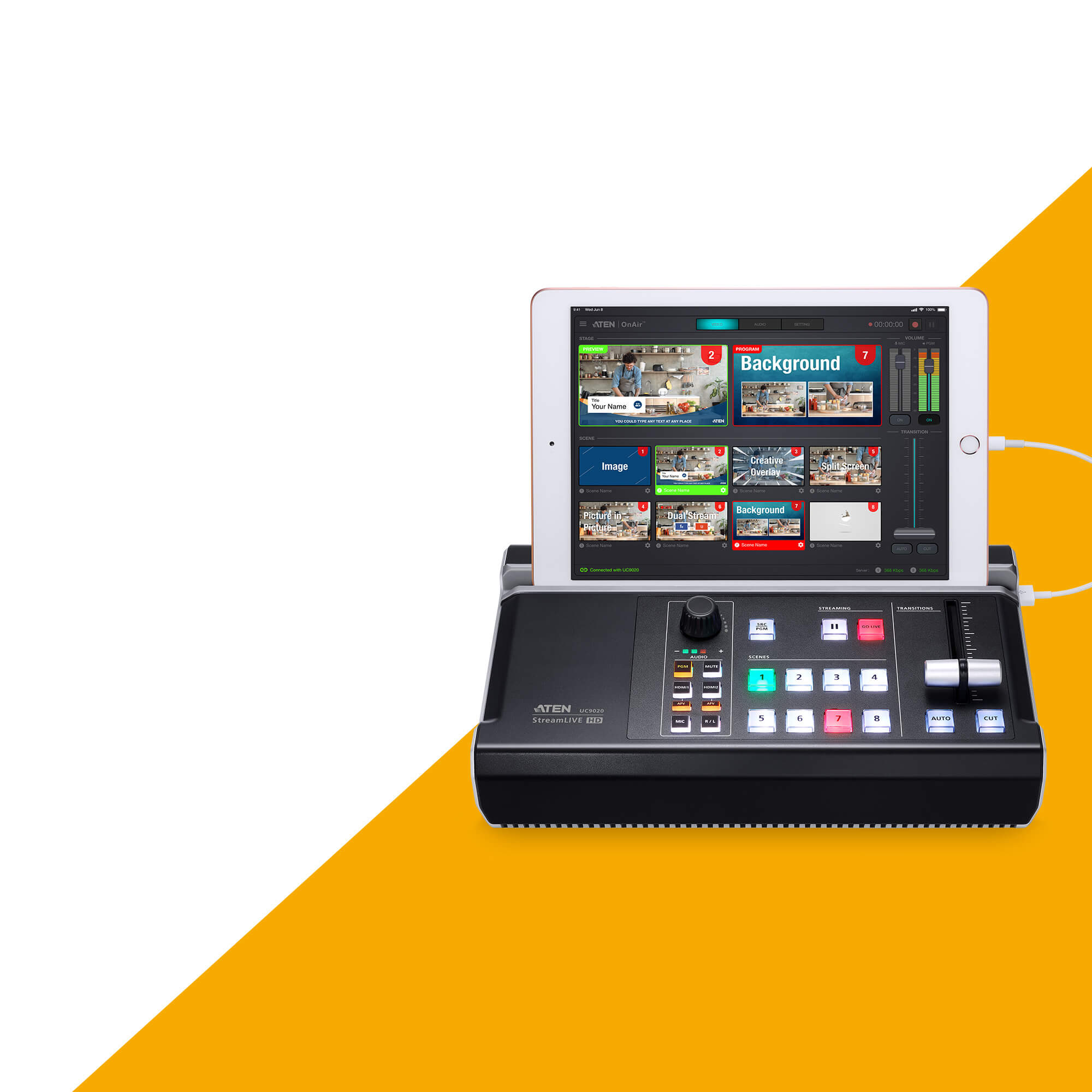

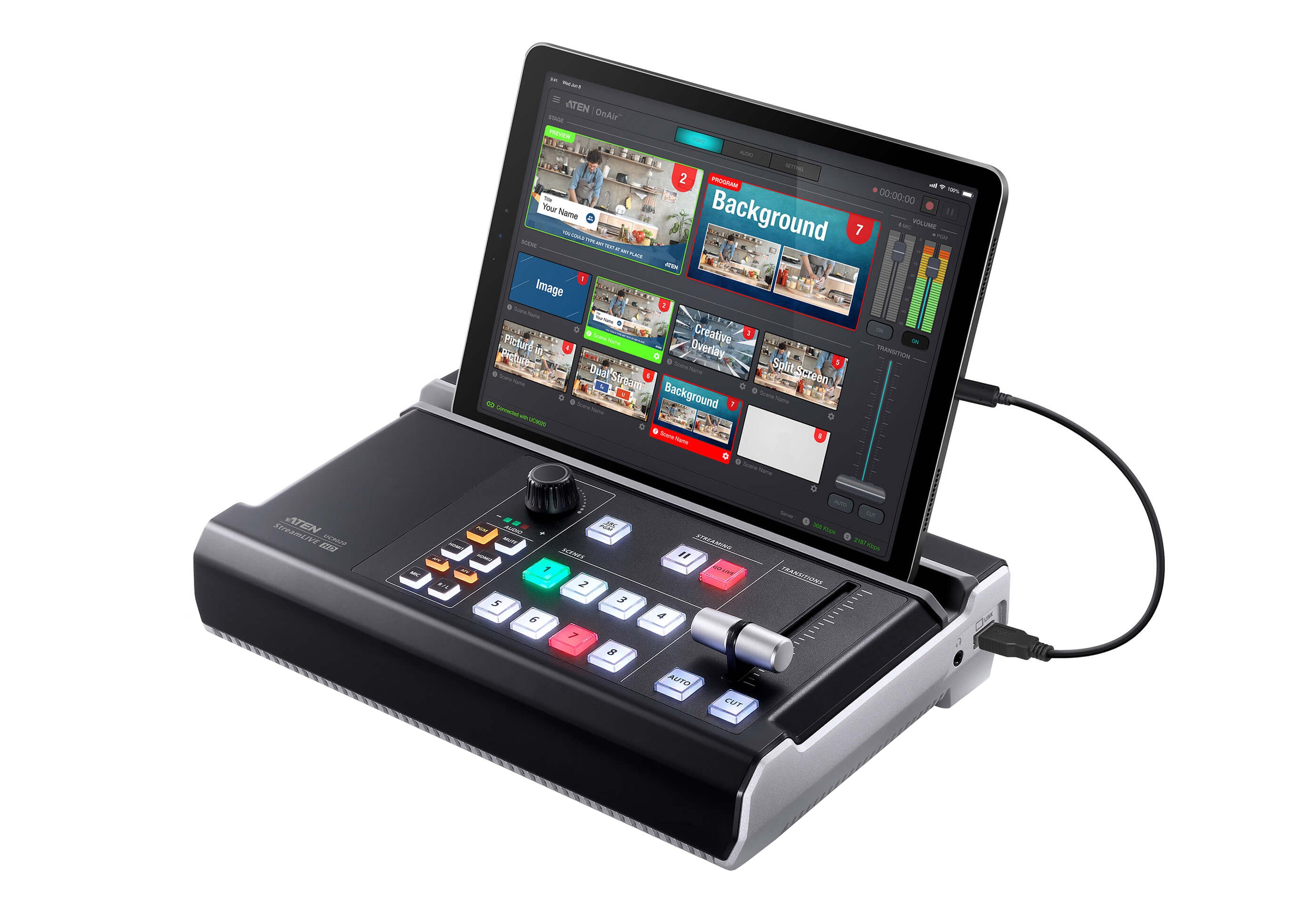

For added convenience, the StreamLIVE HD features an intuitive app – OnAir, which is designed for use with supported Android / Windows devices or iPads, making it easy to monitor, edit image layouts, and adjust PiP settings.

Package Contents

1x StreamLIVE™ HD

1x USB-A to USB-C Cable (parts no.: LIN6-09B1-C11G)

1x USB-A to USB-A Cable (parts no.: LIN5-04U1-U1HG)

1x AC Power Cable

1x User Instructions



Video Input

Interfaces

1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
2 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )

Video Output

Interfaces

1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)

Video Sampling

4:2:2 8-bit

Colour Space

4:2:2 YUV

Video Resolution

HDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25

HDMI 2A/2B Input:*
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25

*Only selected port show video, another one show non-video photo or graph.


SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25

HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25

Audio Inputs

Interfaces

HDMI captured inputs (stereo)
1 x Mic input, 1/4" TRS jack (dual mono)
1 x Line input, RCA jack, signal level: -10 dBV

Audio Outputs

Interfaces

HDMI outputs (stereo)
1x 1/8" TRS jack (stereo)

Network Protocol

Dual-stream encoder supports direct live streaming to CDN sever over Ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding

Format: H.264
Bit rate: 512Kbps~10Mbps
Colour format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding

Format: AAC
Sampling Rate: 48kHz
Bit rate: 128kbps

Recording Storage

Max. video resolution: 1080p30/25
File format:MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space

Connection

1x USB 3.1 Gen1 Type-A Female (Blue)
1x USB2.0 Type-A(White)
1x GbE LAN port

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 – 60 ºC

Humidity

0 - 80% RH, Non-Condensing

OS Support

• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)

Power

Maximum Input Power Rating

IEC C14, 100-240 Vac (w/250V fuse)

Power Consumption

AC110V:12.9W:80BTU
AC220V:12.7W:79BTU

Physical Properties

Housing

Metal

Weight

1.89 kg ( 4.16 lb )

Dimensions (L x W x H)

28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
