Aten Professional Online UPS - OL1000HV

Aten
ATOL1000HVPOWSYSTM
R 12,124.43 Ex VAT

• True double-conversion – output power factor is 1 (maximum), which means all of the power supplied is being used for productive work and makes work the most efficient

• Programmable power management outlets – users can easily and independently control load segments. During power failure, this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices

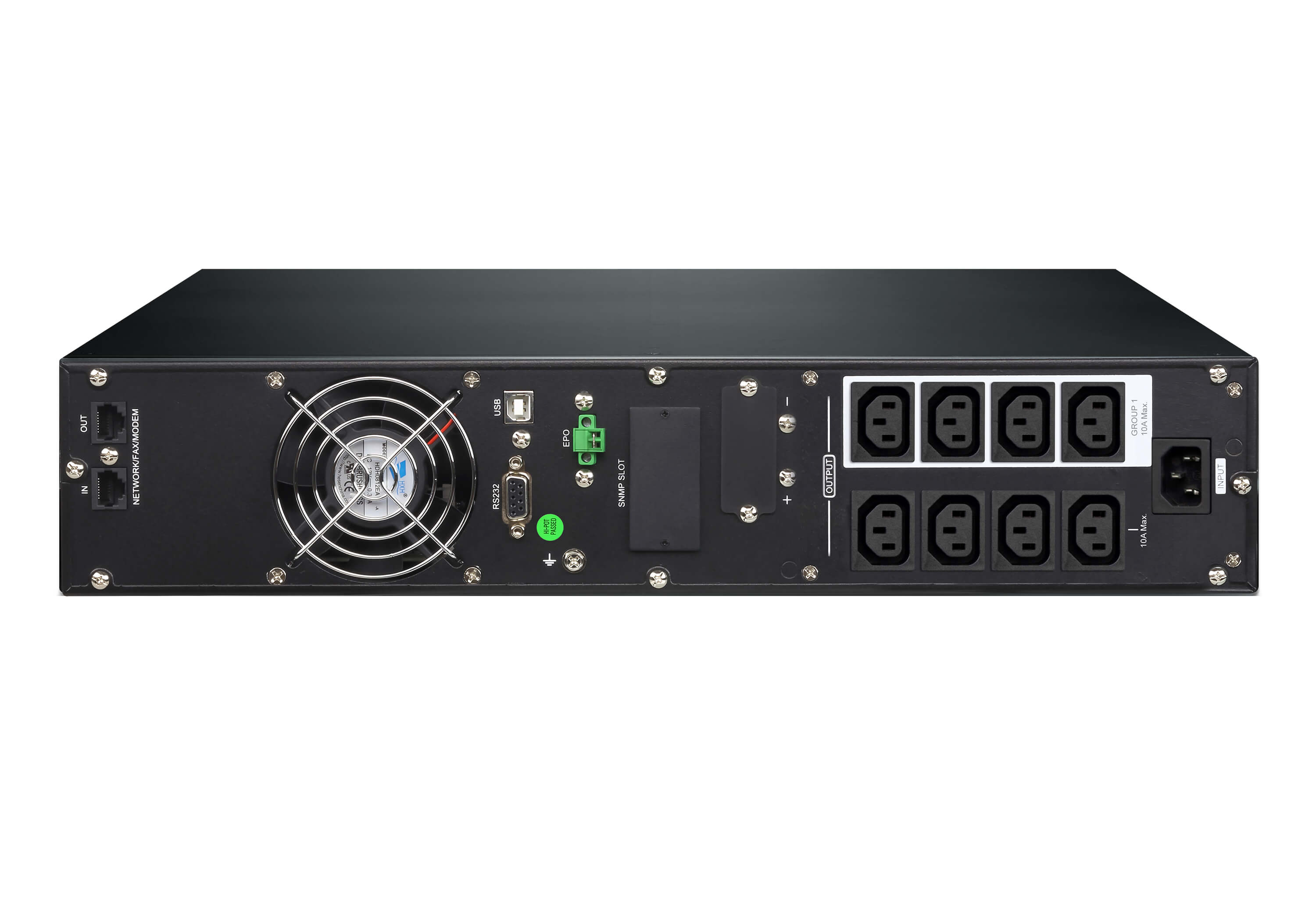

• Emergency Power Off function (EPO) – EPO connector at rear panel allows emergency UPS Power Off from a remote location

• SNMP + USB + RS-232 multiple communications – allows either USB or RS-232 communication ports to work with SNMP interface simultaneously

The ATEN Professional Online UPS is an exceptional and innovative electrical apparatus that provides emergency power to a load when the input power source, or the main one, fails. The basic technology of an online UPS is the same as in a standby or line-interactive UPS, however, the ATEN Professional Online UPS provides a much greater current of AC-to-DC battery-charger / rectifier where the rectifier and inverter are designed to run continuously with improved cooling systems.

In all our years of working with computers, we’ve found the vast majority of hardware failures can be directly attributed to the stress hardware components experience during the shut-down and start up process, especially if power surges or blackouts are involved. With severe weather, the aging electrical grid, and hazards lurk inside users' own walls, their equipment is under constant attack from power problems. Even a brief loss of power, sags, or a momentary surge can ruin users' equipment and destroy irreplaceable data. Desktop computers don’t have batteries built-in like laptops do. If users are working on a desktop during a power outage, the system would come to an immediate halt. Not only would users lose their work, but the process imposes unnecessary stress on their machine.

If a UPS is present and a power loss occurs, the batteries in the UPS would keep the power steady and unchanged. The ATEN Professional Online UPS adjusts incoming AC power, provides battery backup to pass through most outages, and saves open files automatically. When power is restored, the UPS begins recharging its batteries.

The Online UPS unit continuously filters wall power through the battery system. Since the attached electronics run completely off the battery (that are always topped off by the external power supply), there is never a single millisecond of power interruption when there is power loss or voltage regulation issues. The Online UPS unit thus acts as an electronic firewall between users' devices and the outside world by stabilizing all the electricity to which users' devices are exposed.

The UPS has one USB port and one serial port that allow connection and communication between the UPS and the connected computer. Power management software installed on the connected computer(s) gives IT professionals the tools they need to easily monitor and manage their backup power. This advanced software allows users to access vital UPS battery conditions, load levels, and runtime information as well as provide unattended shut down of network computers and virtual machines connected to a battery backup during a power event.

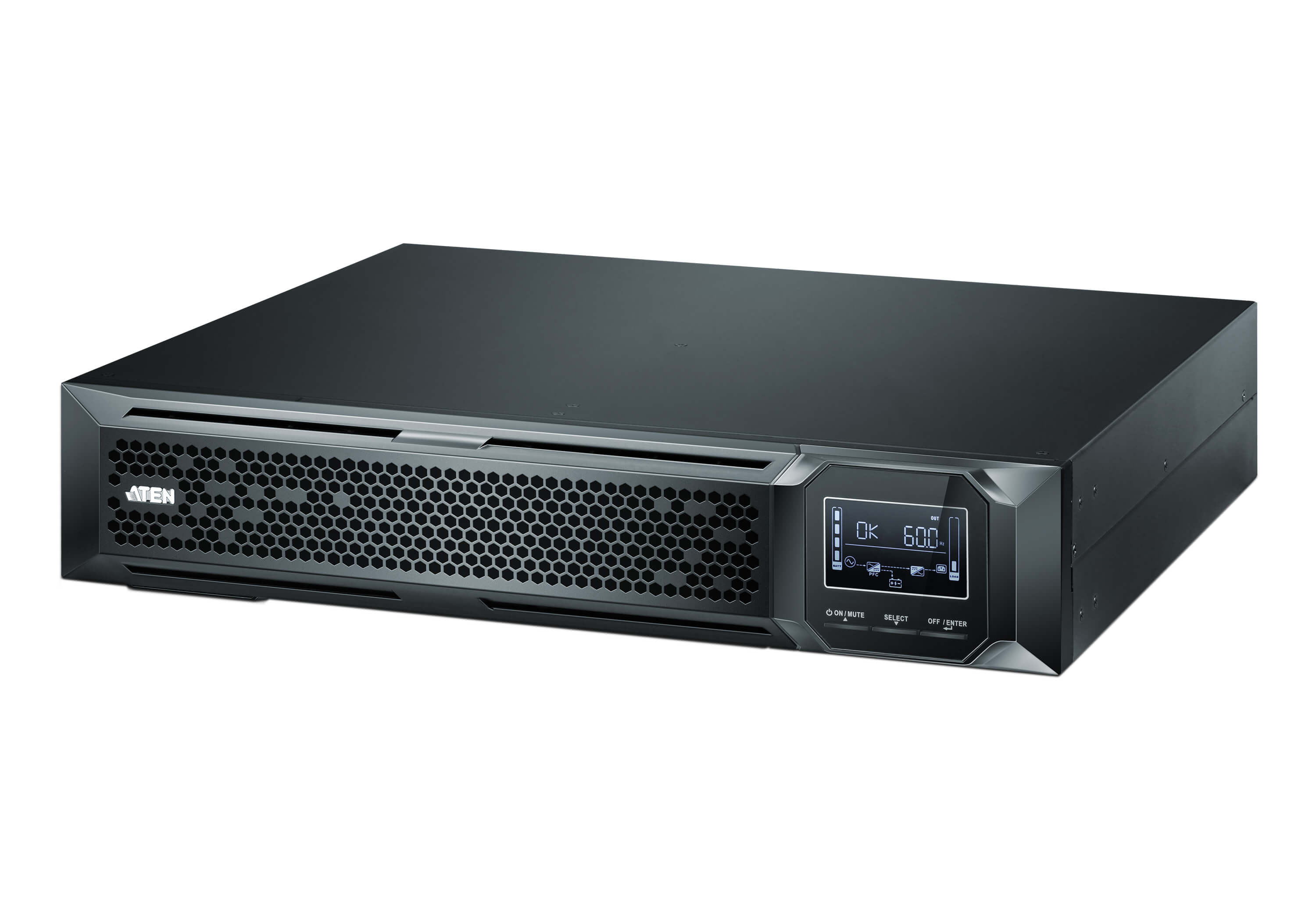

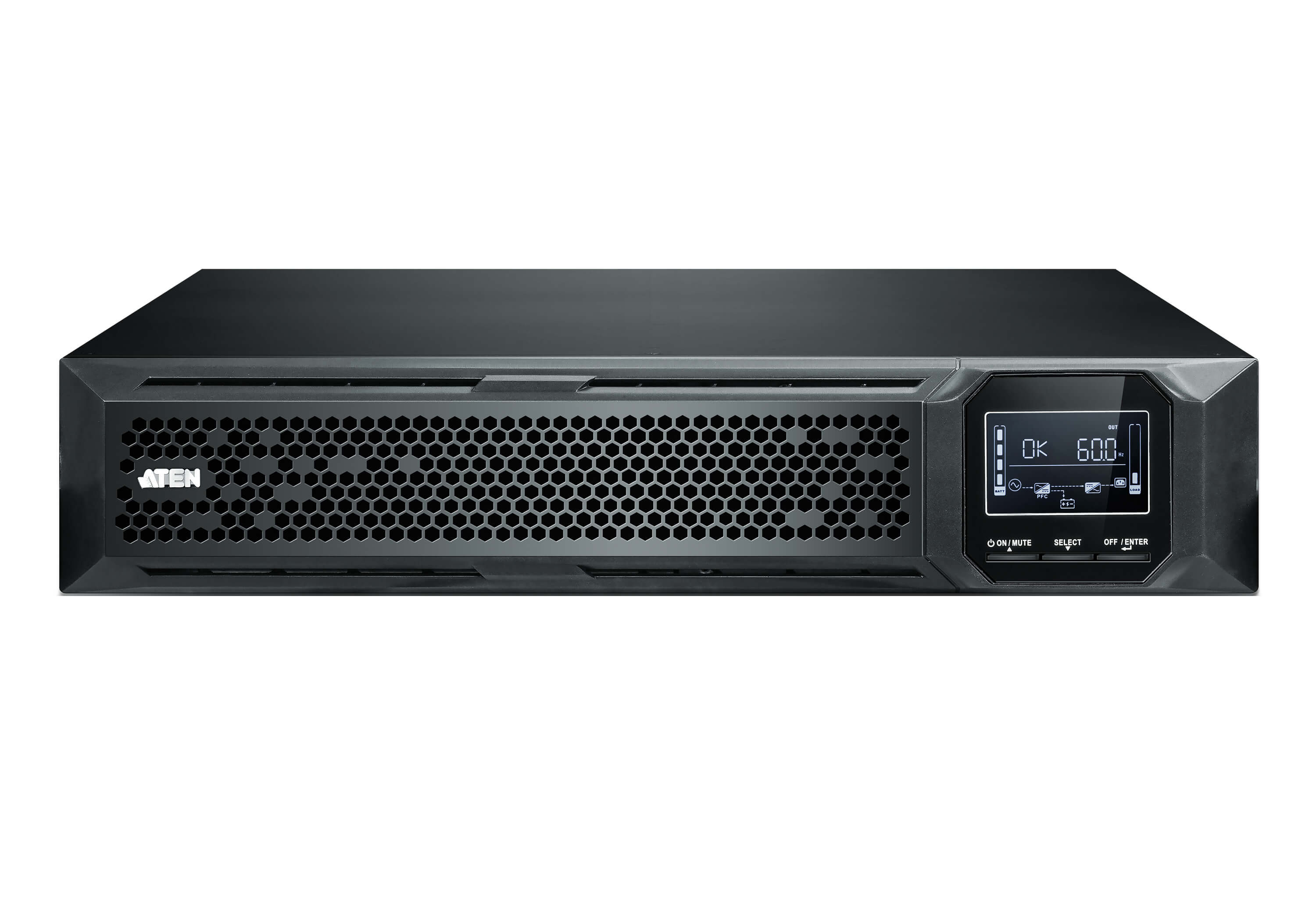

The ATEN Professional Online UPS offers a different way to access detailed UPS settings and information with an LCD screen. The illuminated LCD screen displays input voltage, battery capacity, and more, and includes a three-button configuration interface and audible alarms for different modes of operation.

Note: When any battery pack, provided or purchased separately, is not in use, please recharge it for 4 ~ 6 hours every 3 ~ 6 months.

General

UPS Topology

Double-Conversion

Energy Saving(max)

>96%(ECO)
>89%(AC)
>88%(Batt)

HID Compliant USB Port

Yes

Serial Port

Yes

SNMP / HTTP Remote Monitoring

Yes - Optional SNMP CARD

Input

Voltage

220/230/240 VAC

Input Voltage Range

160-300 VAC ± 5% @ 100% load
110-300 VAC ± 5% @ 50% load
Derate capacity to 80% when the output voltage is adjusted to 200VAC/208VAC.

Input Frequency Range

40 Hz ~ 70 Hz

Rated Input current

4.8A

Input Power Factor

≧ 0.99 @ nominal voltage (100% load)

Cold Start

Yes

Plug Type

IEC 320 C14

Power cord

6ft (Schuko Plug/UK Plug/AU Plug/IEC Plug)

Output

VA

1000

Watts

1000

On Battery Waveform

Sine Wave

On Battery Frequency

50/60Hz +/- 0.1 Hz

Outlets - Total

8

Outlet Type

(8) IEC 320 C13

Outlets - Battery & Surge Protected

8

Rated Power Factor

1

Crest Factor

3:1

Harmonic Distortion

≦2 % THDi (Linear Load)
≦ 4 % THDi (Non-linear Load)

Voltage Regulation

± 1%(Batt)

Transfer Time(AC to Batt.)

0ms

Transfer Time(Inverter to Bypass)

4ms(ECO)

Battery

Runtime at Half Load (min)

9.44

Runtime at Full Load (min)

3.10

Battery Type

Sealed Lead-Acid

Battery Pack Voltage

24V

Battery Size

12V/9AH

Battery Quantity

2

Hot-Swappable

Yes

Typical Recharge Time

3 hours recover to 95% capacity@2A
charging current.
Max charger current 12A

Extended Battery Module

BP24V18AH

Replacement Battery Pack

BC24V9AH

Replacement Battery Pack Quantity

1

Physical Properties

Rack Unit

2U

Type

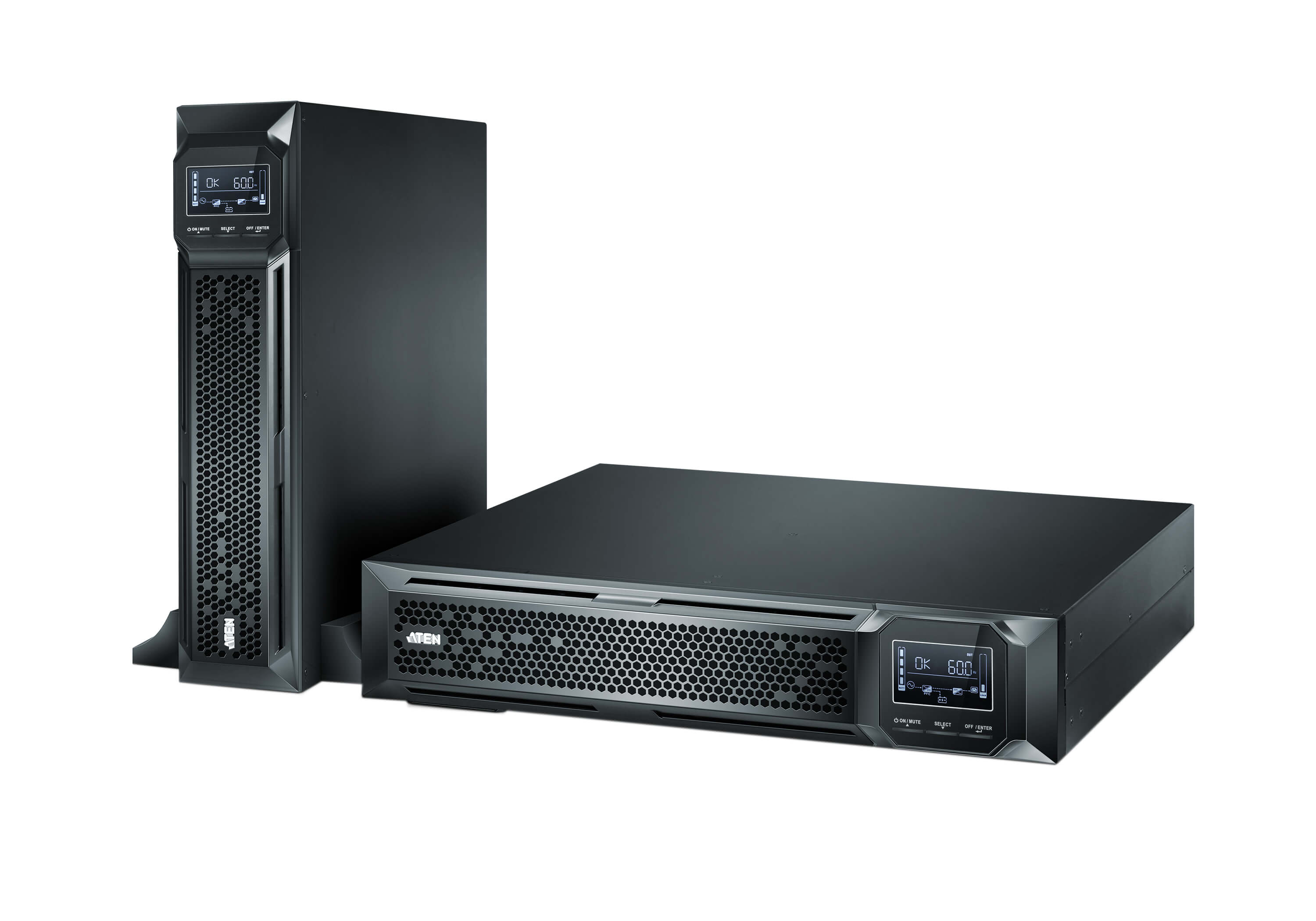

Rack/Tower

Dimensions (L x W x H)

8.80 x 43.80 x 41.00 cm
(3.46 x 17.24 x 16.14 in.)

Weight

12.70 kg ( 27.97 lb )

Environmental

Temperature (Operating / Storage)

0–40°C (non-condensing) / -20 – 50°C

Humidity (Operating & Storage)

20–90 % RH / 10% – 95%(No condensing)

Audible noise at 1M from surface of unit

Less than 50dB

Certifications

Certifications

CE

Approvals

RoHS

Package Contents

1x Rack Mounting Kit
1x Rail Slide Kit
1x RS-232 Cable
1x USB Type A to B Cable
4x Power Cable (1xIEC C13/C14+ 1xIEC C13/Schuko+1xIEC C13/UK +1xIEC C13/AU(10A))
1x Tower Stand Set

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
