Aten Room Booking System, 10.1" - VK430 – Solution Technologies
Online Support Ask An Expert

Aten Room Booking System, 10.1" - VK430

Aten
ATVK430CTLSYSTM
R 17,137.85 Ex VAT

• Natively installed with the ATEN RBS app for integration with calendar servers, such as Microsoft Office 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server

• Supports Power over Ethernet (PoE), which allows it to receive power and communication over a single Ethernet cable

• LED light bars illuminating user-defined colours to indicate the room’s availability at a glance

• Preinstalled with a wall mount kit and provided with 3M VHB™ Tape for easy mounting onto a hard or glass wall

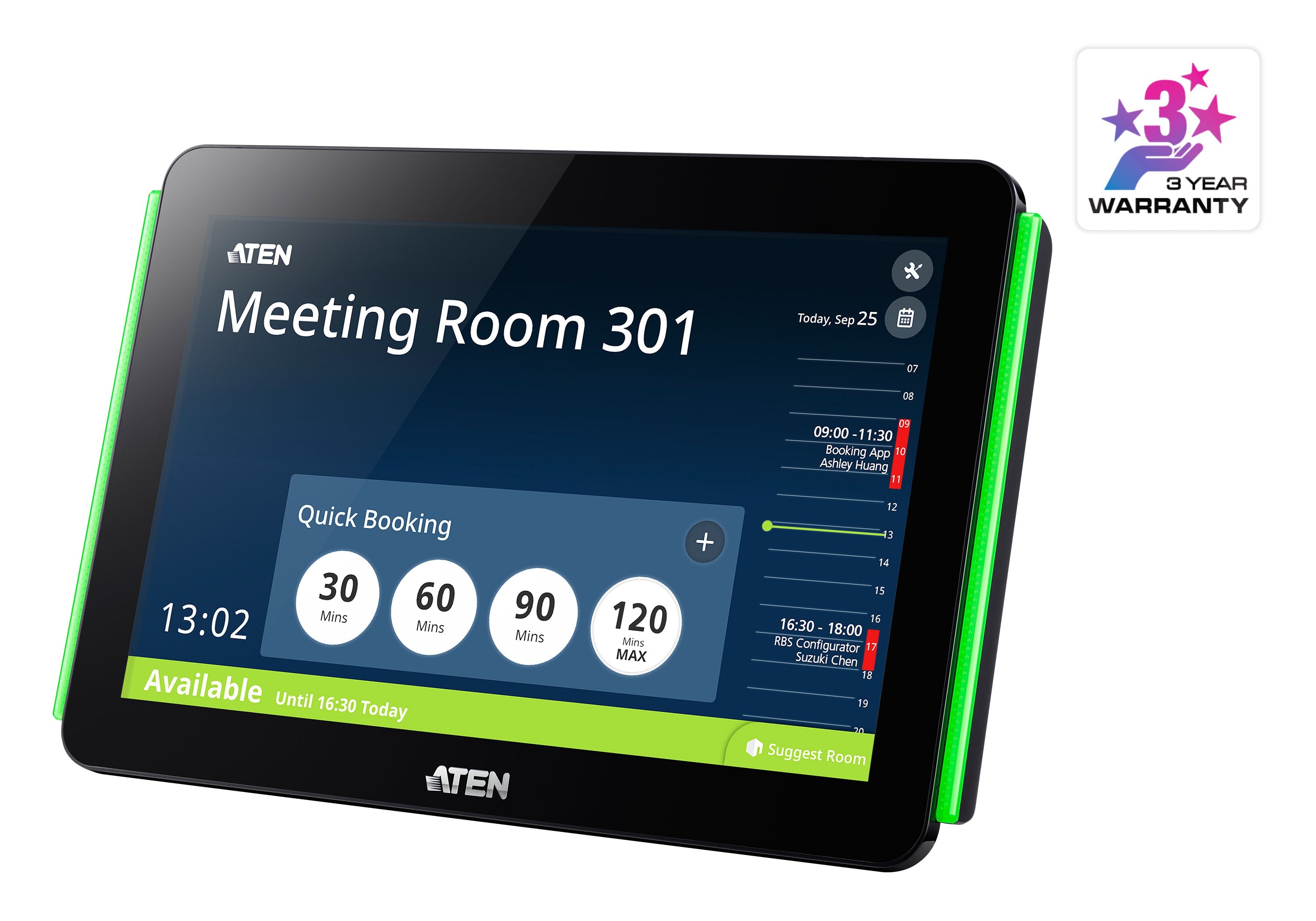

ATEN VK430 RBS Panel is a 10.1" touch-screen panel used to manage conference rooms, and is centrally configured by ATEN RBS Configurator – centralized management software of RBS Panels while integrating with calendar servers, such as Microsoft Office 365 Calendar, Google Workspace Calendar, and Microsoft Exchange Server – to provide convenient scheduling and availability allocation for all conference rooms in the system. That is, through a few simple taps, authorized personnel can make conference room reservations, extend or release room usage, and check the booking schedules of any conference room directly on the VK430 while enjoying its user-friendly interface. In addition, through ATEN RBS Configurator, administrators can have a centralized view of the availabilities and locations of all conference rooms in real time as well as manage each VK430 connected from afar, elevating meeting room utilization efficiency.

Highlighted features of the VK430 include its Power over Ethernet (PoE) support and two illuminating LED bars. With PoE, VK430 can transmit data while receiving power over a single Ethernet cable, which effectively reduces installation costs and power consumption. The two LED light bars, one on each side, illuminates in user-defined colours to indicate the availability status of the conference room, available, reserved, or occupied, and allow users to know the room’s availability at a glance.

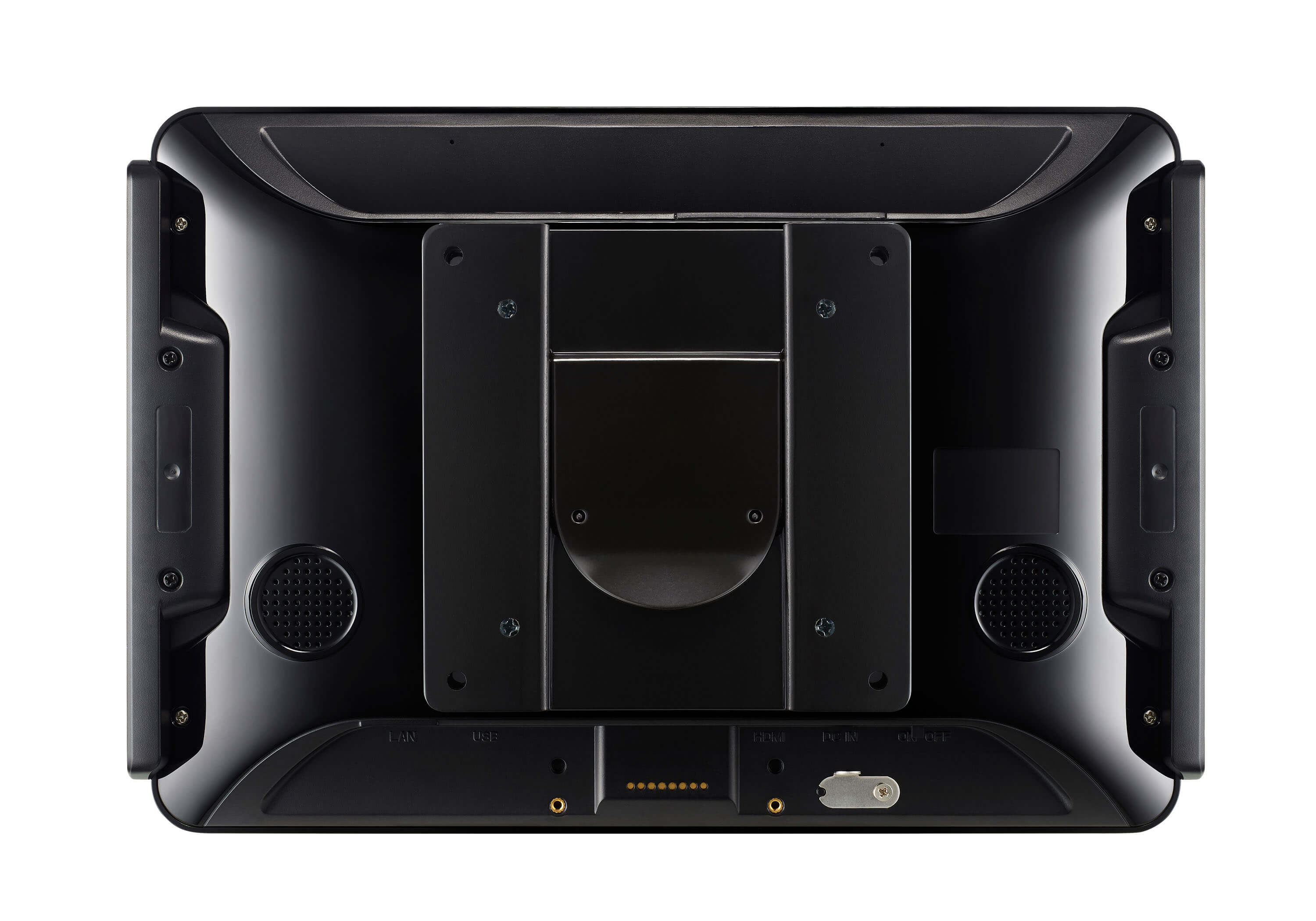

Without compromise on aesthetics, VK430 features a sleek and elegant housing that supports 75*75 mm VESA-compliant mounting options to suit various installation scenarios. VK430 is preinstalled with its standard wall mount kit while providing 3M VHB™ Tape for it to be easily installed onto a hard or glass wall.

The VK430, along with the ATEN RBS Configurator, delivers an enterprise-grade room management solution perfect for all business environments, making meeting room management a breeze while elevating the overall room-booking experience.

ATEN Room Booking System works perfectly with ATEN Unizon by providing room scenarios for automating the predefined actions of in-room devices to increase efficiency. Real-time usages of rooms are also recorded and presented on Dashboard in ATEN Unizon, which allows prompt maintenance and better space arrangement.

Accessories:
*The power adapter and power cord for this product are sold separately. For more information about this accessory, see Accessories.



Processor

Quad-core

Memory

SDRAM

2GB

Flash

8GB

Panel Spec

Display Type

TFT-LCD

Size

10.1"

Touch Screen

Capacitive

Resolution

1280 x 800

Aspect Ratio

16 : 10

Color Depth

8 bit

Contrast Ratio

800 : 1

Backlight

LED

Viewing Angle

± 85° (H), ± 85° (V)

Luminance

500 cd/m²

Interfaces

Ethernet

1 x RJ-45 Female, 10 / 100 / 1000 BaseT

USB

1 x USB Type A

Power Inputs

Power over Ethernet (PoE)

802.3 at PoE+

Power Consumption

DC12V:17.8W:60.70BTU
POE:20W:68.24BTU

Environmental

Operating Temperature

0 – 40°C

Storage Temperature

–10 – 55°C

Humidity

10 - 80% RH, Non-Condensing

Physical Properties

Housing

Plastic

Weight

0.68 kg ( 1.5 lb )

Dimensions (L x W x H)

26.30 x 17.78 x 2.45 cm
(10.35 x 7 x 0.96 in.)

Note

No license is required for running ATEN Room Booking System. However, additional costs may be charged for the resource accounts by the calendar service provider.

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
