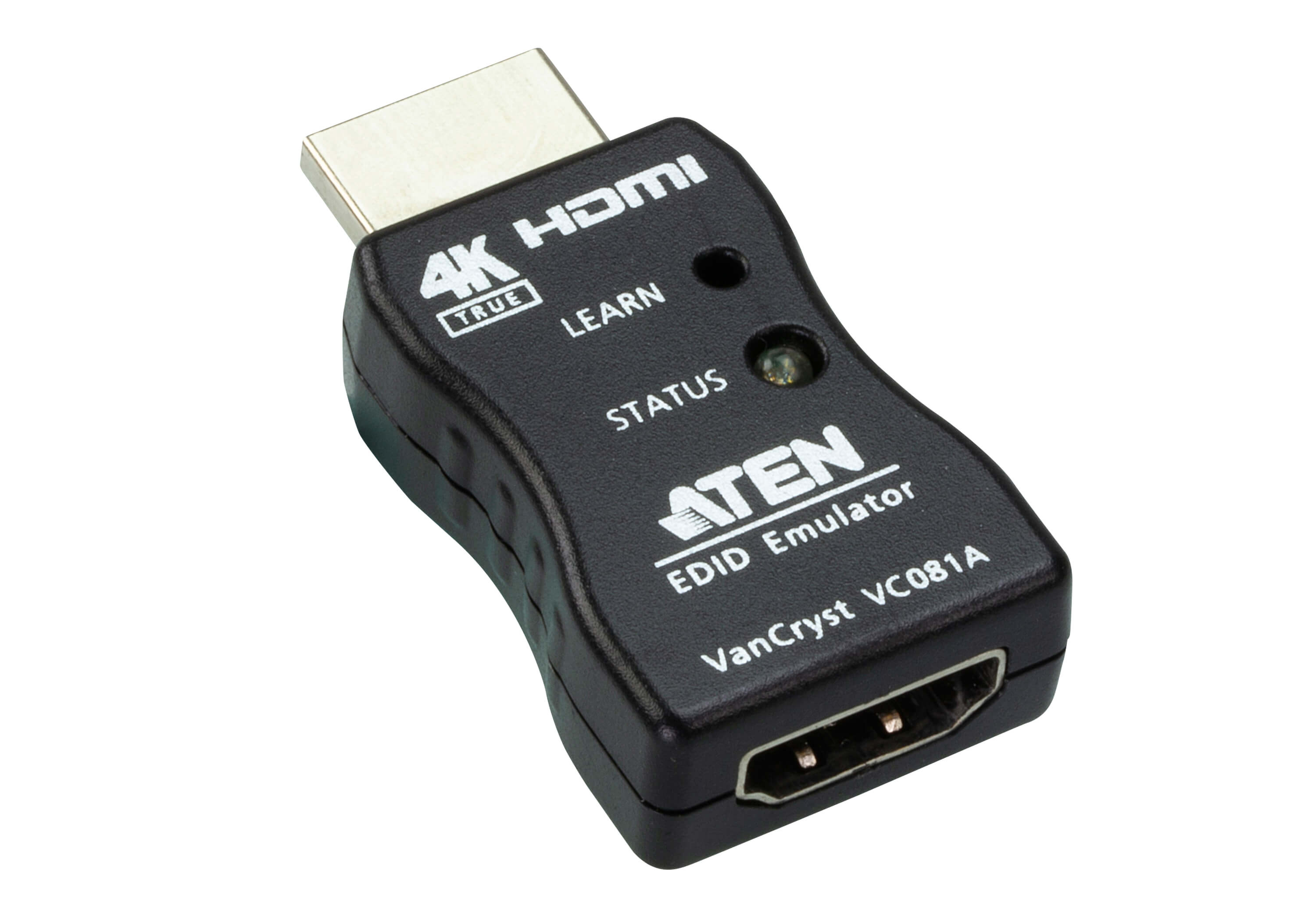

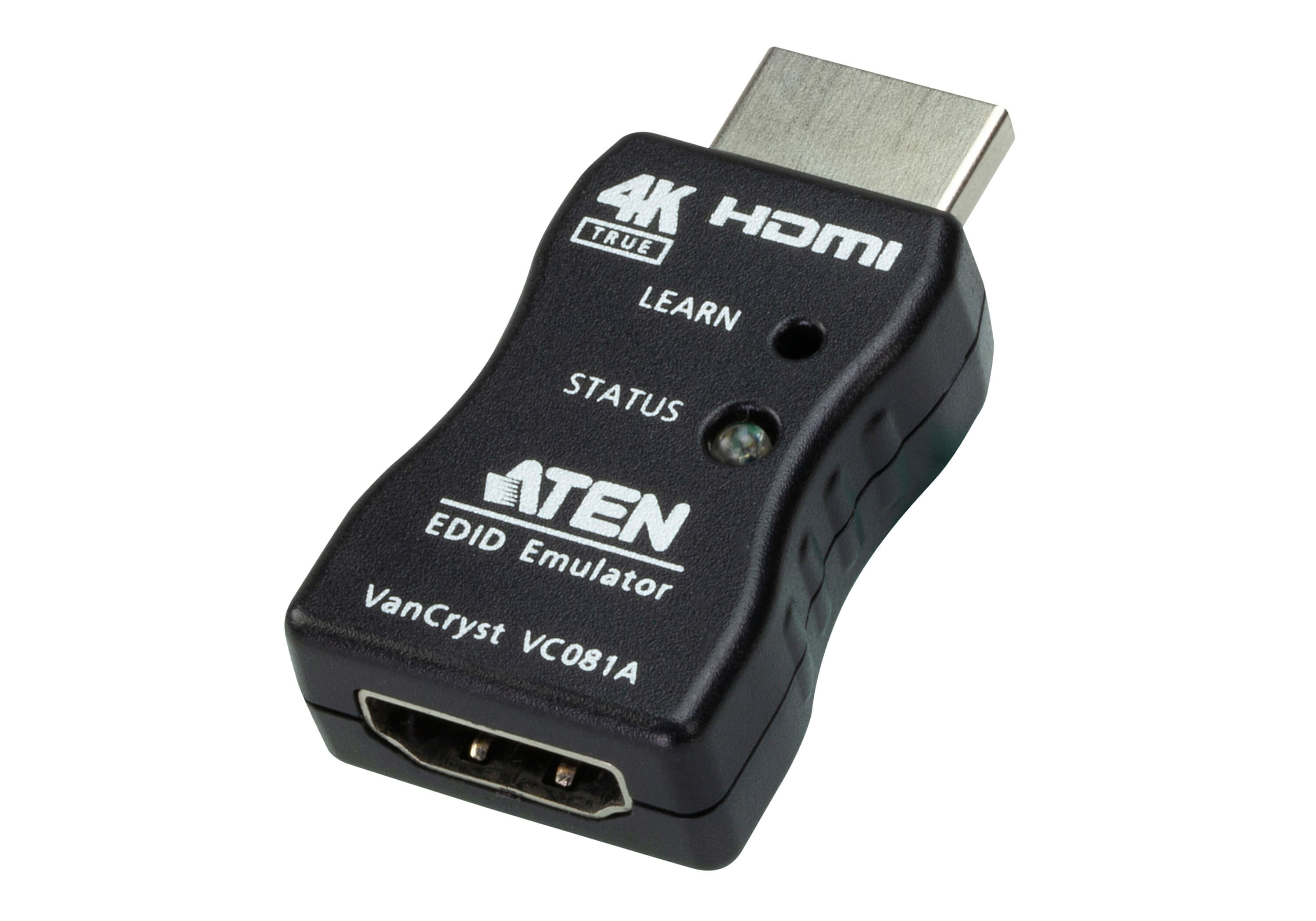

Aten Emulator, HDMI - VC081A

Aten
ATVC081ACONCONVR
R 780.00 Ex VAT

• Manages EDID communication between connected devices

• Effectively learns and saves the EDID from the connected HDMI display via single pushbutton and relays it to the video source

• HDMI (3D, Deep Colour, True 4K); HDCP 2.2 compliant

• Supports superior video quality up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) via EDID Learning mode

• LED indicators to show learning status

• Powered by HDMI source

• Compact and lightweight design

As a True 4K HDMI EDID Emulator Adapter , the VC081A is designed to emulate and store one set of the EDID from the connected display while facilitating 4K video transmission. By learning the EDID from the HDMI display and relaying it to the video source, the VC081A helps to eliminate video communication problems that occur due to the EDID data synchronization failure between the HDMI video source and the connected display.

This new member contains a unique “Learn Button Switch” to allow EDID to be effectively learned and saved. Once the EDID is learned, the VC081A can be used to keep a PC or server awake from a remote location over IP instead of the monitor. The VC081A is an ideal device for avoiding blank or blink display issues led by communication errors between sources and displays when integrating a Pro AV system.

Package Contents

1x VC081A HDMI EDID Emulator

1x user instructions



Video Input

Interfaces

1 x HDMI Type A Male (Black)

Impedance

100 Ω

Video Output

Interfaces

1 x HDMI Type A Female (Black)

Impedance

100 Ω

Video

Compliance

HDMI (3D, Deep Colour, True 4K)
HDCP 2.2 Compatible
Consumer Electronic Control (CEC)

Max. Resolution

Default: 1080P@60Hz
Learning: 3840x2160@60Hz 4:4:4 & 4096x2160@60Hz 4:4:4

EDID Settings

EDID Mode: Default / Learning

Connectors

Power

Bus-powered (5V DC from source device)

Switches

Mode Switch

EDID Learning

LEDs

Status

Learning (Blue x 1)

Power Consumption

DC5V:0.1WBTU

Environmental

Operating Temperature

0 - 50 ºC

Storage Temperature

-20 - 60 ºC

Humidity

0 - 80% RH,  Non-Condensing

Physical Properties

Housing

Plastic

Weight

0.08 kg ( 0.18 lb )

Dimensions (L x W x H)

4.40 x 2.40 x 1.18 cm
(1.73 x 0.94 x 0.46 in.)

Carton Lot

20 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VC081A Datasheet PDF
