Aten Multichannel AV Mixer - UC9040

Aten
ATUC9040MIXCOLAB
R 24,488.54 Ex VAT

• All-in-one design to simplify streaming workflow – Integrates 1080p video capture, video recorder, video switch, streaming encoder, video converter, video splitter, and audio mixer

• Professional-quality live streaming everywhere – Compatible with every major platform and can livestream to two platforms at the same time from virtually anywhere

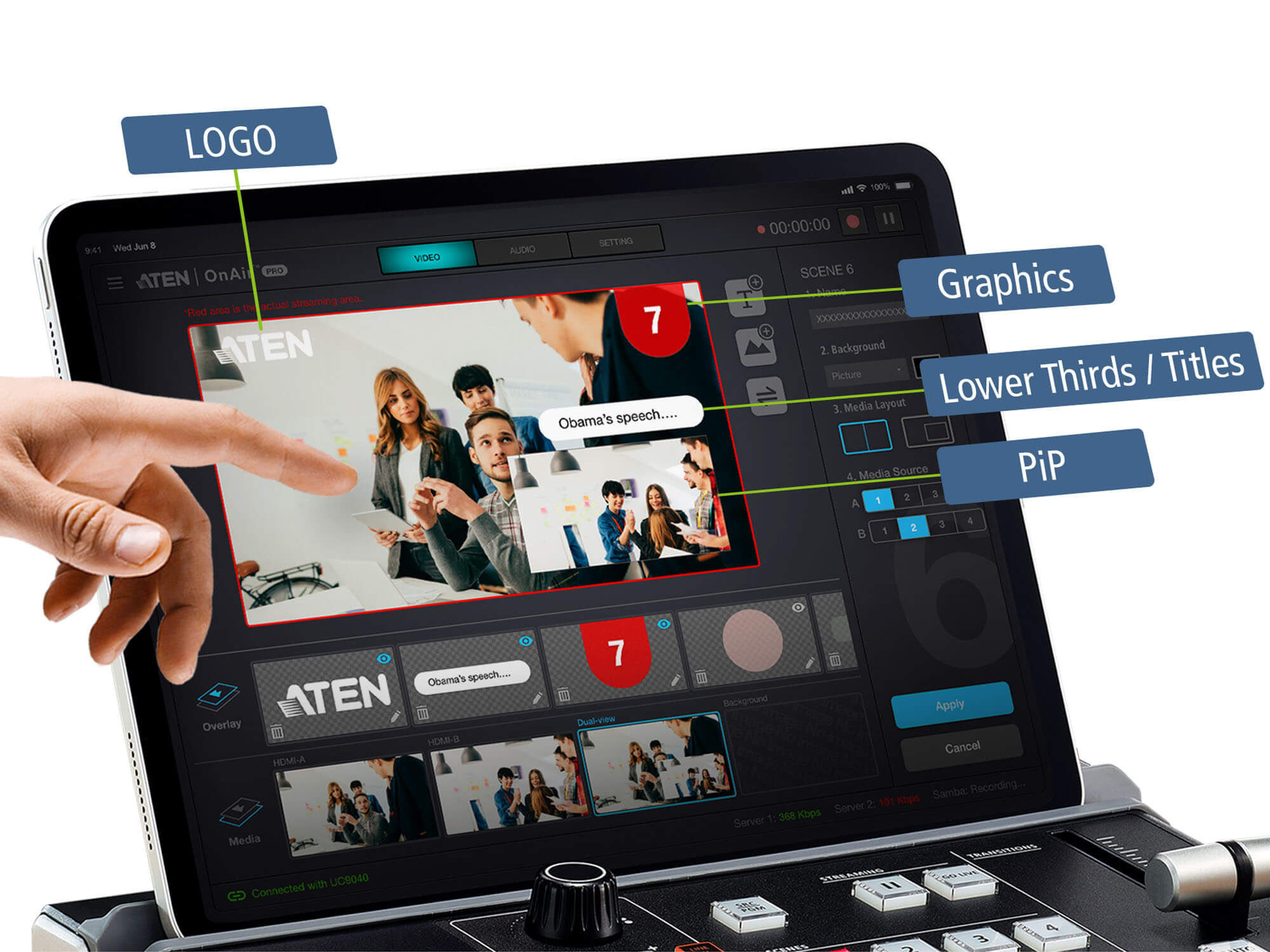

• Intuitive and powerful app OnAir – allows for preset up to 8 scenes with custom video layout, preview and full screen program monitoring, real-time editing, transitions in stunning DVE, PbP or PiP visual effects, and graphic and text overlays for a professional finish

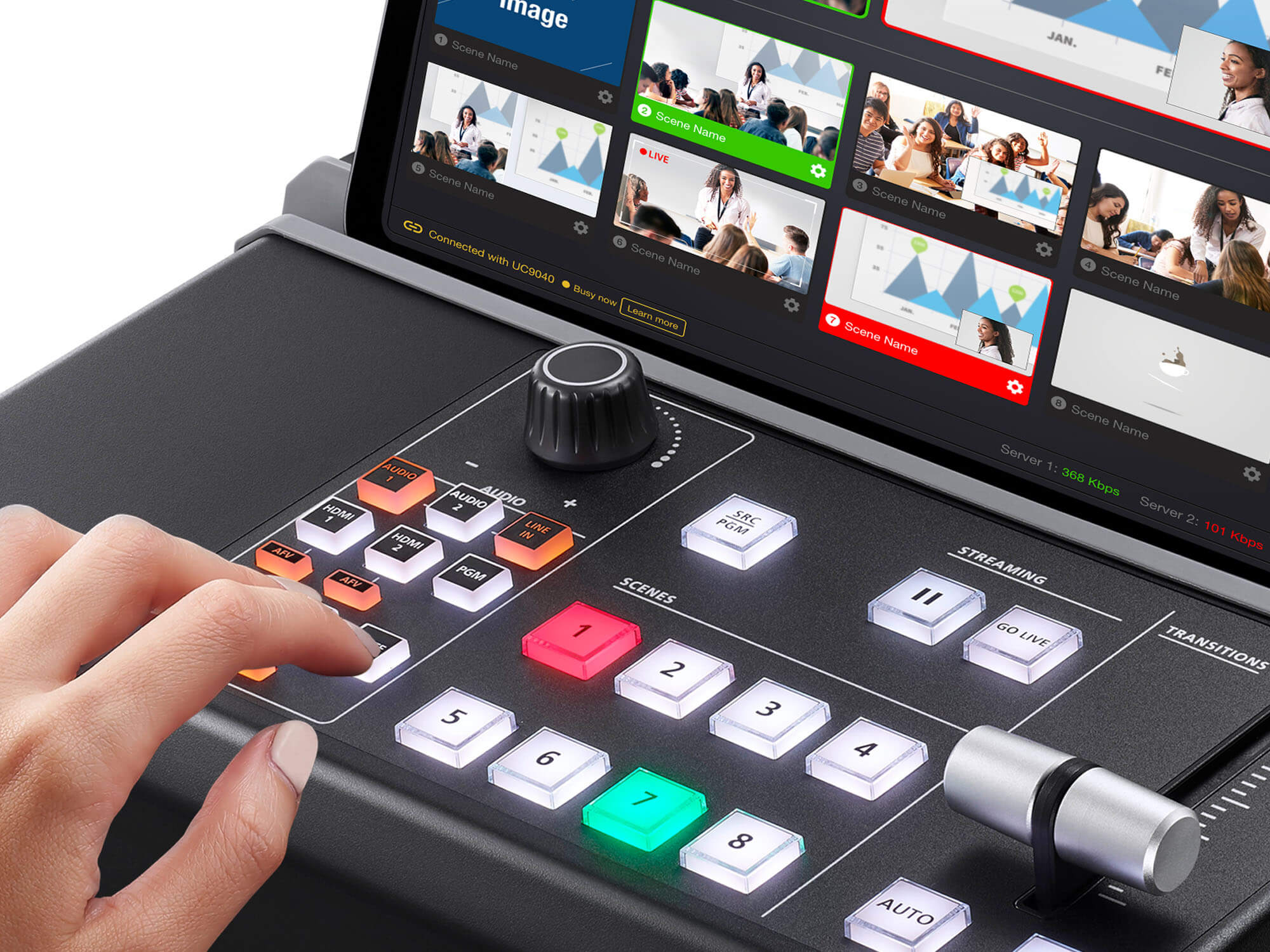

• Compact mixer control panel – Switching & mix between multiple video & audio sources with the help of easily identifiable luminous keys

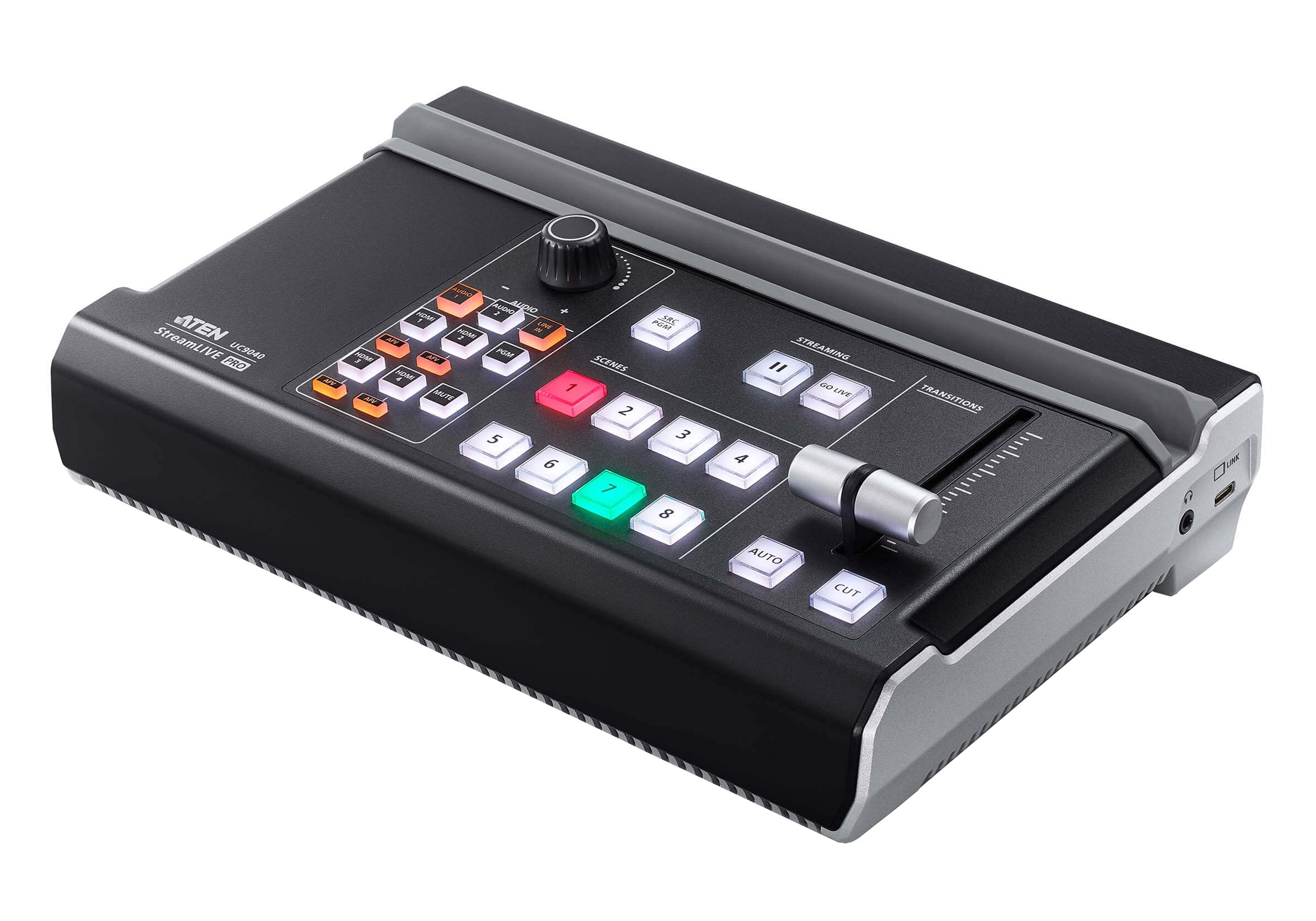

The StreamLIVE™ PRO is a portable, all-in-one, multi-channel audio / video mixer device that integrates an 1080p video capture, video recorder, video switch, stream broadcaster, video converter, 4K video splitter, and audio mixer into one compact box to eliminate the hassle of working with different AV equipment. The StreamLIVE™ PRO makes HDMI video sources broadcast for higher quality live stream to CDN platforms such as YouTube Live, Facebook, and Twitch.

For added convenience, the StreamLIVE PRO features an intuitive app, OnAir, which is designed for use with supported Android / Windows devices or iPads, making it easy to monitor, edit image layouts, and DVE, PiP or PbP settings.

Package Contents

1 x UC9040 StreamLIVE™ PRO

1 x USB-C to USB-C Cable

1 x USB-C to USB-A Cable

1 x Power Adapter

1 x User Instructions

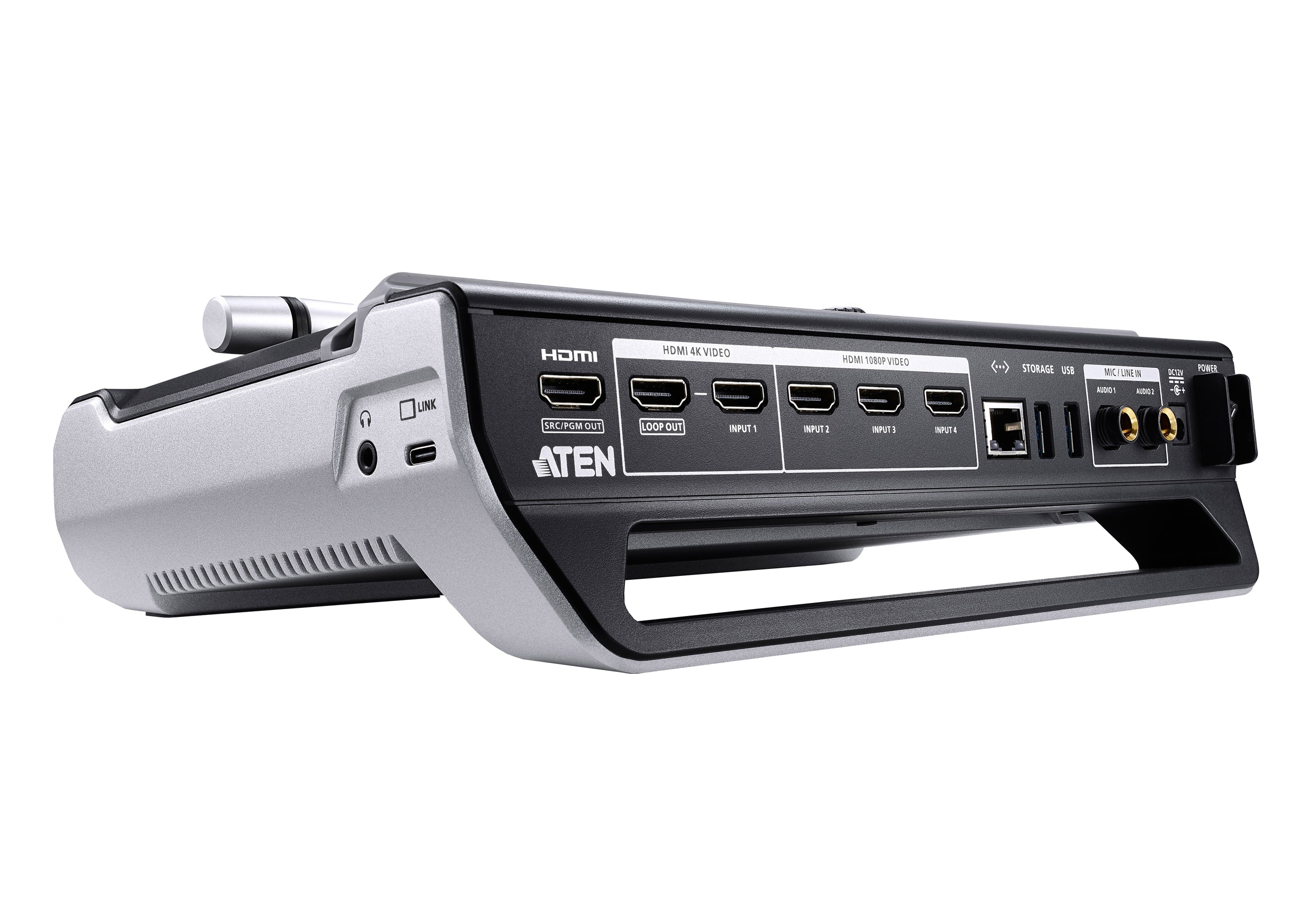

Video Input

Interfaces

1 x 4K HDMI Type-A Female
(up to 2160p60, unencrypted)
3 x HDMI Type-A Female
(up to 1080p60, switcher, unencrypted )

Video Output

Interfaces

1 x 4K Loop-Thru HDMI Type-A Female
(up to 2160p60, unencrypted)
1 x PGM HDMI Type-A Female
(up to 1080p60, unencrypted)

Video Sampling

4:2:2 8-bit

Colour Space

4:2:2 YUV

Video Resolution

HDMI 1 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25

HDMI 2/3/4 Input:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), 1080p60/50/30/25

SRC/PGM HDMI Output:
480p60/50/30/25, 576p60/50/30/25, 720p60/50/30/25, 1080p60/50/30/25

HDMI Loop-Through Output:
VGA(640x480@60), 480p60/50/30/25, SVGA(800x600@60), XGA(1024x768@60), 720p60/50/30/25, SXGA(1280x1024@60), WXGA+(1440x900@60), UXGA(1600x1200@60 RB), WUXGA+(1680x1050@60), 1080p60/50/30/25, 2160p60/50/30/25

Audio Inputs

Interfaces

HDMI captured inputs (stereo)
2 x 1/4" TRS jack (dual mono)

Audio Outputs

Interfaces

HDMI outputs (stereo)
1x 1/8" TRS jack (stereo)

Network Protocol

Dual-stream encoder supports direct live streaming to CDN server over Ethernet using Real Time Messaging Protocol (RTMP/RTMPS)
-------------------------------------------------------
Video Encoding

Format: H.264
Bit rate: 512Kbps~10Mbps
Colour Format: YUV420
Resolution: 1080p30/25, 720p60/50/30/25, 480p60/50/30/25
-------------------------------------------------------------------
Audio Encoding

Format: AAC
Sampling rate: 48kHz
Bit rate: 128kbps

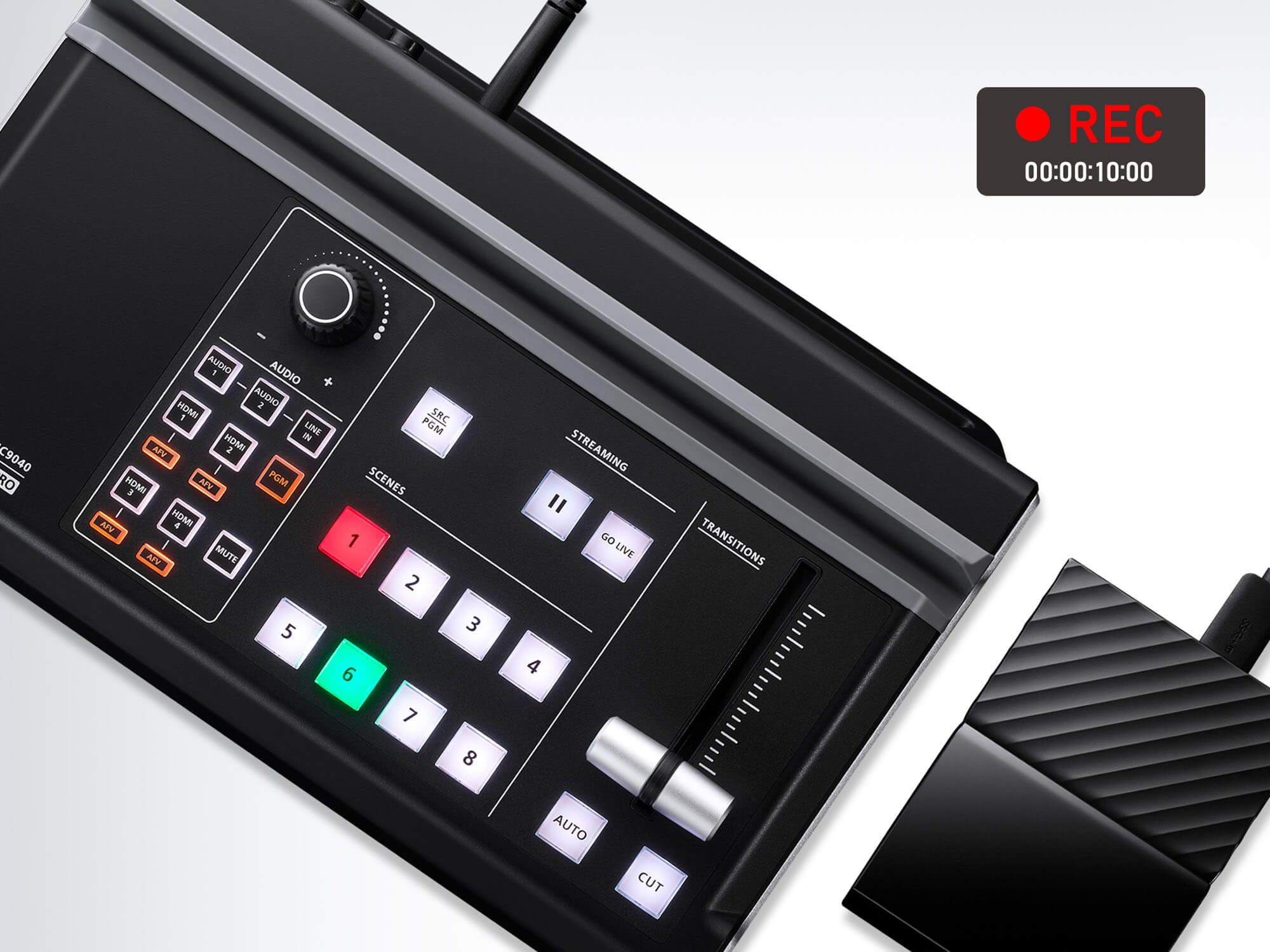

Recording Storage

Max. video resolution: 1080p30/25
File format:MP4
Support media: USB 3.x compatible mobile drive (HDD / SSD), at least 32GB of free space

Connection

2x USB 3.1 Gen1 Type-A Female (blue)
1x USB Type-C
1x GbE LAN port

Environmental

Operating Temperature

0 - 40 ºC

Storage Temperature

-20 – 60 ºC

Humidity

0 - 80% RH, Non-Condensing

OS Support

System requirements for iPads:

• iPad Pro (3rd gen or later) with iOS 11 and above
The following iPad with iOS 11 and above (Additional Apple Lightning USB 3 Adapter is required):
• iPad Pro (1st and 2nd gen) • iPad (5th gen or later) • iPad Air (3rd gen or later) • iPad Mini (5th gen or later)

System requirements for Android tablets:

• Android 9 and above
• Octa-Core ARM Cortex grade CPU and above
• Minimum 2.75GB system RAM
• UC9040 with Firmware Ver.1.1.109 is also required

System requirements for Chromebook:

• Chromebook with Android APP support
• UC9040 with Firmware Ver.1.3.121 is also required

System requirements for Windows PC:

• A PC with Windows 10 version 17763.0 or higher, 32/64-bit
• CPU: Intel® i3 Dual Core 2.8Ghz or higher
• RAM: 4GB or more
• OnAir App for Window from Windows Store
• UC9040 with Firmware Ver.1.3.122 is also required

Power

Maximum Input Power Rating

DC12V, 7.5A

Power Consumption

DC12V:17.37W:184BTU

Physical Properties

Housing

Metal

Weight

1.85 kg ( 4.07 lb )

Dimensions (L x W x H)

28.85 x 18.99 x 9.66 cm
(11.36 x 7.48 x 3.8 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



UC9040 Datasheet PDF
