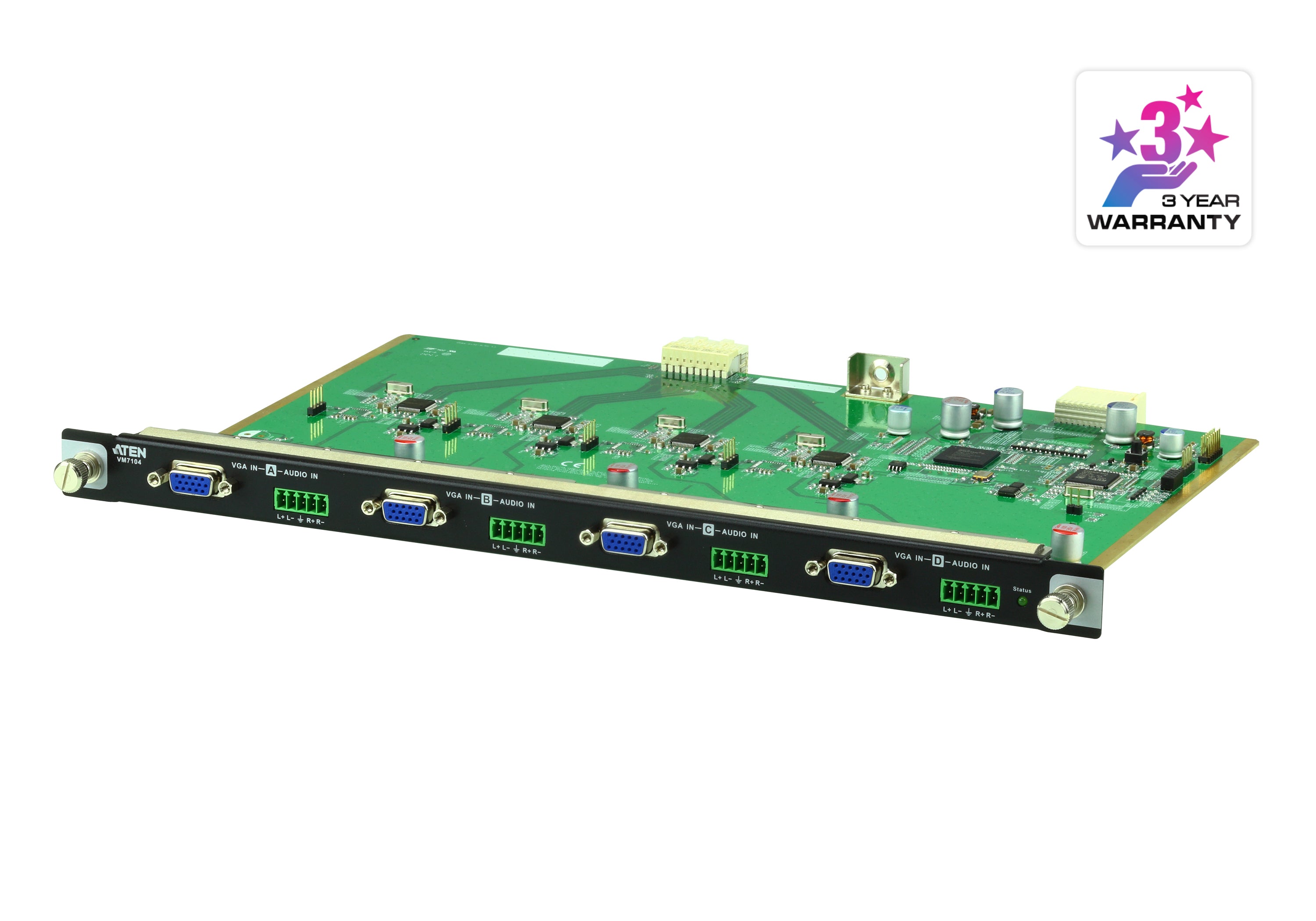

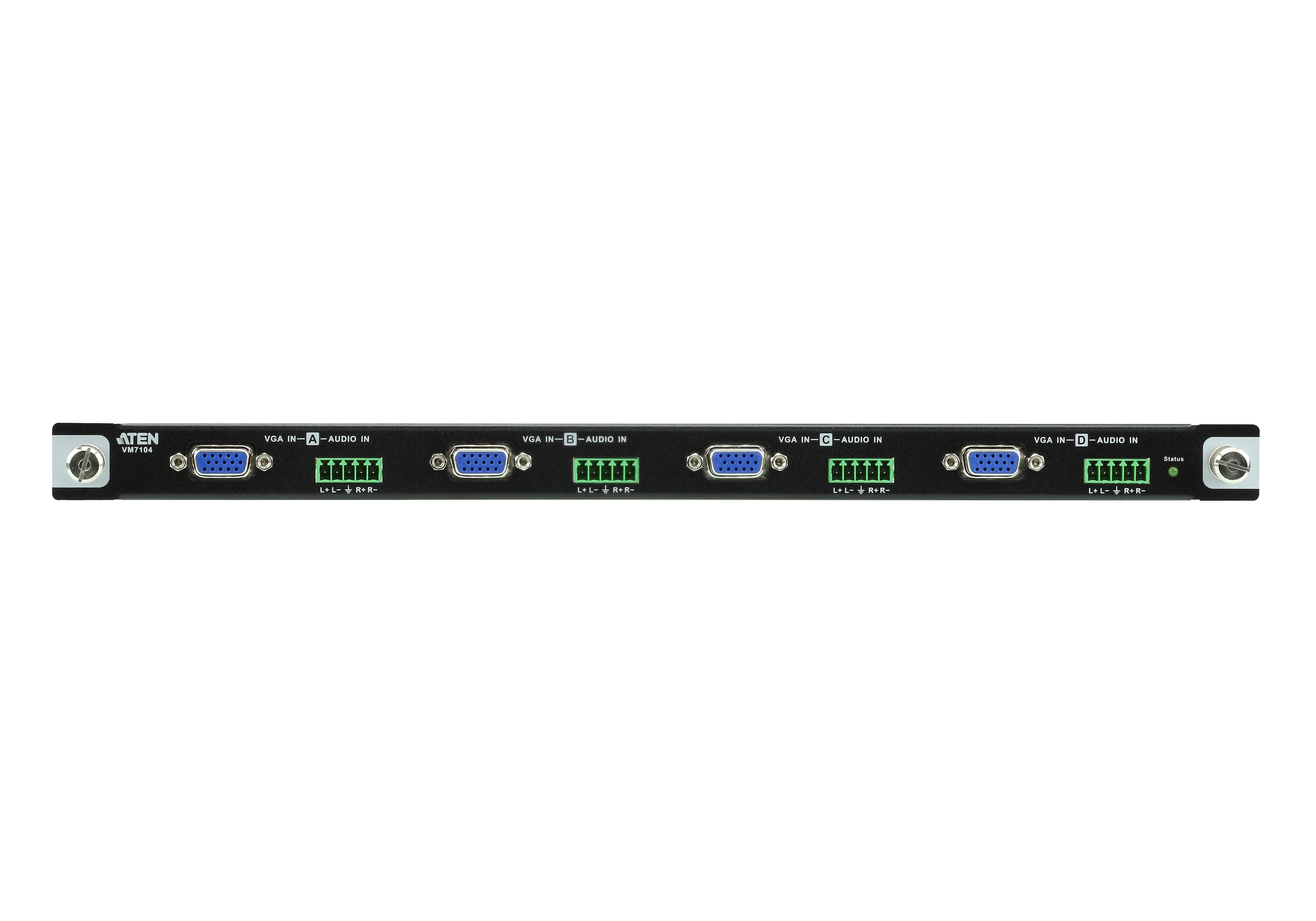

Aten VGA Input Board, 4 Port - VM7104

Aten
ATVM7104SWIHDMIX
R 18,823.23 Ex VAT

• Connects up to 4 VGA or Component inputs

• Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals

• Hot-swappable design for easy integration of I/O boards

• Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility

The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn’t need to be powered off when the board is changed.

Package Contents

1x VM7104 4-Port VGA Input Board

4x Terminal Block Connectors

1x User Instructions





Video Input

Interfaces

4 x HDB-15 Female (Blue)

Impedance

75 Ω

Max. Bandwidth

300 MHz

Max. Resolution

Up to 1920 x 1200

Max. Distance

1.8 m

Audio Inputs

Interfaces

4 x Captive Screw Connectors, 5 pole
* Audio signal type: stereo, balanced/unbalanced.

Power Consumption

7.1W:33BTU

Environmental

Operating Temperature

0–40°C

Storage Temperature

-20–60°C

Humidity

0 - 80% RH, Non-Condensing

Physical Properties

Housing

Metal

Weight

0.56 kg ( 1.23 lb )

Dimensions (L x W x H)

35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)

Note

Audio signal type support stereo, balanced/unbalanced.
Balanced audio maximum input/output level: 0.5 Vrms (-6.02dBV@600 ohm )
Unbalanced audio maximum input/output level: 1Vrms (0dBV@600ohm.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.



VM7104 Datasheet PDF
