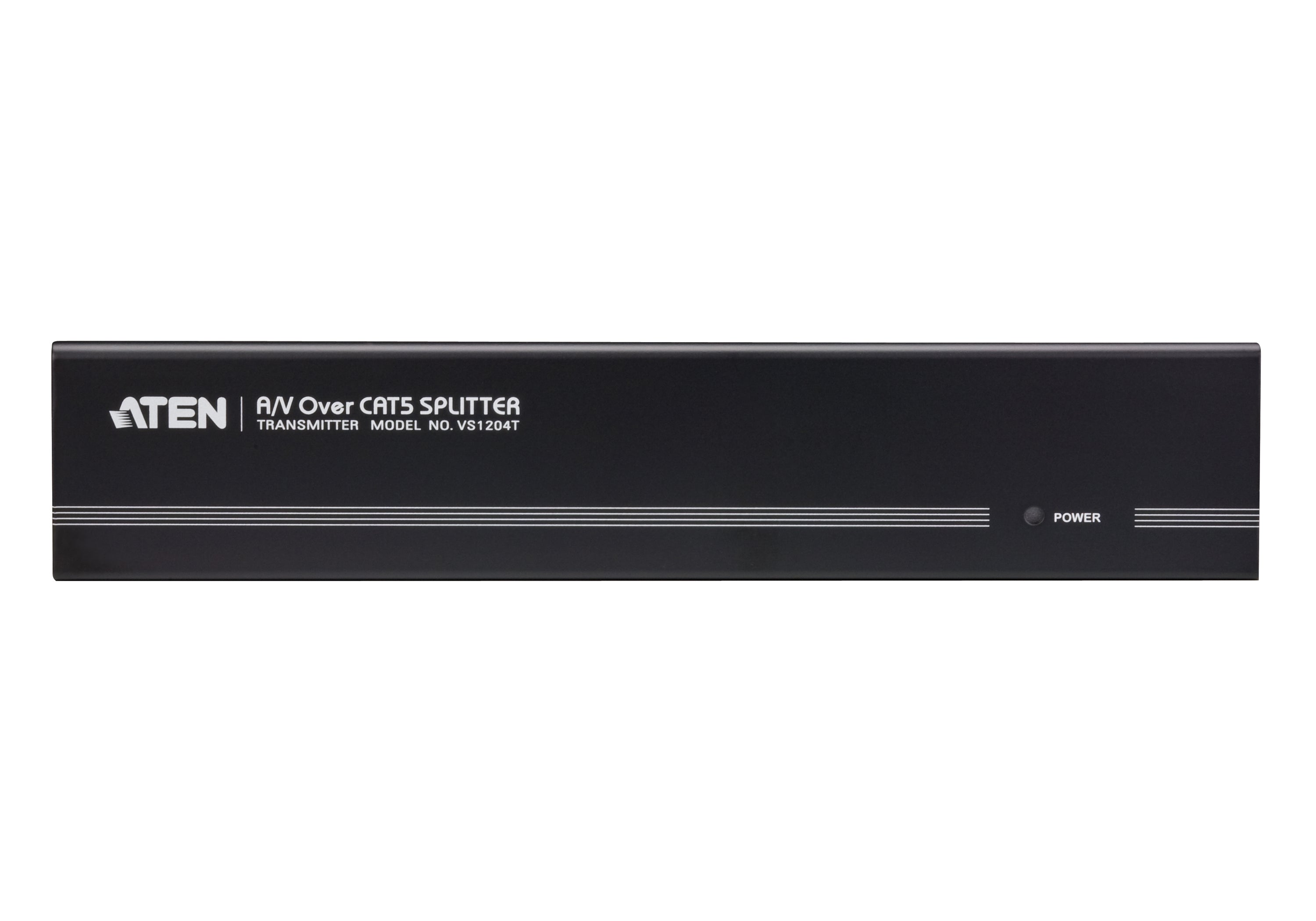

Aten Extender, VGA, 4 Port with CAT5 Out - VS1204T
• One audio/video input to 4 audio/video outputs via Cat 5e cable
• Supports local display + 4 remote displays
• Supports up to 225 MHz bandwidth
• Uses Cat 5e cable to extend displays up to 300 m
• Superior video quality – up to 1920 x 1200@60Hz
• Audio enabled (mono)
• Built-in 8KV/15KV ESD protection
• Rack-mountable
The VS1204T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 4 displays over a long distance. Incorporating suggested compatible receivers*, the VS1204T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.
* Suggested Compatible Receiver Units:
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew
VE172R A/V Over Cat 5 Receiver with Cascade
Package Contents
1x VS1204T A/V Over Cat 5 Splitter
1x Power Adapter
1x Mounting Kit
1x Foot Pad Set (4 pcs)
1x User Instructions
|
Video Input |
|
|
Interfaces |
1 x HDB-15 Male (Blue) |
|
Impedance |
75 Ω |
|
Max. Distance |
1.8 m |
|
Video Output |
|
|
Interfaces |
1 x HDB-15 Female (Blue) - Local Output |
|
Impedance |
75 Ω |
|
Video |
|
|
Max. Bandwidth |
225 MHz |
|
Max. Resolutions / Distance |
Up to 1920 x 1200@60Hz@150m; |
|
Audio |
|
|
Input |
1 x Mini Stereo Jack Female (Green) |
|
Output |
1 x Mini Stereo Jack Female (Green) |
|
Connectors |
|
|
Power |
1 x DC Jack (Black) |
|
Power Consumption |
DC5.3V:3.55W:17BTU |
|
Environmental |
|
|
Operating Temperature |
0-50°C |
|
Storage Temperature |
-20 - 60°C |
|
Humidity |
0 - 80% RH, Non-Condensing |
|
Physical Properties |
|
|
Housing |
Metal |
|
Weight |
0.59 kg ( 1.3 lb ) |
|
Dimensions (L x W x H) |
20.00 x 7.51 x 4.40 cm |
|
Carton Lot |
5 pcs |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
