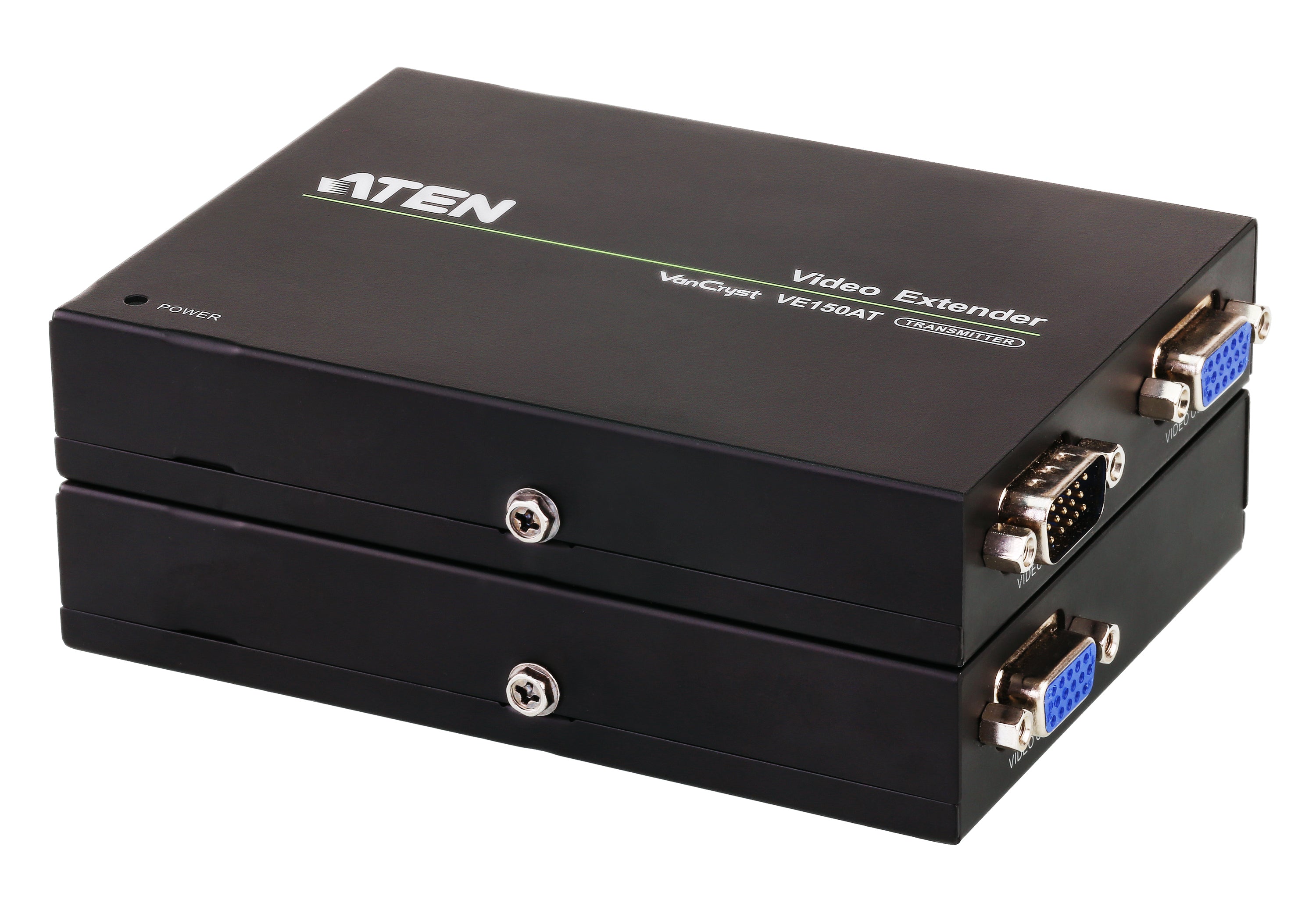

Aten Extender, VGA with Audio, Transmitter and Receiver - VE150A

Aten
ATVE150AEXTVGAXX
R 2,401.43 Ex VAT

• Uses Cat 5e cables to connect the local and remote units

• Supports one local and one remote display

• Long distance transmission – up to 150m

• Superior video quality – up to 1920x1200 (30m);1600x1200 (100 m); 1280x1024 (150m)

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Package Contents

1x VE150AT Video Extender (Local unit)

1x VE150AR Video Extender (Remote unit)

2x Power Adapters

1x VGA Cable (1.8m/6ft)

1x Mounting Kit

1x User Instructions



Function

VE150AR

VE150AT

Video Input

Interfaces

N/A

1 x HDB-15 Male (Blue)

Impedance

N/A

75 Ω

Max. Distance

N/A

1.8 m

Video Output

Interfaces

1 x HDB-15 Female (Blue)

1 x HDB-15 Female (Blue)

Impedance

75 Ω

75 Ω

Video

Max. Bandwidth

300 MHz

300 MHz

Max. Resolutions / Distance

Up to 1920 x 1200@30m; 1280 x 1024@150m

Up to 1920 x 1200@30m; 1280 x 1024@150m

Connectors

Power

1 x DC Jack

1 x DC Jack

Power Consumption

DC5.3V:0.87W:8BTU

DC5.3V:1.35W:11BTU

Environmental

Operating Temperature

0 - 50°C

0 - 50°C

Storage Temperature

-20 - 60°C

-20 - 60°C

Humidity

0 - 80% RH, Non-Condensing

0 - 80% RH, Non-Condensing

Physical Properties

Dimensions (L x W x H)

12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)

12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.)

Housing

Metal

Metal

Weight

0.24 kg ( 0.53 lb )

0.24 kg ( 0.53 lb )

Carton Lot

5 pcs

5 pcs

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

VE150A Datasheet PDF
