Elmo Visualiser, 16 x Optical Zoom 8 x Digital zoom, 6 MP - P30HD – Solution Technologies

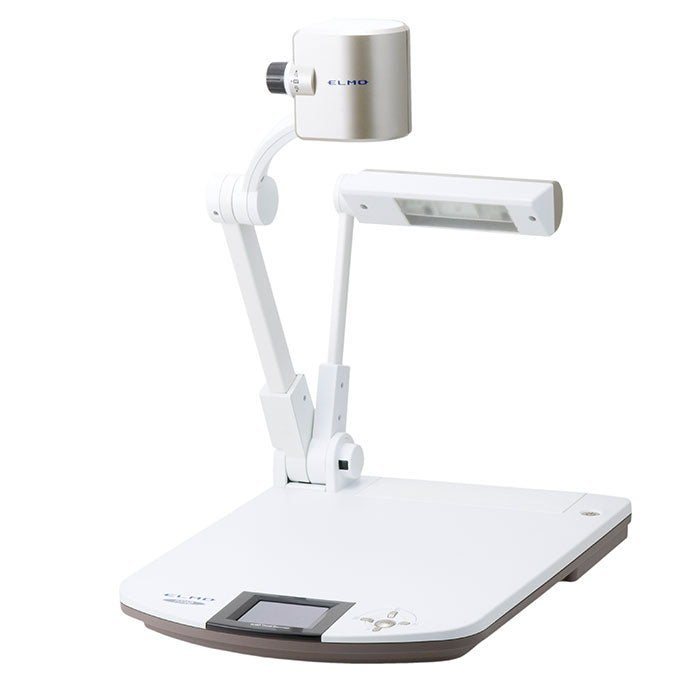

Elmo Visualiser, 16 x Optical Zoom 8 x Digital zoom, 6 MP - P30HD

R 19,520.00 Ex VAT

• Captures everything from fine text to three-dimensional objects in 1080p full HD

• 3.4 M CMOS

• Powerful 128X Zoom: high-magnification 16X optical zoom combined with its 8Xdigital zoom

This is the new 3rd generation P30 from Elmo, the P30HD.  This camera has raised the bar and offers an unsurpassed viewing experience in native high definition. With HDMI connectivity, a built in live LCD preview screen, and a compact body, this lightweight unit is for the demanding presenter that will only accept the best that money can buy. The unit folds up nicely and it can be easily taken to a business meeting or courtroom. With a weight of around ten pounds, you will not get a more powerful camera into a body this light and compact.

One of the most noticeable features of the new HD model is the high definition 3.4MP camera. The 3.4MP camera is a major upgrade from the old P30’s anaemic 1.3MP. The result of this upgrade is clearer, sharper, and more detailed images and videos. Colour reproduction is also outstanding and true to life. With the increased resolution Elmo also has maintained its impressive frame refresh rate which is 30 frames per second. This camera is mounted on a free-angle arm that makes shooting 3D objects a breeze at any angle. The result is an unprecedented video quality that is smooth, in real high definition and produced in vivid colours.

Generally, the rule is with higher resolution you can zoom while sustaining a clear unpixilated image, and the engineers at Elmo did not miss this point. The new HD has greater optical and digital zoom resulting in crisp images even at its 128X zoom. The clarity of the image is improved by the use a wider focal range making the P30HD hands down a leader in image quality and capability.

Other value added additions built into the P30HD, such as the variety of connection ports from the P30 in addition to the new  HDMI connection that will give the user the ability to project in true 1080p. Having the ability to record and project in true HD makes this presenter ideal for medical and courtroom presentations, where clarity and ability to see fine detail is essential. Another newly added feature of the P30HD is the USB flash drive memory option, which truly adds to the accessibility and the usability of this unit. The USB port allows you to save what is being recorded on the spot to a flash drive saving time and hassle.

Some unexpected improvements made to the P30HD are the 3 user settings that save the individual pre-sets for up to three individuals. Also, new to the P30HD software, improvements allow the user to highlight, scroll (in zoom mode), edit, use a split screen mode, and record in a picture in picture display. Finally for those who feel that no digital presenter is complete without accessories, options include a handy slide show adapter and an indispensable MS-30 5” colour monitor and shoe. These items will augment the effectiveness of the unit and impress your audience. The new P30HD is truly for those who are looking for the best camera money can buy without breaking the bank.

• Manufacturer Specs



Image pick-up   1/2.8" CMOS 3,400,000 pixels

Total pixels       (H)2144 x (V)1588

Effective pixels (H)1920 x (V)1536

Frame rate        30fps

Resolution        Analog RGB :800(H) x 800(V) TV lines or more


• Optics

Zoom   Powered, 16× Optical

Lens     F2.7, f=4.9mm-78.4mm

Shooting area   1080p: Max.400×223mm Min.27×15mm

720p: Max.400×223mm Min.27×15mm

SXGA: Max.400×320mm Min.27×22mm

WXGA: Max.400×248mm Min.27×17mm

XGA: Max.400×299mm Min.27×20mm

Focus   Auto/Manual/Zoom Sync


• Function

White balance   Auto/One-Push/Manual

Image mode      Text1/Text2/Text3/Graphics1/Graphics2

Edge Effect      Provided (only for Graphics1 mode)

Still Image storage        Provided

Movie storage   Provided

Digital zoom     8×

Gamma setting  Provided (only for Graphics1 mode)


• Graphical OSD

(On Screen Display)      Provided

Image save       SD memory card/SDHC memory card/USB memory

State pre-setting            Up to 3 user settings

Brightness control         Auto/Manual (with level adjustment)

Support Function          Highlight, Mask, Scroll (in digital zoom), Mosaic, Split screen, PinP (Picture-in-Picture), Colour filter, Pause, Image rotation (0°/180°), Positive/negative conversion, Colour/B&W selection



Input selection   Main/External

Output terminal  RGB output mini D-sub 15P connector, femalex1

Composite video output RCA pin jack/75Ω unbalancedx1

HDMI output terminal x1

Line Out terminal φ3.5mmstereo minijack x1

Input terminal    RGB input mini D-sub 15P connector, female x1

Mic In/Line Out terminal (shared), 3.5mm-diameter stereo mini jack x1

Ext. control terminal      USB device (2.0 compliant) Mini-B receptacle x1

RS-232C D-sub 9P connector male ×1

Analog RGB output       1080p: 1920x1080@60Hz

720p: 1280x720@60Hz

SXGA: 1280x1024@60Hz

WXGA: 1280x800@60Hz

XGA: 1024x768@60Hz

HDMI output     Image output: 1080p/720p

Audio output: PCM44.1kHz sampling frequency

Memory Interface          SD memory card slot x1, USB host (2.0 compliant) Type A receptacle x1



Accessories      AC adapter, AC cord, RGB cable, USB cable (for connecting to PC), Remote control, Strap (for remote control), AAA batteries (for remote control), Slide shooting adapter, Image Mate CD-ROM, Image Mate installation manual, Instruction manual (CD-ROM), Warranty, Important safe guards

Power Source   12V DC (AC adapter AC100-240V)

Power consumption       23.5W (AC adapter included)


(W×D×H)          376x482x549mm setup

376x482x181mm folded

Weight  Approx. 4.7kg (main unit only)


•Tech Specs

Document Camera Attributes

Optical Zoom    16 Zoom Magnification

Mega Pixels (MP)          3.4 Megapixels

Video Outputs   1X HDMI, USB Video, VGA/D-Sub

General Attributes

Warranty           3 YEARS

Product Weight 10.1 LBS

UPC     8404103020

Product Height  21.62 IN

Product Length 24.05 IN

Product Width   14.62 IN

Shipping Height 11.90 IN

Shipping Length            24.05 IN

Shipping Width 19.45 IN

Country of Origin           Thailand

Other Information

USB or video connection: Yes - (HDMI, VGA)


Viewing area: 1080p: Max.400×223mm Min.27×15mm 720p: Max.400×223mm Min.27×15mm SXGA: Max.400×320mm Min.27×22mm WXGA: Max.400×248mm Min.27×17mm XGA: Max.400×299mm Min.27×20mm


Output Resolution: 1080p full HD


Frame rate: 30 fps


Video/audio recording: Capable


Lighting: No

P30HD Datasheet PDF
