Elmo Visualiser, 12 x Optical Zoom 12 x Digital zoom, 8.3 MP - PX30HD – Solution Technologies
Online Support Ask An Expert

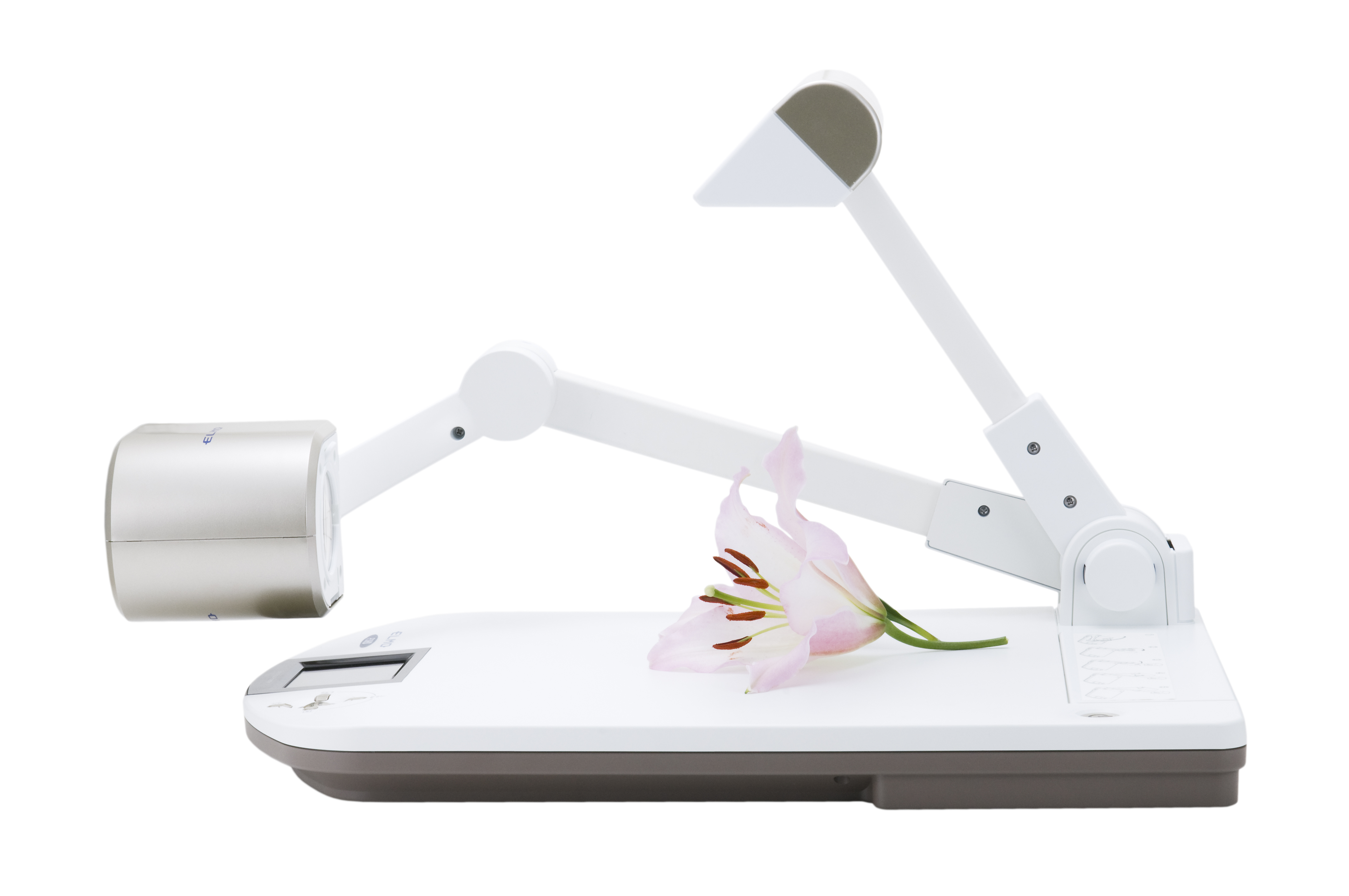

Elmo Visualiser, 12 x Optical Zoom 12 x Digital zoom, 8.3 MP - PX30HD

Elmo
ELPX30VISEDUCA
R 76,203.57 Ex VAT

• Unprecedented 288x zoom

• PX-30E captures in ultra-vibrant 4K resolution

• Variety of shooting modes including 4:3 and widescreen 16:9

• The PX-30E also features an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control

• Zoom toggle wheel with autofocus

With an unprecedented 288x zoom, the PX-30E captures in ultra-vibrant 4K resolution and records video at 30fps that can be saved via SD card, USB flash device, or the camera’s internal memory. PX-30E comes with a variety of shooting modes including 4:3 and widescreen 16:9, with a capture area of up to A4 portrait and A3 landscape. The PX-30E also features an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control, a zoom toggle wheel with autofocus, as well as a variety of output options (HDMI, VGA, USB, HDBaseT and TCP/IP control). The platform stage is magnetic and comes with a custom whiteboard surface that can be written on with dry erase markers to show lessons and annotate during demonstrations.

Enhancements from the PX-30 model include a zoom dial and auto focus button on the camera head, upgraded LED light to reduce glare, HDMI cable connection locks, reduced height jog dial that bring it flush to the stage, quicker brightness control response, an operation panel lock-out feature, and a wake on LAN feature.

Ultra 4K Image

The PX-30E has a specially crafted lens that captures rich Ultra 4K image and can record video in 4K at 30fps and Full HD at 60fps.

288x Zoom

With 12x optical, 12x digital zoom, and 2x sensor zoom, the PX-30E is capable of an incredible 288x zoom so you can see every vibrant detail.

Touch Navigation

The PX-30E comes with an all-new 5” High-Resolution LCD preview monitor with sleek touch-screen navigation designed for easy camera control and a zoom toggle wheel with autofocus.

Multiple Outputs

The PX-30E offers HDMI, VGA, USB and HDBaseT output options for compatibility with a wide array of products. Also comes with TCP/IP control.

Widescreen Mode

The PX-30E comes with a variety of shooting modes including 4:3, widescreen 16:9, and a capture area of up to A4 portrait and A3 landscape.

Main Camera

IMAGE PICK-UP DEVICE

12 Megapixel CMOS

EFFECTIVE PIXELS

3840 x 2160 (16:9) 8.3M

3620 x 2640 (4:3) 9.3M

RESOLUTION

1,600 TV lines (center)

ZOOM

12x Optical / 12x Digital / 2x Sensor

FOCUS MODE

Zoom sync AF / One-push AF

FOCUS RANGE

WIDE end: 5cm~∞

TELE end: 20cm~∞

SHOOTING AREA

17" x 12.6" (4:3) up to A4

ILLUMINATION

Upper light (LED)

HDMI OUTPUT

4K, 1080p, 720p

RGB OUTPUT

1080p, 720p

USB OUTPUT

4K, 1080p, 720p, QUXGA, UXGA, XGA

HDMIBASET OUTPUT

4K, 1080p, 720p

NETWORK CONTROL

TCP/IP Control

IMAGE ADJUSTMENT

Brightness, White balance, Contrast, Contour Correct, Image mask

IMAGE MODES

Normal, Emphasis, Color emphasis, Black/White, DLP Projector

General

OPERATION PANEL

Power, AF, Brightness, Freeze, Image Rotation, Capture Image, Video Record, Settings, Input Selection

LCD PANEL

HQ (800x480) 5" CApacitive-type

INPUT TERMINAL

HDMI x2, RGB Dsub15x1

EXTERNAL CONTROL

RS-232C (inc. setting menu lock), USB, Remote Control, Network Control

RECORDING/PLAYBACK

SD card, USB flash device (only photo), internal memory storage

AUDIO  INPUT:

 External microphone (HDMI)

OUTPUT:

Line out

DIMENSIONS

11.7" x 19" x 18.8" (set up)

11.7" x 19" x 3.75" (folded)

WEIGHT

9.9lbs

PX30HD Datasheet PDF
