Epson Wireless Visualiser, 230 x Zoom Ratio, 4K UHD - ELPDC30

R 15,936.00 Ex VAT

• High-definition classroom content 4K UHD wireless visualiser with 13 mega-pixel camera and 60fps

• Fully flexible and portable Dual band wireless connectivity and lightweight design

• See every detail in large format 230x zoom ratio and microscope attachment

• Capture and record Capture real time content in 4K and share with others

• Complete peace of mind 5-year warranty as standard

• The ELPDC30 is perfect for teachers who want to transform digital learning. Thanks to 4K UHD resolution and the 13 mega-pixel camera, image quality is stunning in every learning setting. It has a shooting area up to A3, and when combined with an Epson projector the content can be displayed on a large screen that's accessible to all students. Add in 230x zoom ratio and every detail can be shared and discussed in perfect clarity.

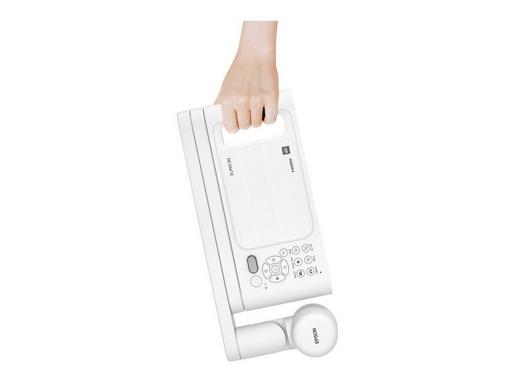

• The ELPDC30 can be connected directly to the main display wirelessly or via Miracast at 30fps (60fps max without Miracast), without being limited by HDMI connectivity. Being compact, lightweight and having a built-in carry handle, makes handling safe and easy.


• The microscope attachment means the smallest content can be viewed at the largest of scales, while USB memory storage of up to 32GB gives the ELPDC30 the ability to record, capture and store images for future sessions and classes.


• The flicker-reduction feature ensures a comfortable viewing experience, making it a healthy choice for young eyes, and a flexible mechanical head with built-in LED light enhances the content being shown.


• An optional carry case provides extra protection when moved between rooms or locations and, if the ELPDC30 needs to be secured, it comes with a Kensington lock.

• Technology

Image pick-up device

1/ 3,2 " CMOS sensor

Effective Pixels

4208 Horizontal x 3120 Vertical, 13 M Pixels

Frame Rate

max. 60 fps

• Optical


Optical 10, Digital 23



Shooting Area

A3 sized: 297 x 420 mm

• Image

Resolution Output

320 x 180 / 320 x 240 / 640 x 360 / VGA / XGA / 720p / WXGA / QVGA / SXGA / Full HD / UXGA / 2048 x 1536 / 2560 x 1920 / 4K

Image Adjustments

Flicker Reduction, Infinity, Microscope mode, Motion, Text/Normal/Display colour modes, Wide Angle Macro

• Connectivity


USB 1.0, HDMI out, built-in microphone, SD card, USB 1.0-A, USB 2.0 Mini-B, Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), HDMI in, Miracast, USB content playback

• Advanced Features

PC-Free Image Viewer

View images from internal or supported external memory

Image Storage

USB memory compatibility (32GB)


Auto focus, Freeze, Parallel video output, Split screen, Video capture and replay, Zoom


Kensington lock

• General

Power consumption

9,6 Watt, 0,5 Watt (standby)

Product dimensions

Folded: 362 x 159 x 85 mm (Width x Depth x Height), Operating: 586 x 159 x 554 mm (Width x Depth x Height)

Product weight

2,8 kg


LED lights

Included Software

Easy Interactive Tools, Epson Connect Tool for Document Camera

• Other


60 months Carry in


ELPDC30 Datasheet PDF
