Epson Business Projector, 7000 Ansi Lumens, 4KE WUXGA resolution, 21:9 – Solution Technologies

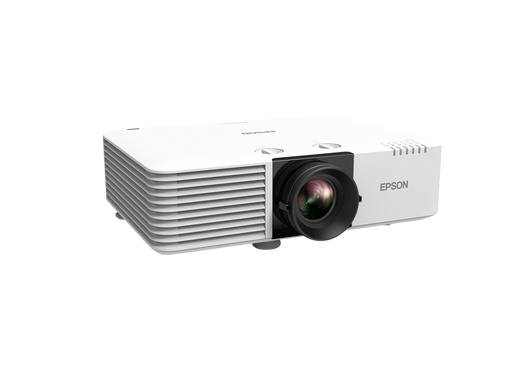

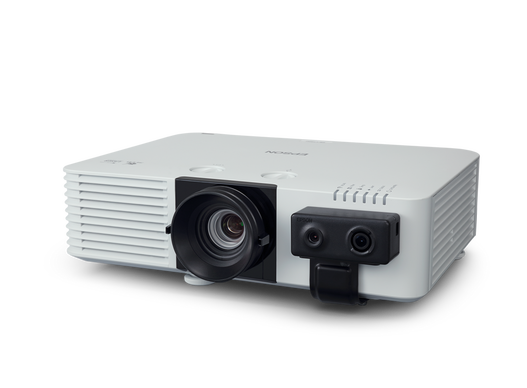

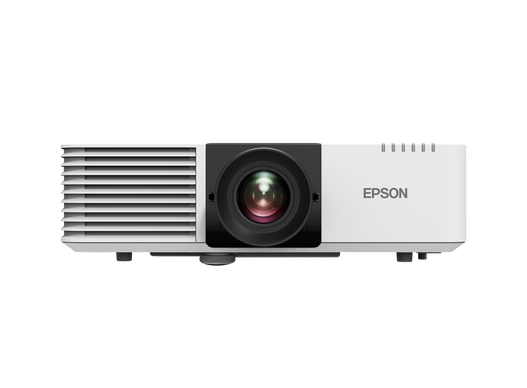

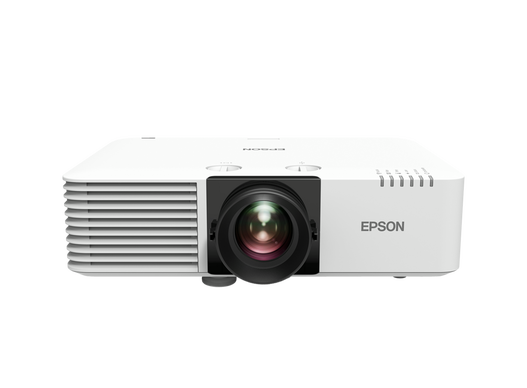

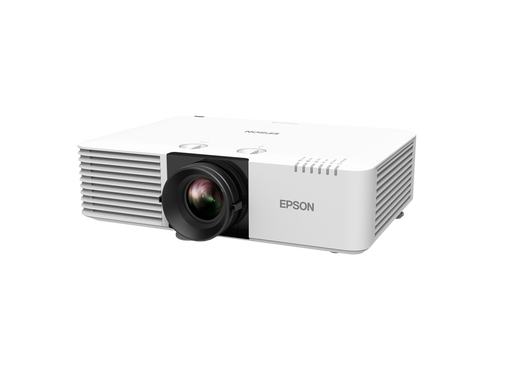

Epson Business Projector, 7000 Ansi Lumens, 4KE WUXGA resolution, 21:9 Aspect Ratio - EBL770U

R 81,203.88 Ex VAT

• 4KE display solution

• 7,000 lumens brightness fixed lens laser projector, an ideal use for education, businesses and visitor attractions environments.

• Exceed your vision with Epson compact 3LCD technology laser projector, delivery sharp and smooth 4K images. The EB-L770U delivers effective, practical and creative display applications across a number of different industries.

Outstanding, bright and clear

Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L770U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L770U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.


Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L770U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.


Effortless and flexible installation

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in black. Peace of mind and long-lasting durability. Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).


Key Features

• 7,000-lumen brightness Sharp images and vivid colours, even in well-lit rooms

• 4KE resolution Sharp 4KE images for excellent clarity

• BYOD connectivity with optional wireless or wired and HDBaseT

• Effortless, flexible installation Lightweight and compact design with wide lens shift

• Large image Scalable display size of up to 500 inches


• Projection System

3LCD Technology

• LCD Panel

0, 67 inch with C2 Fine

• Colour Light Output

7.000 Lumen- 4.900 Lumen (economy) In accordance with IDMS15.4

• White Light Output

7.000 Lumen In accordance with ISO 21118:2020

• Resolution


• High Definition

4K enhancement

• Aspect Ratio


• Contrast Ratio

Over 2.500.000: 1

• Light source


• Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

• Keystone Correction

Manual vertical: ± 30 °, Manual horizontal ± 30 °

• Colour Video Processing

10 Bits

• Colour Reproduction

up to 1.07 billion colours

• HDR support


• Throw Ratio

1, 35 - 2,20:1

• Zoom

Manual, Factor: 1 - 1, 6

• Lens Shift

Manual - Vertical ± 50 %, horizontal ± 20 %

• Screen Size

50 inches - 500 inches

• Projection Lens F Number

1, 5 - 1,7

• Projection Lens Focal Length

20 mm - 31, 8 mm

• Projection Lens Focus


• Interfaces

USB 2.0-A, USB 2.0 Type B (Service Only), RS-232C, HDMI in (2x), HDMI out, HDBaseT, WLAN, Jack plug out

• Epson iProjection App

Ad-Hoc / Infrastructure

• Network Protocol


Advanced Features

• Security

Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection

• 2D Colour Modes

Dynamic, Natural, Cinema, Presentation, DICOM SIM

• Other features

21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto source search, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Edge Blending, PC Free, Super resolution, Ultra-wide display (16:6), iProjection App

• Video Colour Modes

Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

• Projector control

Via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

• Power consumption

300 Watt - On mode power consumption (Normal)
366 Watt (Peak), 277 Watt (Eco), 0,5 Watt (Energy saving standby)

• Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

• Product dimensions

440‎ x 304 x 122 mm (Width x Depth x Height)

• Product weight

8, 5 kg

• Noise Level

Normal: 38 dB (A) - Economy: 27 dB (A)

• Supported Temperature

Storage -10° C - 60° C

• Supported Humidity

Operation 20% - 80%, Storage 10% - 90%

• Included Software

Epson Projector Management

• Options

Air filter, Ceiling mount, Connection and control box, Document camera, External Speaker, Safety wire set, Visualizer camera, WP System - ELPWP20

• Loudspeaker

10 Watt

• What's in the box?

Cable cover, Main unit, Remote control incl. batteries, User guide, Warranty document

• Room Type / Application

Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction

• Positioning

Ceiling Mounted, Desktop

• Colour



36 months Carry in


EBL770U Datasheet PDF
