Epson Visualiser, 12 x Optical Zoom 10 x Digital zoom, 6MP - ELPDC21

R 11,769.20 Ex VAT

• Clear, smooth images Full HD 1080p camera and 30-frames-per-second screen refresh rate

• Capture every detail 12x optical plus 10x digital zoom; one-touch auto focus and freeze function

• Large A3 capture area Ideal for projecting maps, detailed diagrams and 3D objects

• Illuminate hard-to-see objects Built-in LED light

• Added peace of mind Kensington lock and security bar for theft protection

Highlight the finest detail

This document camera is ideal when clear magnification is required, for example when studying historical texts. A 12x optical zoom plus 10x digital zoom and built-in LED light will ensure even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.

Display in Full HD

Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second.

Added flexibility

Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.

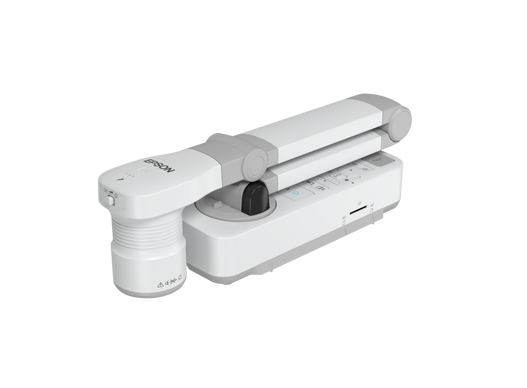

Portable and lightweight

A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.



Image pick-up device

1/ 2,7 " CMOS sensor

Effective Pixels

1920 Horizontal x 1080 Vertical

Frame Rate

max. 30 fps



Optical 12, Digital 10



Shooting Area

A3 sized: 297 x 420 mm


Resolution Output

SXGA(1280*1024)/XGA(1024*768)/WXGA 16:10 (1280*800)/WXGA 16:9 (1360*768)/1080p (1920*1080), 480p/ 720p/ 1080p

Image Adjustments

Auto Exposure, Black and White, Brightness Adjustment, Contrast Adjustement, Image Rotation, Microscope mode



USB 11.0, VGA in, VGA out, HDMI out, built-in microphone, SD card

Advanced Features

PC-Free ImageViewer

View images from internal or supported external memory

Image Storage

SD/SDHC compatibility (128MB-32GB)


Auto focus, Freeze, Parallel video output, SD card viewer, Split screen, Zoom


Kensington lock, Security bar, Security cable hole


Power consumption

13 Watt, 0,5 Watt (standby)

Product dimensions

Folded: 367 x 122 x 120 mm (Width x Depth x Height), Operating: 270 x 317 x 447 mm (Width x Depth x Height)

Product weight

2,6 kg


LED lights

Included Software

Easy Interactive Tools, TWAIN driver for Epson Document Camera (for Windows)

Compatible Operating Systems

Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista



36 months Carry in


ELPDC21 Datasheet PDF
