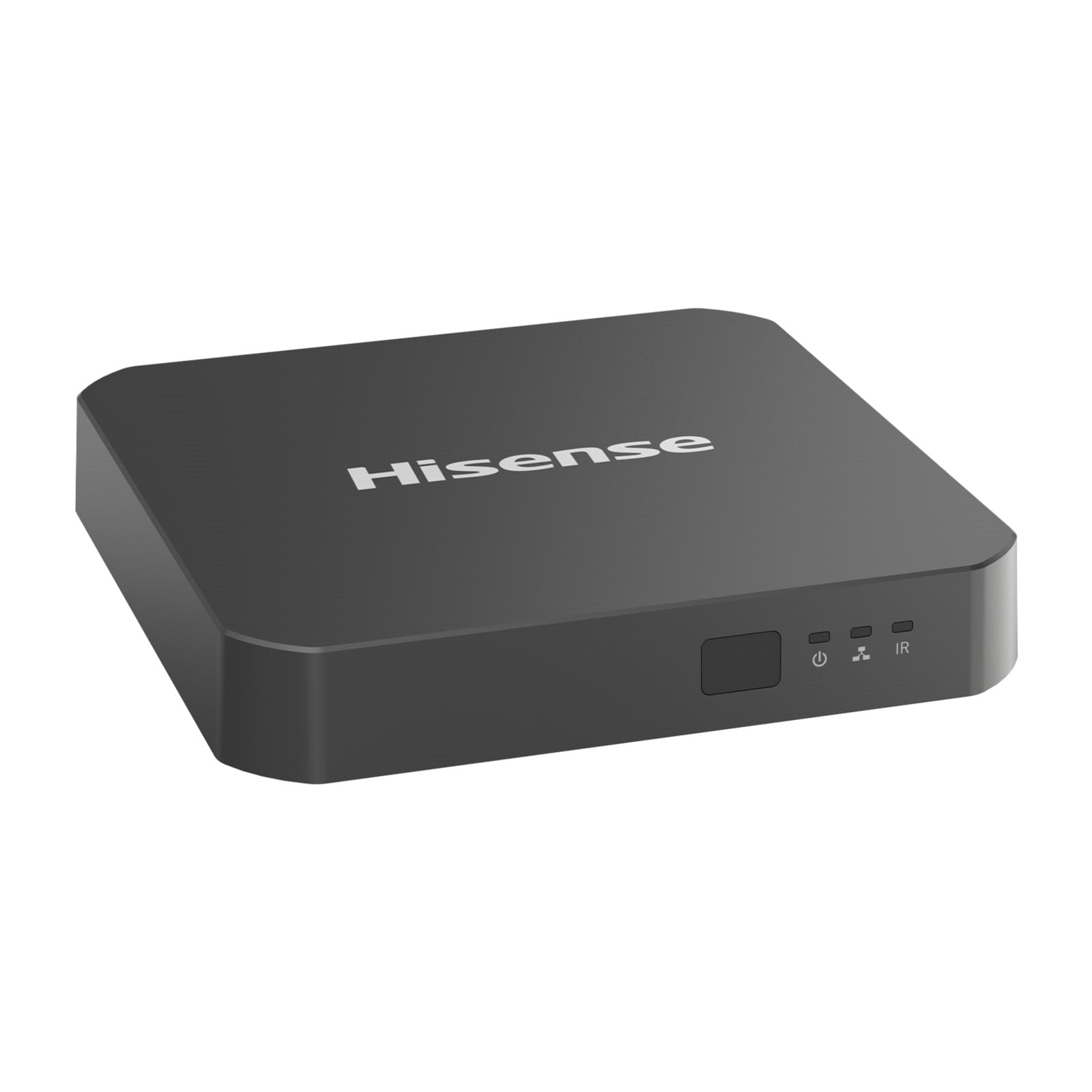

Hisense CMS Media Box - IP151N
• A10 is a high-performance Media Player solution developed by Hisense independently.
• It adopts high-end chips and bases on a powerful intelligent operation system platform, providing 4K video and supporting resource-intensive applications.
• VisionInfo Android
Adopts high-end chips and bases on a powerful Android operation system platform
• VisionInfo HDR
High Dynamic Range (HDR) enhances contrast and colour, revealing more detail in bright and dark areas. It elevates visual quality, creating a lifelike and vibrant viewing experience.
• VisionInfo 4K
4K resolution provides stunning clarity with four times the pixels of Full HD, delivering sharper images, finer details, and an immersive visual experience for enhanced viewing pleasure.
• VisionInfo Wi-Fi
Offer both Wi-Fi and Ethernet connectivity options.
• VisionInfo Cloud
Integrate VisionInfo platform which could provide intelligent content management, enterprise-grade device management and enhanced data management capabilities.
• VisionInfo High End Chips
Adopts high-end chips and bases on a powerful Android operation system platform.
• Hardware
CPU: ARM Cortex-A35 Quad-core up to 2.0GHz
GPU: ARM Mali-G31 MP2 GPU
DRAM: 2GB DDR4
Flash: 8Gb eMMC
Wi-Fi: 2x2 MIMo Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac (WiFi5)
Bluetooth: 5.0 with BLE
RCU*: Bluetooth 5.0 and IR
*RCU: Remote Control Unit, AOSP not support voice control
• Software
OS: AOSP 11
OTA: Support VisionInfo upgrade
Pre-Install App: VisionInfo / AM Player / AppInstaller
*For reference, software part customised based on customer's requirement
• Accessories
Power Adaptor: Power Adaptor x 1 / Input: AC 110-240V, 50-60Hz / Output: DC 12V 1A
HDMI Cable: HDMI cable with HDMI 2.0a x 1
LAN Cable: 8 ways Multicore Cable 1500mm x 1
Remote Control: IR 38kHz & Bluetooth Remote Control Unit x 1
Battery: AAA 1.5V Carbon Batteries x 2 (For Remote Control)
*Batteries are not provided for air transportation
• Audio / Video
Audio Codecs: Support MPEG Layer I/II/III / AAC / Opus / Flac
Video Codecs: Support AV1 / VP9 profile 2 / H.265 HEVC / AVS2-P2 profile / H264 AVC / MPEG-1/2/4 / HDR10 / HLG
Resolution: Up to 4Kp60
• Physical
Power Supply: External 12V 1A
Power Consumption: 12 Watt
Operating Temperature: 0°C ~ 40°C
Operating Humidity: 10% - 90%, RH, Non-condensing
Size*: 105 x 105 x 22mm
*Subject to the final design

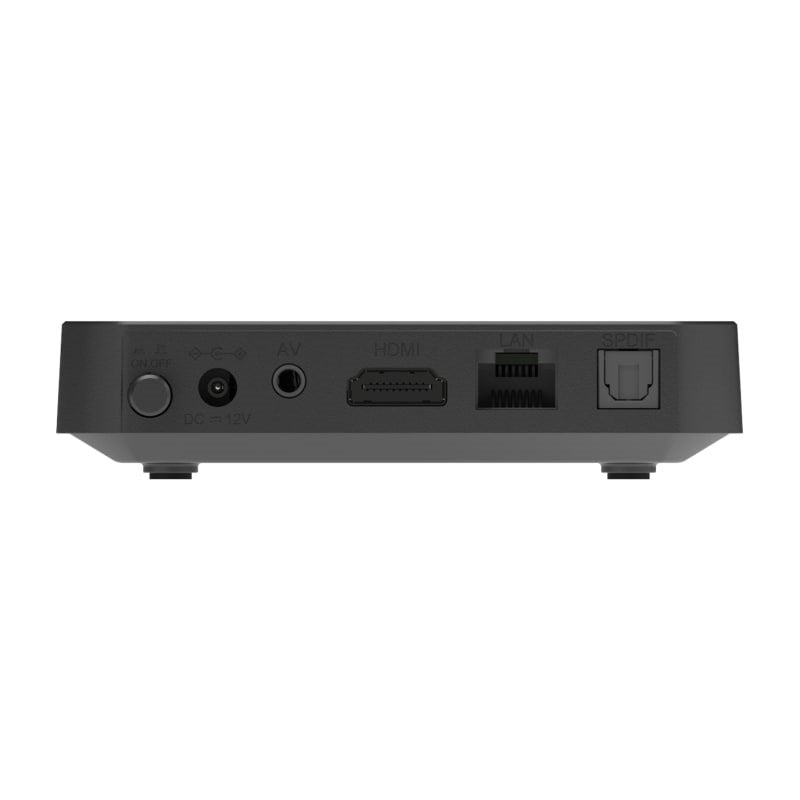

• Interface
HDMI: 1 x HDMI 2.1 port, output with HDCP 1.4+2.2
Analogue AV: 1 x mini-AV port, output CVBS and L/R audio
S/PDIF: 1 x SPDIF Optical interface
Network: 1 x 10m / 100m RJ45 port
USB: 2 x USB 2.0 with type A
Power Interface: 1 x DC in
LED Status: 3 x LED display: Power/Standby, IR Activity, Network Activity
Other: 1 x Power On/Off Switch / 1 x TF card slot
IP151N Datasheet PDF
