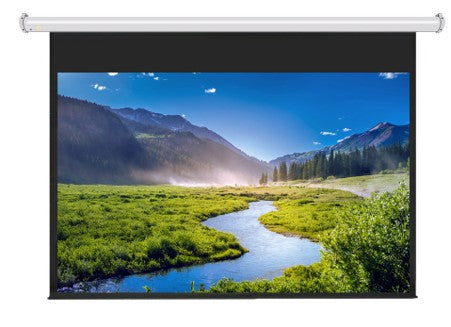

JK Manual Pull Down Screen, 120", 4:3 Aspect Ratio, Matt White Fabric - M4120
• White powder coated steel cabinet.
• Good quality Matt-white fabric.
• Aspect ratios available 1:1, 4:3, 16:9 and 16:10
• 12 MONTHS RTB WARRANTY
The new synthetic glass fibre base fabric is used to replace the traditional white plastic based fabric. In terms of imaging, the glass fibre is used as the bottom layer, and the high-tech PVC surface coating is used for a better picture.
Case material: piano lacquer curved shell
Available sizes and ratios: 16:9 106 inches, 16:10 92-133inches; 4:3 84-150 inches, 1:1 60-70 inches
Applicable environment: business office, cost-effective first choice
Applicable places: high-end business and educational places.
Applicable projectors: all common projectors
(Not applicable to ultra-short-throw projectors)
Format
|
Diag. Size (inch) |
Viewing area W x H (mm) |
Case Length (mm) |
Total Height (mm) |
Black Drop (mm)
|
Packing Size (mm) LxWxH |
Gross Weight (kg) |
Manu Model # |
Soltech Code |
16:9 |
106” |
2345 x 1325 |
2515 |
1900 |
400 |
2630 x 175 x 130 |
11.5 |
JK-M9 106 |
M9106 |
16:10 |
92” |
1980 x 1240 |
2200 |
1760 |
450 |
2320 x 175 x 130 |
10.5 |
JK-M10 92 |
M1092 |
106” |
2280 x 1425 |
2515 |
1900 |
450 |
2630 x 175 x 130 |
11.5 |
JK-M10 106 |
M10106 |
|
119” |
2560 x 1600 |
2800 |
1960 |
300 |
2920 x 175 x 130 |
13 |
JK-M10 119 |
M10119 |
|
133” |
2860 x 1790 |
3130 |
2010 |
150 |
3250 x 190 x 145 |
24 |
JK-M10 133 |
M10133 |
|
4:3 |
84” |
1710 x 1280 |
1880 |
1520 |
60 |
1975 x 175 x 130 |
9.5 |
JK-M4 84 |
M484 |
100” |
2030 x 1520 |
2200 |
1760 |
60 |
2315 x 175 x 130 |
10.5 |
JK-M4 100 |
M4100 |
|
120” |
2440 x 1830 |
2610 |
2070 |
60 |
2725 x 175 x 130 |
12 |
JK-M4 120 |
M4120 |
|
150” |
3050 x 2285 |
3230 |
2585 |
100 |
3550 x 190 x 145 |
25.5 |
JK-M4 150 |
M4150 |
|
1:1 |
60” |
1520 x 1520 |
1690 |
1750 |
60 |
1805 x 175 x 130 |
10.5 |
JK-M1 60 |
M160 |
70” |
1780 x 1780 |
1950 |
2000 |
60 |
2065 x 175 x 130 |
12 |
JK-M1 70 |
M170 |
M4120 Datasheet PDF
