ScreenBeam Wireless Presentation System, 1000 EDU Gen 2 Classroom Commander - 1000EDCMSG2
• Present from laptop, tablet or smartphone wirelessly
• Native screen mirroring or extended desktop solution; no app, no dongle
• Increased Memory and Storage for future expandability
• Quick Switch Mode to switch between presenters without disconnecting
• Optional configurable, secure, and isolated Wi-Fi hotspot
• Integrated HTML 5.0-based digital signage player
• Windows native wireless touch and inking, with ScreenBeam Ghost Inking™
• Integrated Whiteboard application with advanced interactive features
• Multi-View Mode allows up to four devices shared on-screen
• 4K and interactive flat panel ready
Smart wireless presentation and collaboration designed for modern classrooms
The ScreenBeam 1000 EDU Gen 2 is a Smart device designed to adapt and scale to modern K-12 classroom experiences. With its intuitive native wireless screen sharing and an integrated collaborative whiteboard application, the ScreenBeam 1000 EDU Gen 2 enhances teacher and student engagement for better learning outcomes. ScreenBeam delivers app-free screen sharing on any device eliminating the need to download an app or keep a cable or dongle nearby.
Teacher and guest devices have multiple ways to connect including local Wi-Fi mode, Miracast™, Airplay, Google Cast, provides configurable connectivity using peer-to-peer Wi-Fi Direct or over infrastructure. The new Whiteboard by ScreenBeam application enables collaborative Whiteboard interactivity without complex device connectivity. Running directly on the ScreenBeam device, Whiteboard is simply launched from the connected Interactive Flat Panel and requires no connected computer. ScreenBeam 1000 EDU Gen 2 delivers an affordable, easy teacher and student experience, with advanced technology to ensure simplicity and ready to expand with your growing technology needs.
Technical Specifications
• Compatible OS/Device
Miracast: Windows 11/10 and Android
Airplay: MacOS 11+ and iOS 13+
Google Cast: ChromeOS/Chrome 98+ and Android 8+
• Language Support
English
• Audio & Video Specifications
Native protocol: Miracast, Airplay, Google Cast
Video: H.264 compression
Audio: LPCM 2.0
Resolution: Up to 4K30
Protection: HDCP 2.x
• Network Specifications
Ethernet: 1000Base-T RJ-45 LAN
Wireless (Miracast P2P & Wi-Fi Hotspot): 802.11ac 3x3 MIMO Dual-band 5GHz
Wireless (Infrastructure): 802.11ac 2x2 MIMO 2.4GHz and 5GHz (DFS)
BLE (Discovery): 2402-2480MHz
Authentication protocol: IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2,
EAP-TLS
• Hardware Specifications

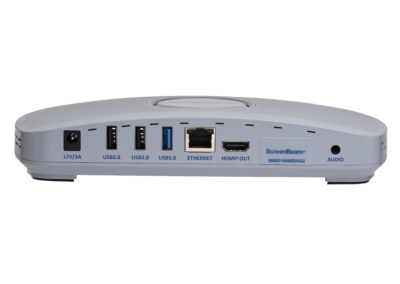

Interfaces: 1 x HDMI Output, 1 x RJ-45, 1 x USB 3.0 Host Type-A, 2 x USB 2.0 Host Type-A, 1 x
Analog 3.5mm Audio, 1 x DC Power Jack
Power: Input 12VDC 3A, Consumption: 8.4W Typical 24.8W Peak
Temperature: Operating 0* - 40*C (32* - 104*F), Storage -20* - 85*C (-4* - 185*F)
Humidity: Operating 20-80% non-condensing, Storage 10-90% non-condensing
• Dimensions & Weight
Size: W 8.66 in x D 5.66 in x H 1.47 in (220mm x 144mm x 37.5mm)
Weight: 1lb 0oz (453.5g)
• Certifications
Compliant Standards: FCC, RED, RoHS, UL
- Miracast requires device with Wi-Fi and Intel 802.11 AC or AX Wi-Fi or equivalent is recommended.
- Display resolution and quality depend on Wi-Fi and or LAN network condition.
- HDCP content protection only available for Miracast protocol.
1000EDCMSG2 Datasheet PDF
