ScreenBeam Flex Wireless Presentation System - CBWD1100F
• Native screen mirroring or extended desktop solution; no app, no dongle
• Quick Switch Mode to switch between presenters without disconnecting
• Multi-View Mode allows up to four devices shared on-screen
• Integrated HTML 5.0-based digital signage player
• Enterprise-Grade MultiNetwork Architecture
• Windows native wireless touch and inking, with ScreenBeam Ghost Inking™
Flexible wireless presentation and digital signage designed for SMB and Higher Ed ScreenBeam FLEX enables native wireless presentation from any operating system without special software or drivers, delivering critical features for SMB and Higher Education customers. FLEX features high-performance wireless presentation, built-in digital signage, interactive flat panel support for wireless inking and annotation, and Screen Beam’s MultiNetwork architecture without compromising network security or performance.
Flexible AV technology solutions ensure a rapid return on investment. ScreenBeam FLEX fulfils the need for a high-performance wireless presentation solution that does not compromise quality and a feature set focused on immediate needs. Screen Beam’s integrated Digital Signage Player is free with the FLEX receiver, adding value to your investment in digital flat panels for rich HTML 5.0 standards-based digital signage streams. Announcements, key events, and branding increase your display ROI without interrupting essential presentations.
Technical Specifications
• Compatible OS/Device
Miracast™: Windows 11/10 and Android
Airplay: MacOS 11+ and iOS 13+
Chromecast / Google Cast: ChromeOS/Chrome 98+ and
Android 8+
• Language Support
English
• Audio & Video Specifications
Native protocol: Miracast, Airplay, Chromecast / Google Cast
Video: H.264 compression
Audio: LPCM 2.0
Resolution: Up to 4K30
Protection: HDCP 2.x
• Network Specifications
Ethernet: 1000Base-T RJ-45 LAN
Wireless (Miracast P2P & Wi-Fi Hotspot): 802.11ac 3x3 MIMO Dual-band 5GHz
Wireless (Infrastructure): 802.11ac 2x2 MIMO 2.4GHz and 5GHz (DFS)
BLE (Discovery): 2402-2480MHz
Authentication protocol: IEEE 802.1x, WPA-PSK (TKIP), WPA2-PSK (AES), PEAP-MSCHAPv2,
EAP-TLS
• Hardware Specifications

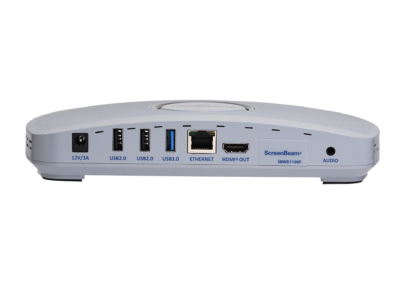

Interfaces: 1 x HDMI Output, 1 x RJ-45, 1 x USB 3.0 Host Type-A, 2 x USB 2.0 Host Type-A,
1 x Analog 3.5mm Audio, 1 x DC Power Jack
Power: Input 12VDC 3A, Consumption: 8.4W Typical 24.8W Peak
Temperature: Operating 0* - 40*C (32* - 104*F), Storage -20* - 85*C (-4* - 185*F)
Humidity: Operating 20-80% non-condensing, Storage 10-90% non-condensing
• Dimensions & Weight
Size: W 8.66 in x D 5.66 in x H 1.47 in (220mm x 144mm x 37.5mm)
Weight: 1lb 0oz (453.5g)
• Certifications
Compliant Standards: FCC, RED, RoHS, UL
- Miracast requires device with Wi-Fi and Intel 802.11 AC or AX Wi-Fi or equivalent is recommended.
- Display resolution and quality depend on Wi-Fi and or LAN network condition.
- HDCP content protection only available for Miracast protocol.
CBWD1100FW Datasheet PDF
