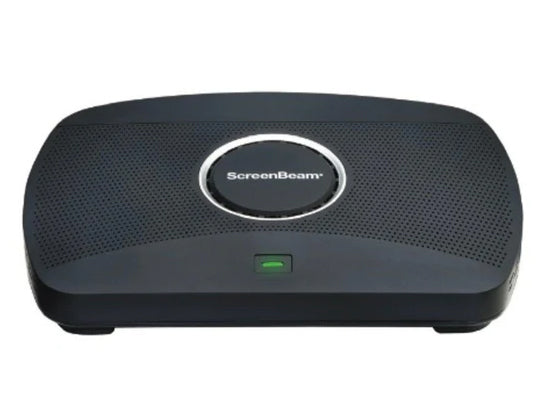

Screenbeam Wireless Presentation System - 1100PCMS
• Flexible deployment options reduce complexity and lower capital costs
Three separate network interfaces supporting both internal and external networks in a single device. Presenter and guest connect using Miracast™, local Wi-Fi mode or network providing more flexibility for different network policies and deployment needs.
• No apps to install and maintain, or dongles or cables required
Support for native wireless display protocols means users can wirelessly present from any device without having to install and maintain an application, or use a dongle or cable.
• Integrate ScreenBeam wireless display with a UC system
Merge these two technologies into a single, collaborative experience of wireless display and UC conferencing for on-site and remote participants. Plug an HDMI cable from the ScreenBeam output into the HDMI input of your UC appliance. Learn more here.
• Single device for both wired and wireless connections
Combines wireless display and HDMI switching in a single device. The new HDMI Input eliminates the need for an HDMI switch so rooms are fully functional for wired and wireless connections.
Multi-Network Support
No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously without compromising the security of your internal network.
Ghost Inking™ removes any wireless inking latency
Wirelessly markup content on the room display using Microsoft Windows Ink native in all Microsoft Office 365 apps – then store and share with everyone in the room instantly. Plus, Ghost Inking™ technology removes any wireless inking latency for a more intuitive and natural pen-to-paper experience.
Digital Signage for employee and guest communications
Idle displays in conference and other meeting rooms can be employed to transmit employee and guest communications with integrated HTML-based digital signage capability.
Multi-View allows up to four client devices to share content on-screen
Whether in-room or off-premise, as many as four participants can share content simultaneously during a meeting making it easier for real-time editing of materials.
Quick Switch Mode to switch between presenters without disconnecting
Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.
Multi-user and role-based central management of devices
Every ScreenBeam 1100 Plus includes Central Management System (CMS) Enterprise software to monitor and manage ScreenBeam receivers using a standard web browser, and support multi-user and role-based access for large deployments with multiple sites and administrators.
Three levels of security for the active connection
Connection level security support for most enterprise network certificate-based security requirements. Session level security with AES128 encryption to ensure that content is not compromised. Plus, customizable PIN pairing options providing IT/AV departments control over the user connection models so only authorized users are able to connect to the receiver
Hardware
Video
• H.264 compression
Audio
• LCPM 2.0
Resolution1
• Up to 4K@30Hz
Ethernet
• 10/100/1000-BASE-T RJ-45 LAN
Wireless
• Miracast and Local Wi-Fi Mode: 802.11ac dual-band 3×3 MIMO
• Network Bridge: 802.11ac dual-band 2×2 MIMO
Authentication
• WPA-PSK (TKIP)
Protocol
• WPA2-PSK (AES)
• PEAP-MSCHAP V2
• EAP-TLS
Interface
• 1 x HDMI Input
• 1 x HDMI Output
• 2 x USB 2.0 Host Type-A
• 1 x USB 3.0 Host Type-A
• 1 x Analog 3.5mm audio output
• 1 x DC Power Jack
Content Protection2
• HDCP 2.x
Power
• Input: 12VDC, 3A
• Consumption: 8.4W (typical), 36W (peak)
Dimensions
• 8.66 x 5.66 x 1.47 inch (220 x 144 x 37.5 mm)
Operating temperature
• 0º – 40º C (32º – 104º F)
Storage temperature
• -20º – 85º C (-4º – 185º F)
Operating humidity
• 20 – 80% non-condensing
Storage humidity
• 10 – 90% non-condensing
Compatible OS/Device
Miracast P2P wireless display requires certified device with either:
• Windows 10 build 1909 (and later)
• Android 4.2 (and later)
Wireless display over network requires device with either:
• Windows 10 build 20H2 (and later)
• macOS 10.10 (and later)
• iOS 11 (and later)
• Chrome OS 74.0.3729.159 (and later)
Language support
• English
• Simplified Chinese
• Traditional Chinese
• Japanese
• French
• German
• Dutch
• Korean
• Spanish
• Italian
• Russian
Others
Regulatory and compliance
• Approved: FCC and UL
• Pending: CE, RoHS and C-Tick
Warranty
• Limited three-year manufacturer hardware for product purchased after 1/2/2022
• Limited one year manufacturer hardware for product purchased on or before 1/2/2022
1 Actual display resolution and quality depend on the wireless/network environment
2 Content protection is not available for Mac/iOS
