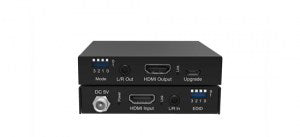

Tonlyware Extender, HDMI, Transmitter and Receiver - ET0101VL8A
• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable.
• Supports 1080p up to 70m/230ft, 4K up to 40m/130ft.
• Supports 1x HDMI loop out on Transmitter for integrating local display or cascading to multiple devices.
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
• Supports all known HDMI audio formats including
• Dolby TrueHD, Atmos and DTS-HD Master Audio transmission.
• Analogue L/R audio and digital audio breakout on TX unit
• Supports Bi-directional RS-232 pass through
• Supports Bi-directional IR pass through
• Advanced EDID management
• HDCP-2.2 compliant
Tonlyware – The ET0101-VL8A is a 4K HDCP 2.2 HDBaseT extender set which can extend HDMI, Bi-directional IR & RS-232 and Bi-directional PoC (Power over cable) up to lengths of 70m/230ft. The Transmitter includes a HDMI loop-out for integrating local display or cascading to multiple devices. Besides, the Transmitter also features simultaneous analogue audio and digital audio breakout.
• Video input:
1x HDBaseT RJ45 connector
• Video output:
1x HDMI Type A, female
• Audio output:
N/A
• RS232 serial port:
1x DB9 female connector
• IR Input:
1x 3.5mm stereo jack
• IR Output:
1x 3.5mm mono jack
• EDID DIP switch:
N/A
• Dimensions (W x H x D):
109mm x 110mm x 22mm
• Shipping Weight(kit):
0.4kg
• Power Supply:
12V/2A DC, Screw Type Connector
• Operating Temperature:
32°F to 104°F (0°C to 40°C)
• Storage Temperature:
-4°F to 140°F (-20°C to 60°C)
