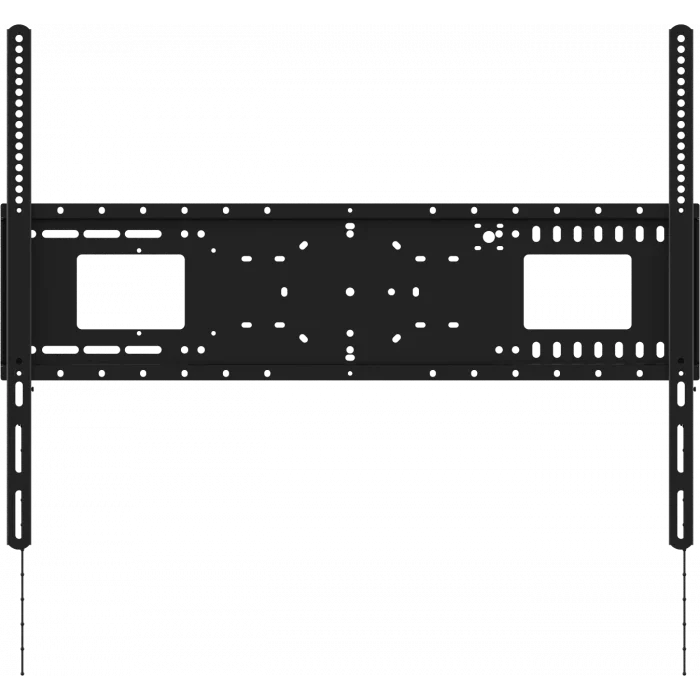

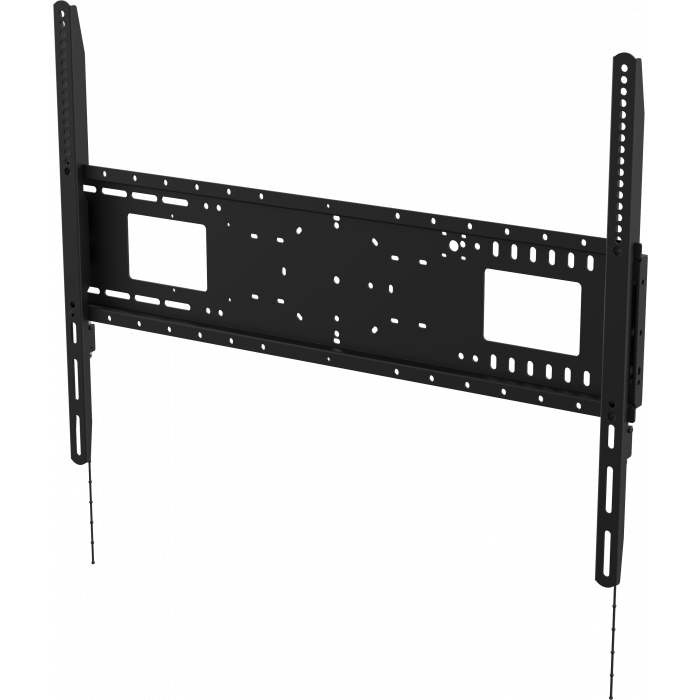

Vision Flat Panel Heavy Duty Bracket - 4934295
• Non-tilting Wall Mount for large-format flat panels 47-100"
• (subject to VESA pattern and weight limit)
• Mounting points up to 800 (wide) x 600 mm (tall) apart
•Heavy duty 130 kg / 287 lb SWL
• Display latches in place
• Optional camera shelf
Vision’s Vision Flat-panel Mount - Wall range is designed by Vision's engineering team for professional AV installers. This mount is no-compromise: very strong, fast to install, highly adjustable, everything included. The VFM-W8X6 fits any flat-panel LCD or LED screen which has rear mounting holes up to 800 wide x 600 mm tall apart.
Heavy Duty
Interactive flat panels are large and very heavy. Vision’s VFM-W8X6 uses heavy gauge sheet metal to take the weight up to SWL 130 kg / 287 lb safely.
Everything Included
Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
For 47-100" Displays
Fits most displays from 47-100″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
Meets ADA Regulations

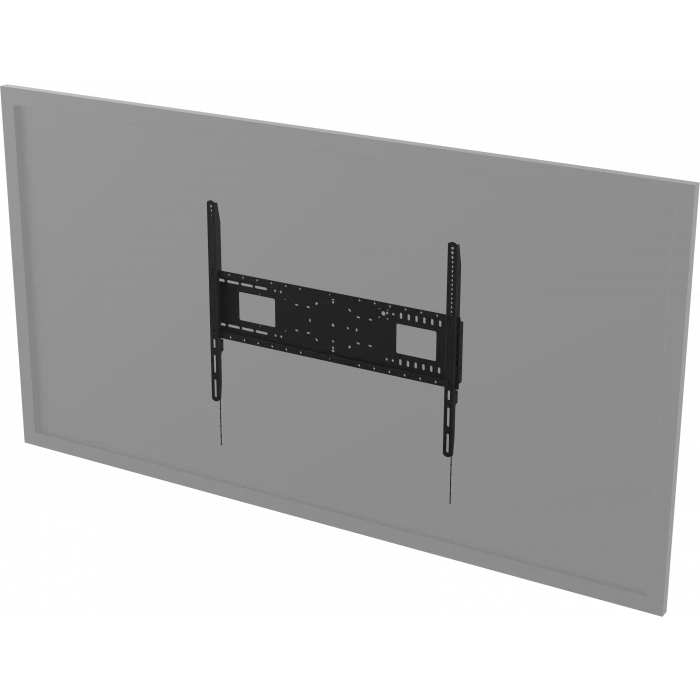

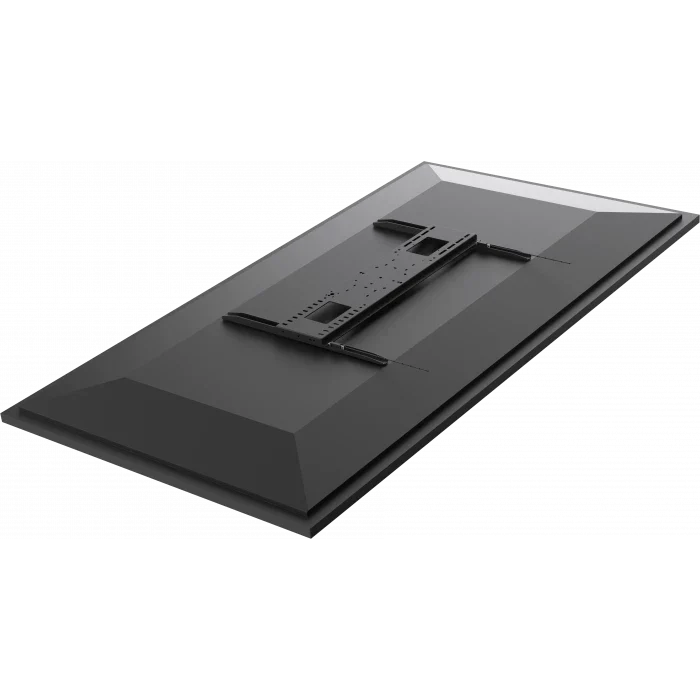

The thin design holds the display just 36 mm / 1.4" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
Designed for Professionals
A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
Latches Securely
The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
Side by Side
Two horizontal sections can be fixed together side by side for dual-display video conference or huddle room applications. Or extend the horizontal to bridge wide load bearing points in a wall.
Hide Media Player
Thoughtfully placed VESA 100 x 100 mm holes on the horizontal part allow a thin media player to fix behind the display out of sight.
Optional Laptop Shelf
An optional shelf fixes at four different heights in 80 mm (3.1") increments to the horizontal part of the wall mount. The platform is 450 mm (17.7") wide by 306 mm (12.0") deep. At the lowest height setting the shelf is 680 mm (26.8") below the centre of screen. Part Number: VFM-WLS [EU SAP: 4857149 / US SAP: 13557610]
Video Conference Shelf
An optional shelf fixes in the centre above or below the display. Any camera including the Logitech Rally can be fixed to the shelf. It is also designed to accommodate Yamaha’s YVC-1000, Barco’s Clickshare CSE-200 base station, or Logitech’s Meetup wall bracket can fix to the vertical part. With VESA 100 x 100 mm holes on the vertical section, product's like Heckler's Zoom Room iPad enclosure can be fixed. Part Number: VFM-WVC [EU SAP: 5048878 / US SAP: 13557673]
PRODUCT DIMENSIONS
845 x 635 x 36 mm / 33.3″ x 25.0″ x 1.4″ (width x height x depth)
PACKAGED DIMENSIONS
880 x 235 x 40 mm / 34.6″ x 9.3″ x 1.6″
PRODUCT WEIGHT
5.8 kg (12.9 lbs)
PACKAGED WEIGHT
6.8 kg (15.0 lbs)
SAFE WORKING LOAD
130 kg (287 lbs)
CONSTRUCTION MATERIAL
Cold-rolled Steel 3 mm (0.12")
COLOUR
Black
VESA SIZES
800 x 600 mm
800 x 500 mm
800 x 400 mm
700 x 400 mm
600 x 600 mm
600 x 500 mm
600 x 400 mm
500 x 500 mm
500 x 400 mm
400 x 600 mm
400 x 400 mm
400 x 300 mm
400 x 200 mm
300 x 400 mm
300 x 300 mm
ACCESSORIES INCLUDED
4 x M5 16 mm screw
4 x M6 16 mm screw
4 x M6 25 mm screw
4 x M8 30 mm screw
4 x M8 50 mm screw
4 x 13 mm thick nylon spacers
4 x 20 mm thick nylon spacers
WARRANTY
Lifetime return-to-base
COMPLIANCES
RoHS, ADA (Americans with Disability Act) Compliant
OPTIONAL ADD-ONS
VFM-WLS Side Shelf [EU SAP: 4857149 / US SAP: 13557610]
VFM-WVC Video Conferencing Shelf [EU SAP: 5048878 / US SAP: 13557673]
ORDER PART CODE
VFM-W8X6 [EU SAP: 4934295 / US SAP: 13557607]
COUNTRY OF ORIGIN
China
ISO
ISO 9001:2015
4934295 Datasheet PDF
