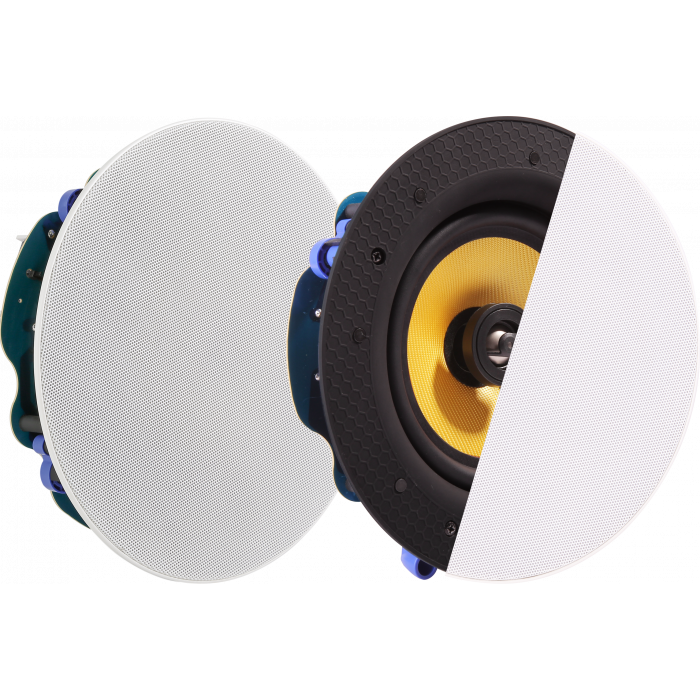

Vision Ceiling Speaker - 4815044

Vision
VI4815044SPKAUDIO
R 2,669.26 Ex VAT

• Slim bezel-less magnetic grille

• Premium fiberglass woven 6.5″ Woofer

• Large 0.75″ Silk Tweeter

• Passive Crossover

Redesigned from the ground up, the CS-1900 ceiling speakers are loaded with quality components resulting in clean, powerful sound. They use the ceiling void as an infinite baffle – allowing un-restricted driver excursion – all of which adds up more bass. Low impedance speakers like these offer better sound that 100/70v line speakers. Perfect for meeting spaces.

Silk Dome

The large tweeter is made from premium material and pivots to help installers setup the soundscape. Silk ensures long, stable performance and reduces distortion.

Woven fiberglass

Woven fiberglass gives smooth audio with incredible detail and transparency. The cone is held in place with a butyl rubber surround to extend the life of the loudspeaker.

Magnetic Grill

The grill clips into place magnetically once the speakers are secured.

Invisible

The grill extends all the way to the edge of the speaker resulting in virtually no visible edge. This ultra-thin grille allows the technology to visually disappear.

Simple to fit

A cutout template is included so the installer can easily trace the cut line in the ceiling tile. Cut a 205 mm hole and turn the dog-leg screws from below to fix the speaker; it’s quick and easy.

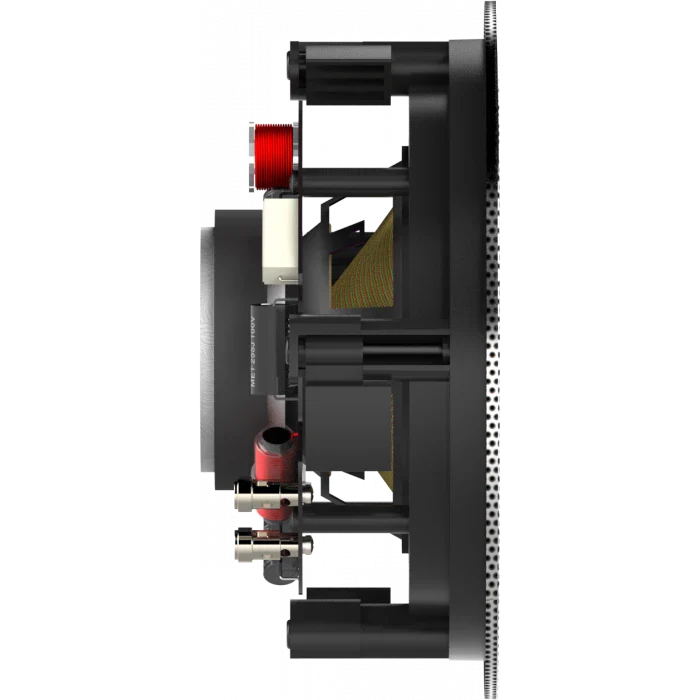

Shallow

Only 95 mm deep, the CS-1900 can be placed anywhere around the room to optimally disperse the sound. They fit in any environment which has a false ceiling.

Crossover

Gold plated terminals and a quality crossover circuit is included which splits the work between the woofer and tweeter.

High Sensitivity

Ceiling speakers often lack the power of wall speakers, but these have a higher sensitivity of 87dB to cut through high-noise presentation environments.

Thick Ceiling?

The clamps are an extra-long 26 mm to cope with ceilings made of very thick material. Most ceiling speakers can only cope with tiles up to 15 mm thick.

LOUDSPEAKER DIMENSIONS

225 x 95 mm

CUTOUT SIZE

205 mm

CARTON DIMENSIONS

280 x 245 x 280 mm (contains a pair)

SPEAKER WEIGHT

1.4 kg (each)

CARTON WEIGHT

3 kg (contains a pair)

POWER HANDLING

60 Watt RMS

WOOFER

6.5″ woven fiberglass

TWEETER

0.75″ Silk Dome

CONTRUCTION MATERIAL

ABS Plastic

SPEAKER TERMINALS

Spring post

NOMINAL IMPEDANCE

8 ohms

SENSITIVITY

87 dB (1w/1m)

FREQUENCY RESPONSE

60 Hz-20 kHz

COLOUR

Cone: Yellow
Basket: Black
Grill: White

WARRANTY

Lifetime return-to-base

COMPLIANCES

RoHS, WEEE, REACH, UKCA

ORDER PART CODE

CS-1900 [EU SAP: 4815044 / US SAP: 13557537]

COUNTRY OF ORIGIN

China

4815044 Datasheet PDF
