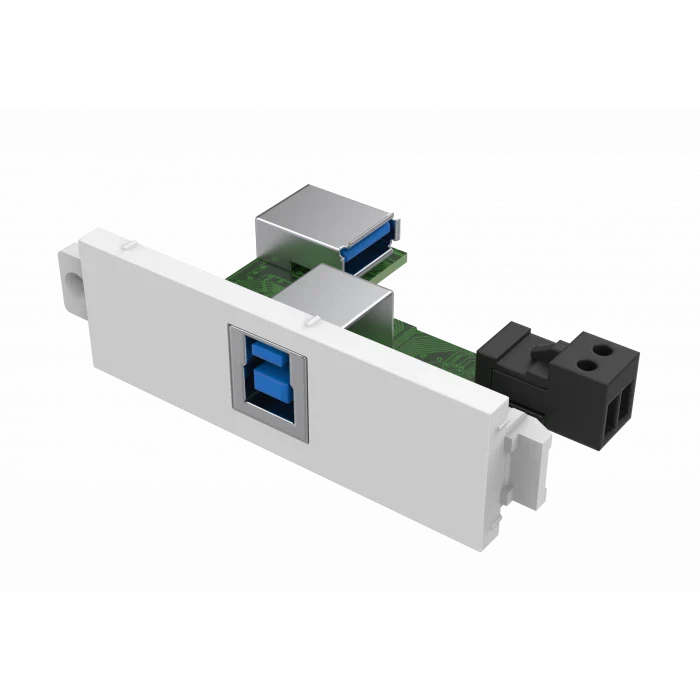

Vision Cable Termination System, USB-B 3.0 Booster Module - 3446582

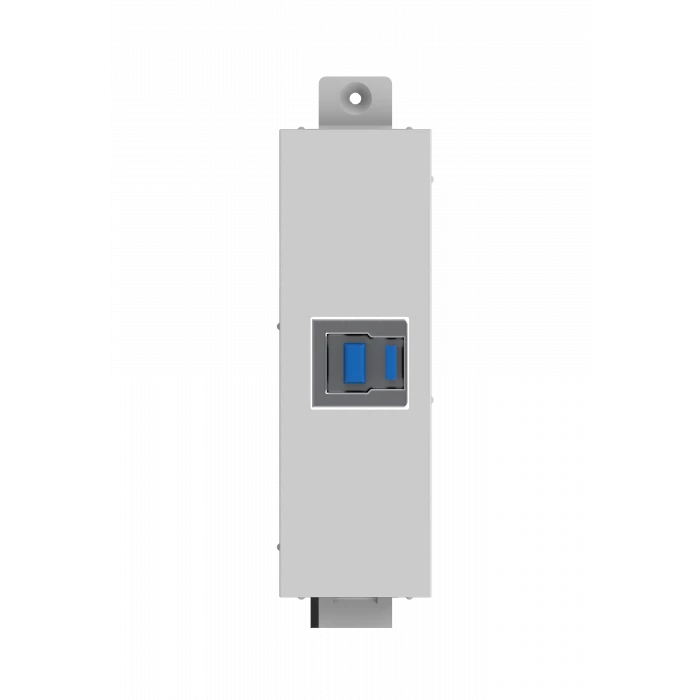

• "B" type socket on the front as found on a printer chassis

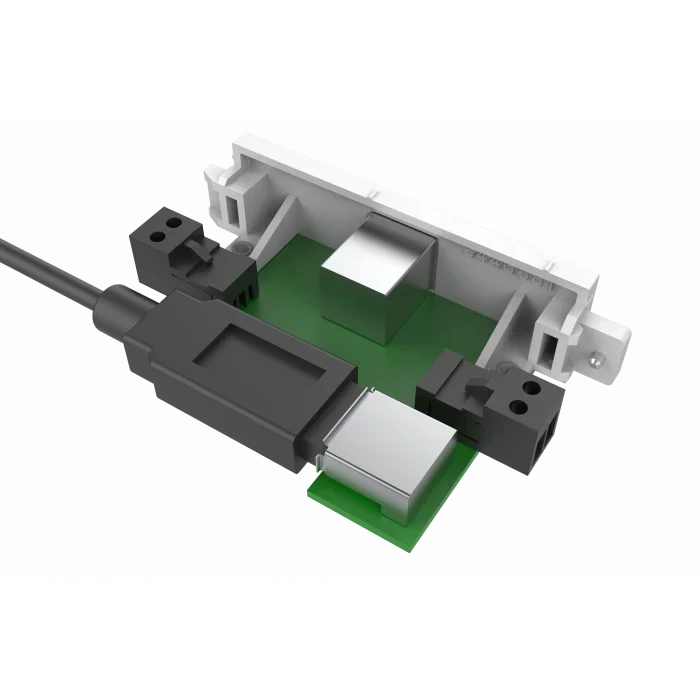

• "A" type socket on the rear as found on a laptop chassis
• Active circuit uses 5v carried on USB to boost signal
• Occupies 1 module space
• USB 3.0
This module is part of Vision's Techconnect connectivity faceplate family.
It uses the power carried over USB to power the circuit. Most of the time this is sufficient, but occasionally when you're using long USB cables you might need to add an external power supply. A power input allows you to connect a universal after-market PSU.
Fixes to Surround
Techconnect modules fix into a surround, which in turn fixes to a backbox, mudring (for hollow walls), or a table faceplate.
Future-proof
If you break a module or need to change it in the future, just replace that part - not the entire faceplate.
Flexible
Get to site and the client changes what they want on their AV faceplate? No problem.
Strong
Techconnect parts are robust for the rigours of everyday use. They include strengthening ribs and reinforcing where required.
Proven
For over 15 years Techconnect has improved and developed into one of the most popular AV faceplates in the world.
COLOR
White
MATERIAL
ABS Plastic

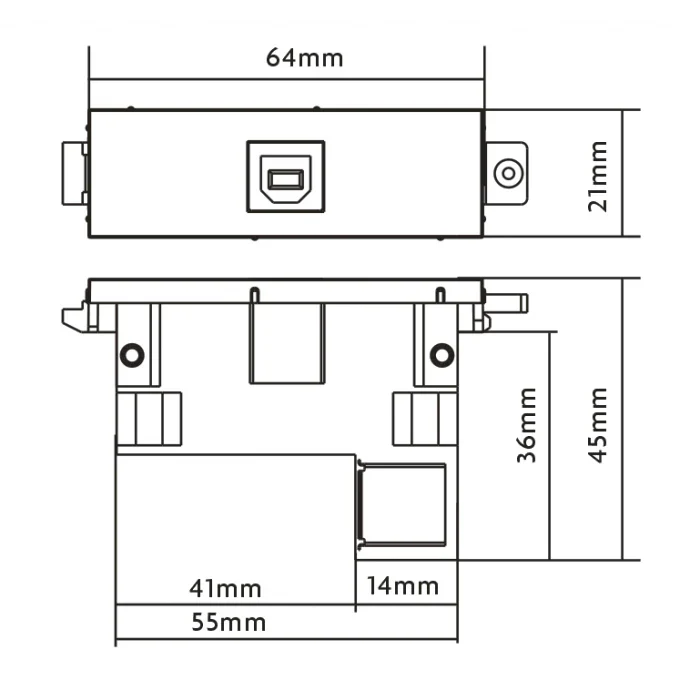

PRODUCT DIMENSIONS
64 x 21 x 45 mm / 2.5" x 0.83" x 1.77"
PRODUCT WEIGHT
0.03 kg (0.07 lb)
PACKAGED WEIGHT
0.03 kg (0.07 lb)
PACKAGED DIMENSIONS
90 x 150 mm /3.5" x 5.9"
MAXIMUM INPUT CABLE LENGTH
10m
FOR LONGER CABLES EXTERNAL POWER MAY BE REQUIRED
SPARE POWER SUPPLY FOR OLD 2.0 MODULE
Vision no longer offer spare power supplies.
Any 12V 0.5A power supply can be used.
SPARE POWER SUPPLY FOR CURRENT 3.0 MODULE
Vision no longer offer spare power supplies.
Any 5v 2A power supply can be used
ORDER PART CODE
TC3 USBB+ [EU SAP: 3446582 / US SAP: 12980832]
COUNTRY OF ORIGIN
China
ISO
ISO 9001:2015
